OU330N
USB-C/Gigabit Ethernet Network Adapter with 3 USB 3.0 Ports
- For PCs and laptops with USB Type-C port
- Gigabit Ethernet port with network activity LED
- 3 USB 3.0 ports for computer peripherals
- Compatible with Windows, macOS, Linux operating systems
Description

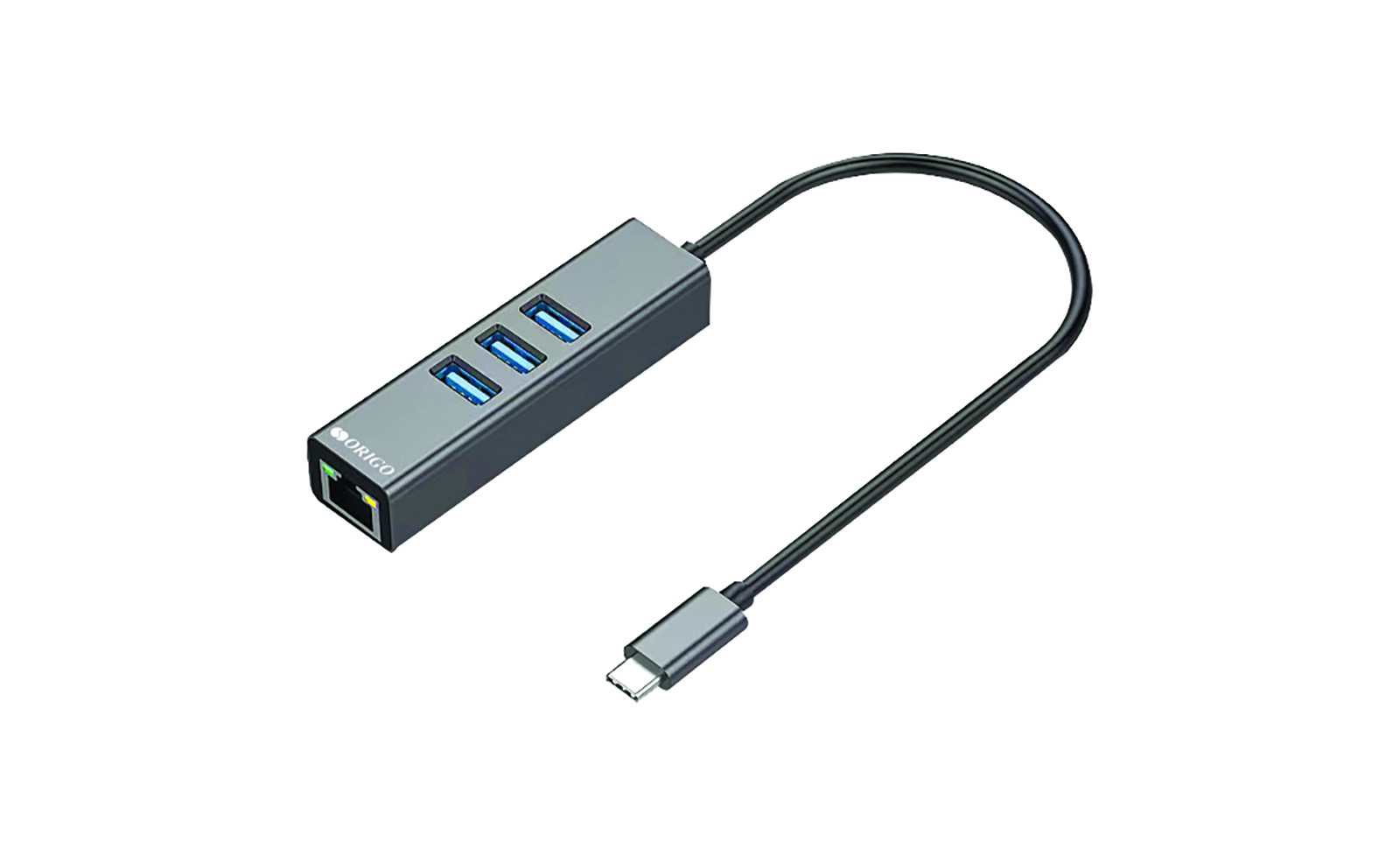

OU330N is a network adapter with Gigabit Ethernet port and 3 USB 3.0 ports for PCs and laptops with USB Type-C port.
The ORIGO OU330N network adapter provides gigabit connection over Ethernet cable for PCs and laptops that don't have LAN (RJ-45) port, but have USB-С port.
Built-in 3-port USB 3.0 hub allows you to connect external hard drive, mouse, keyboard, USB headphones, USB camera and other peripherals to your PC or laptop.
Specification
|
Hardware
|
|
|
Connector for Connecting PC
|
• USB Type-C
|
|
Ports
|
• 1 Gigabit Ethernet (RJ-45) port
• 3 USB 3.0 Type-A ports
|
|
LED
|
• Link/Activity (for Gigabit Ethernet port)
|
|
Standards
|
• USB 3.0
• USB 2.0
• USB 1.1
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
|
|
Data Rate
|
• Up to 5 Gbps (USB 3.0)
• Up to 1000 Mbps (Ethernet)
|
|
System Requirements
|
|
|
PC Minimum Requirements
|
• Available USB Type-C port
• Compatible OS:
- Windows 7/8/8.1/10/11
- Mac OS 10.x and higher
- Linux Kernel 2.6 and higher
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 85 x 23 x 16 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• From computer (from USB bus)
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -10 to 70 °C
|
|
Humidity
|
• Operating: up to 85% (non-condensing)
• Storage: up to 85% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OU330N Network Adapter
• Quick Installation Guide
|
