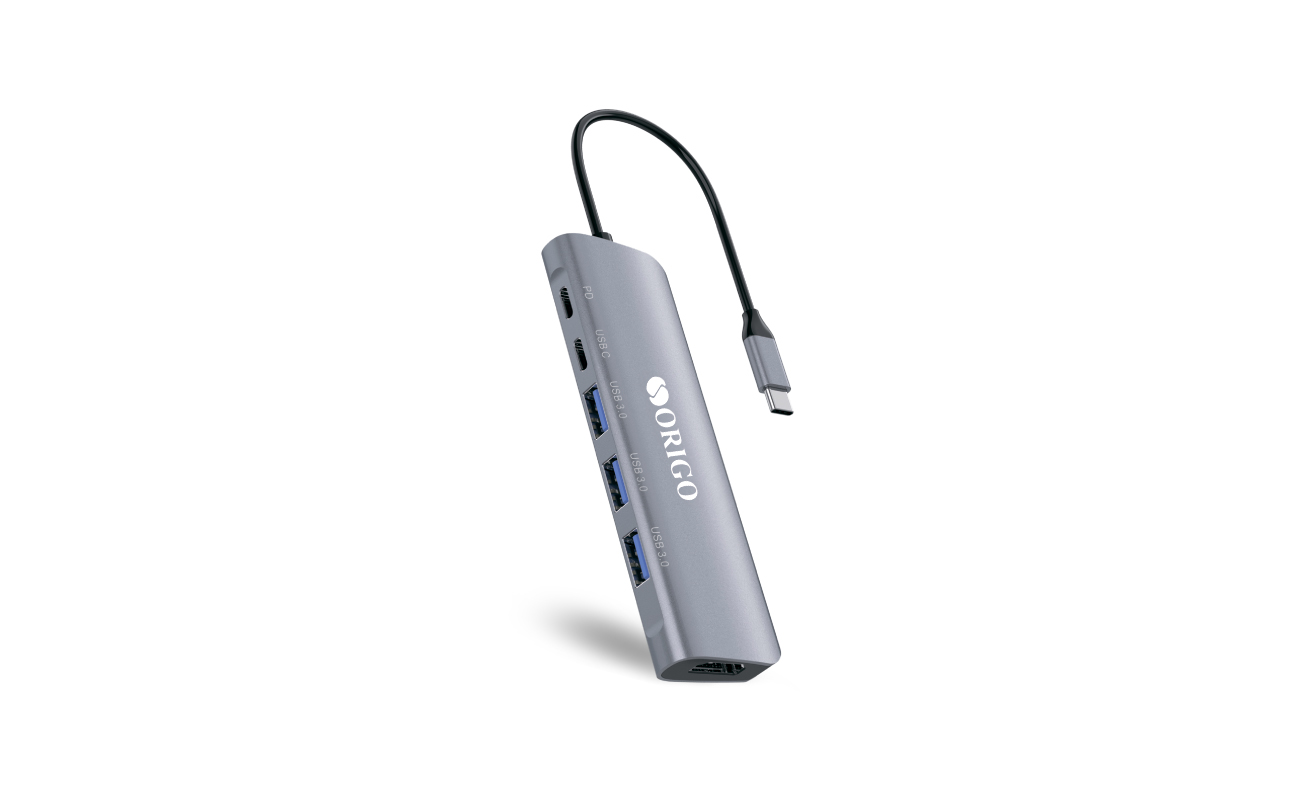

OU3360PD
6-in-1 USB-C Docking Station
3xUSB 3.0, USB-C/PD 3.0, USB-C, HDMI
- For PCs and laptops with USB Type-C port
- 3 USB 3.0 ports for computer peripherals
- HDMI port with 1080p@60Hz, 4K@30Hz support
- USB-C port for transmitting data
- USB-C/PD 3.0 (100 W) port for fast charging your laptop
- macOS, Windows, Linux support
Description
OU3360PD is a portable 6-in-1 docking station for devices with USB Type-C port.
The ORIGO OU3360PD docking station has a wide range of ports for connecting additional devices to PCs and laptops equipped with USB Type-C port.
Three USB 3.0 ports provide data transmission at the speed of up to 5 Gbps, which is 10 times faster than when using USB 2.0. This allows to stream movies and files in HD format just in a few seconds
The HDMI1 port with 1080p@60Hz, 4K@30Hz support allows you to connect your laptop to monitor, TV screen or projector and organize a video content streaming on a big screen in Ultra HD quality.
One of two USB-C ports supports PD 3.0 (100 W) Fast Charge technology2 and allows you to charge your laptop without disconnecting the docking station.
The docking station is compatible with macOS, Windows, Linux operating systems.
1DP Alt Mode support is required for HDMI proper operation.
2Please make sure that the USB Type-C port of your laptop supports PD 3.0.
Specification
|
Hardware
|
|
|
Connector for Connecting PC
|
• USB Type-C
|
|
Ports
|
• 3 USB 3.0 Type-A ports (up to 5 Gbps)
• 1 HDMI port (1080p @ 60 Hz, 4K @ 30 Hz)
• 1 USB Type-C port
• 1 USB Type-C/PD 3.0 port (100 W)
|
|
Standards
|
• USB 3.0
• USB 2.0
• USB 1.1
|
|
Casing
|
• Aluminium
|
|
System Requirements
|
|
|
PC Minimum Requirements
|
• Available USB Type-C port with DP Alt Mode support
• Compatible OS:
- Windows 7/8/8.1/10/11
- Linux 2.6 and higher
- Mac OS 10.x and higher
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 114 x 36 x 16 mm
|
|
Weight
|
• 68 g
|
|
Operating Conditions
|
|
|
Power Input
|
• From computer (from USB bus)
|
|
PD Power
|
• 100 W
|
|
PD Voltage
|
• 20 V
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -10 to 70 °C
|
|
Humidity
|
• Operating: up to 85% (non-condensing)
• Storage: up to 85% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OU3360PD Docking Station
• Quick Installation Guide
|
