OU2270P
USB-A Hub with 7 USB 3.0 Ports
(1 Fast Charging Port)
- For PCs and laptops with USB Type-A port
- Connect up to 7 USB devices
- 1 port with Fast Charging Mode (1.5 A)
- Data rate up to 5 Gbps
- No driver installation required
- Compatible with Windows, macOS, Linux operating systems
- Power adapter included
Description

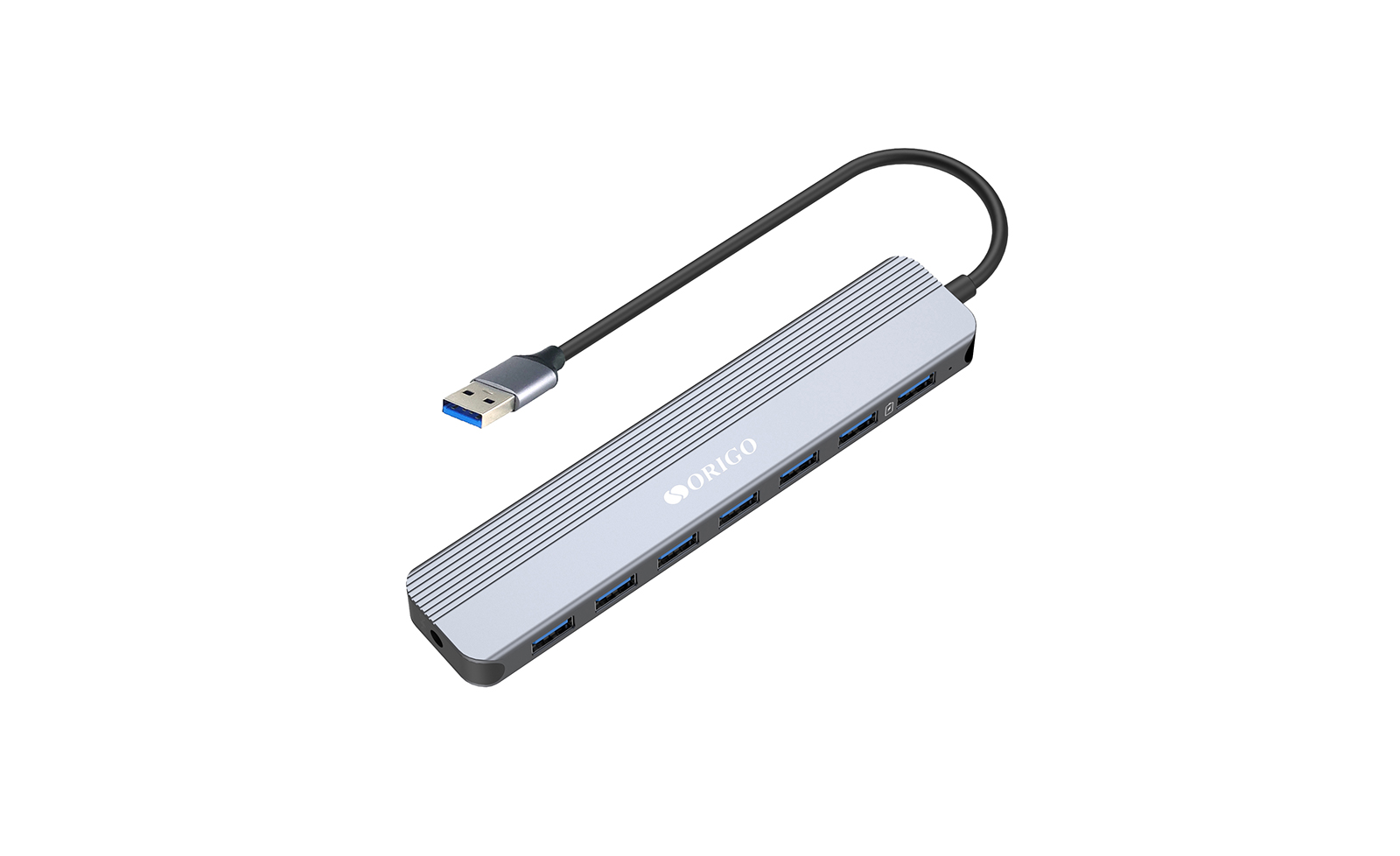

OU2270P is a portable hub with 7 USB 3.0 ports for PCs and laptops with USB Type-A port.
The ORIGO OU2270P hub allows you to connect up to 7 USB devices to PCs and laptops equipped with standard USB Type-A port. The hub is ideal for connecting external hard drives, flash storages, printer, keyboard, mouse and other peripherals.
One of USB 3.0 ports supports 1.5 A output current and provides fast charging of smartphones, smartwatch, fitness trackers and other wearable gadgets.
The OU2270P hub is designed in compact and light aluminium case with built-in 12 cm USB cable. The 12V DC/2A power adapter (included) may be required when connecting external hard drives and other USB devices with increased power consumption.
The OU2270P hub doesn't require driver installation and supports the most demanded operating systems, including Windows, macOS and Linux.
Specification
|
Hardware
|
|
|
Connector for Connecting PC
|
• USB Type-A
|
|
Ports
|
• 6 USB 3.0 Type-A ports
• 1 USB 3.0 Type-A port with Fast Charging Mode support
- Max.: 1.5 A
|
|
Standards
|
• USB 3.0
• USB 2.0
• USB 1.1
• Battery Charging 1.2
|
|
Data Rate
|
• Up to 5 Gbps
|
|
Power
|
• Connector for connecting the DC power adapter
|
|
Casing
|
• Aluminium
|
|
System Requirements
|
|
|
PC Minimum Requirements
|
• Available USB port (USB 3.0 is recommended)
• Compatible OS:
- Windows 7/8/8.1/10/11
- Linux 2.6 and higher
- Mac OS 10.x and higher
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 168 x 35 x 13.5 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• From computer (from USB bus)
• External power adapter:
- Output: 12 V DC, 2 A
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90%
• Storage: 5% to 90%
|
|
Package Contents
|
|
|
Package Contents
|
• OU2270P USB Hub
• Power Adapter
• Quick Installation Guide
|
