OU3360NPD
9-in-1 USB-C Docking Station
3xUSB 3.0, USB-C/PD 3.0, USB-C,
HDMI, Gigabit LAN, SD/TF/microSD
- For PCs and laptops with USB Type-C port
- 3 USB 3.0 ports for computer peripherals
- HDMI port with 1080p@60Hz, 4K@30Hz support
- Gigabit Ethernet port
- SD/TF/microSD card reader
- USB-C port for transmitting data
- USB-C/PD 3.0 (100 W) port for fast charging your laptop
- macOS, Windows, ChromeOS, iPadOS, Linux support
Description

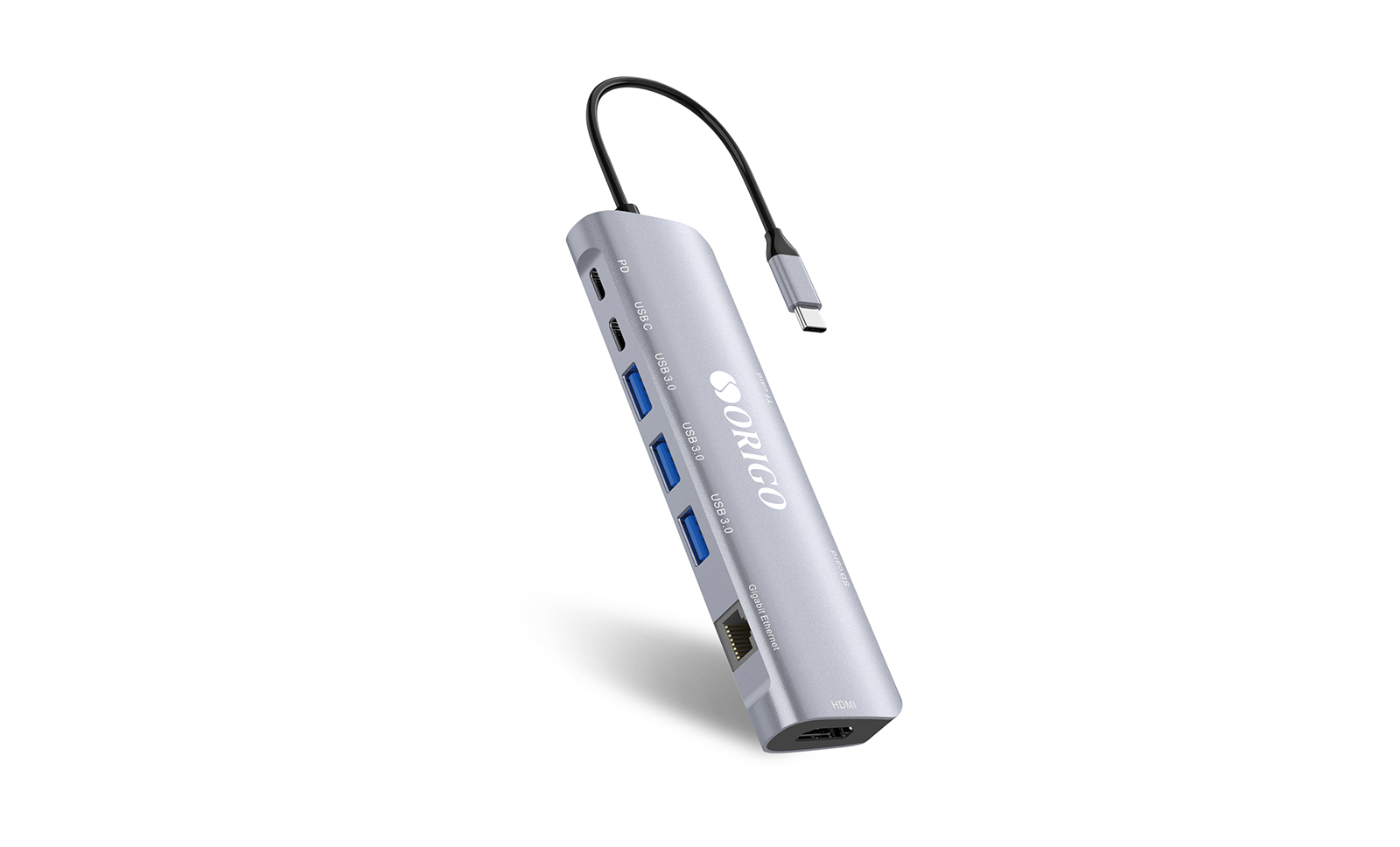

OU3360NPD is a portable 9-in-1 docking station for devices with USB Type-C port.
The ORIGO OU3360NPD docking station has a wide range of ports for connecting additional devices to PCs and laptops equipped with USB Type-C port.
Three USB 3.0 ports allow you to connect required computer peripherals, while Gigabit Ethernet port ensures reliable connection to a wired network with Internet access at the speed of up to 1000 Mbps.
The HDMI1 port with 1080p@60Hz, 4K@30Hz support allows you to connect your laptop to monitor, TV screen or projector and organize a video content streaming on a big screen in Ultra HD quality.
One of two USB-C ports supports PD 3.0 (100 W) Fast Charge technology2 and allows you to charge your laptop without disconnecting the docking station.
The OU3360NPD docking station has also SD/TF/microSD card slots.
The docking station is compatible with macOS, Windows, ChromeOS, iPadOS, Linux operating systems.
1DP Alt Mode support is required for HDMI proper operation.
2Please make sure that the USB Type-C port of your laptop supports PD 3.0.
Specification
|
Hardware
|
|
|
Connector for Connecting PC
|
• USB Type-C
|
|
Ports
|
• 3 USB 3.0 Type-A ports (up to 5 Gbps
• 1 HDMI port (1080p @ 60 Hz, 4K @ 30 Hz)
• 1 Gigabit Ethernet (RJ-45) port (up to 1000 Mbps)
• 1 USB Type-C port
• 1 USB Type-C/PD 3.0 port (100 W)
• SD/TF/microSD card slots
|
|
Standards and Functions
|
• USB version 3.0 specification
• USB version 2.0 specification
• USB version 1.1 specification
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
|
|
System Requirements
|
|
|
PC Minimum Requirements
|
• Available USB Type-C port with DP Alt Mode support
• Compatible OS:
- Windows 7/8/8.1/10/11
- Mac OS 10.x and higher
- Linux 2.6 and higher
- ChromeOS
- iPadOS
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 136 x 36 x 16 mm
|
|
Weight
|
• 72 g
|
|
Operating Conditions
|
|
|
Power Input
|
• From computer (from USB bus)
|
|
PD Power
|
• 15-100 W
|
|
PD Voltage
|
• 5-20 V
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 10% to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OU3360NPD Docking Station
• Quick Installation Guide
|
