OU3350SNPD
9-in-1 USB-C Docking Station
USB 3.0, 2xUSB 2.0, USB-C/PD 3.0, HDMI,
Gigabit LAN, SD/TF/microSD, TRRS, Mic
- For PCs and laptops with USB Type-C port
- Two USB 2.0 ports and one USB 3.0 port for computer peripherals
- HDMI port with 4K@60Hz support
- Gigabit Ethernet port
- SD/TF/microSD card reader
- 3.5 mm audio connector for headset/headphones
- 3.5 mm audio connector for microphone
- USB-C/PD 3.0 (100 W) port for fast charging
- Windows OS 10/11 and macOS 14 support
Description

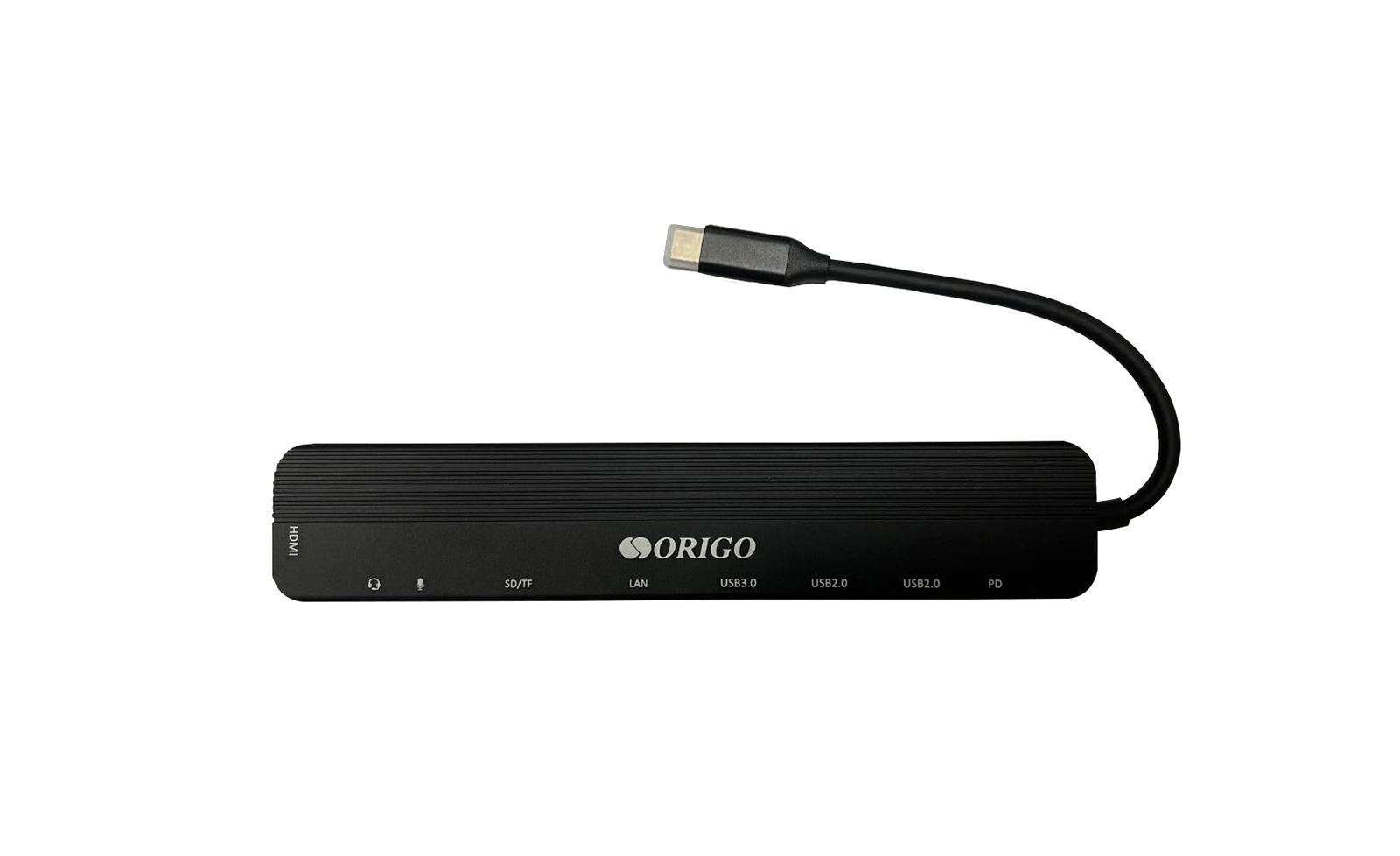

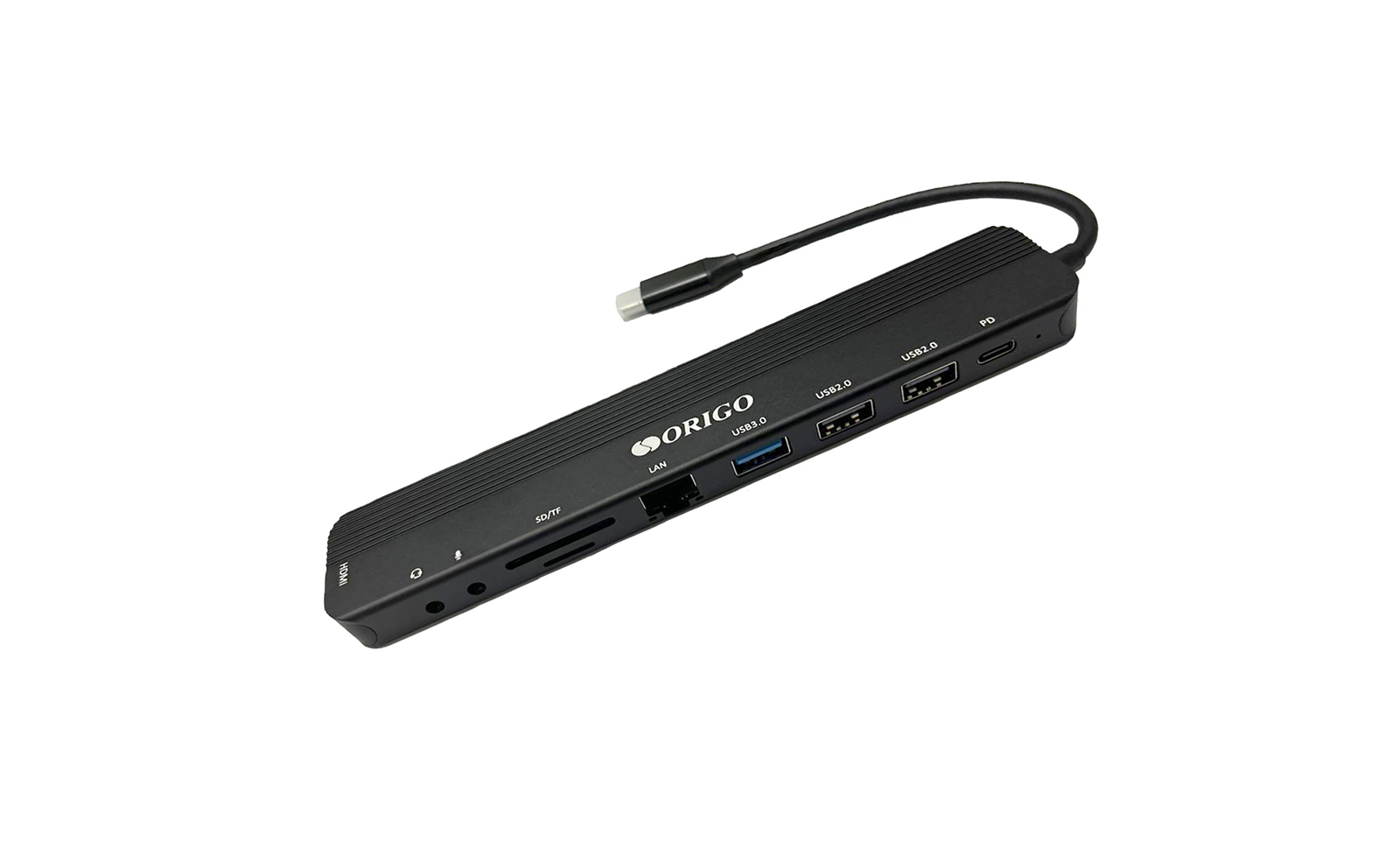

OU3350SNPD is a portable 9-in-1 docking station for devices with USB Type-C port.
The ORIGO OU3350SNPD docking station has a wide range of ports for connecting additional devices to PCs and laptops equipped with USB Type-C port.
Two USB 2.0 ports and one USB 3.0 port allow you to connect required computer peripherals, while Gigabit Ethernet port ensures reliable connection to a wired network with Internet access at the speed of up to 1000 Mbps.
The HDMI1 port with 4K@60Hz support allows you to connect your laptop to monitor, TV screen or projector and organize a video content streaming on a big screen in Ultra HD quality.
The USB-C port supports PD 3.0 (100 W) Fast Charge technology2 and allows you to charge your laptop without disconnecting the docking station.
The OU3350SNPD docking station has also SD/TF/microSD card slots and 3.5 mm audio connectors3 for connecting headset and microphone.
The docking station is compatible with Windows 10/11 and macOS 14 operating systems.
1DP Alt Mode support is required for HDMI proper operation.
2Please make sure that the USB Type-C port of your laptop supports PD 3.0.
3TRRS and Mic audio connectors can not be used simultaneously.
Specification
|
Hardware
|
|
|
Connector for Connecting PC
|
• USB Type-C
|
|
Ports
|
• 1 USB 3.0 Type-A port (up to 5 Gbps)
• 2 USB 2.0 Type-A ports (up to 480 Mbps)
• 1 HDMI port (4K @ 60 Hz)
• 1 Gigabit Ethernet (RJ-45) port (up to 1000 Mbps)
• 1 USB Type-C/PD 3.0 port (100 W)
• SD/TF/microSD card slots
• 3.5 mm audio connector (Mic)
• 3.5 mm audio connector, 4 pins (TRRS)
|
|
Standards and Functions
|
• USB version 3.0 specification
• USB version 2.0 specification
• USB version 1.1 specification
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
|
|
Casing
|
• Anodized aluminium
|
|
System Requirements
|
|
|
PC Minimum Requirements
|
• Available USB Type-C port with DP Alt Mode support
• Compatible OS:
- Windows OS 10/11
- macOS 14
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 180 x 35 x 12 mm
|
|
Weight
|
• 90 g
|
|
Package Dimensions
|
• 22.5 x 9.2 x 3.2 cm
|
|
Gross Weight
|
• 0.15 kg
|
|
Operating Conditions
|
|
|
Power Input
|
• From computer (from USB bus)
|
|
PD Power
|
• 15-100 W
|
|
PD Voltage
|
• 5-20 V
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -10 to 68 °C
|
|
Humidity
|
• Operating: 5% to 85% (non-condensing)
• Storage: 5% to 85% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OU3350SNPD Docking Station
• Quick Installation Guide
|
