OU1140
USB-A Hub with 4 USB 2.0 Ports
- For PCs and laptops with USB Type-A port
- Connect up to 4 USB devices
- Data rate up to 480 Mbps
- External power through USB-C port (5V DC/3A)
- Compact and light
- No driver installation required
- Compatible with Windows, macOS, Linux operating systems
Description
OU1140 is a portable hub with 4 USB 2.0 ports for PCs and laptops with USB Type-A port.
The ORIGO OU1140 hub allows you to connect up to 4 USB devices to PCs and laptops equipped with standard USB Type-A port. The hub is ideal for connecting external hard drives, flash storages, printer, keyboard, mouse and other peripherals.

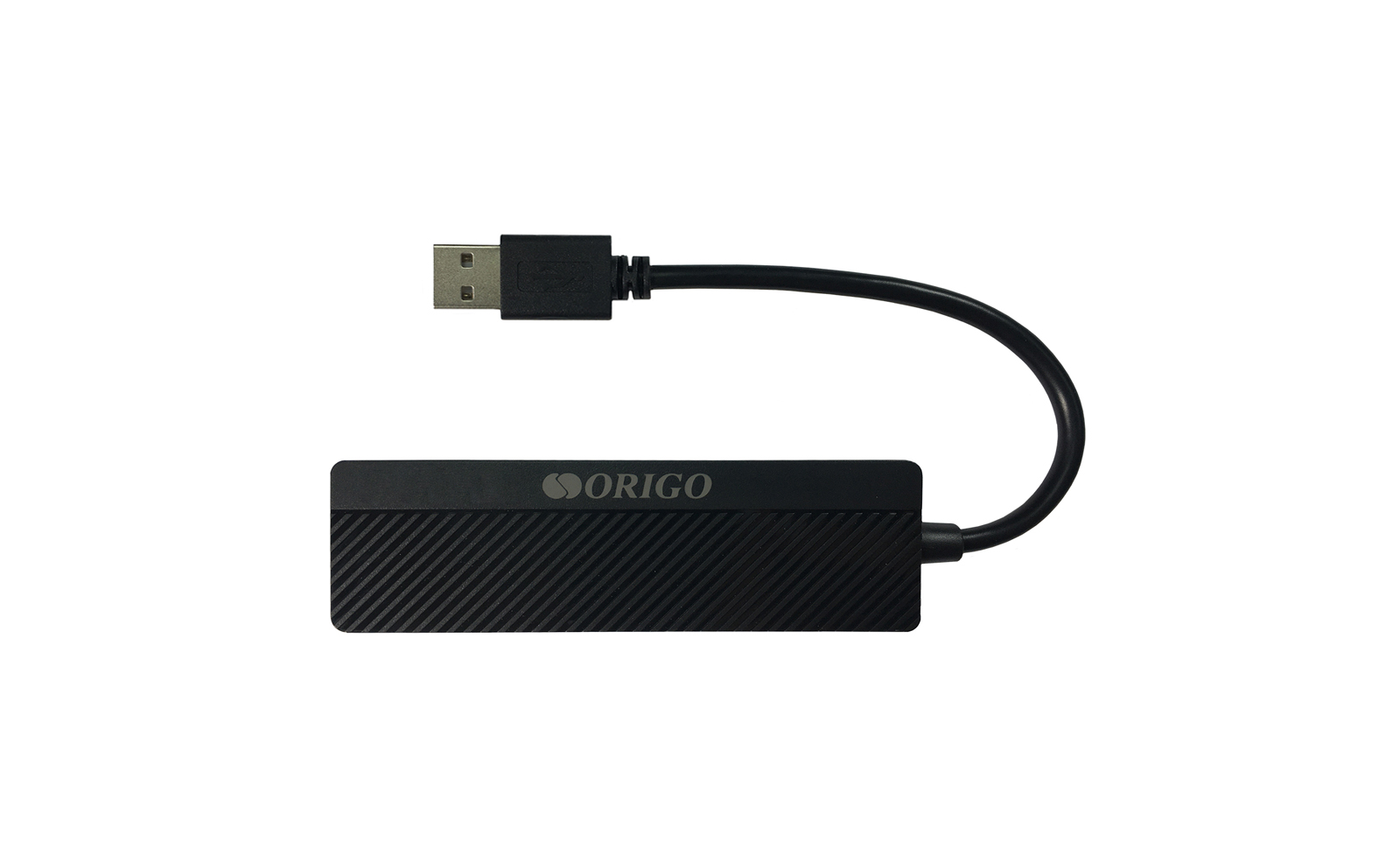

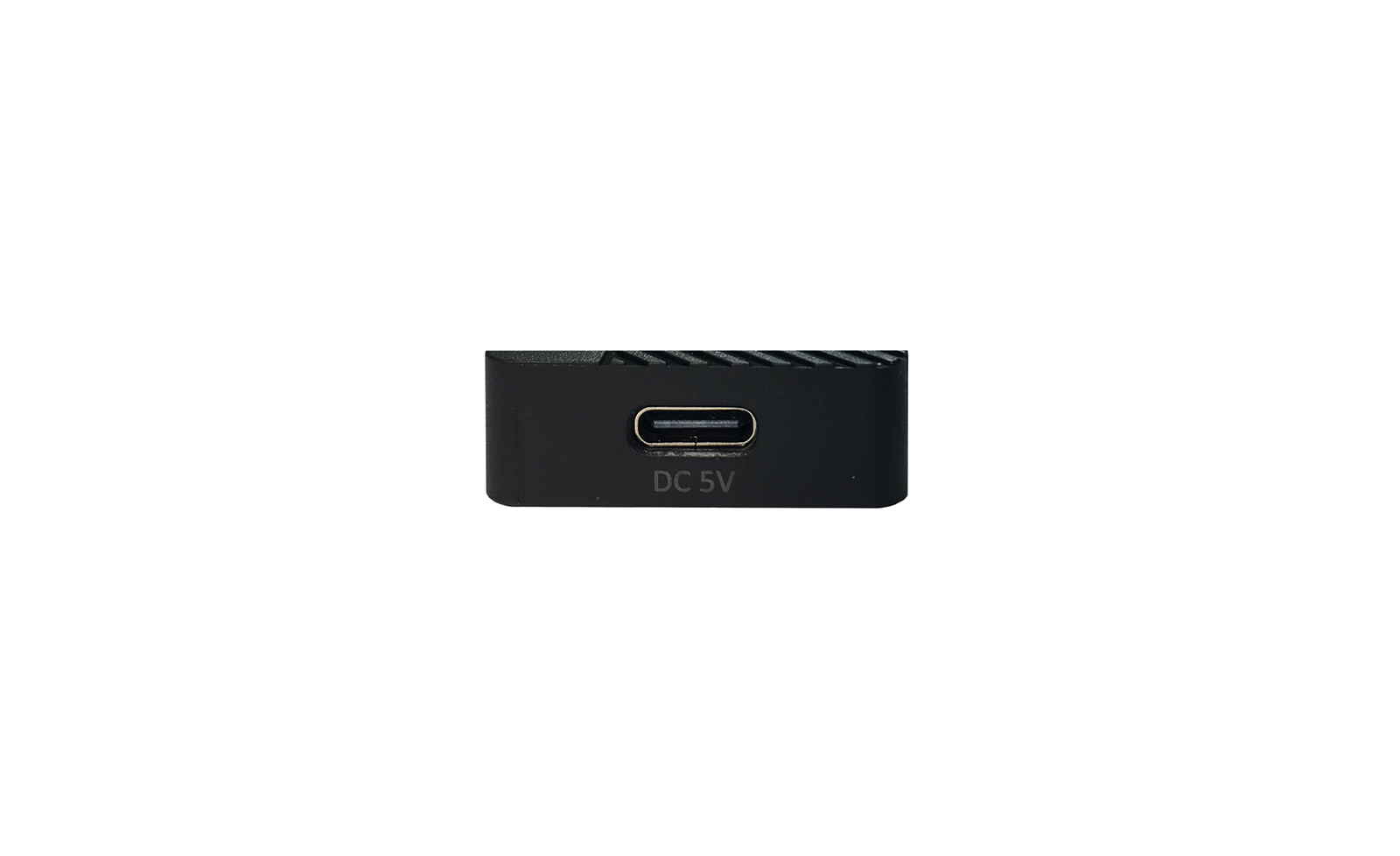

The OU1140 hub is designed in compact and light plastic case with built-in 13 cm USB cable. The USB-C port is provided to ensure additional power when connecting external hard drives and other powerful peripherals. This USB-C port is compatible with most modern power adapters (5V DC/3A) used for charging mobile devices.
The OU1140 hub doesn't require driver installation and supports the most demanded operating systems, including Windows, macOS and Linux.
Specification
|
Hardware
|
|
|
Connector for Connecting PC
|
• USB Type-A
|
|
Ports
|

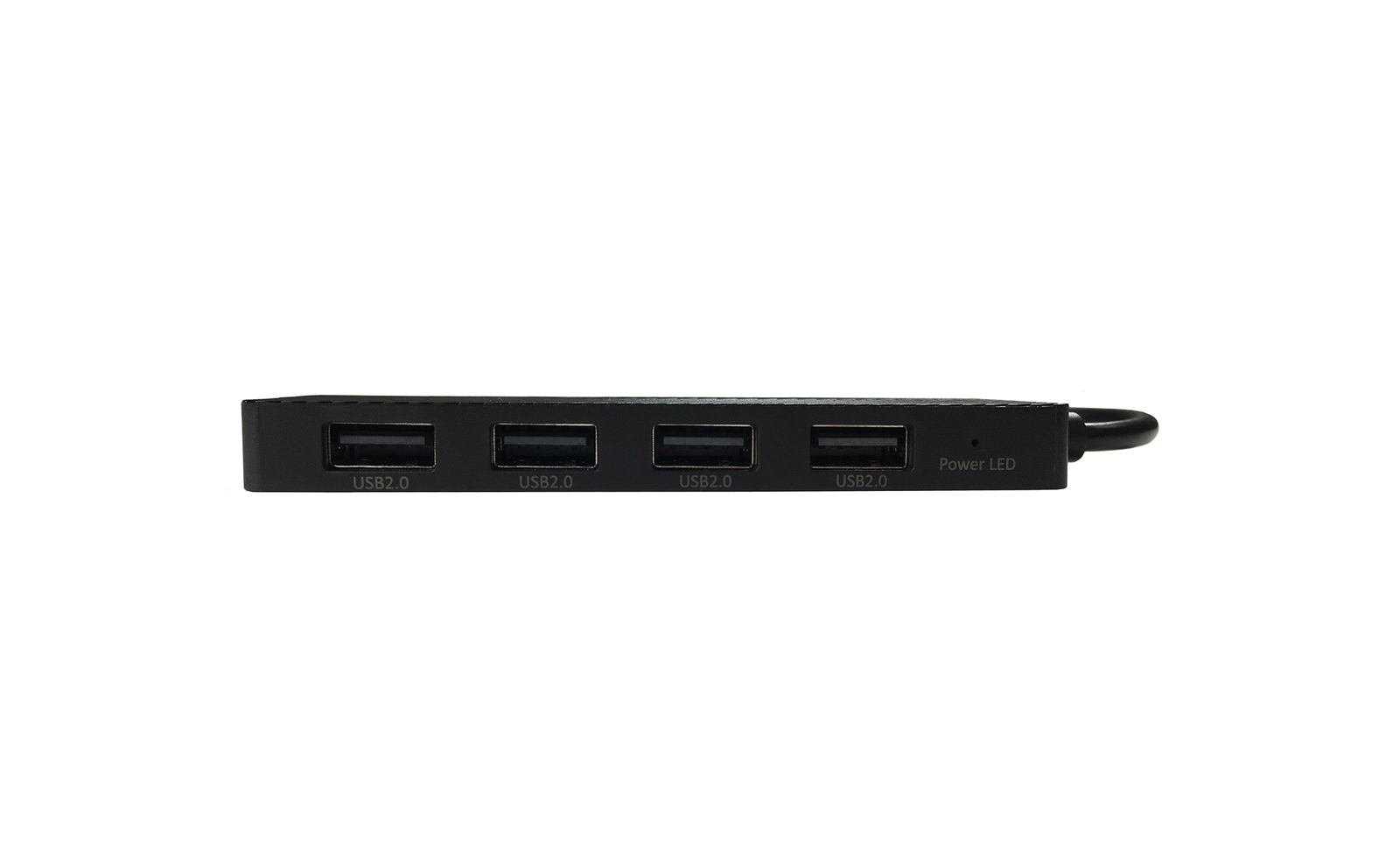

• 4 USB 2.0 Type-A ports
|
|
Standards
|
• USB 2.0
• USB 1.1
|
|
Data Rate
|
• Up to 480 Mbps
|
|
Power
|
• USB Type-C port for connecting power adapter (not included)
|
|
Casing
|
• Plastic
|
|
System Requirements
|
|
|
PC Minimum Requirements
|
• Available USB port (USB 2.0 is recommended)
• Compatible OS:
- Windows OS 10/11
- macOS
- Linux
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 105 x 31.5 x 11 mm
|
|
Weight
|
• 36 g
|
|
Package Dimensions
|
• 17.5 x 9.2 x 3.2 cm
|
|
Gross Weight
|
• 80 g
|
|
Operating Conditions
|
|
|
Power Input
|
• From computer (from USB bus)
• External power adapter (not included):
- Output: 5 V DC, 3 A
|
|
Input Voltage (USB 2.0 Type-A)
|
• 5 V
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -10 to 70 °C
|
|
Humidity
|
• Operating: 10% to 85%
• Storage: 10% to 85%
|
|

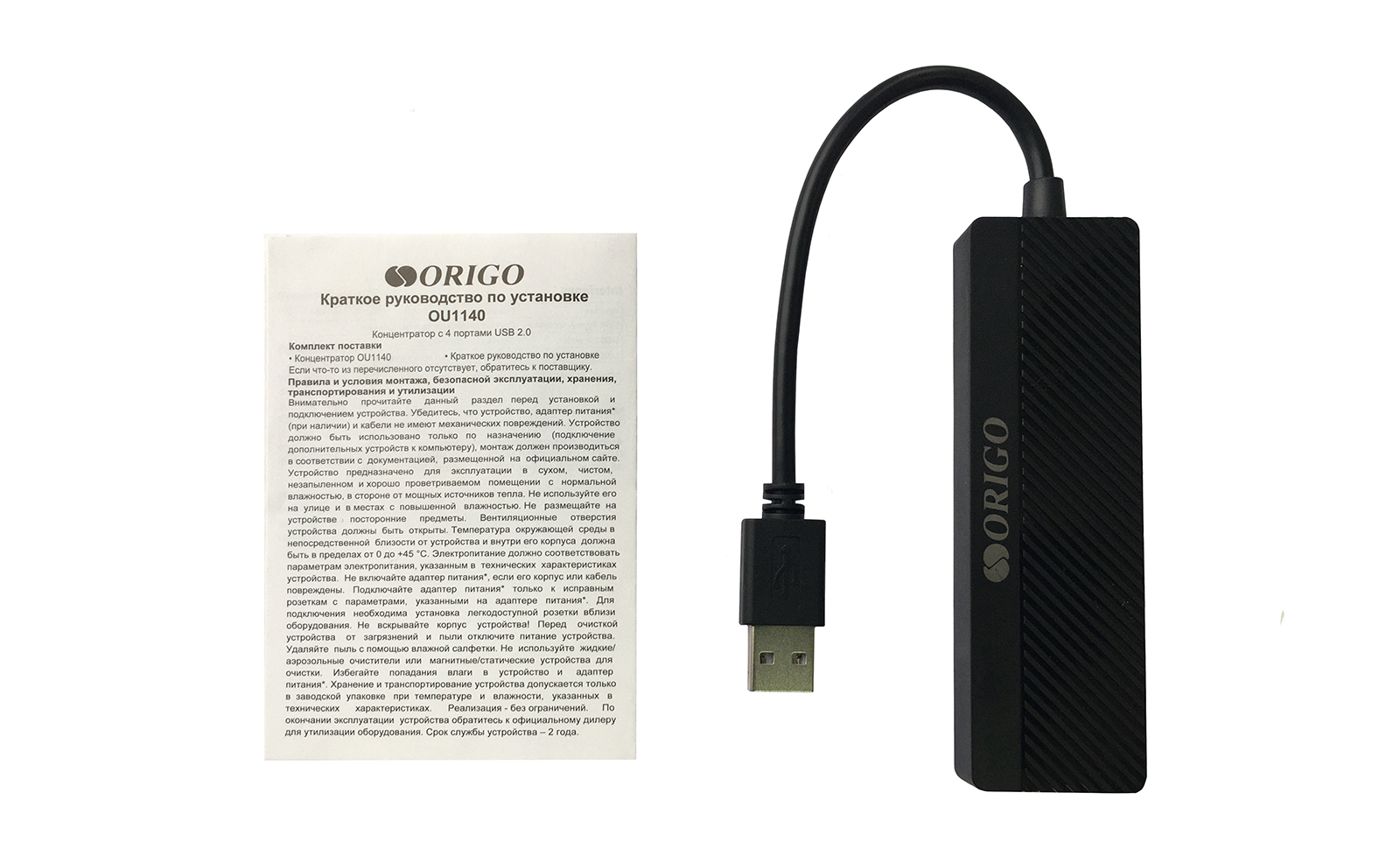

Package Contents
|
|
|
Package Contents
|
• OU1140 Hub
• Quick Installation Guide
|
