OWN1200A
AC1200 Wi-Fi PCI-E Adapter, 2.4/5GHz,
2x5 dBi Detachable Antennas
- Wi-Fi speeds: up to 867 Mbps in the 5GHz band and up to 300 Mbps in the 2.4GHz band
- The RTL8812AE chipset
- Installation in any PCI Express x1/x4/x8/x16 slots
- Two 5 dBi detachable antennas for better Wi-Fi signal reception
- Windows 7/8/10 OS support
- Low-profile bracket is included
Description

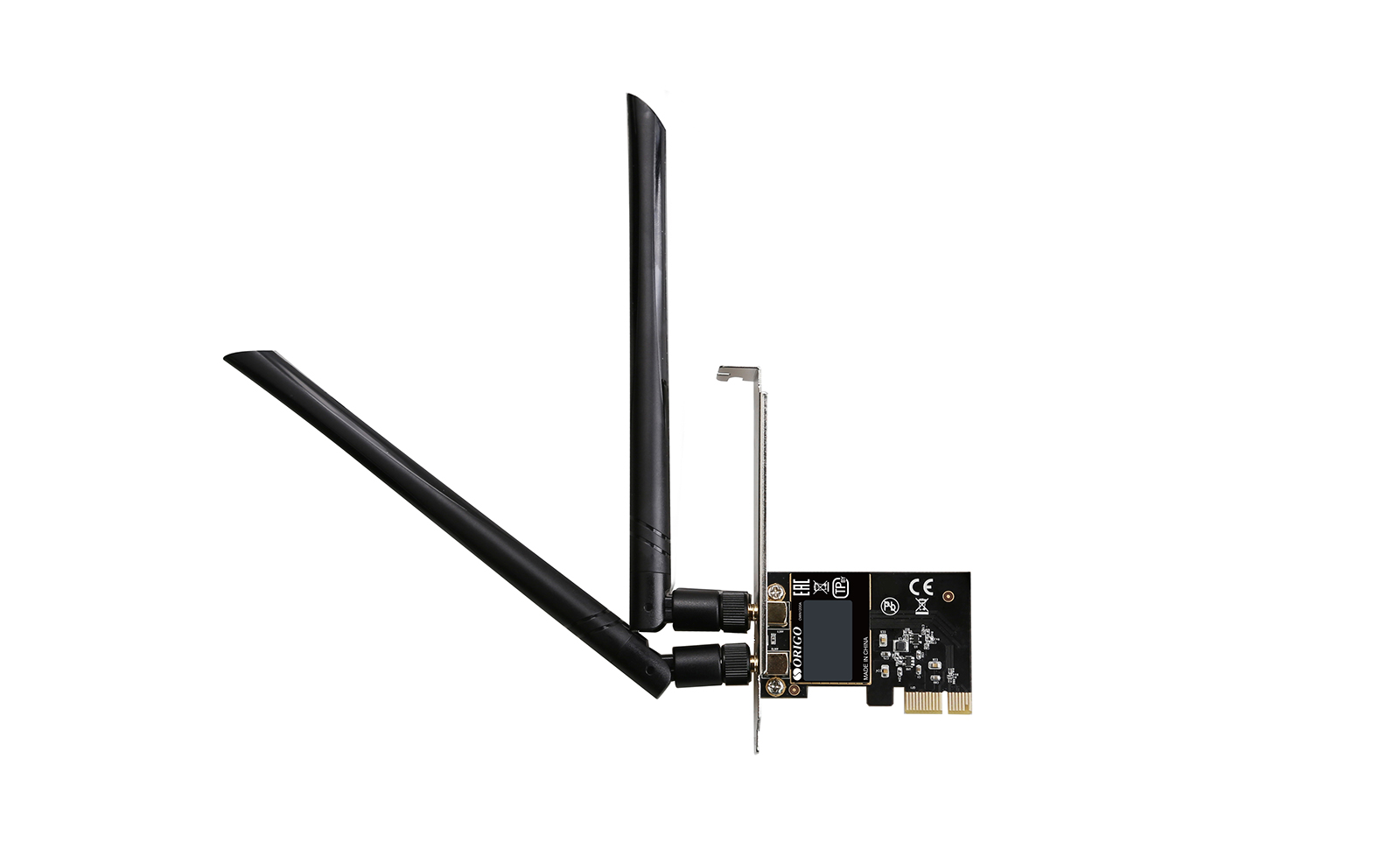

The ORIGO OWN1200A AC1200 Wi-Fi Dual Band PCI-E Adapter is equipped with two 5 dBi detachable antennas.
The ORIGO OWN1200A Wi-Fi adapter is based on the RTL8812AE chipset and is a simple and affordable solution for connecting a PC to a wireless network in the 2.4GHz and 5GHz ranges.
The OWN1200A provides maximum wireless speeds up to 867 Mbps in the 5GHz band and up to 300 Mbps in the 2.4GHz band, which making it ideal for online gaming, HD video streaming and downloading large files. For better Wi-Fi signal reception, the OWN1200A is equipped with two 5 dBi detachable antennas.
The OWN1200A supports installation in any PCI Express slot. The package contents include standard and low-profile brackets for installation in a computer case of any size.
Specification
|
Hardware
|
|
|
Chipset
|
• RTL8812AE
|
|
Interface
|
• PCI Express (PCI-E)
|
|
Installation Slot
|
• PCI Express x1/x4/x8/x16
|
|
LEDs
|
• Status LED
|
|
Antenna
|
• Two 5 dBi detachable antennas
|
|
Wi-Fi Parameters
|
|
|
Standards
|
• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
|
|
Frequency Range
|
• 2.4GHz – 2.4835GHz
• 5.15GHz – 5.35GHz
• 5.725GHz – 5.825GHz
|
|
Data Rate
|
• 2,4GHz
- 11n: up to 300 Mbps
- 11g: up to 54 Mbps
- 11b: up to 11 Mbps
• 5GHz
- 11ac: up to 867 Mbps
- 11n: up to 300 Mbps
- 11a: up to 54 Mbps
|
|
Wireless Security
|
• WEP, WPA/WPA2
|
|
Transmitter Output Power
|
• Not more than 20 dBm (100 mW)
|
|
Receiver Sensitivity
|
• 2.4GHz
- 11b (11 Mbps): -81 dBm
- 11g (54 Mbps): -68 dBm
- 11n (HT20_MCS7): -65 dBm
- 11n (HT40_MCS7): -62 dBm
• 5GHz
- 11ac (HT20_MCS7): -65 dBm
- 11ac (HT40_MCS7): -62 dBm
- 11ac (HT80_MCS9): -51 dBm
|
|
System Requirements
|
|
|
Operating System
|
• Windows 7/8/10
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 65 x 44.5 x 1.6 mm
|
|
Operating Conditions
|
|
|
Power
|
• PC (PCI Express)
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5 to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OWN1200A Wi-Fi PCI-E Adapter
• Low-Profile Bracket
• Two 5 dBi Detachable Antennas
• Quick Installation Guide
|
