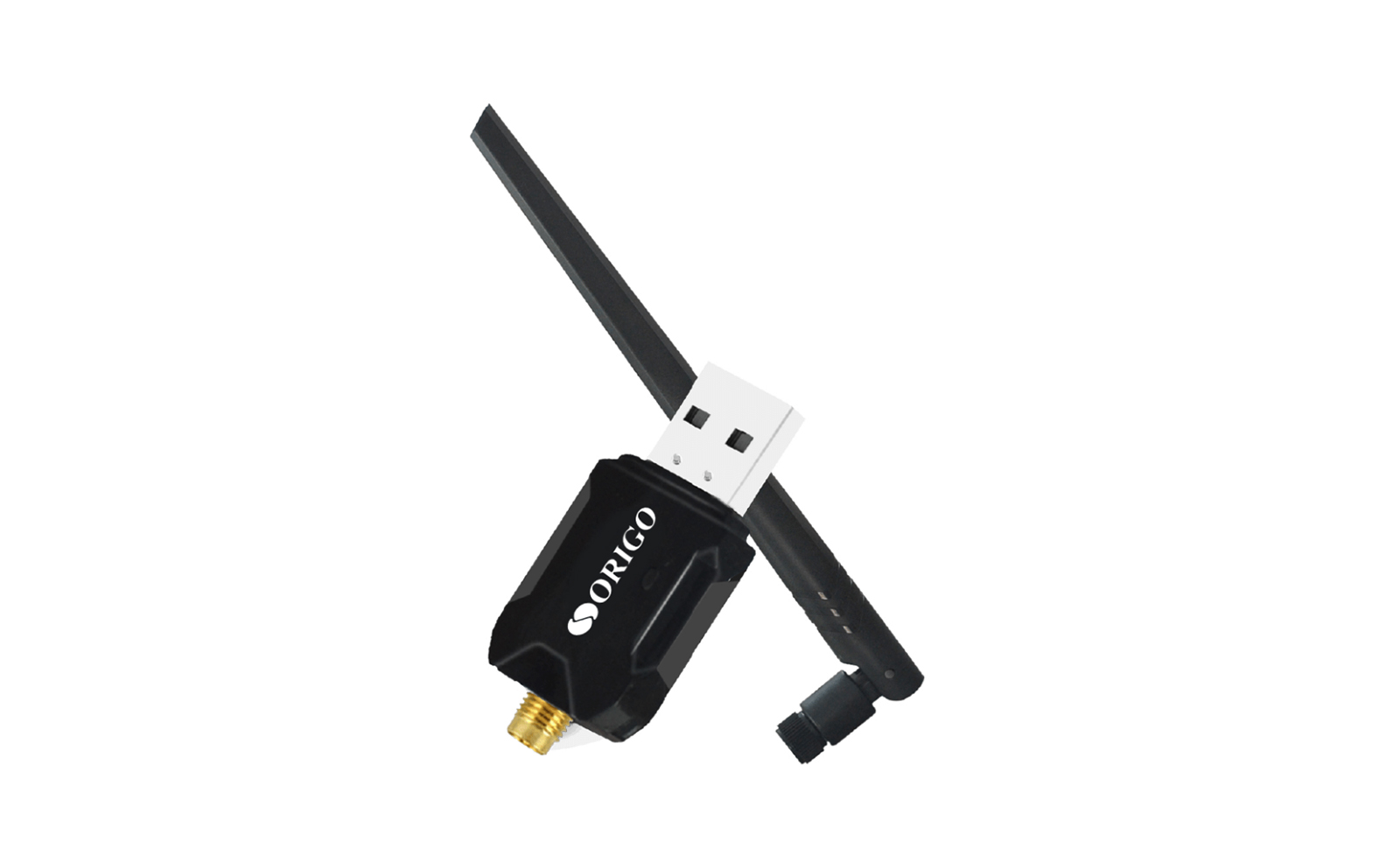

OW900A
AX900 Wi-Fi 6 USB 2.0 Adapter, 2.4/5GHz, 1x5 dBi Detachable Antenna
- 1xUSB 2.0 port
- The AIC8800M80 chipset
- AX900 speeds up to 600 Mbps (5GHz) and 286 Mbps (2.4GHz)
- 5 dBi detachable antenna for better Wi-Fi signal reception
- MU-MIMO and TX Beamforming functions support
- Compatible with all existing network infrastructures
- Windows 10/11 and Linux OS support
Description
The ORIGO OW900A AX900 Wi-Fi 6 Dual Band USB 2.0 Adapter is equipped with a 5 dBi detachable antenna.
The ORIGO OW900A Wi-Fi adapter is based on the AIC8800M80 chipset and is a simple and affordable solution for connecting a PC or a laptop to the Wi-Fi 6 network.
The 5 dBi detachable antenna and TX Beamforming function support significantly increase the wireless signal range and improve the quality of the Wi-Fi connection.
The MU-MIMO technology support ensures high data transfer rates and minimal delays in networks with multiple simultaneous connected devices.
The OW900A adapter is compatible with Windows 10/11 and Linux operating systems.
Specification
|
Hardware
|
|
|
Chipset
|
• AIC8800M80
|
|
Interfaces
|
• USB 2.0 Type-A
|
|
Antenna
|
• 5 dBi detachable antenna
|
|
Wi-Fi Parameters
|
|
|
Standards
|
• IEEE 802.11ax
• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
|
|
Frequency Range
|
• 2.4GHz – 2.4835GHz
• 5.15GHz – 5.35GHz
• 5.725GHz – 5.825GHz
|
|
Data Rate
|
• 2.4GHz
- 11ax: up to 286 Mbps
- 11n: up to 150 Mbps
- 11g: up to 54 Mbps
- 11b: up to 11 Mbps
• 5GHz
- 11ax: up to 600 Mbps
- 11ac: up to 433 Mbps
|
|
Wireless Security
|
• WEP
• WPA/WPA2
• WPA31
|
|
Transmitter Output Power
|
• Not more than 20 dBm (100 mW)
|
|
Receiver Sensitivity
|
• 2.4GHz
- 11b (11 Mbps): -85 dBm
- 11g (54 Mbps): -72 dBm
- 11n (150 Mbps): -72 dBm
- 11ax (286 Mbps): -68 dBm
• 5GHz
- 11ac (433 Mbps): -68 dBm
• - 11ac (600 Mbps): -68 dBm
|
|
System Requirements
|
|
|
System Requirements
|
• Windows 10/11, Linux
• USB 2.0 Type-A port
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 47.7 x 18.3 x 10 mm
|
|
Operating Conditions
|
|
|
Power
|
• PC (USB), 5 V
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 60 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5 to 95% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OW900A Wi-Fi 6 USB Adapter
• 5 dBi Detachable Antenna
• Quick Installation Guide
|
1WPA3 support for Windows OS will be available in the following driver versions.
