OWN300A
N300 Wi-Fi PCI-E Adapter, 2.4GHz
- Wi-Fi speeds up to 300 Mbps in the 2.4GHz band
- The RTL8192EE-CG chipset
- Installation in any PCI Express x1/x4/x8/x16 slots
- Two 4 dBi fixed antennas for better Wi-Fi signal reception
- Windows 7/8/10 OS support
- Low-profile bracket is included
Description

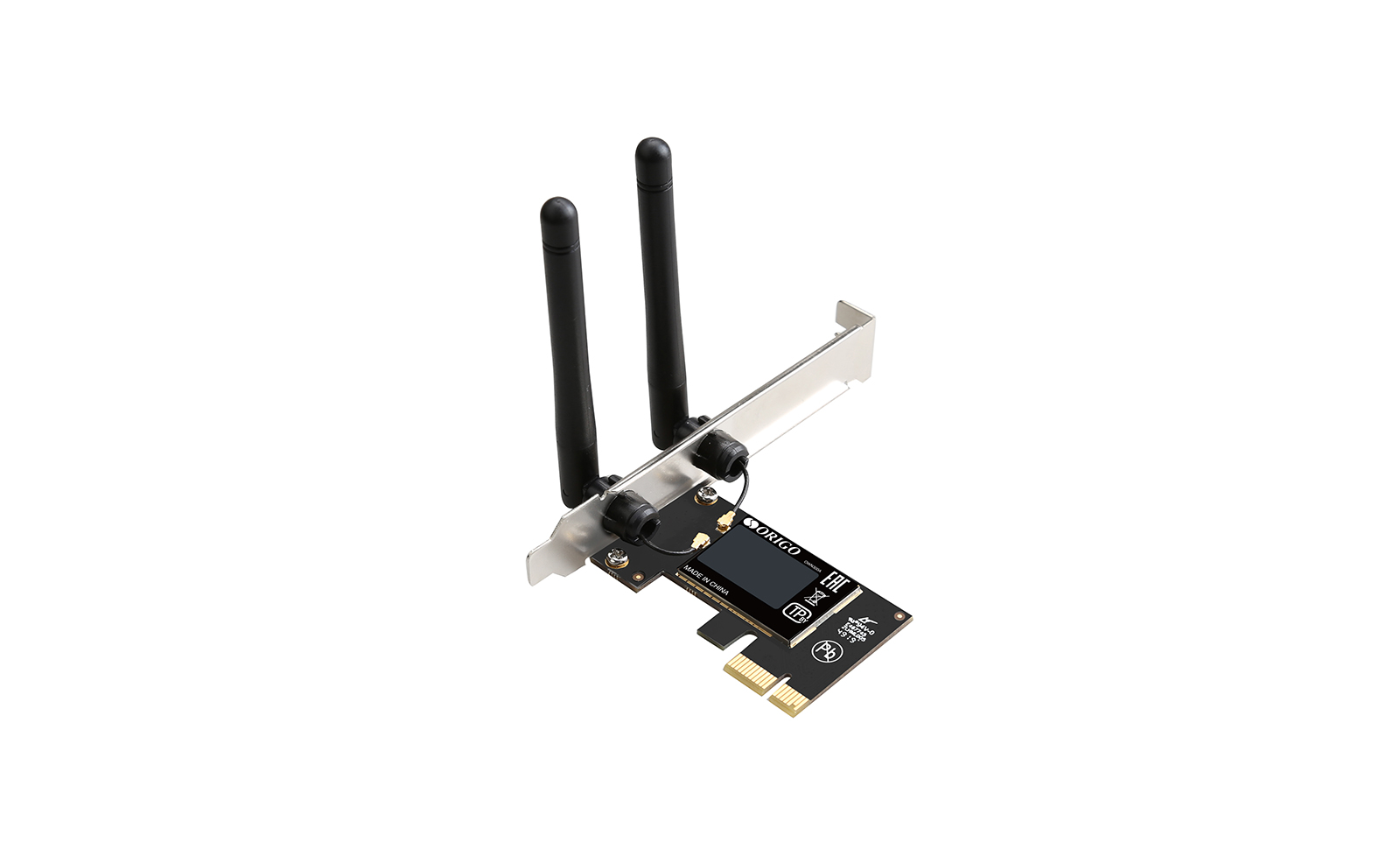

The ORIGO OWN300A N300 Wi-Fi PCI-E Adapter is equipped with two 4 dBi fixed antennas.
The ORIGO OWN300A Wi-Fi adapter is based on the RTL8192EE-CG chipset and is a simple and affordable solution for connecting a PC to a wireless network at speeds up to 300 Mbps in the 2.4GHz band.
The OWN300A supports installation in any PCI Express slot. The package contents include standard and low-profile brackets for installation in a computer case of any size.
Specification
|
Hardware
|
|
|
Chipset
|
• RTL8192EE-CG
|
|
Interface
|
• PCI Express (PCI-E)
|
|
Installation Slot
|
• PCI Express x1/x4/x8/x16
|
|
LEDs
|
• Status LED
|
|
Antenna
|
• Two 4 dBi fixed antennas
|
|
MIMO
|
• 2x2
|
|
Wi-Fi Parameters
|
|
|
Standards
|
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
|
|
Frequency Range
|
• 2.4GHz – 2.4835GHz
|
|
Data Rate
|
• 2,4GHz
- 11n: up to 300 Mbps
- 11g: up to 54 Mbps
- 11b: up to 11 Mbps
|
|
Wireless Security
|
• WEP, WPA/WPA2
|
|
Transmitter Output Power
|
• Not more than 20 dBm (100 mW)
|
|
System Requirements
|
|
|
Operating System
|
• Windows 7/8/10
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 65.3 x 40.34 mm
|
|
Operating Conditions
|
|
|
Power
|
• PC (PCI Express)
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5 to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OWN300A Wi-Fi PCI-E Adapter
• Low-Profile Bracket
• Quick Installation Guide
|
