OW300
AX300 Wi-Fi 6 USB 2.0 Adapter, 2.4GHz
- 1xUSB 2.0 port
- The AIC8800FC controller
- AX300 speeds up to 286 Mbps (2.4GHz)
- USB bus powered (PC)
- Windows 7/10/11 and Linux OS support
- Compact and lightweight
Description

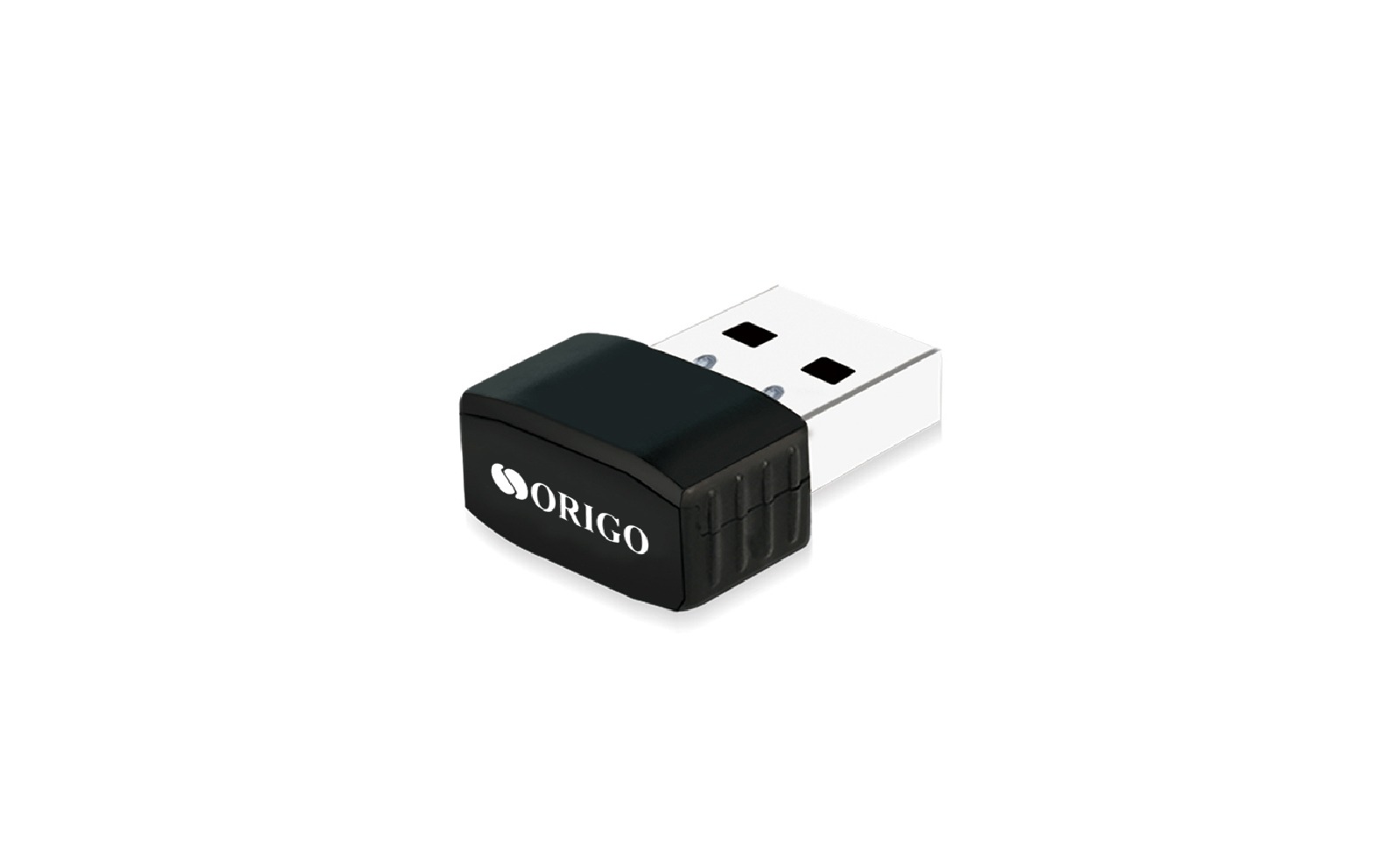

The ORIGO OW300 is an AX300 Wi-Fi 6 USB 2.0 adapter which complies with the wireless standard 802.11ax.
The ORIGO OW300 Wi-Fi adapter is based on the AIC8800FC controller and is a simple and affordable solution for connecting a PC or a laptop to the Wi-Fi 6 network.
The AX300 Wi-Fi speeds of up to 286 Mbps in 2.4GHz band are perfect for watching streaming video, downloading large files and online gaming without delays and interruptions.
The compact casing makes the OW300 suitable for handheld devices. The ORIGO OW300 Wi-Fi adapter is an ideal solution for use at home, in the office and on trips.
Specification
|
Hardware
|
|
|
Chipset
|
• AIC8800FC
|
|
Interfaces
|
• USB 2.0 Type-A
|
|
Antenna
|
• 2 dBi internal antenna
|
|
Wi-Fi Parameters
|
|
|
Standards
|
• IEEE 802.11ax
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
|
|
Frequency Range
|
• 2.4GHz – 2.4835GHz
|
|
Data Rate
|
• 2.4GHz
- 11ax: up to 286 Mbps
- 11n: up to 150 Mbps
- 11g: up to 54 Mbps
- 11b: up to 11 Mbps
|
|
Wireless Security
|
• WEP
• WPA/WPA2
• WPA31
|
|
Transmitter Output Power
|
• Not more than 20 dBm (100 mW)
|
|
Receiver Sensitivity
|
• 2.4GHz
- 11b (11 Mbps): -85 dBm
- 11g (54 Mbps): -72 dBm
- 11n (150 Mbps): -72 dBm
- 11ax (286 Mbps): -68 dBm
|
|
System Requirements
|
|
|
System Requirements
|
• Windows 7/10/11, Linux
• USB 2.0 Type-A port
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 22.3 x 16.6 x 8.5 mm
|
|
Operating Conditions
|
|
|
Power
|
• PC (USB), 5 V
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 60 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5 to 95% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OW300 Wi-Fi 6 USB Adapter
• Quick Installation Guide
|
1WPA3 support for Windows OS will be available in the following driver versions.
