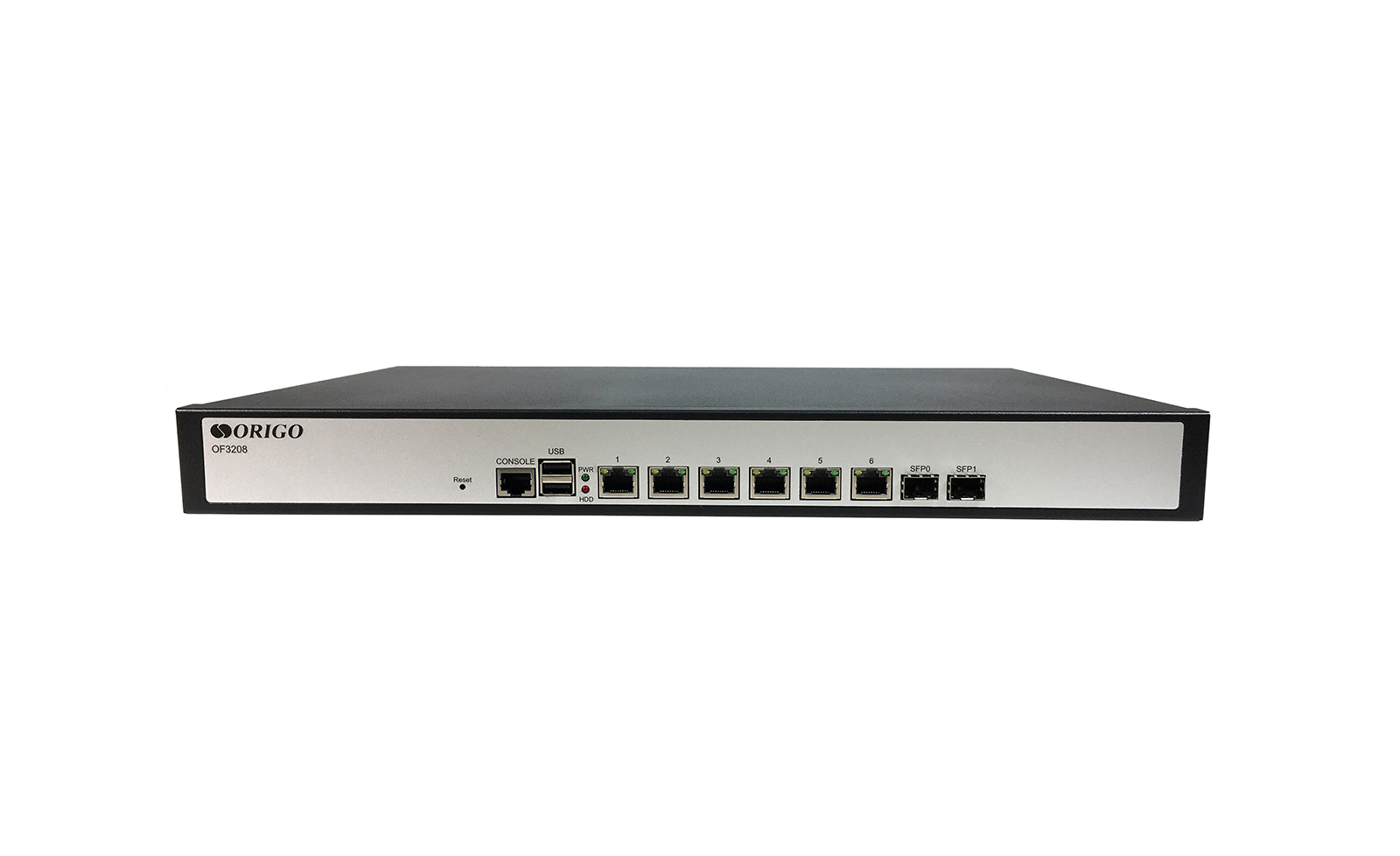

OF3208
Network Platform, 6x1000Base-T,
2x1000Base-X SFP, 2хUSB,
RJ45 Console, Dual-core
- 6x1000Base-T ports
- 2х1000Base-X SFP ports
- 2xUSB ports
- 1xConsole RJ-45 port
- 1xVGA port
- CPU: Intel Celeron 3865U (1.8 GHz, dual-core)
- RAM: 8 GB, DDR3
- Rack mounting
Description
The OF3208 is a network platform with 6x1000Base-T ports, 2х1000Base-X SFP ports, 2xUSB ports and console RJ-45 port.
The ORIGO OF3208 is a cost-effective, high performance 1U rackmount network platform based on Intel Celeron 3865U dual-core CPU. The Celeron 3865U CPU is targeted at UTM, firewall, VPN, IPS and WAN optimization applications from SMB to Enterprise environment.
Specification
|
Hardware Specifications
|
|
|
CPU and Memory
|
• CPU: Intel Celeron 3865U (1.8 GHz, dual-core)
• RAM: 8 GB, DDR3
• Storage: 64 GB, mSATA
|
|
Interfaces
|
• 6 10/100/1000Base-T (RJ-45) ports
• 2 1000Base-X SFP ports
• 1 Console RJ-45 port
• 2 USB 2.0 ports
• 1 VGA port
|
|
LEDs
|
• Power
• Storage
|
|
Buttons
|
• Reset
|
|
Power
|
• Power input (AC)
|
|
Ventilation
|
• 2 fans
|
|
Mounting
|
• 19” rack mountable
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 432 x 266 x 46 mm
|
|
Weight
|
• 4.2 kg
|
|
Operating Conditions
|
|
|
Power
|
• 100-240VAC, 50/60 Hz
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -20 to 70 °C
|
|
Humidity
|
• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing
|
|
Delivery
|
|
|

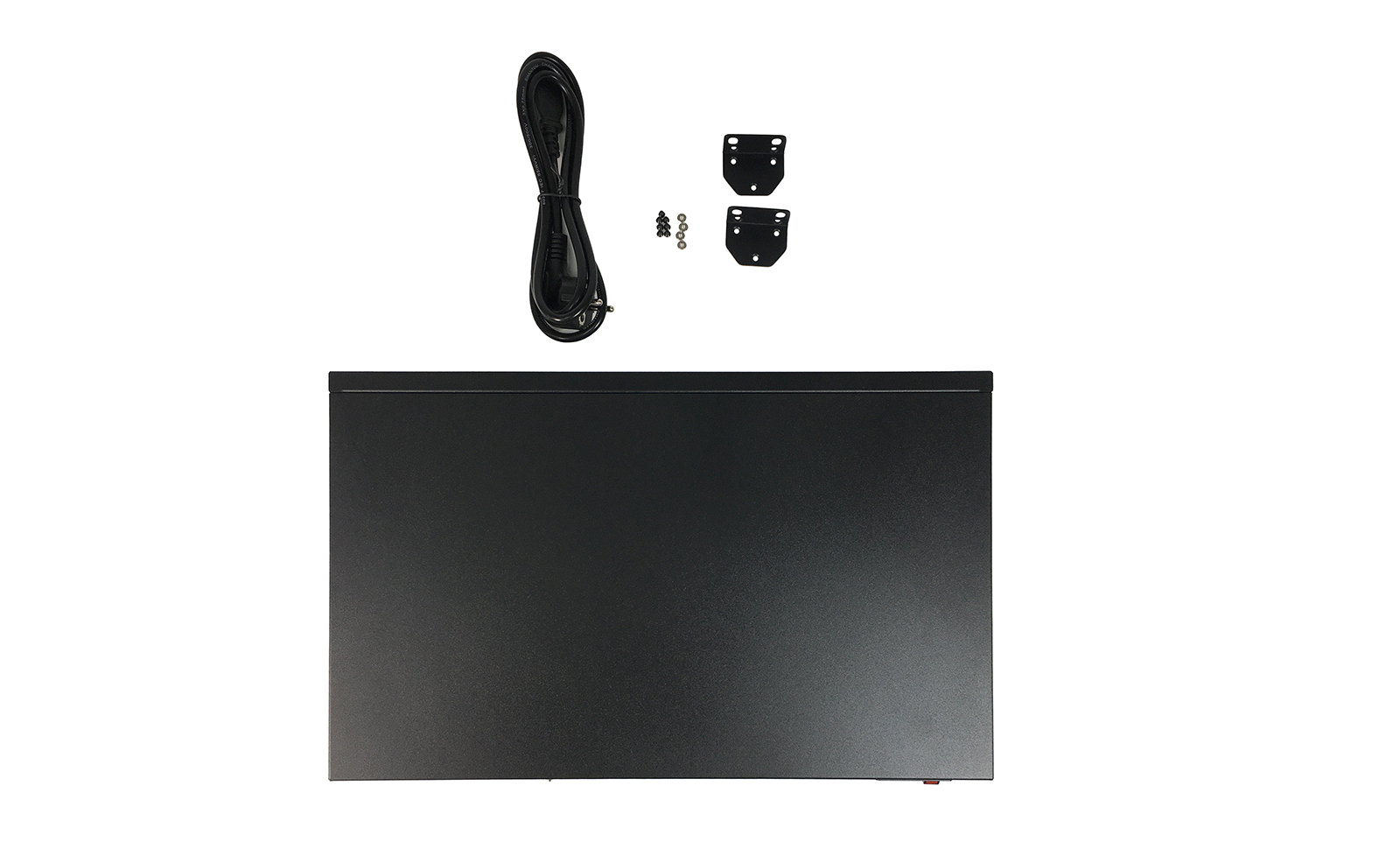

Package Contents
|
• OF3208 Network Platform
• Power cord
• Rack mounting kit
|
