OF3408
Network Platform, 6x1000Base-T,
2x10G SFP+, 2хUSB, RJ45 Console,
Octa-core
- 6x1000Base-T ports
- 2х10GBase-X SFP+ ports
- 1xUSB 3.0 port
- 1xUSB 2.0 port
- 1xConsole RJ-45 port
- CPU: Intel Atom C3758 (2.2 GHz, octa-core)
- RAM: 16 GB, DDR4
- 19'' rack mounting
Description
The OF3408 is a network platform with 6x1000Base-T ports, 2х10GBase-X SFP+ ports, 2xUSB ports and console RJ-45 port.
The ORIGO OF3408 is a high performance 1U rackmount network platform based on Intel Atom C3758 octa-core CPU.
Specification
|
Hardware Specifications
|
|
|
CPU and Memory
|
• CPU: Intel Atom C3758 (2.2 GHz, octa-core)
• RAM: 16 GB, DDR4
• Storage: 32 GB, eMMC
|
|
Interfaces
|
• 6 10/100/1000Base-T (RJ-45) ports
• 2 10GBase-X SFP+ ports
• 1 Console RJ-45 port
• 1 USB 3.0 port
• 1 USB 2.0 port
|
|
Buttons
|
• Reset
|
|
Power
|
• Power input (AC)
|
|
Ventilation
|
• 2 fans
|
|
Mounting
|
• In a standard 19'' rack
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 428 x 267 x 44 mm
|
|
Operating Conditions
|
|
|
Power
|
• 100-240VAC, 50/60 Hz
|
|
Temperature
|
• Operating: -10 to 45 °C
• Storage: -20 to 80 °C
|
|
Humidity
|
• Operating: 5% to 90% non-condensing
• Storage: 5% to 90% non-condensing
|
|
Delivery
|
|
|

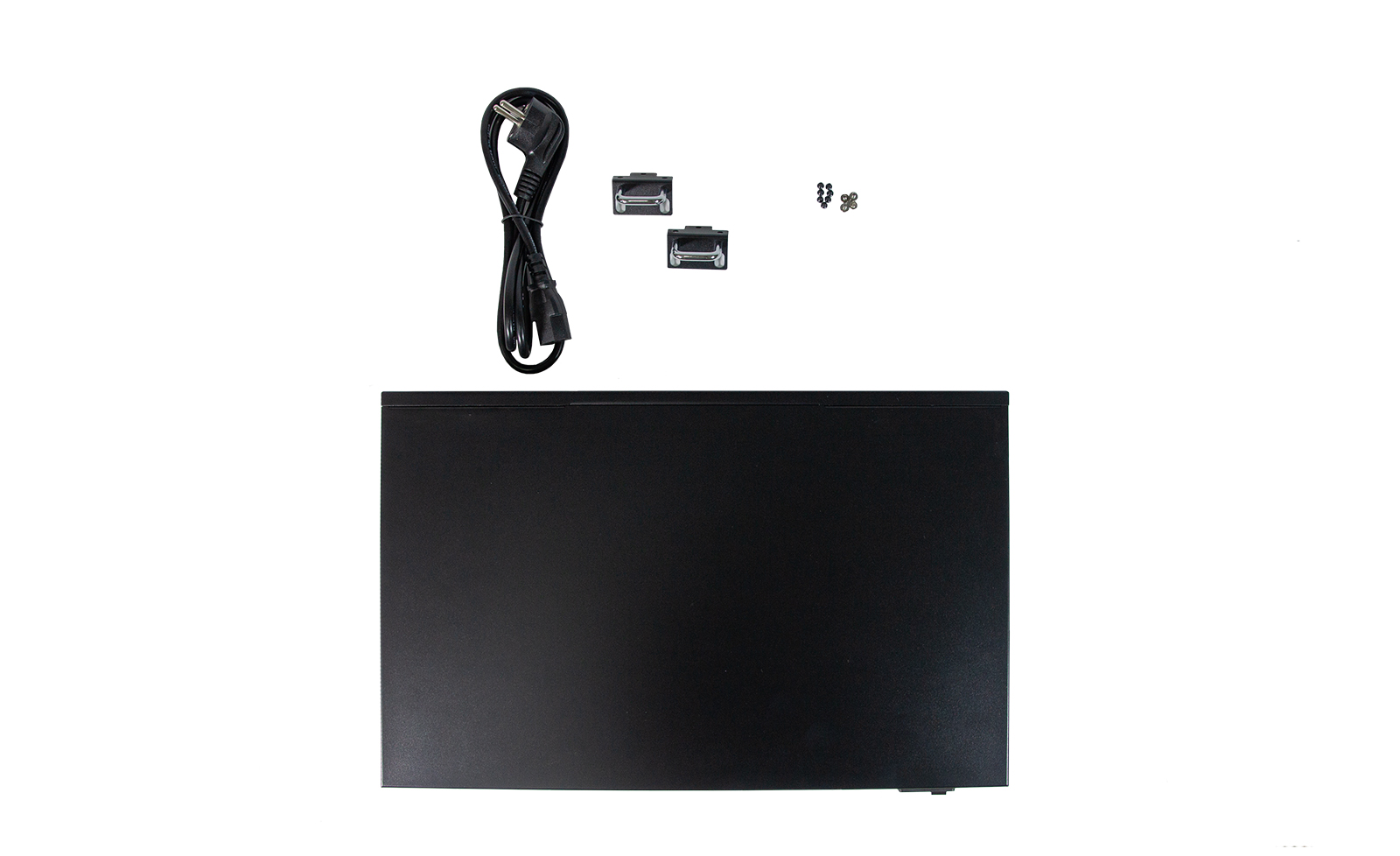

Package Contents
|
• OF3408 Network Platform
• Power cord
• 19'' rack mounting kit
|
