ON425
PCI-E x4 Network Adapter, 2x10GBase-T
- 2x1/2.5/5/10GBase-T ports
- The Intel X550-AT2 controller
- PCI-E 3.0 (8 GT/s) compliant
- PCI-E x4/x8/x16 slots installation
- IEEE 802.1Q VLAN
- IEEE 802.1p Priority Encoding
- Microsoft Hyper-V® and iSCSI support
- PXE boot support
- Low-profile bracket is included
Description

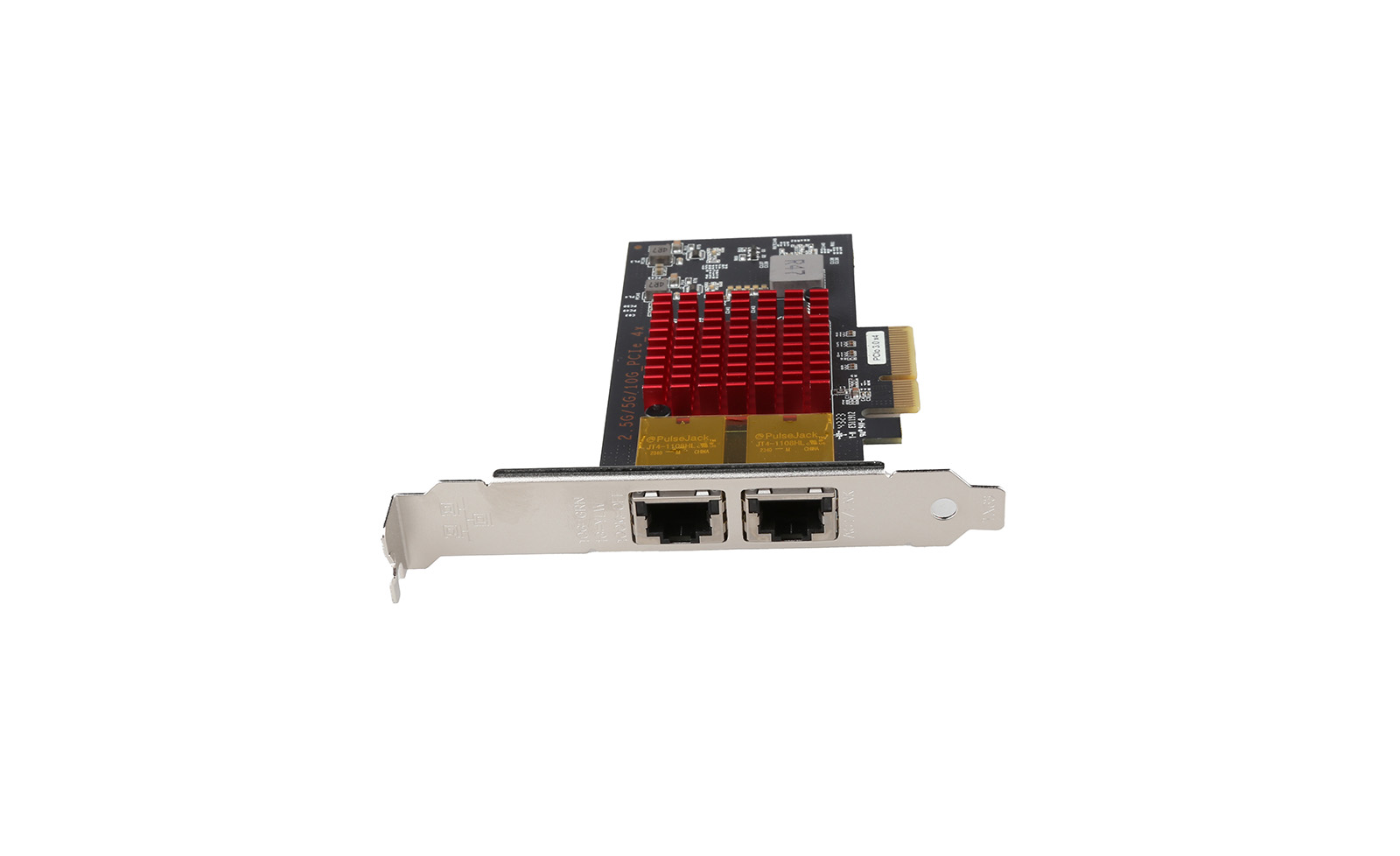

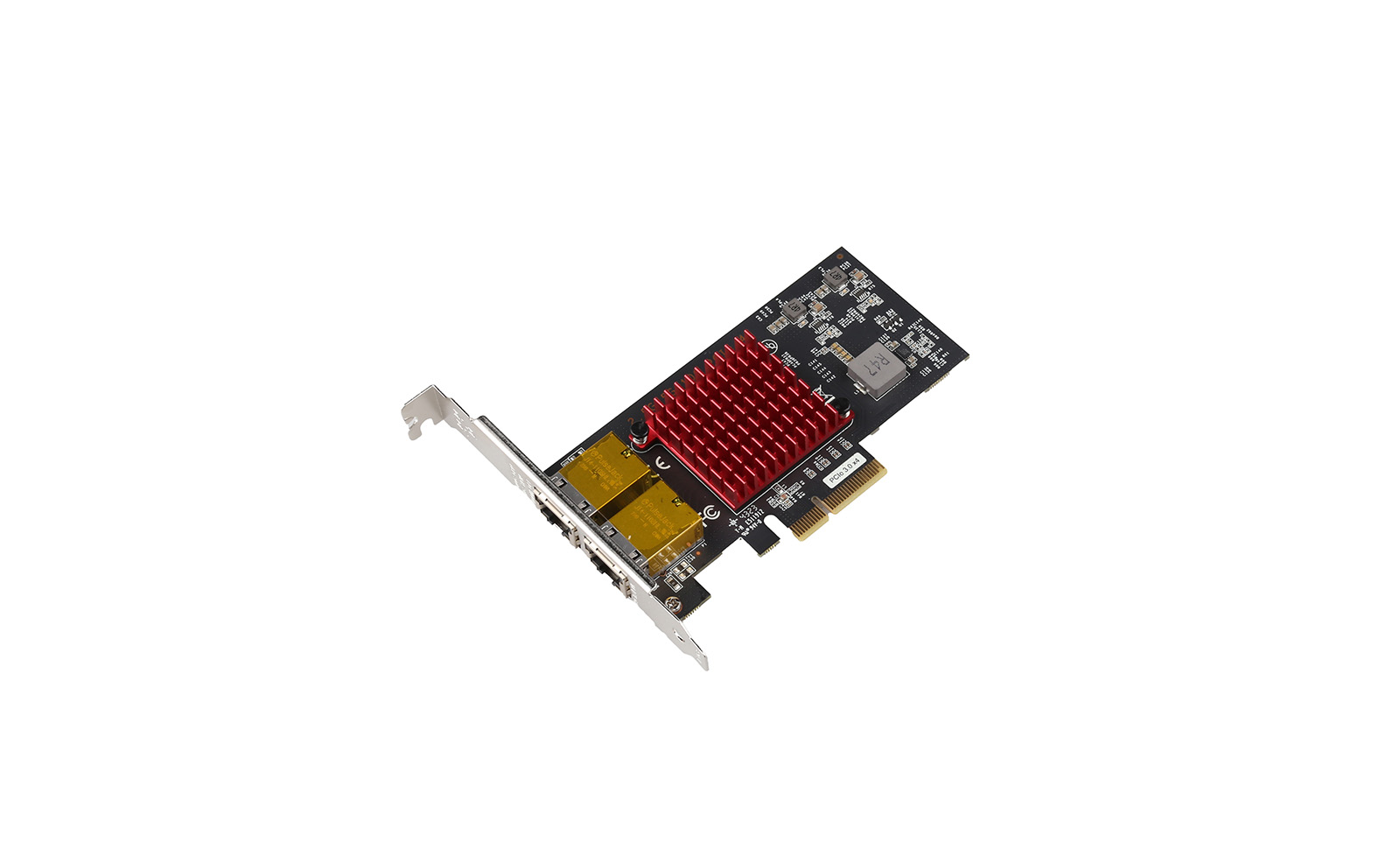

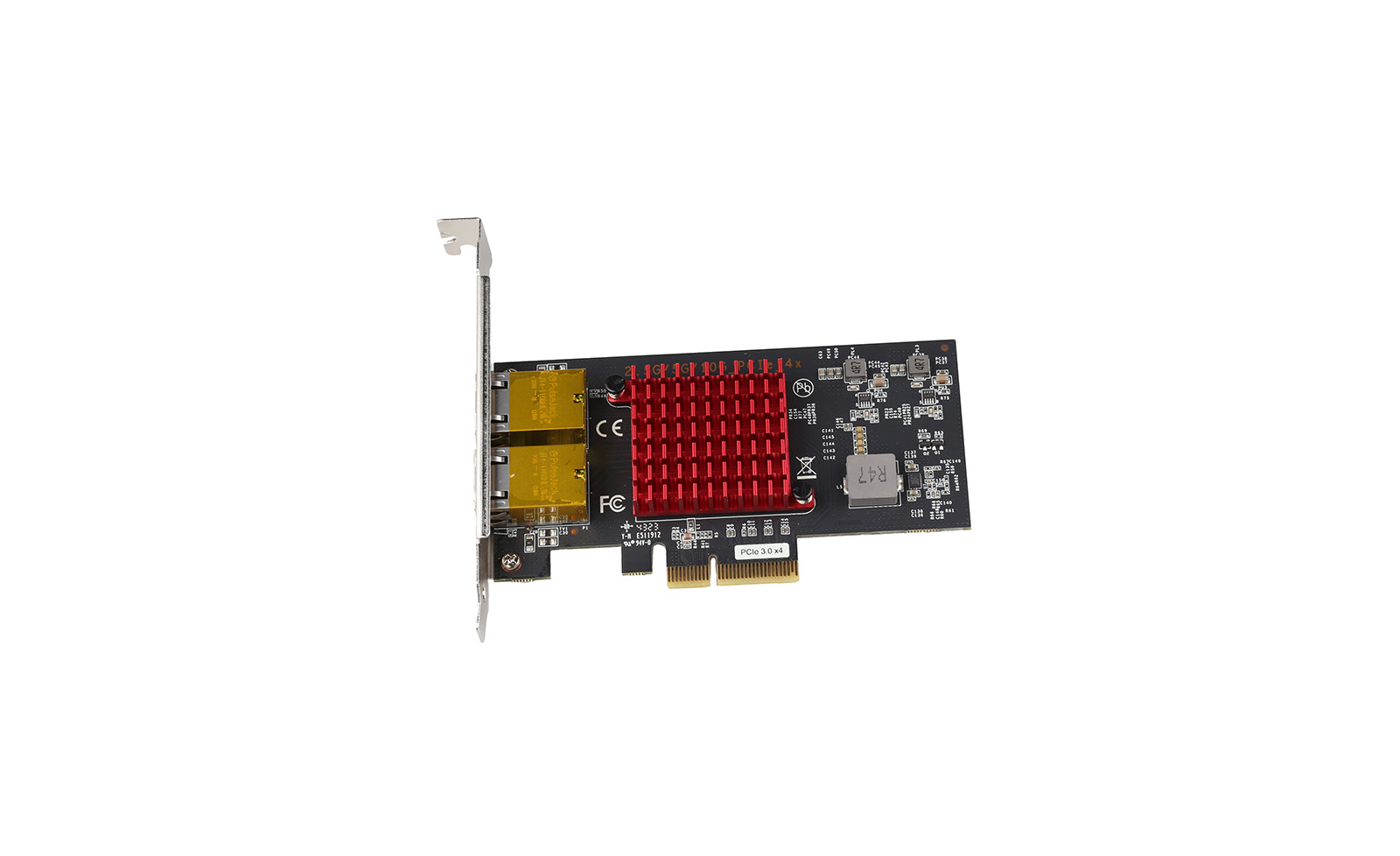

ON425 is a PCI-E network adapter with two 10GBase-T ports.
The ORIGO ON425 network adapter is equipped with two 10GBase-T ports, an Intel X550-AT2 controller and a PCI-E 3.0 x4 interface. The adapter is recommended for connecting
high-performance PCs, servers and network platforms to corporate infrastructure and data centers.
The ON425 runs up to 10 Gbps at 100 m Cat 6a cable and 5 Gbps/2.5 Gbps/1 Gbps/100 Mbps1 at 100 m Cat 5e/Cat 6 cables.
The ON425 supports such advanced features as 802.1Q VLAN, 802.1p Priority Encoding, IP, TCP, UDP checksum offload, PXE boot, Microsoft Hyper-V® and iSCSI.
The ON425 supports installation in PCI-E x4/x8/x16 slots. Standard and low-profile brackets are included.
12.5 Gbps and 5 Gbps speeds are available only for Linux.
Specification
|
Hardware
|
|
|
Chipset
|
• Intel X550-AT2
|
|
Interfaces
|
• 2x10GBase-T ports (RJ-45)
|
|
Installation Slot
|
• PCI-E 3.0 x4/x8/x16
|
|
LEDs
|
• Link/Act
- Solid green – device connected
- Blinking green – data pass
- Lights off – no connection
• Speed
- Solid green – network connection is at 10 Gbps
- Solid amber – network connection is at 1 Gbps
- Lights off – network connection is at 100 Mbps
|
|
Network Cables
|
• Fast/Gigabit/2.5Gigabit Ethernet: UTP cat. 3 or above (100 m max.)
• 5Gigabit Ethernet: UTP cat. 6 or above (100 m max.)
• 10Gigabit Ethernet: cat. 6A or above (100 m max.)
|
|
Features
|
|
|
Standards and Functions
|
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3bz 2.5GBase-T (Linux only)
• IEEE 802.3bz 5GBase-T (Linux only)
• IEEE 802.3an 10GBase-T
• PCI-E 3.0 (8 GT/s) compliant
• IEEE 802.3x Flow Control
• 15.5 KB Jumbo Frame
• IEEE 802.1p Priority Encoding
• IEEE 802.1Q VLAN
• IEEE 802.3az Energy-Efficient Ethernet
• PXE boot
• IP, TCP, UDP checksum offload
|
|
Data Rate
|
• 20 Gbps (full-duplex)
|
|
System Requirements
|
|
|
Operating System
|
• Windows 11/10/8/8.1/7 (x64)
• Windows Server 2022/2019/2016/2012/2008 R2 (x64)
• Linux 2.4.x and later
|
|
Physical Parameters
|
|
|
Dimensions (L x W)
|
• 140 x 120 mm
|
|
Weight
|
• 92 g
|
|
Operating Conditions
|
|
|
Power
|
• PC (PCI-E)
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -25 to 70 °C
|
|
Humidity
|
• Operating: 20% to 80% (non-condensing)
• Storage: 20 to 80% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• ON425 PCI-E Network Adapter
• Low-Profile Bracket
• Quick Installation Guide
|
