ON420S
PCI-E x8 Network Adapter, 2x10G SFP+
- 2x10GBase-X SFP+ ports
- The Intel 82599ES controller
- PCI-E x8/x16 slots installation
- Message Signaled Interrupts (INTA, MSI, MSI-X)
- VMDq support
- Low-profile bracket is included
Description

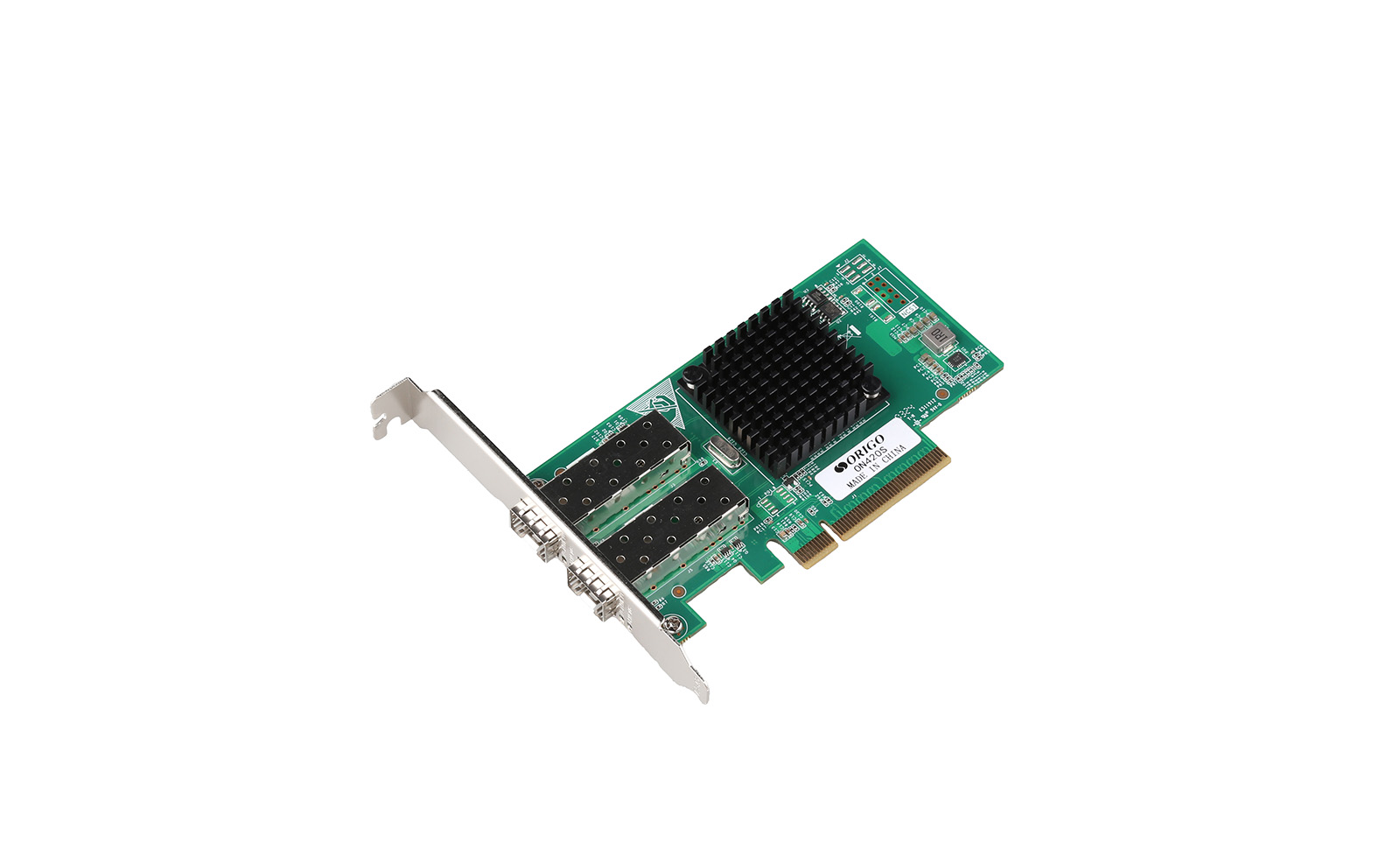

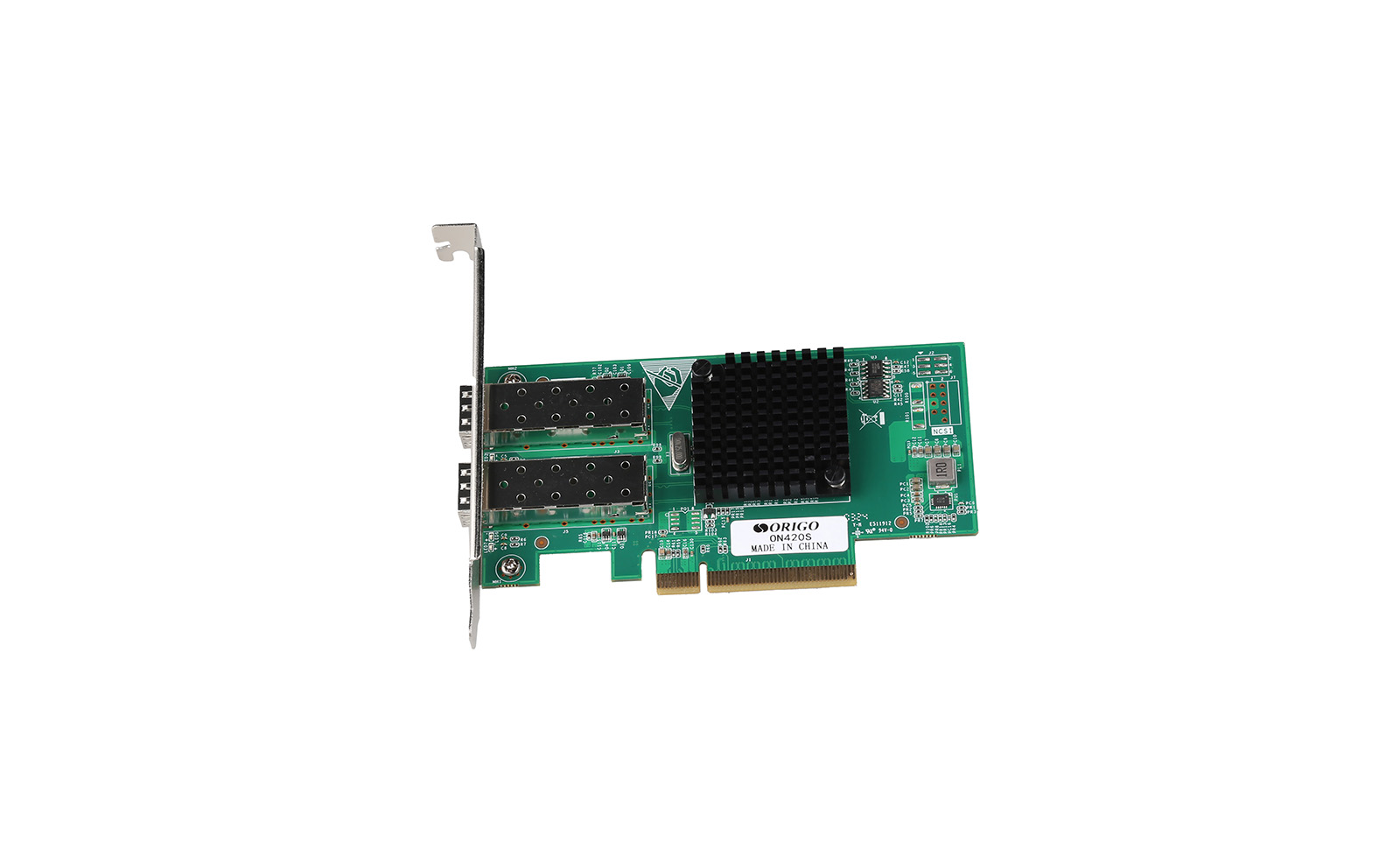

ON420S is a PCI-E network adapter with two 10GBase-X SFP+ ports.
The ORIGO ON420S network adapter is designed for use in high-performance servers and network platforms. The adapter is based on the Intel 82599ES controller and provides reliable connection to fiber-optic communication lines at speeds up to 10 Gbps.
The ON420S supports Message Signaled Interrupts (INTA, MSI, MSI-X) and VMDq per port.
The ON420S supports installation in PCI-E x8 and x16 slots. Standard and low-profile brackets are included.
Specification
|
Hardware
|
|
|
Chipset
|
• Intel 82599ES
|
|
Interfaces
|
• 2x10GBase-X SFP+ ports
|
|
Installation Slot
|
• PCI-E x8/x16
|
|
LEDs
|
• Link/Act
- Solid green – device connected
- Blinking green – data pass
- Lights off – no connection
• Speed
- Solid green – network connection is at 10 Gbps
- Solid amber – network connection is at 1 Gbps
|
|
Features
|
|
|
Standards and Functions
|
• IEEE 802.3ae 10GBase-LR
• IEEE 802.3ae 10GBase-SR
• IEEE 802.3aq 10GBase-LRM
• PCI-E 2.0 (5 GT/s) compliant
• Message Signaled Interrupts (INTA, MSI, MSI-X)
• Virtual Machine Device Queues (VMDq)
|
|
Data Rate
|
• 20 Gbps (full-duplex)
|
|
System Requirements
|
|
|
Operating System
|
• Windows 11/10/8/8.1/7
• Windows Server 2022/2019/2016/2012 R2/2012
• Linux 2.4.x and later
|
|
Physical Parameters
|
|
|
Dimensions (L x W)
|
• 128.3 x 68.9 mm
|
|
Operating Conditions
|
|
|
Power
|
• PC (PCI-E)
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5 to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• ON420S PCI-E Network Adapter
• Low-Profile Bracket
• Quick Installation Guide
|
