ON200S
PCI-E Network Adapter, 1x1000Base-X SFP
- 1x1000Base-X SFP port
- The Intel I210 controller
- PCI-E x1/x4/x8/x16 slots installation
- IEEE 802.1Q VLAN
- IEEE 802.1p Priority Encoding
- PXE boot support
- Windows 11/10/8/8.1/7, Windows Server and Linux OS support
- Low-profile bracket is included
Description

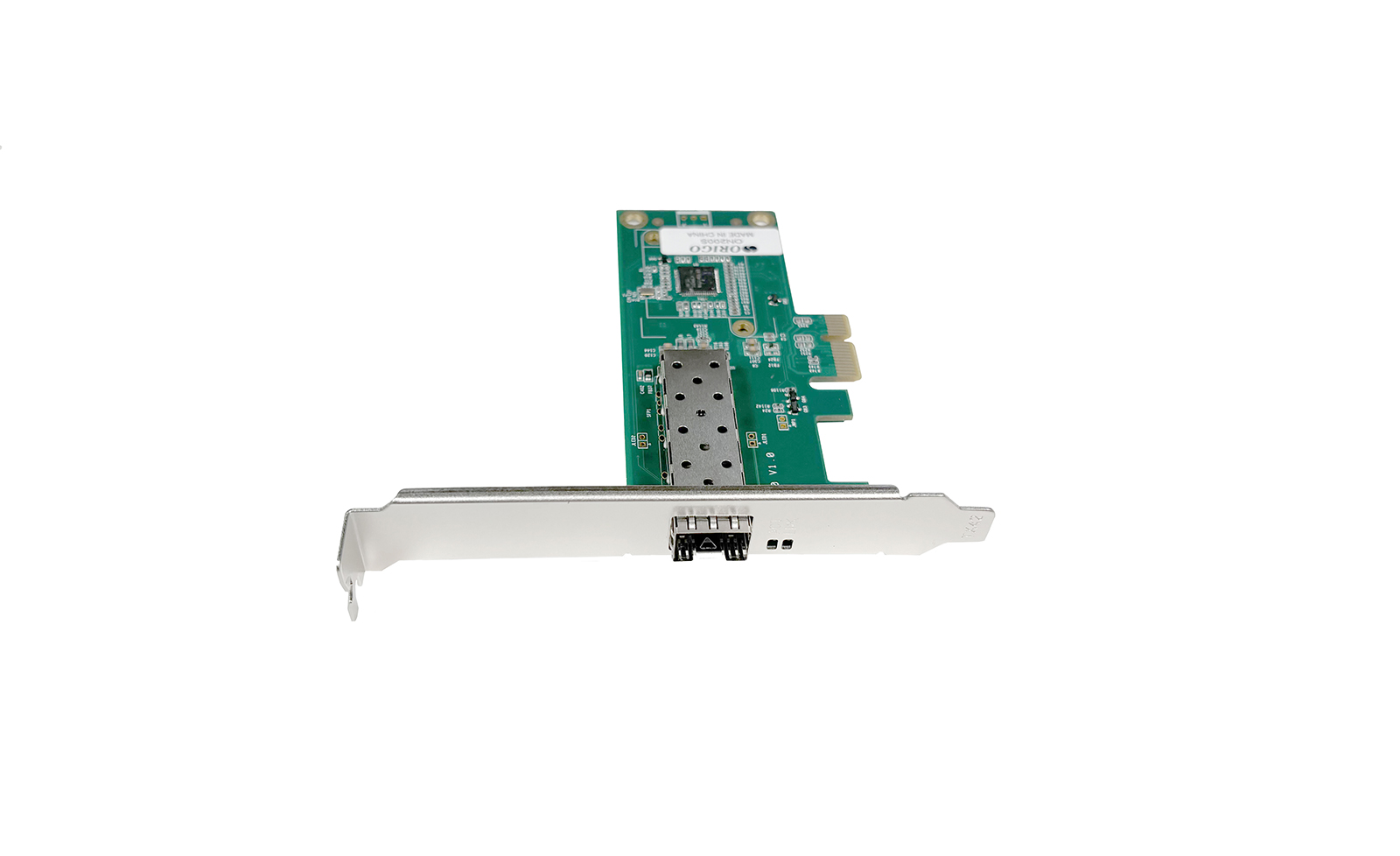

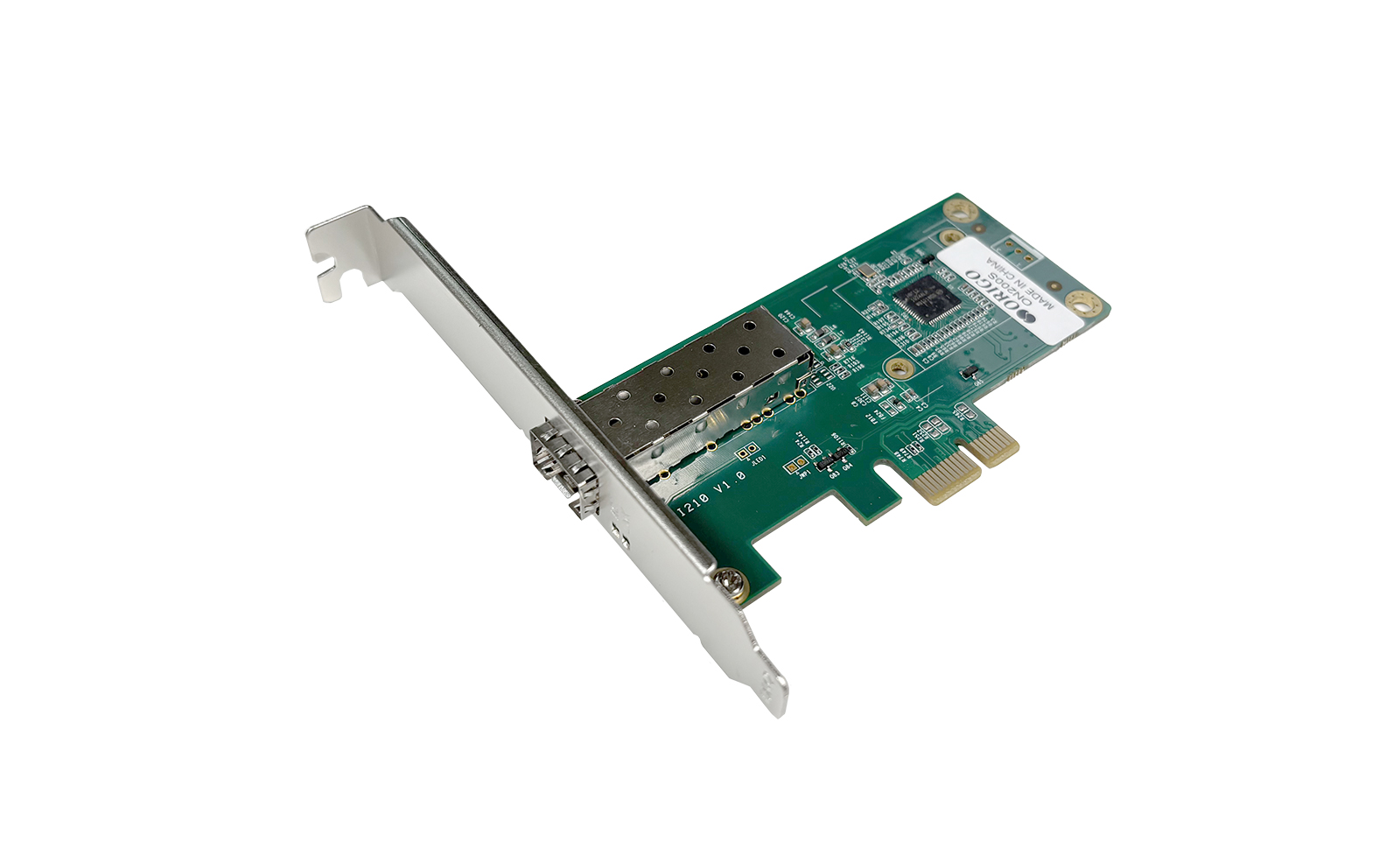

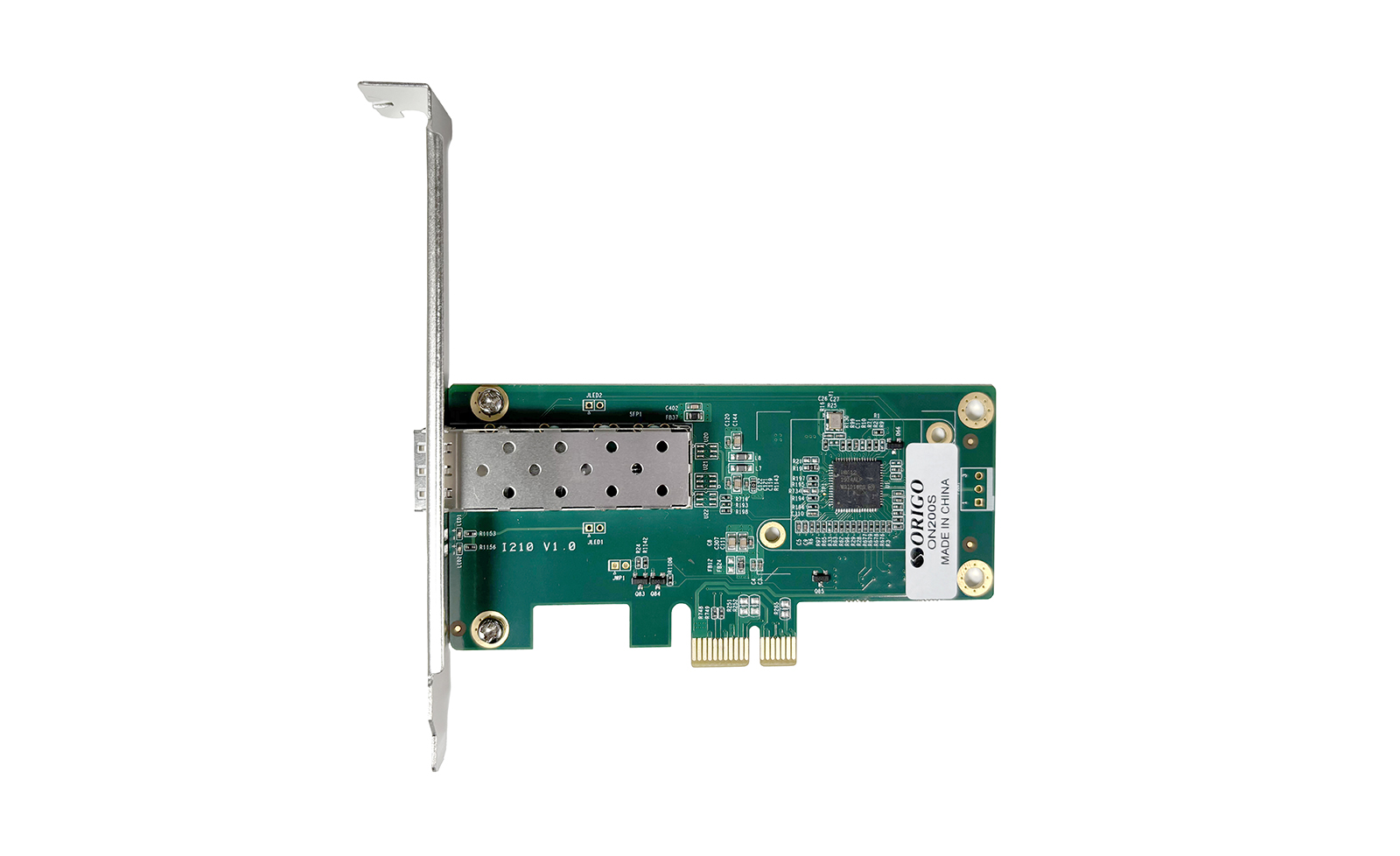

ON200S is a PCI-E network adapter with one 1000Base-X SFP port.
The ORIGO ON200S network adapter is based on an Intel I210 controller and is designed to connect PCs and servers to fiber-optic communication lines at speeds up to 1 Gbps.
The network adapter is equipped with a 1000Base-X SFP port, which makes it easy to integrate the device into an existing network infrastructure using replaceable SFP modules of suitable range.
The ON200S supports installation in PCI-E x1/x4/x8/x16 slots. Standard and low-profile brackets are included.
The ON200S adapter is compatible with Windows 11/10/8.x/7, Windows Server and Linux operating systems.
Specification
|
Hardware
|
|
|
Chipset
|
• Intel I210
|
|
Interfaces
|
• 1x1000Base-X SFP port
|
|
Installation Slot
|
• PCI-E x1/x4/x8/x16
|
|
LEDs
|
• Link/Act
|
|
Features
|
|
|
Standards and Functions
|
• IEEE 802.3z 1000Base-SX
• IEEE 802.3z 1000Base-LX
• PCI-E 2.1 compliant
• IEEE 802.3x Flow Control
• 9.5 KB Jumbo Frame
• IEEE 802.1p Priority Encoding
• IEEE 802.1Q VLAN
• PXE boot
|
|
Data Rate
|
• 2 Gbps (full-duplex)
|
|
System Requirements
|
|
|
Operating System
|
• Windows 11/10/8/8.x/7
• Windows Server 2022/2019/2016/2012/2008 R2
• Linux 2.4.x and later
|
|
Physical Parameters
|
|
|
Dimensions (L x W)
|
• 120 x 108 mm
|
|
Weight
|
• 45 g
|
|
Operating Conditions
|
|
|
Power
|
• PC (PCI-E)
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 70 °C
|
|
Humidity
|
• Operating: 20% to 80% (non-condensing)
• Storage: 20 to 80% (non-condensing)
|
|

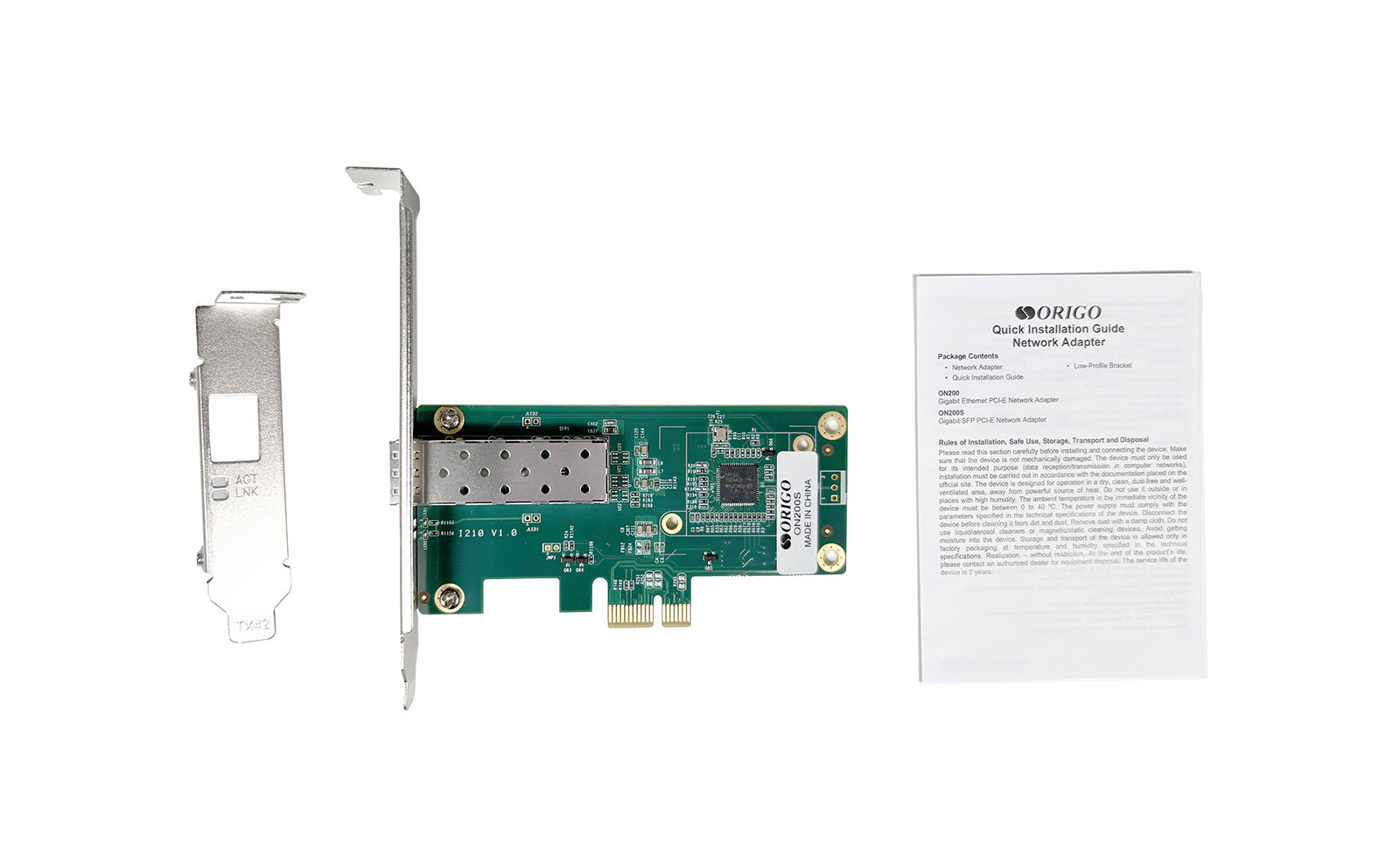

Package Contents
|
|
|
Package Contents
|
• ON200S PCI-E Network Adapter
• Low-Profile Bracket
• Quick Installation Guide
|
