ON300
PCI-E Network Adapter, 1x2.5GBase-T
- 1x100/1000/2.5GBase-T port (RJ-45)
- The RTL8125B controller
- PCI-E x1/x4/x8/x16 slots installation
- Wake-On-LAN and PXE boot support
- IEEE 802.1Q VLAN
- IEEE 802.1p Priority Encoding
- Windows 11/10/8.x/7 and Linux OS support
- Low-profile bracket is included
Description

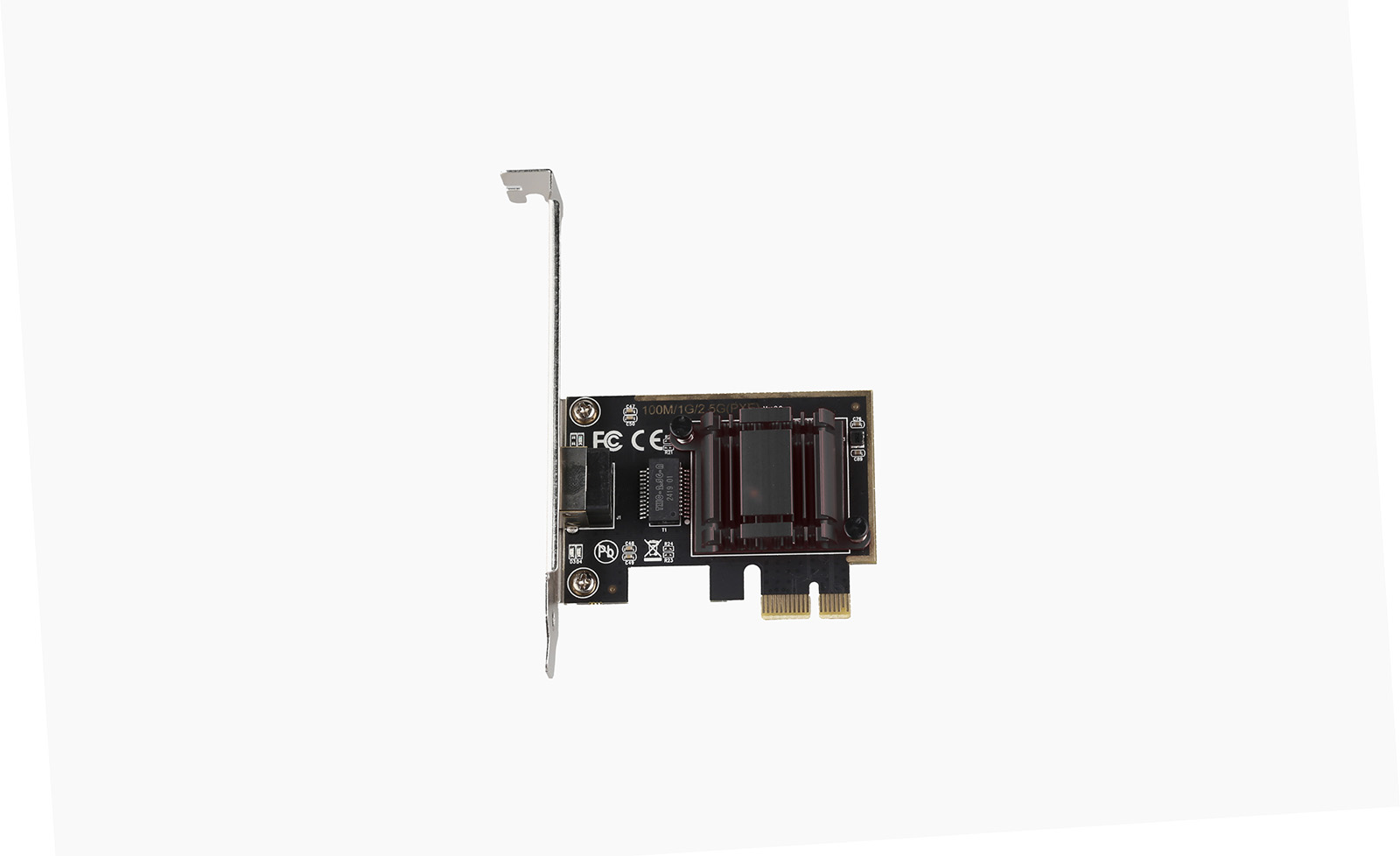

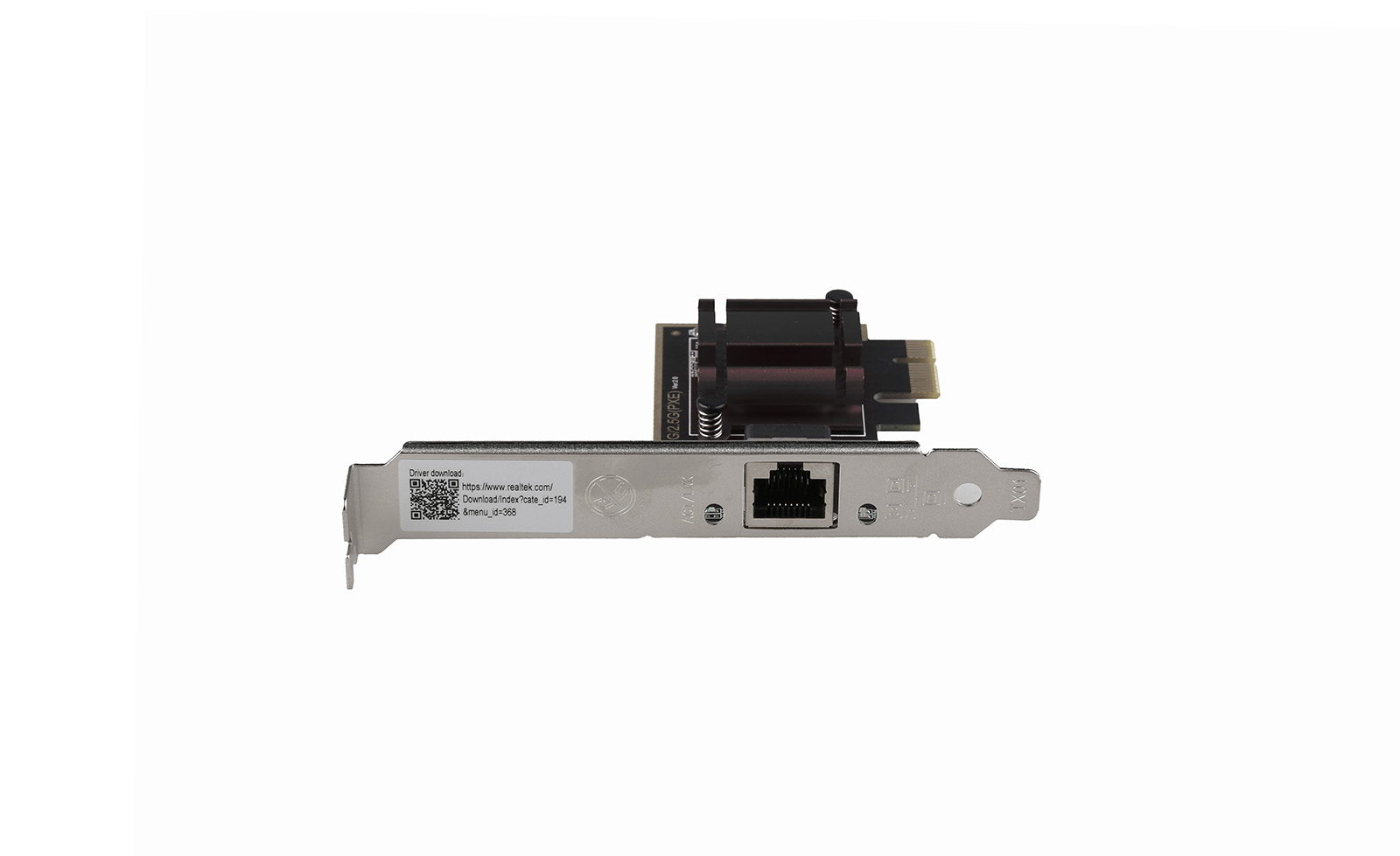

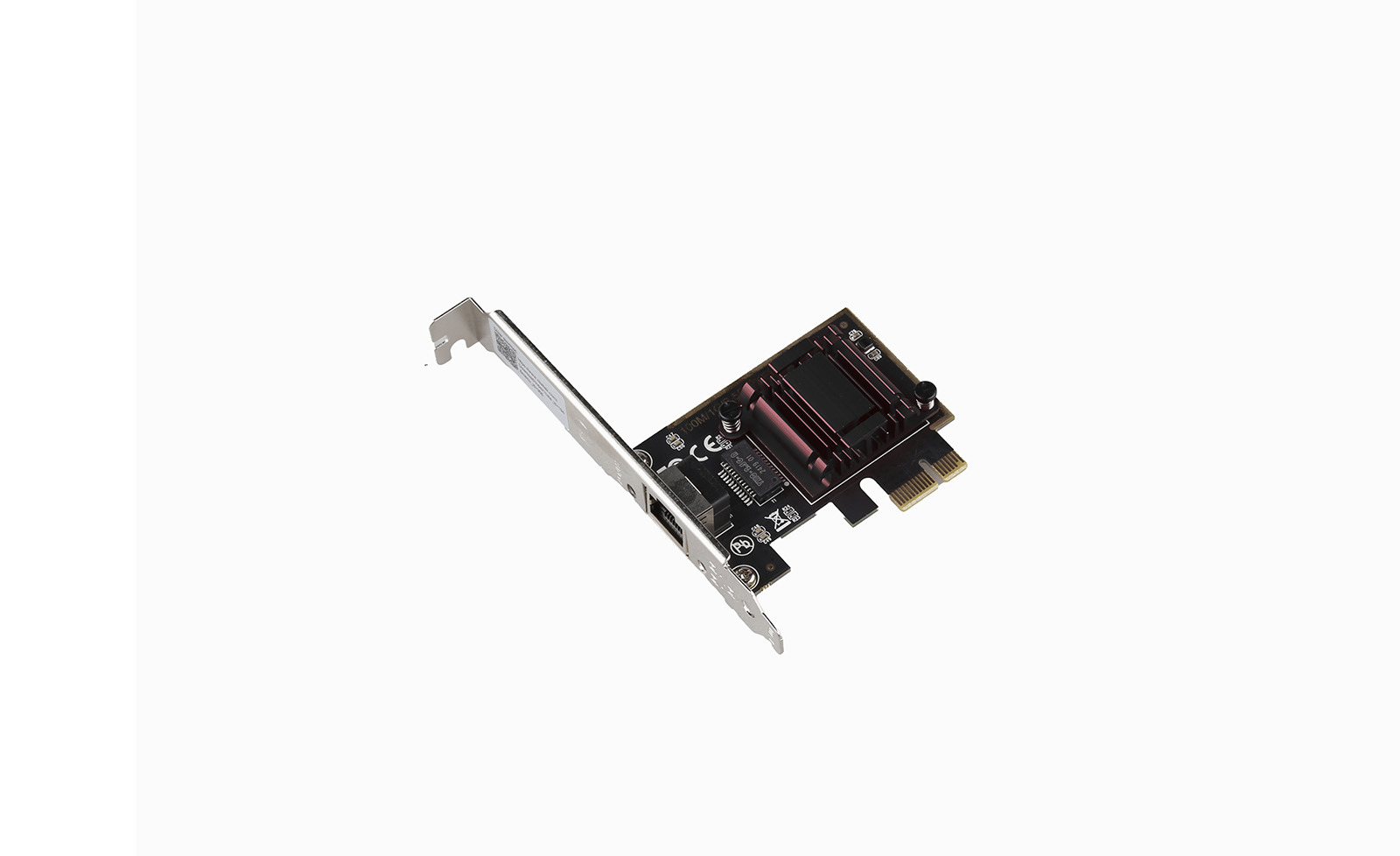

ON300 is a PCI-E network adapter with one 2.5GBase-T port.
The ORIGO ON300 network adapter is based on the RTL8125B controller and runs up to 2.5 Gbps at 100 m Cat 5e/Cat 6 cables.
The ON300 supports installation in PCI-E x1/x4/x8/x16 slots. Standard and low-profile brackets are included.
The ON300 supports such advanced features as Wake-on-LAN, 802.1p Priority Encoding and 802.1Q VLAN.
The ON300 adapter is compatible with Windows 11/10/8.x/7 and Linux operating systems.
Specification
|
Hardware
|
|
|
Chipset
|
• RTL8125B
|
|
Interfaces
|
• 1x10/100/1000/2.5GBase-T port (RJ-45)
|
|
Installation Slot
|
• PCI-E x1/x4/x8/x16
|
|
LEDs
|
• Link/Act
- Solid green – data transfer rate of 100 Mbps
- Solid orange – data transfer rate of 1 Gbps
- Solid red – data transfer rate of 2.5 Gbps
|
|
Network Cables
|
• Ethernet: UTP cat. 3 or above (100 m max.)
• Fast/Gigabit/2.5Gigabit Ethernet: UTP cat. 5 or above (100 m max.)
|
|
Features
|
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3bz 2.5GBase-T
• IEEE 802.3az Energy-Efficient Ethernet
• IEEE 802.3x Flow Control in full-duplex mode
• Wake-on-LAN
• PXE boot
• IEEE 802.1Q VLAN
• IEEE 802.1p Priority Encoding
|
|
Data Rate
|
• 5 Gbps (full-duplex)
|
|
System Requirements
|
|
|
Operating System
|
• Windows 11/10/8/8.1/7
• Windows Server 2022/2012/2008 R2
• Linux 2.4.x and later
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 71.5 x 50 x 1.6 mm
|
|
Operating Conditions
|
|
|
Power
|
• PC (PCI-E)
|
|
Temperature
|
• Operating: 0 to 55 °C
• Storage: -10 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 10 to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• ON300 PCI-E Network Adapter
• Low-Profile Bracket
• Quick Installation Guide
|
