ON200
PCI-E Network Adapter, 1x1000Base-T
- 1x10/100/1000Base-T port (RJ-45)
- The RTL8111H controller
- PCI-E x1/x4/x8/x16 slots installation
- IEEE 802.3x Flow Control
- Windows 11/10/8.x/7 and Linux OS support
- Low-profile bracket is included
Description

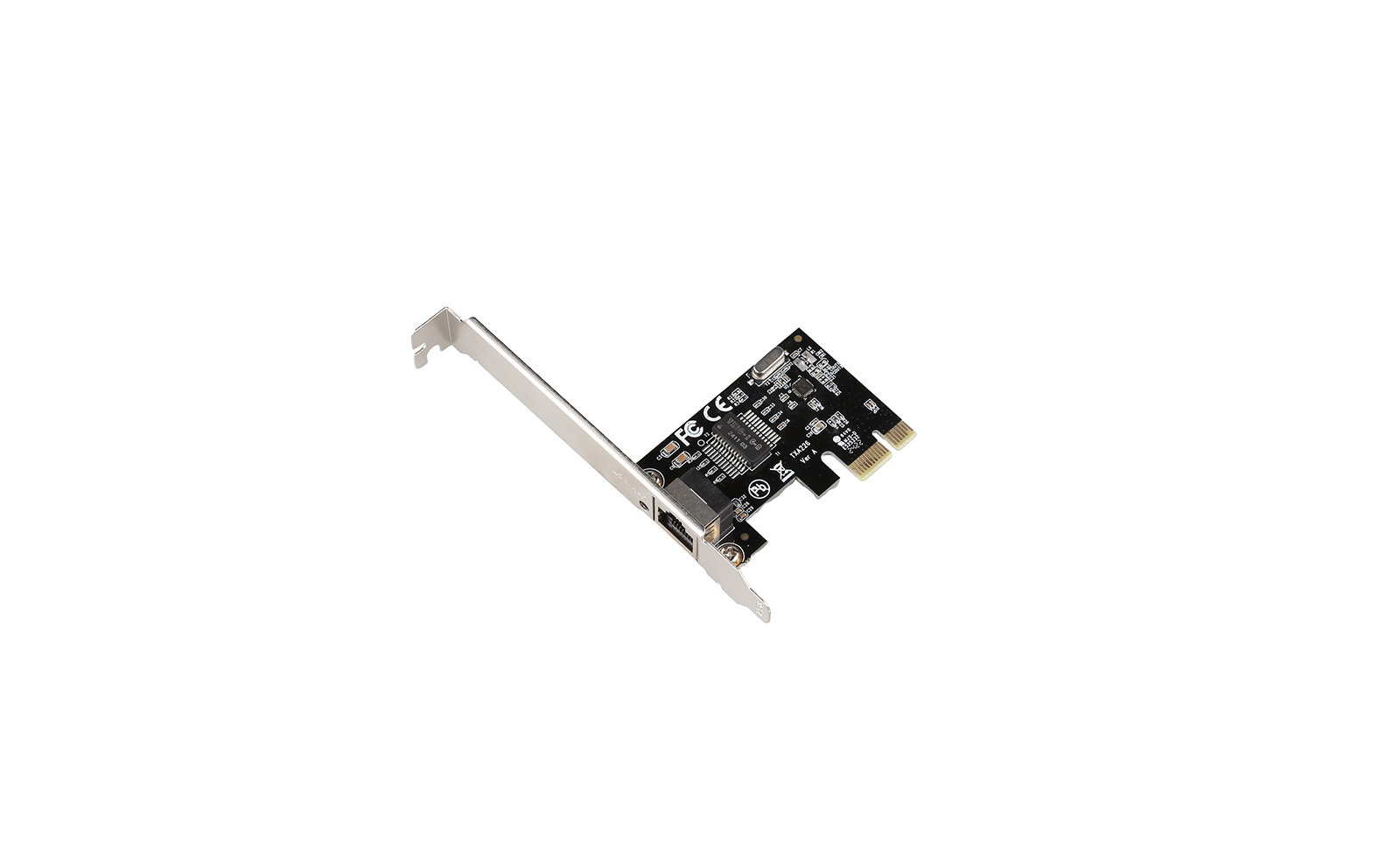

ON200 is a PCI-E network adapter with one 1000Base-T port.
The ORIGO ON200 network adapter is based on the RTL8111H controller and provides data rates of up to 1 Gbps.
The ON200 supports installation in PCI-E x1/x4/x8/x16 slots. Standard and low-profile brackets are included.
The ON200 adapter is compatible with Windows 11/10/8.x/7 and Linux operating systems.
Specification
|
Hardware
|
|
|
Chipset
|
• RTL8111H
|
|
Interfaces
|
• 1x10/100/1000Base-T port (RJ-45)
|
|
Installation Slot
|
• PCI-E x1/x4/x8/x16
|
|
LEDs
|
• Link/Act
|
|
Network Cables
|
• Ethernet: UTP cat. 3 or above (100 m max.)
• Fast/Gigabit Ethernet: UTP cat. 5 (100 m max.)
|
|
Features
|
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3x Flow Control in full-duplex mode
• Auto MDI/MDIX adjustment
|
|
Data Rate
|
• 2 Gbps (full-duplex)
|
|
System Requirements
|
|
|
Operating System
|
• Windows 11/10/8/8.1/7
• Windows Server 2022/2012/2008 R2
• Linux 2.4.x and later
|
|
Physical Parameters
|
|
|
Dimensions (L x W)
|
• 65.3 x 44 mm
|
|
Operating Conditions
|
|
|
Power
|
• PC (PCI-E)
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5 to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• ON200 PCI-E Network Adapter
• Low-Profile Bracket
• Quick Installation Guide
|
