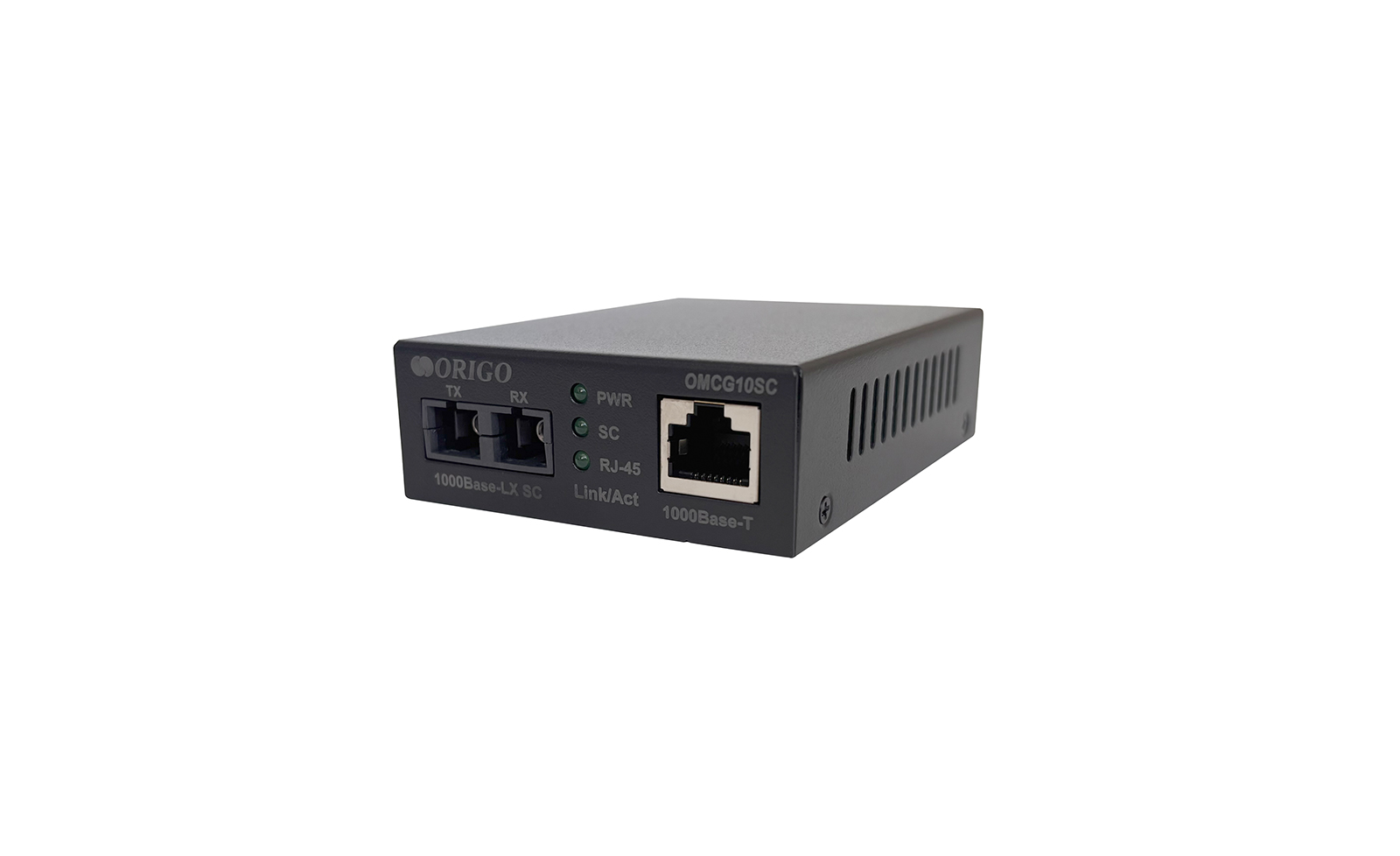

OMCG10SC
Media Converter
1000Base-T / 1000Base-LX (SC), 1310 nm, Single-mode, 10 km

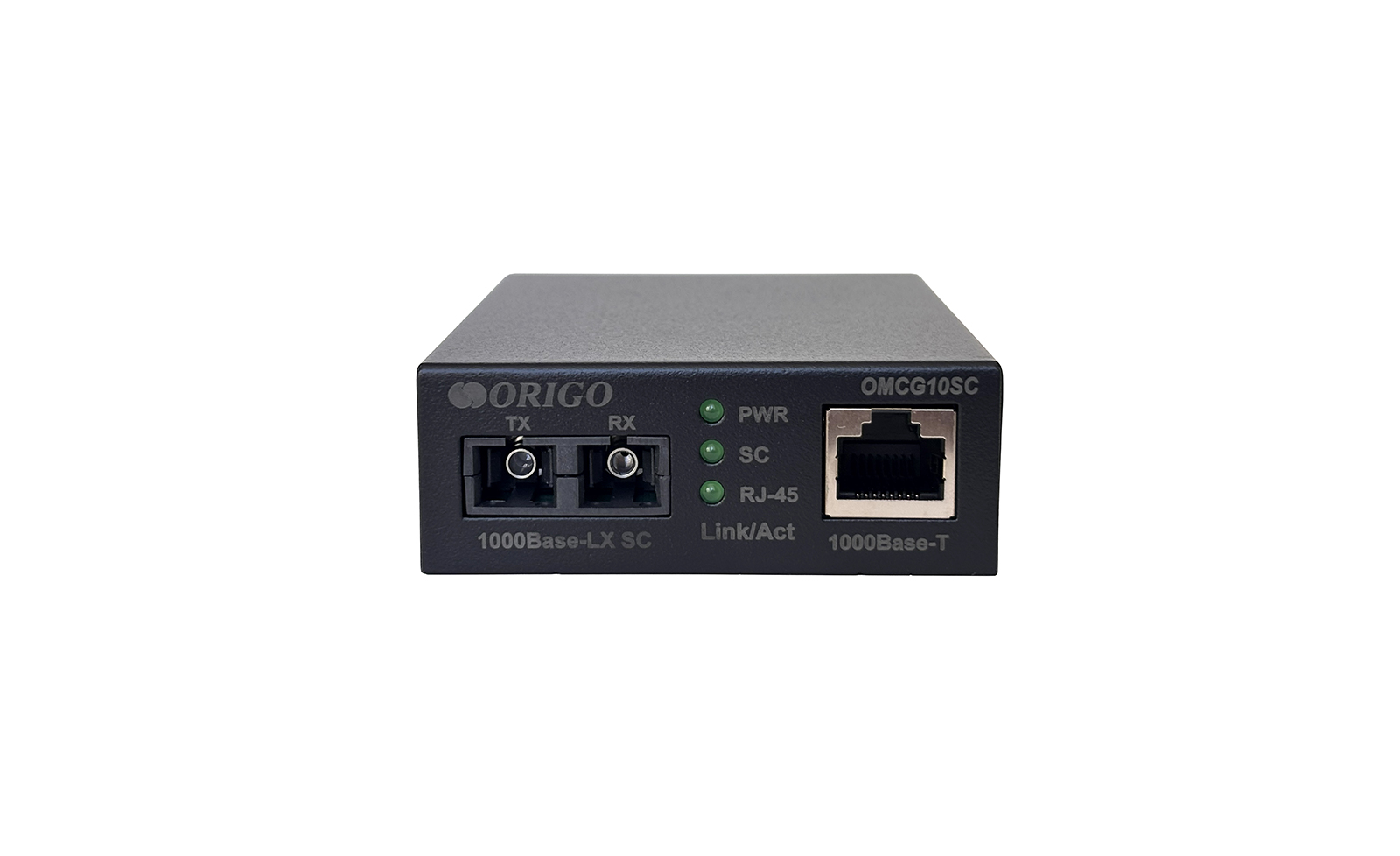

- 1000Base-T RJ-45 port
- 1000Base-LX port with SC connector
- Supports single-mode fiber cable with a length of up to 10 km
- 1310 nm wavelength
- Metal housing
- Power adapter included
Description
OMCG10SC is a media converter with one 1000Base-T port and one 1000Base-LX port with SC connector for single-mode fiber cable (up to 10 km).
The ORIGO OMCG10SC media converter converts a twisted-pair 1000Base-T Gigabit Ethernet connection to a single-mode fiber 1000Base-LX Gigabit Ethernet connection, that allows to extend a connection distance (up to 10 km) between two devices. This media converter has one RJ-45 for twisted-pair and one port with SC connector for fiber cable.
Specification
|
Hardware
|
|
|
Interfaces
|
• 10/100/1000Base-T (RJ-45) port
• 1000Base-LX port with SC connector
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-LX
• IEEE 802.3x Flow Control
• Auto MDI/MDIX on copper port
|
|
LEDs
|
• PWR
• Link/Act (SC)
• Link/Act (RJ-45)
|
|
Fiber Cable Type
|
• Single-mode
|
|
Fiber Cable Length
|
• Up to 10 km
|
|
Wavelength
|
• 1310 nm
|
|
Power
|

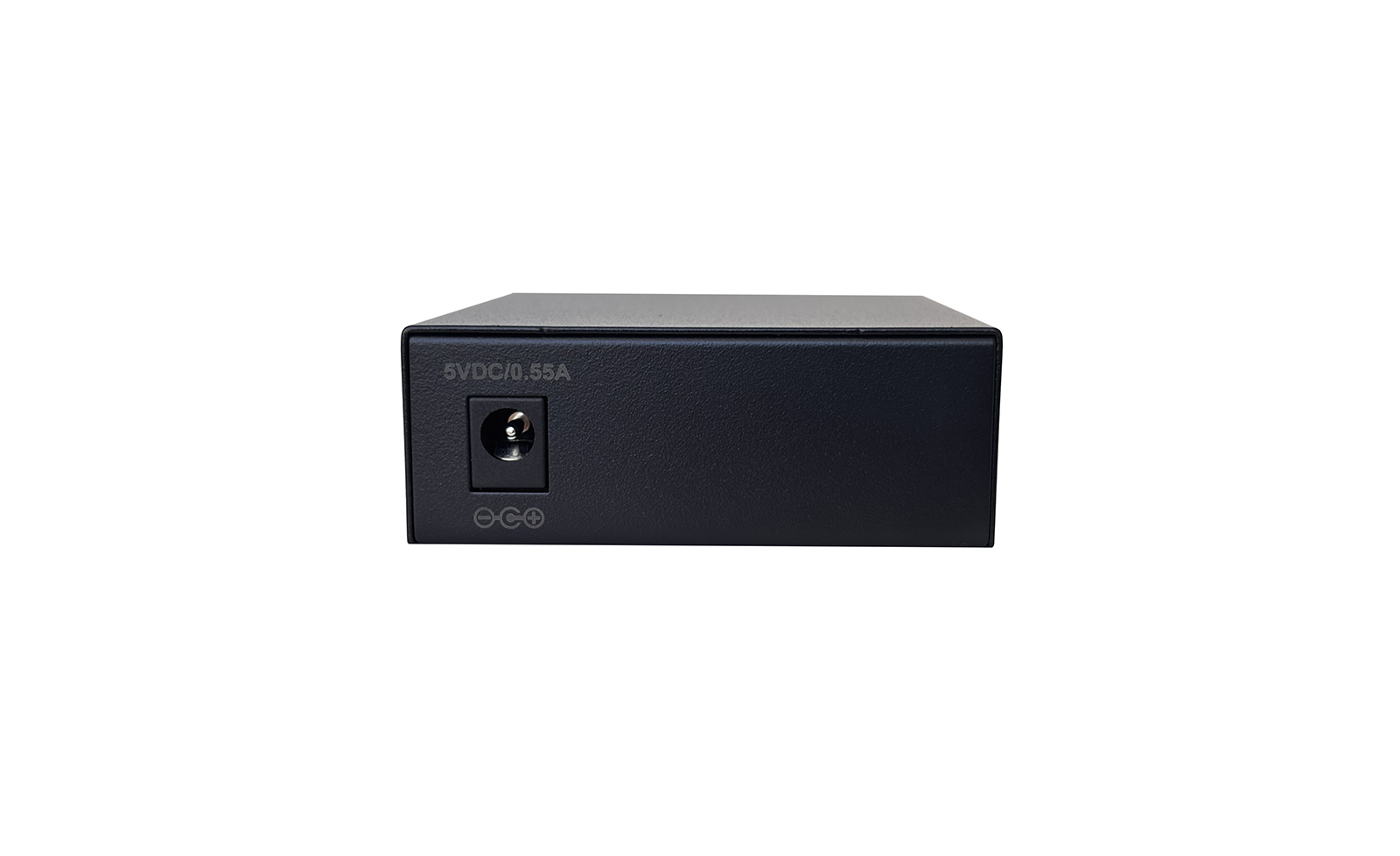

• Connector for connecting the DC power adapter
|
|
Casing
|
• Metal
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 70.5 x 93.5 x 26 mm
|
|
Weight
|
• 124 g
|
|
Operating Conditions
|
|
|
Power Input
|
• External power adapter
- Output: 5 V DC, 0.55 A
|
|
Maximum Power
Consumption
|
• 1.65 W
|
|
Temperature
|
• Operating: 0 to 55 °C
• Storage: -25 to 70 °C
|
|
Humidity
|
• 20% to 80% (non-condensing)
|
|

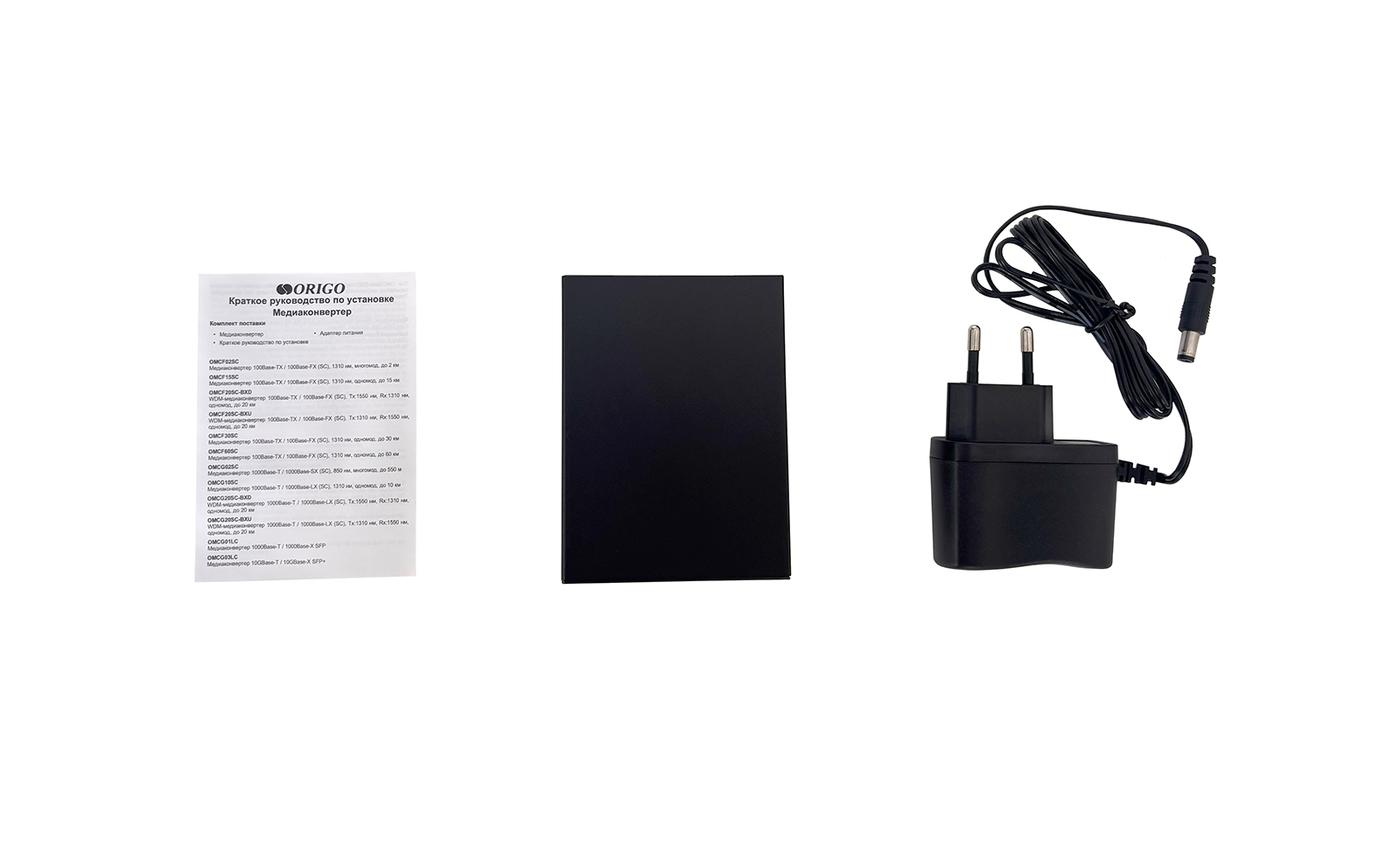

Package Contents
|
|
|
Package Contents
|
• OMCG10SC Media Converter
• Power Adapter
• Quick Installation Guide
|
