OMCG03LC
Media Converter
10GBase-T / 10GBase-X SFP+
- 100/1000/2.5G/5G/10GBase-T RJ-45 port
- 10GBase-X SFP+ port for installing a transceiver
- Auto MDI/MDIX on copper port
- Auto-negotiation
- Metal housing
- Power adapter included
Description

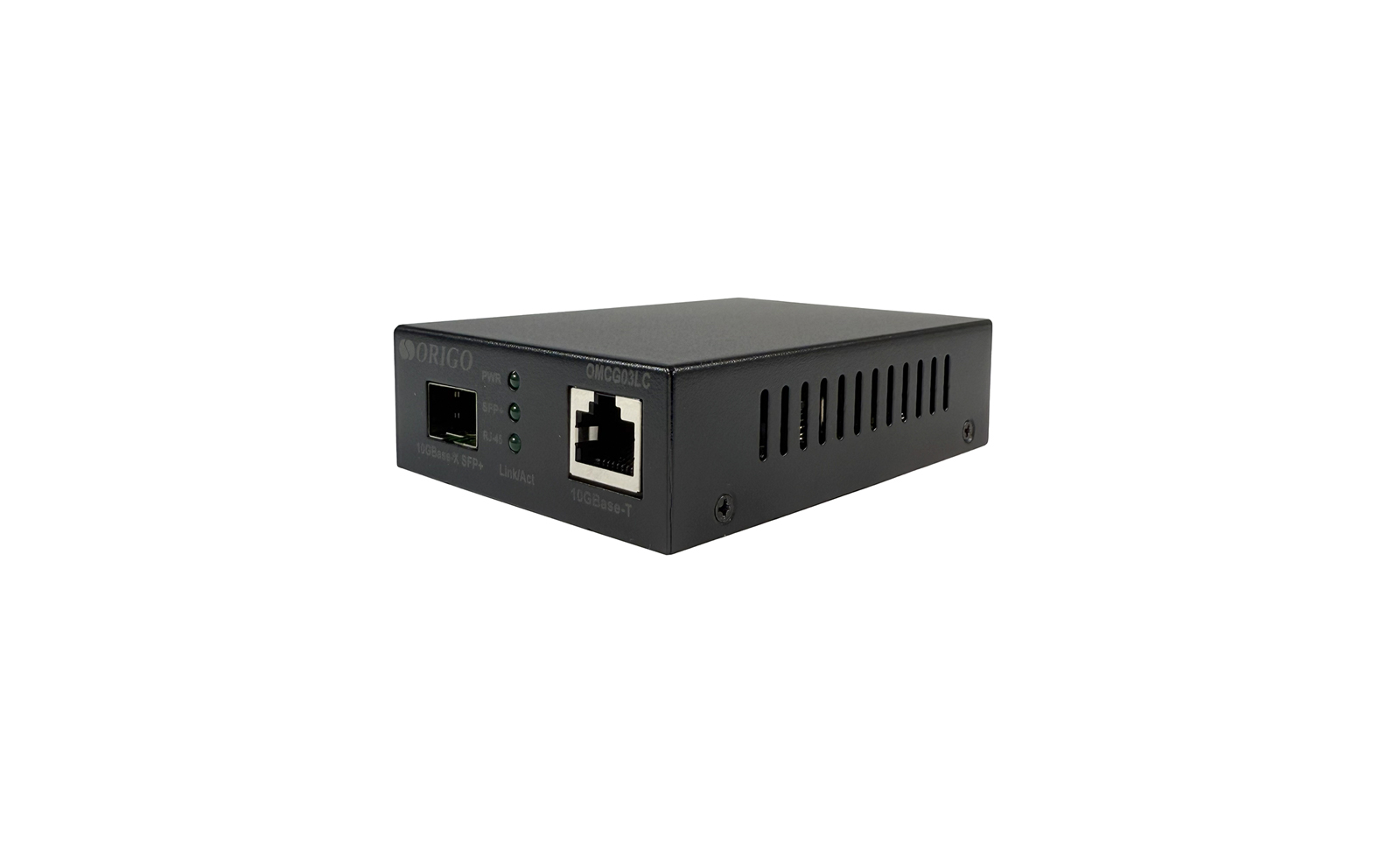

OMCG03LC is a media converter with one 10GBase-T port and one 10G SFP+ port.
The ORIGO OMCG03LC media converter converts a twisted-pair 100/1000/2.5G/5G/10GBase-T connection to a fiber 10GBase-X connection. The media converter has one RJ-45 port for twisted-pair cable and one SFP+ slot for installing a transceiver (not included). Operating wavelengths, fiber cable type and maximum data transmission distance depend on chosen transceiver.
Specification
|
Hardware
|
|
|
Interfaces
|
• 100/1000/2.5G/5G/10GBase-T (RJ-45) port
• 10GBase-X SFP+ port
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3bz 2.5G/5GBase-T
• IEEE 802.3an 10GBase-T
• IEEE 802.3ae 10GBase-X
• Auto-negotiation of speed and duplex mode
• Auto MDI/MDIX on copper port
• 16K jumbo frame
|
|

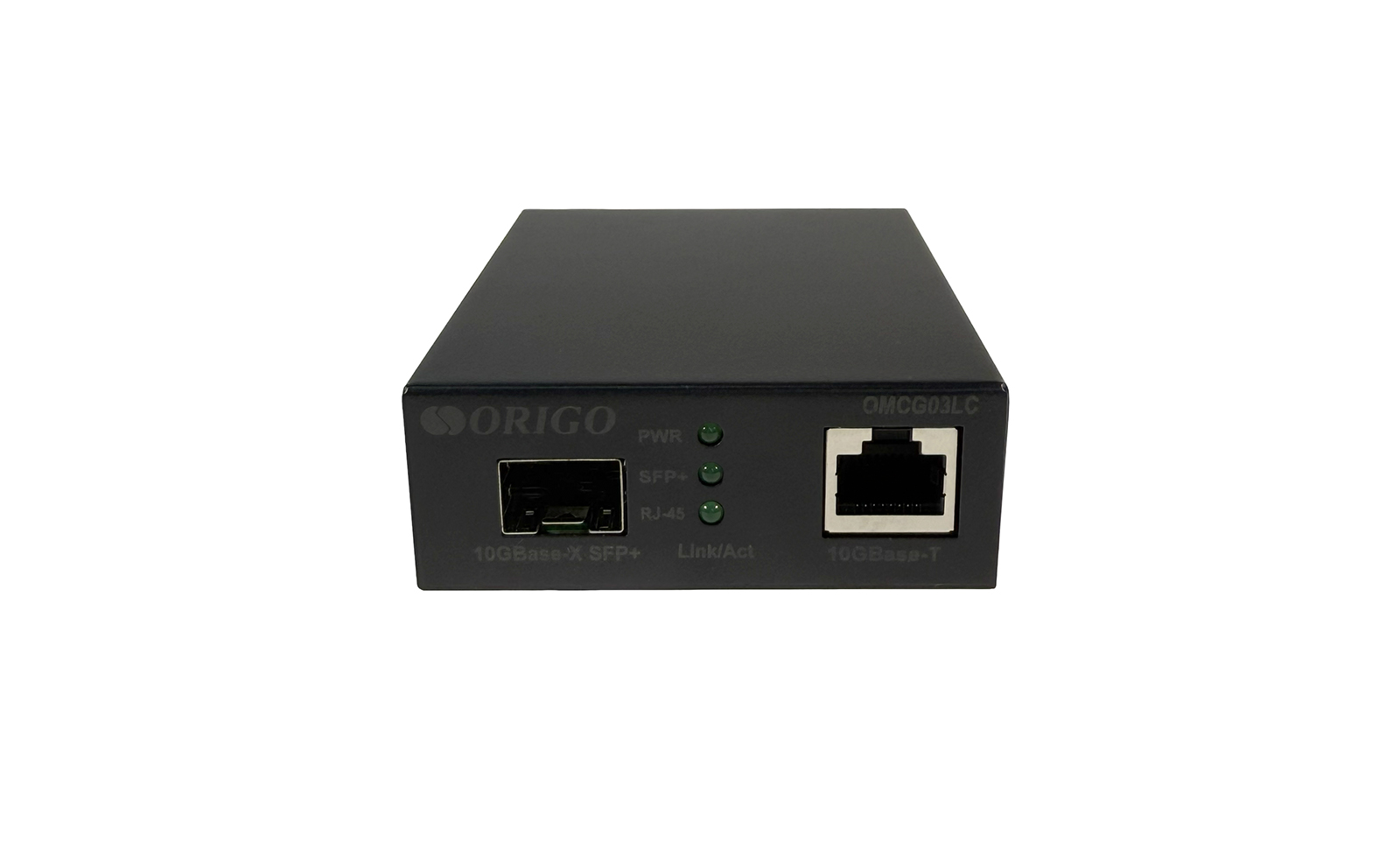

LEDs
|
• PWR
- ON – power on state
- OFF – power off state
• Link/Act (SFP+)
- Always bright – terminal device connected
- Flicker – data pass
- OFF – no connection
• Link/Act (RJ-45)
- Always bright – terminal device connected
- Flicker – data pass
- OFF – no connection
|
|
Power
|

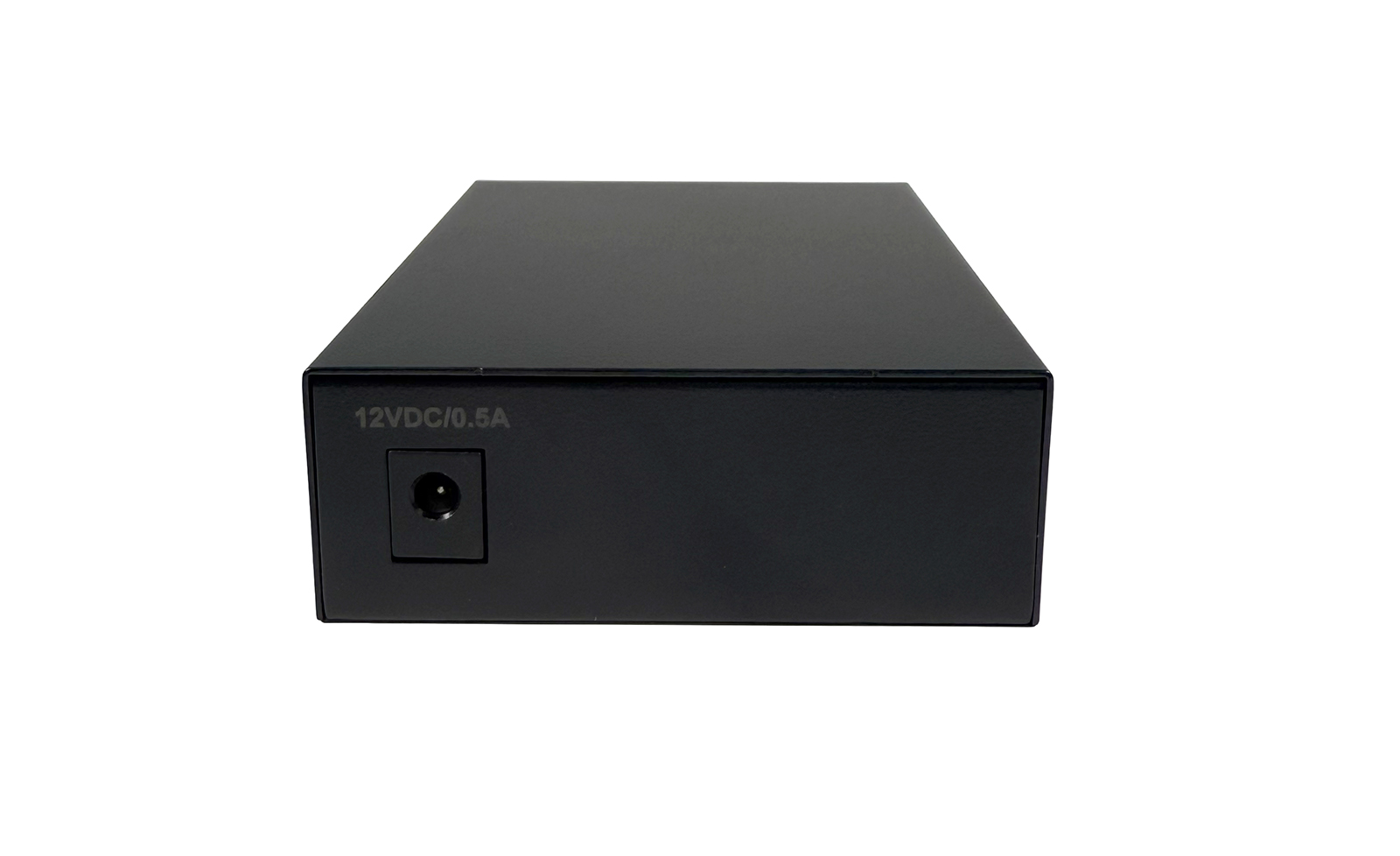

• Connector for connecting the DC power adapter
|
|
Casing
|
• Metal
|
|
Mounting
|
• Desktop
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 93.5 x 70.5 x 26 mm
|
|
Weight
|
• 1.44 kg
|
|
Package Dimensions
|
• 10.3 x 7.8 x 6.5 cm
|
|
Gross Weight
|
• 1.5 kg
|
|
Operating Conditions
|
|
|
Power Input
|
• External power adapter
- Output: 12 V DC,1 A
• Power adapter cable length: 1.2 m
|
|
Maximum Power
Consumption
|
• 3 W
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -25 to 70 °C
|
|
Humidity
|
• 20% to 80% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OMCG03LC Media Converter
• Power Adapter (1.2 m cable length)
• Quick Installation Guide
|
