OMCG01LC
Media Converter 1000Base-T / 1000Base-X SFP
- 1000Base-T RJ-45 port
- 1000Base-X SFP port for installing a transceiver
- LFP (Link Fault Pass-through) support
- FEF (Far End Fault) support
- Metal housing
- Power adapter included
Description

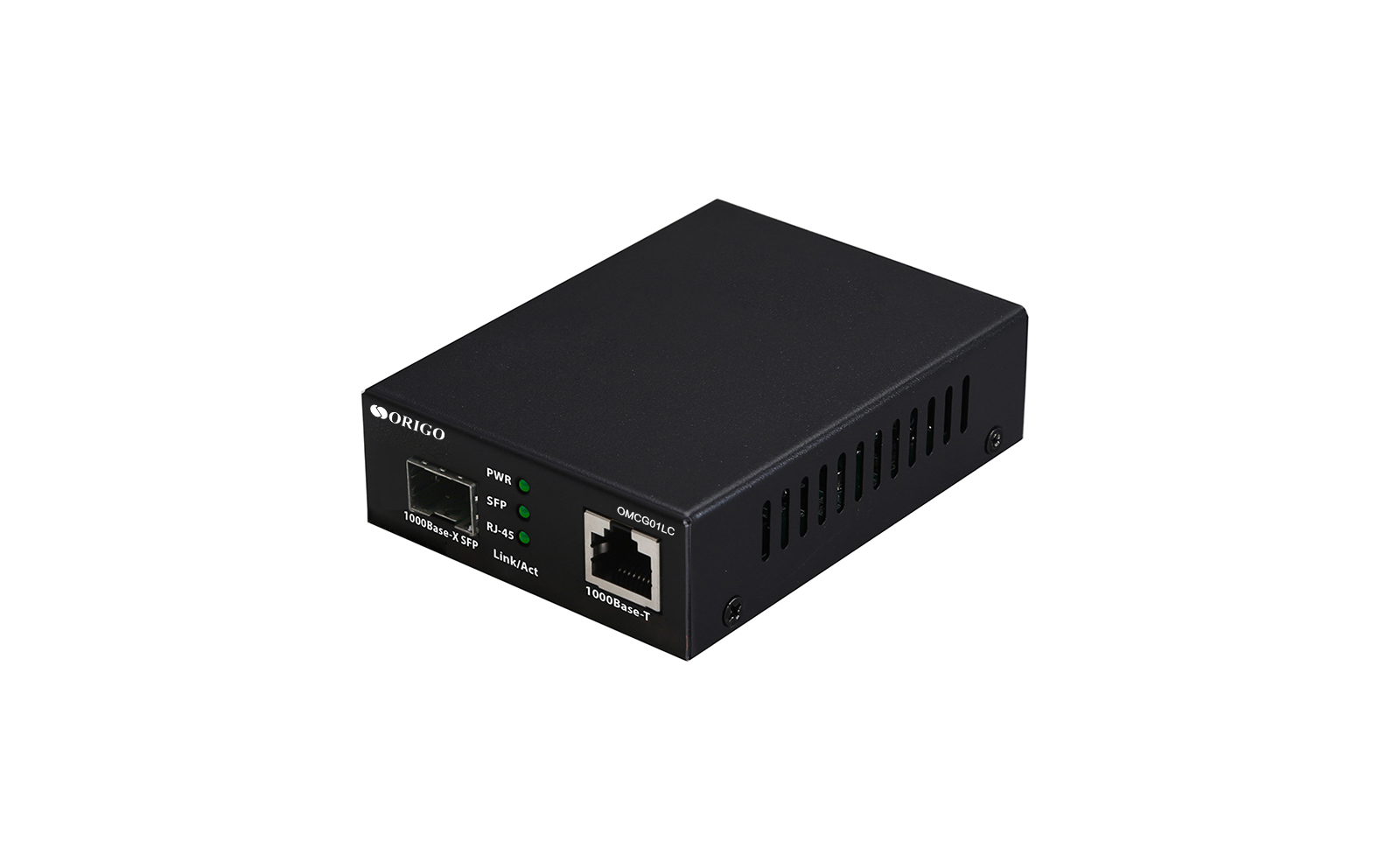

OMCG01LC is a media converter with one 1000Base-T port and one SFP port.
The ORIGO OMCG01LC media converter converts a twisted-pair 1000Base-T connection to a fiber 1000Base-X connection. The media converter has one RJ-45 port for twisted-pair cable and one SFP slot for installing a transceiver (not included). Operating wavelengths, fiber cable type and maximum data transmission distance depend on chosen transceiver.
Specification
|
Hardware
|
|
|
Interfaces
|
• 10/100/1000Base-T (RJ-45) port
• 1000Base-X SFP port
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-X
• IEEE 802.3x Full Duplex Flow Control
• Auto MDI/MDIX on copper port
• LFP (Link Fault Pass-through) support
• FEF (Far End Fault) support
|
|
LEDs
|
• PWR
• Link/Act (SFP)
• Link/Act (RJ-45)
|
|
Power
|
• Connector for connecting the power adapter
|
|
Casing
|
• Metal
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 70.5 x 93.5 x 26 mm
|
|
Weight
|
• 124 g
|
|
Operating Conditions
|
|
|
Power Input
|
• Power adapter
- Input: 100-240 V AC, 50/60 Hz
- Output: 5 V DC/0.55 A
|
|
Maximum Power
Consumption
|
• 1.65 W
|
|
Temperature
|
• Operating: 0 to 55 °C
• Storage: -25 to 70 °C
|
|
Humidity
|
• 20% to 80% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OMCG01LC Media Converter
• Power Adapter
• Quick Installation Guide
|
|
Optional Accessories
|
|
|
SFP Transceivers
|
• OFM310GT
• OFM311GT
• OFM314GT
|
|
WDM SFP Transceivers
|
• OFM330R/3KM
• OFM330T/3KM
• OFM330R/10KM
• OFM330T/10KM
• OFM331R/20KM
• OFM331T/20KM
|
