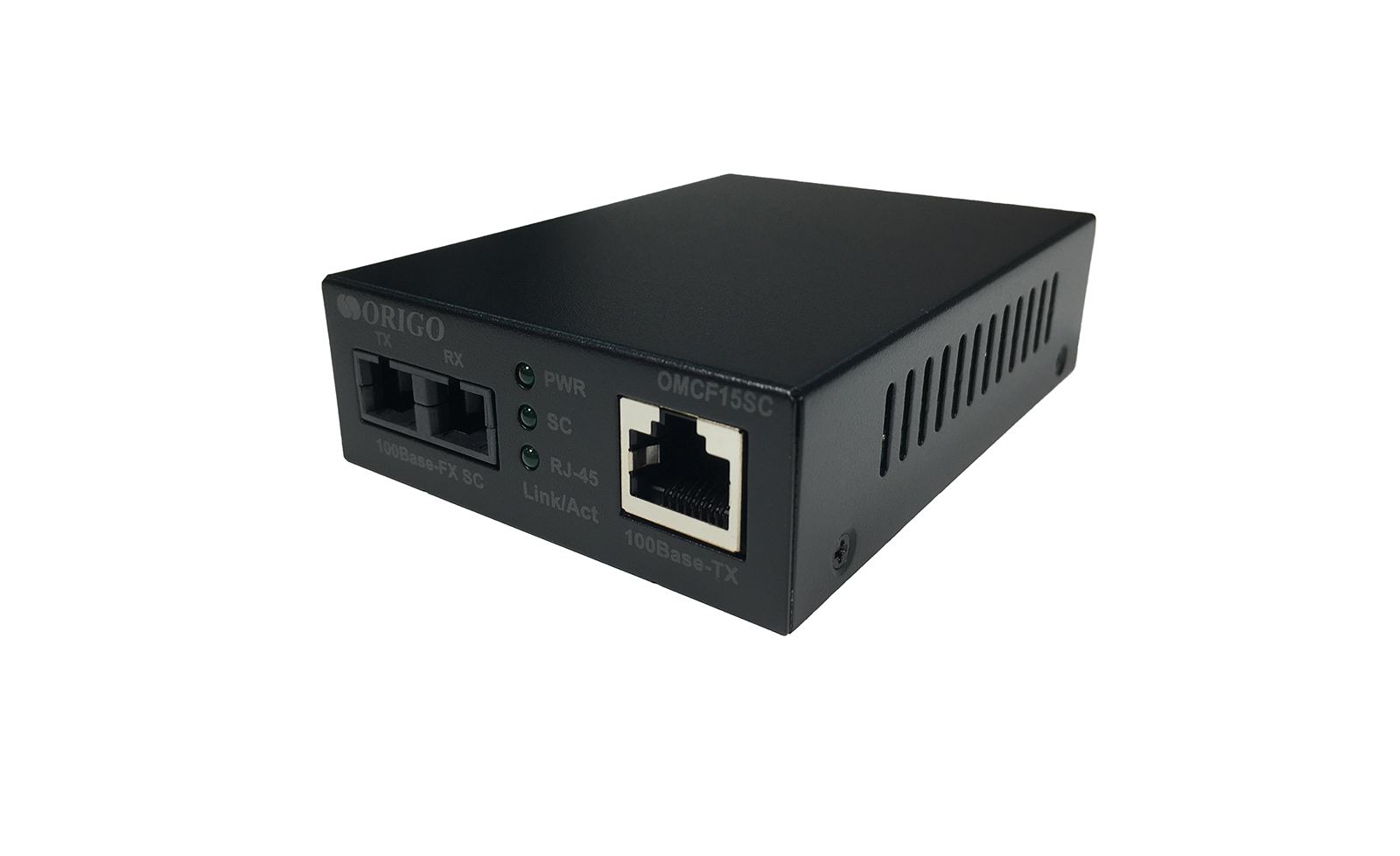

OMCF15SC
Media Converter 100Base-TX / 100Base-FX (SC), 1310 nm, Single-mode, 15 km
- 100Base-TX RJ-45 port
- 100Base-FX port with SC connector
- Supports single-mode fiber cable with a length of up to 15 km
- 1310 nm wavelength
- Metal housing
- Power adapter included
Description
OMCF15SC is a media converter with one 100Base-TX port and one 100Base-FX port with SC connector for single-mode fiber cable (up to 15 km).
The ORIGO OMCF15SC media converter converts a twisted-pair 100Base-TX Fast Ethernet connection to a single-mode fiber 100Base-FX Fast Ethernet connection, that allows to extend a connection distance (up to 15 km) between two devices. This media converter has one RJ-45 for twisted-pair and one port with SC connector for fiber cable.
Specification
|
Hardware
|
|
|

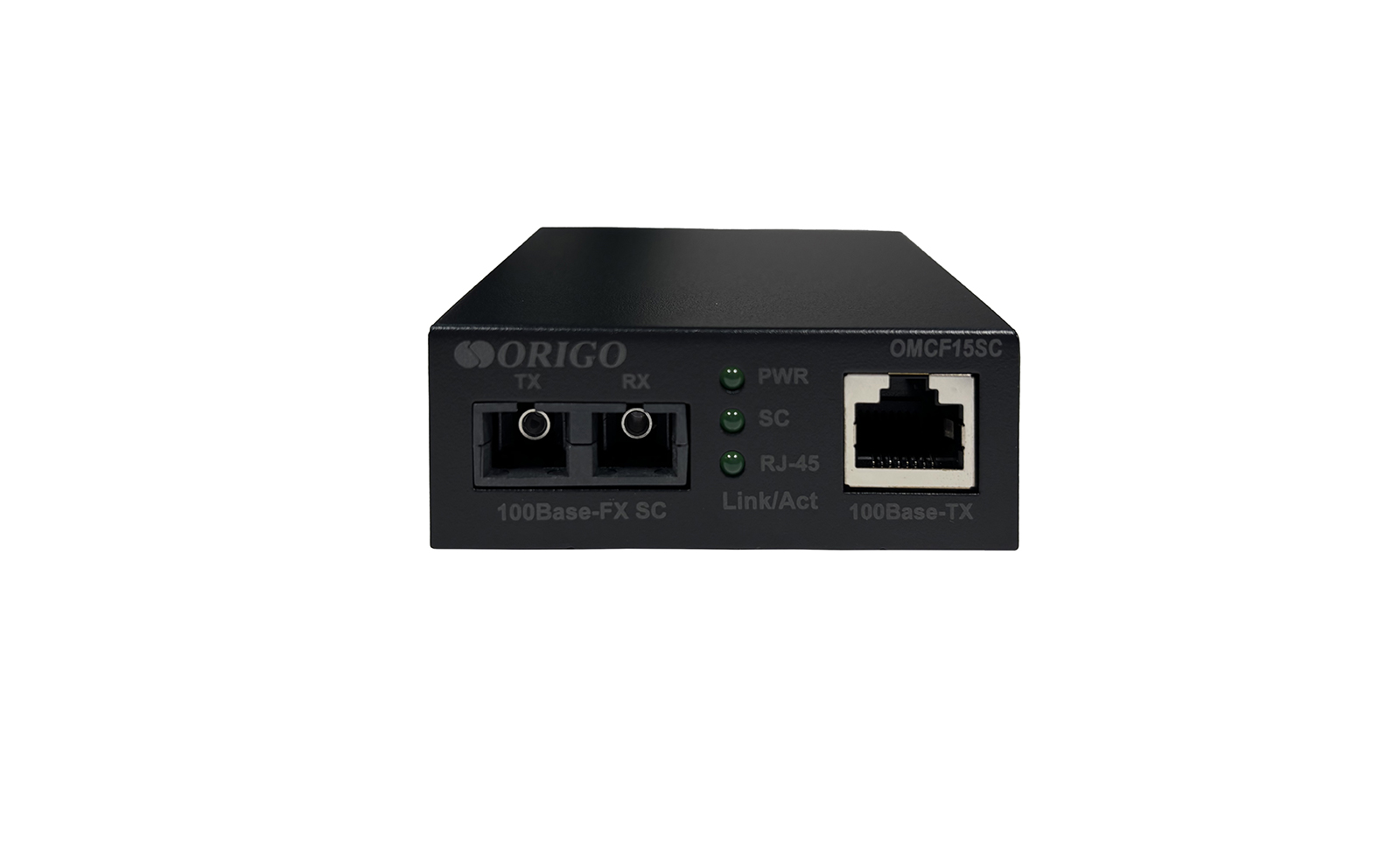

Interfaces
|
• 10/100Base-TX (RJ-45) port
• 100Base-FX port with SC connector
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3u 100Base-FX
• Auto MDI/MDIX on copper port
|
|
LEDs
|
• PWR
• Link/Act (SC)
• Link/Act (RJ-45)
|
|
Fiber Cable Type
|
• Single-mode
|
|
Fiber Cable Length
|
• Up to 15 km
|
|
Wavelength
|
• 1310 nm
|
|
Power
|

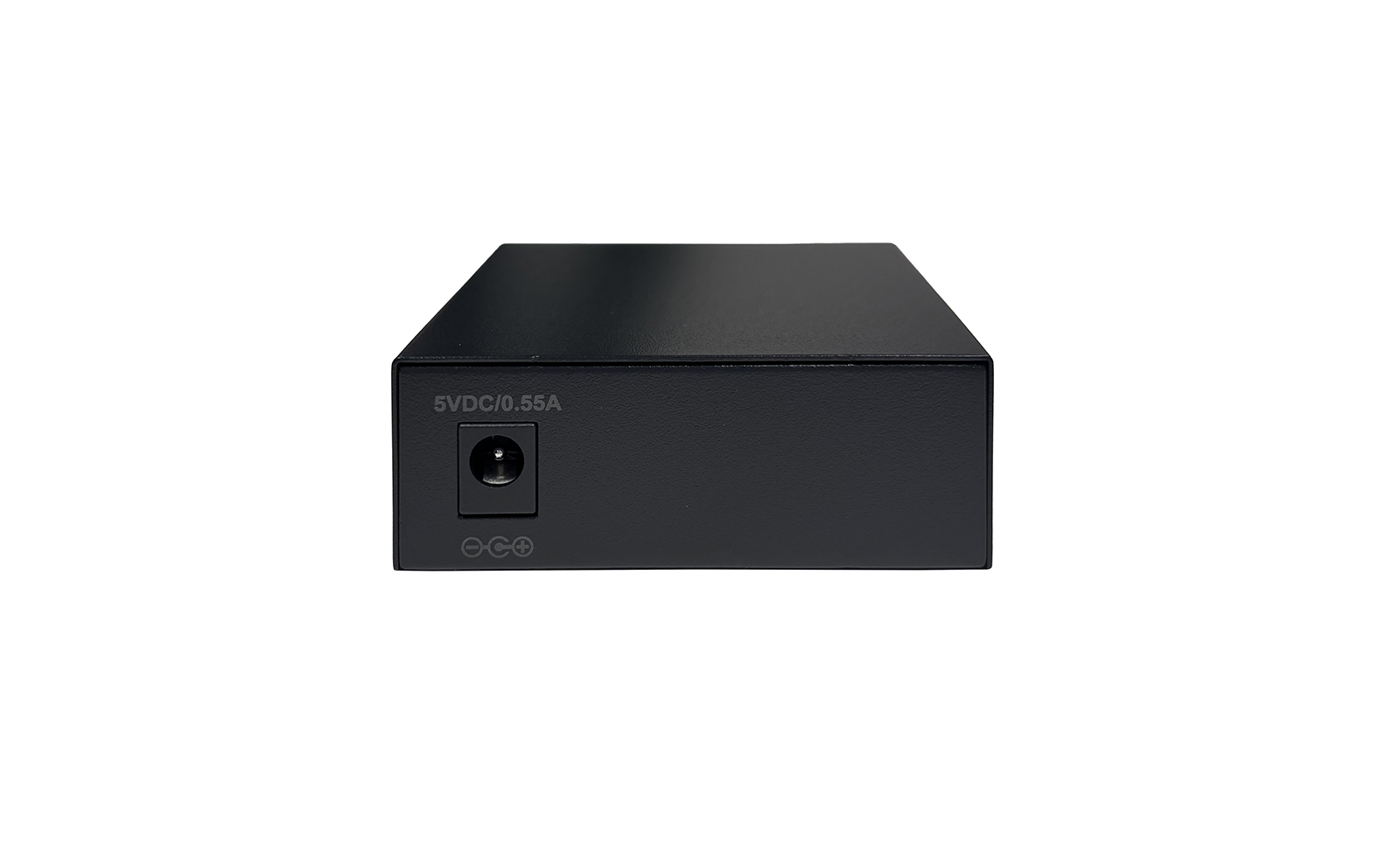

• Connector for connecting the DC power adapter
|
|
Casing
|
• Metal
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 70.5 x 93.5 x 26 mm
|
|
Weight
|
• 134 g
|
|
Operating Conditions
|
|
|
Power Input
|
• External power adapter
- Output: 5 V DC, 0.55 A
|
|
Maximum Power Consumption
|
• 1.5 W
|
|
Temperature
|
• Operating: 0 to 55 °C
• Storage: -25 to 70 °C
|
|
Humidity
|
• 20% to 80% (non-condensing)
|
|

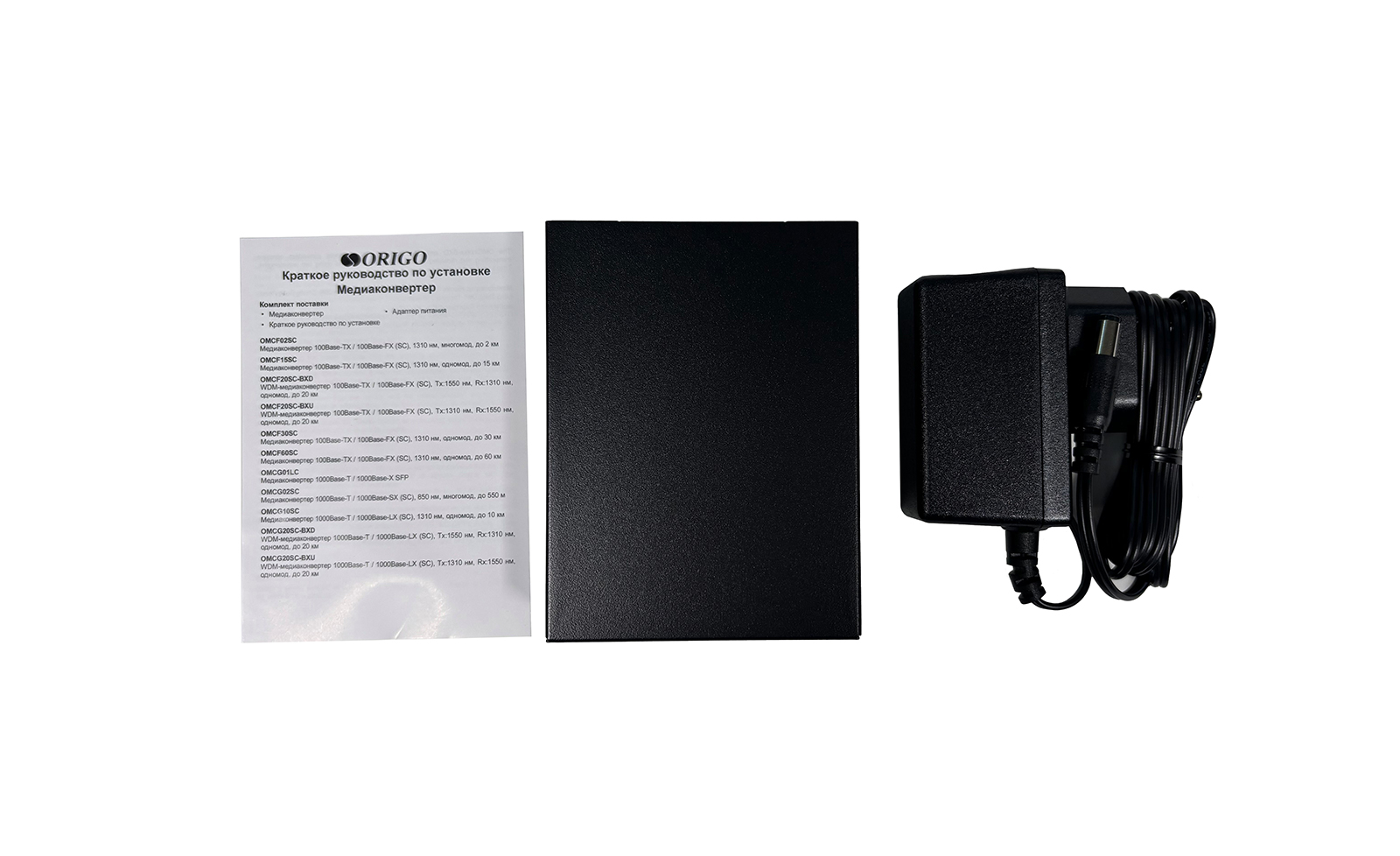

Package Contents
|
|
|
Package Contents
|
• OMCF15SC Media Converter
• Power Adapter
• Quick Installation Guide
|
