OWR1240ACG
AC1200 Mesh Wi-Fi Gigabit Router,
2.4/5GHz, 1000Base-T WAN, 4x1000Base-T LAN
- For internet plans with speeds up to 1000Mbps
- AC1200 Wave 2 Wi-Fi with speeds of up to 867Mbps in the 5GHz band and up to 300Mbps in the 2.4GHz band
- Dual-core 880MHz processor, 128MB RAM, 128MB Flash
- 1 Gigabit WAN port, 4 Gigabit LAN ports
- 4 omnidirectional 5dBi antennas for extensive Wi-Fi coverage
- Mesh Wi-Fi support to extend wireless coverage
- 2x2 MU-MIMO for simultaneous operation without lags or interruptions
- Multi-WAN for internet connection backup
- Smooth IPTV streaming in HD and Ultra HD quality
- Parental control functions
- Wall mounting available
Description
OWR1240ACG is a dual-band AC1200 Wave 2 Mesh Wi-Fi gigabit router with 1 1000Mbps WAN port and 4 1000Mbps LAN ports.
The ORIGO OWR1240ACG wireless router is designed to set up home networks with uninterrupted internet access with plans of up to 1000Mbps, dual-band 802.11ac Wi-Fi, support for IPTV in Ultra HD quality and parental control functions.
The Multi-WAN feature allows to configure multiple WAN ports and connect to different internet service providers. If the primary connection fails, the router will automatically switch to the backup one.
Wi-Fi operates in two frequency bands: with speeds of up to 867Mbps in the 5GHz band and up to 300Mbps in the 2.4GHz band. Support for Mesh Wi-Fi allows to connect several OWR1240ACG routers into one network and provide seamless Wi-Fi coverage in country houses, multi-room apartments and other premises with large area, and complicated layout. MU-MIMO and TX Beamforming technologies will help to improve performance in environments with multiple simultaneous connections and create high-quality coverage by directing a Wi-Fi signal towards each client.
The router is fully adapted to work with IPTV, supports the creation of a guest Wi-Fi network with WPA3 protection and parental control functionality with using a URL filter and the SkyDNS content filtering service.
Specification
|
Hardware
|
|
|
Processor
|
• MT7621 (880MHz, dual core)
|
|
RAM
|
• 128MB, DDR3
|
|
Flash
|
• 128MB, NAND
|
|

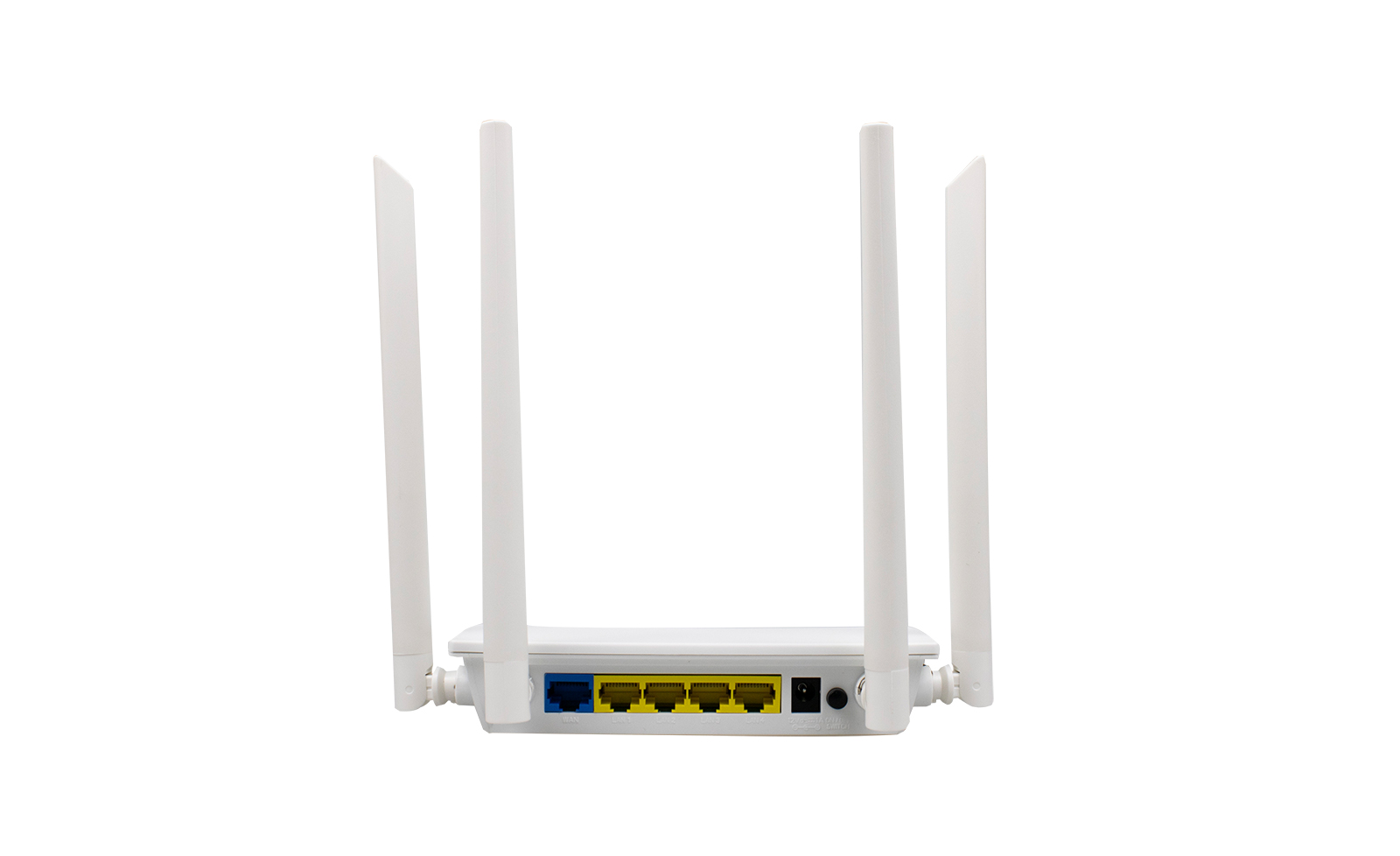

Ports
|
• 1 10/100/1000BASE-T WAN port
• 4 10/100/1000BASE-T LAN ports
|
|
LEDs
|
• Power
• WAN
• LAN 1-4
• 2.4G
• 5G
• WPS
|
|
Buttons
|
• ON/OFF button to power on/power off
• RESET button to restore factory default settings
• WPS button to set up wireless connection and enable/disable wireless network
|
|
Antennas
|
• 4 external non-detachable omnidirectional 5dBi antennas
|
|
MIMO
|
• 2 x 2, MU-MIMO
|
|
Power Connector
|
• Power input connector (DC)
|
|
Mounting
|
• Desktop
• Wall
|
|
Wi-Fi Parameters
|
|
|
Standards
|
• IEEE 802.11ac Wave 2
• IEEE 802.11a/b/g/n
|
|
Frequency Range
|
• 2400 ~ 2483.5MHz
• 5150 ~ 5350MHz
• 5650 ~ 5850MHz
|
|
Wireless Connection Rate
|
• 2.4GHz
- 11n: up to 300Mbps
- 11g: up to 54Mbps
- 11b: up to 11Mbps
• 5GHz
- 11ac: up to 867Mbps
- 11n: up to 300Mbps
- 11a: up to 54Mbps
|
|
Wireless Connection Security
|
• WPA/WPA2 (Personal/Enterprise)
• WPA3 (Personal)
• МАС filter
• WPS (PBC/PIN)
|
|
Advanced Functions
|
• Mesh Wi-Fi support
- Up to 6 devices
• WMM (Wi-Fi QoS)
• Information on connected Wi-Fi clients
• Advanced settings
• Guest Wi-Fi / support of MBSSID
• Periodic scan of channels, automatic switch to least loaded channel
• Support of 5GHz TX Beamforming
• Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence)
• Support of STBC
• CoovaChilli authentication portal
|
|
Transmitter Output Power
|
• Less than 20dBm (100mW)
|
|
Software
|
|
|
Operating Modes
|
• Router
• Access point
• Wi-Fi client
• Wi-Fi repeater
• WISP repeater
|
|
WAN Connection Types
|
• PPPoE
• IPv6 PPPoE
• PPPoE Dual Stack
• Static IPv4 / Dynamic IPv4
• Static IPv6 / Dynamic IPv6
• PPPoE + Static IP (PPPoE Dual Access)
• PPPoE + Dynamic IP (PPPoE Dual Access)
• PPTP/L2TP + Static IP
• PPTP/L2TP + Dynamic IP
• L2TP Dual Stack
• IPIP6 in DSLite mode
• 6in4
• 6to4
• 6rd
|
|
Network Functions
|
• DHCP server/relay
• Advanced configuration of built-in DHCP server
• Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
• Automatic obtainment of LAN IP address (for access point/repeater/client modes)
• DNS relay
• Dynamic DNS
• Static IPv4/IPv6 routing
• RIP
• IGMP/MLD Proxy
• Support of UPnP
• Support of VLAN
• WAN ping respond
• Support of SIP ALG
• Support of RTSP
• WAN failover
• LAN/WAN conversion
• Multi-WAN support
• Autonegotiation of speed, duplex mode, and flow control / Manual speed and duplex mode setup for each Ethernet port
• Built-in UDPXY application
• Equal load distribution while using several WAN connections (traffic balancing)
• Support of VRRP
• Port mirroring
• Wake-on-LAN support
|
|
Firewall
|
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• IPv4/IPv6 filter
• MAC filter
• URL filter
• Ad blocking function
• DMZ
• Virtual servers
• Built-in SkyDNS web content filtering service
|
|
VPN
|
• IPsec/PPTP/L2TP/PPPoE pass-through
• PPTP/L2TP servers
• PPTP/L2TP tunnels
• L2TP over IPsec client
• GRE/EoGRE/EoIP/IPIP tunnels
• IPsec tunnels
- Transport/Tunnel mode
- IKEv1/IKEv2 support
- DES encryption
- NAT Traversal
- Support of DPD (Keep-alive for VPN tunnels)
|
|
Management and Monitoring
|
• Local and remote access to settings through SSH/TELNET/WEB (HTTP/HTTPS)
• Web-based interface for configuration and management
• Notification on connection problems and auto redirect to settings
• Firmware update via web-based interface
• Automatic notification on new firmware version
• Saving/restoring configuration to/from file
• Support of logging to remote host
• Automatic synchronization of system time with NTP server and manual time/date setup
• Ping utility
• Traceroute utility
• TR-069 client
• SNMP agent
• Schedules for rules and settings of firewall, automatic reboot, and enabling/disabling wireless network and Wi-Fi filter
• Automatic upload of configuration file from server of internet service provider (Auto Provision)
• Configuration of action for hardware buttons
|
|
Operating Conditions
|
|
|
Power
|
• Output: 12V DC, 1A
|
|
Temperature
|
• Operating: from 0 to 40 °C
• Storage: from -10 to 70 °C
|
|
Humidity
|
• Operating: from 10% to 90%
• Storage: from 5% to 90%
|
|
Package Contents
|
|
|
Package Contents
|
• Router OWR1240ACG
• Power adapter
• Ethernet cable
• Quick Installation Guide
|
