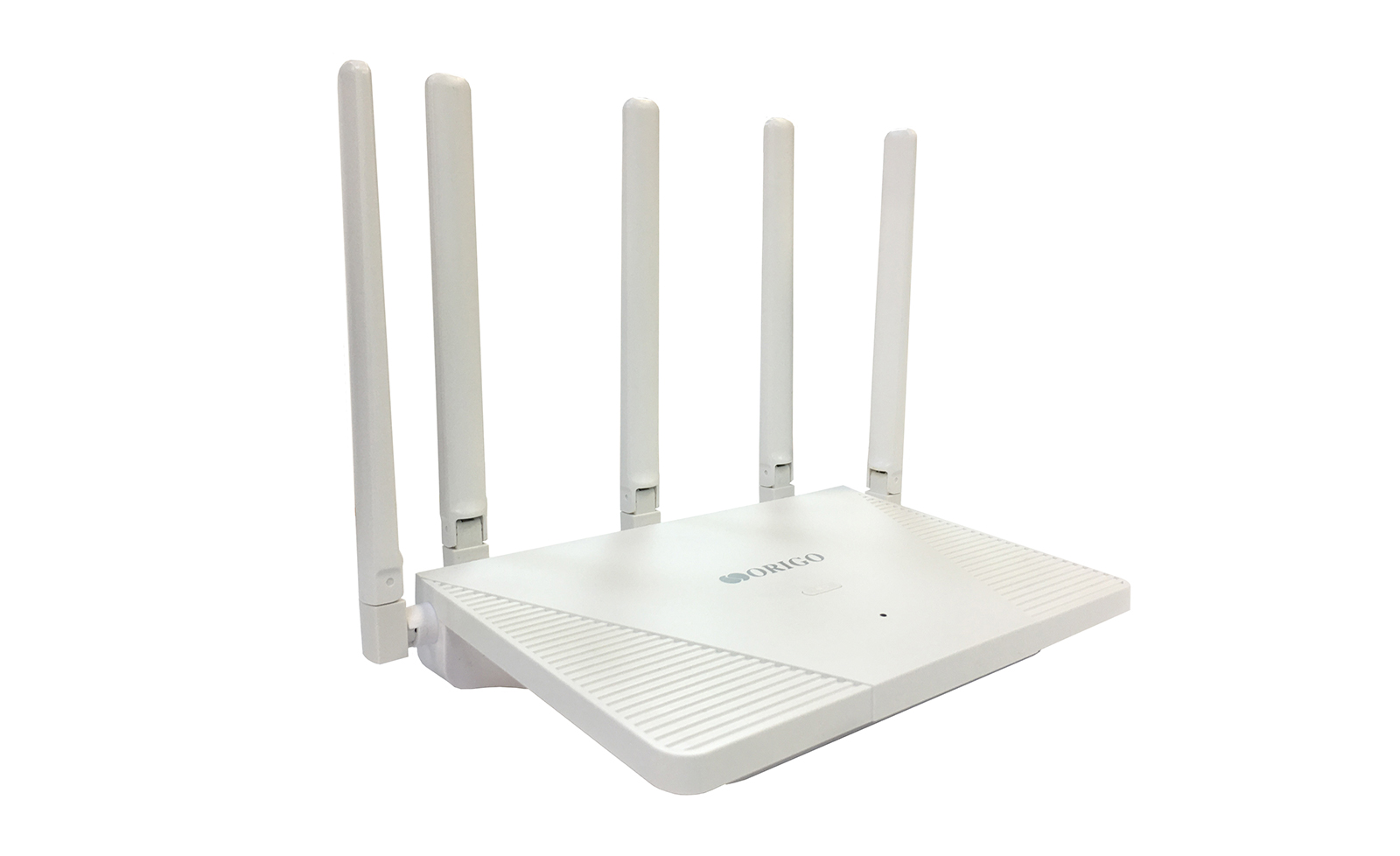

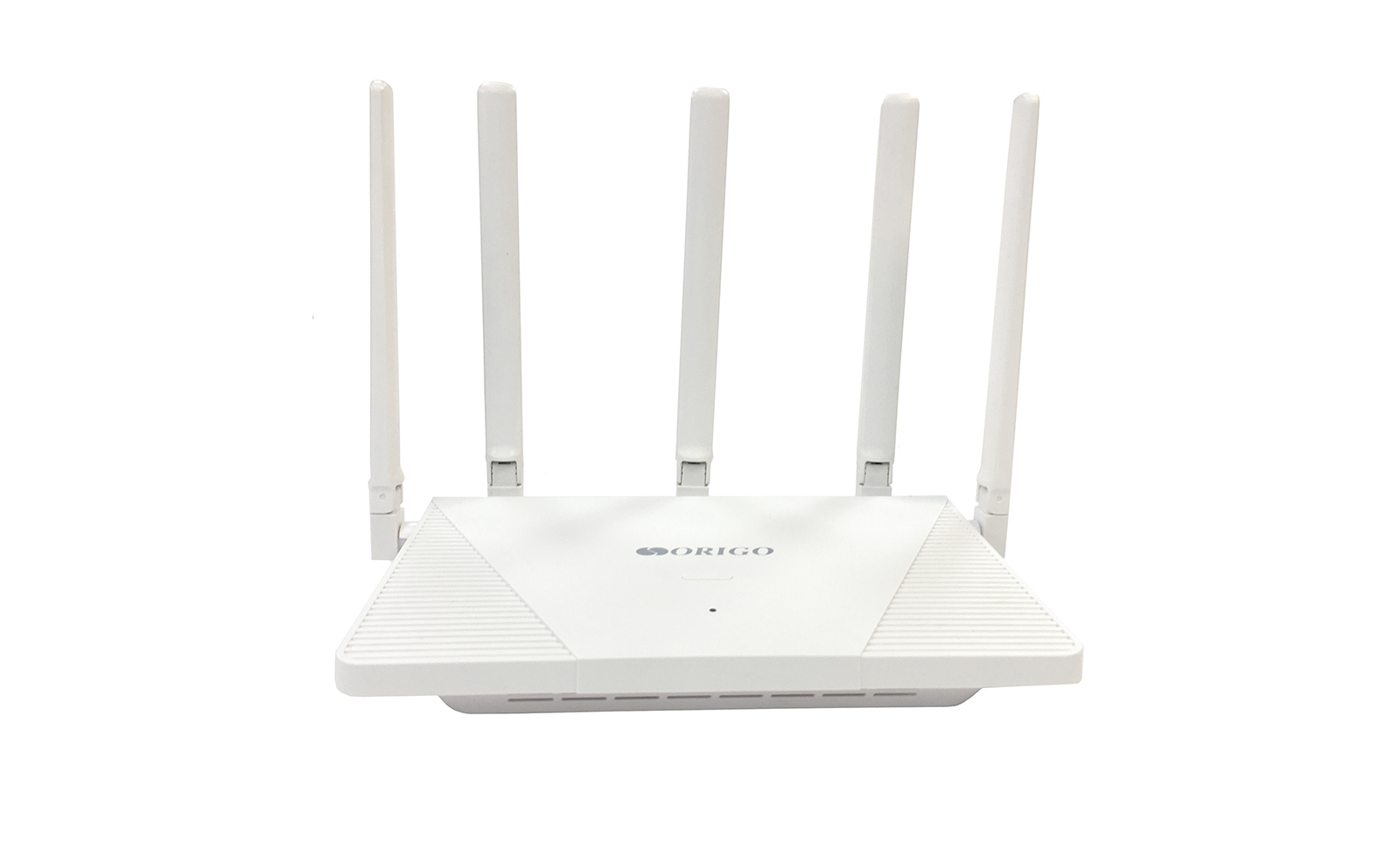

OWR3030AXG
AX3000 Mesh Wi-Fi 6 Gigabit Router,
2.4/5GHz, 1000Base-T WAN,
3x1000Base-T LAN
- For internet plans with speeds up to 1000Mbps
- AX3000 Wi-Fi 6 with speeds of up to 2402Mbps in the 5GHz band and up to 574Mbps in the 2.4GHz band
- Dual-core 1.3MHz processor, 256MB RAM, 128MB Flash
- 1 Gigabit WAN port, 3 Gigabit LAN ports
- 5dBi antennas for extensive Wi-Fi coverage
- Mesh Wi-Fi support to extend wireless coverage
- MU-MIMO and OFDMA for simultaneous operation without lags or interruptions
- Airtime Fairness for improving overall Wi-Fi performance
- Multi-WAN for internet connection backup
- Smooth IPTV streaming in HD and Ultra HD quality
- Parental control functions
- Wall mounting available
Description
OWR3030AXG is a dual-band AX3000 Mesh Wi-Fi 6 gigabit router with 1 1000Mbps WAN port and 3 1000Mbps LAN ports.
The ORIGO OWR3030AXG wireless router is designed to set up home networks with uninterrupted internet access with plans of up to 1000Mbps, high-speed dual-band Wi-Fi 6, support for Mesh Wi-Fi, IPTV in Ultra HD quality, and parental control functions.
Support for Wi-Fi 6 ensures high wireless network performance and stable operation even with a large number of simultaneous connections. Wi-Fi operates in two frequency bands: with speeds of up to 2402Mbps in the 5GHz band and up to 574Mbps in the 2.4GHz band. OFDMA and MU-MIMO technologies allow the router to efficiently distribute the load among client devices, reduce latency, and improve overall wireless network performance.
Support for Mesh Wi-Fi is designed to quickly connect several ORIGO1 routers into one network and provide seamless Wi-Fi coverage in country houses, multi-room apartments, and other premises with large area and complicated layout.
The Multi-WAN feature allows to configure multiple WAN ports and connect to different internet service providers. If the primary connection fails, the router will automatically switch to the backup one.
The router is fully adapted to work with IPTV, supports the creation of a guest Wi-Fi network with WPA3 protection and parental control functionality with using a URL filter and the SkyDNS content filtering service.
1Automatic configuration and cooperation are guaranteed for the following models: OWR3030AXM/U2, OWR3030AXG/U3, OWR3030AXG, OWR1830AXG, and OWR1240ACG.
Specification
|
Hardware
|
|
|
Processor
|
• MT7981BA (1.3GHz, dual core)
|
|
RAM
|
• 256MB, DDR3
|
|
Flash
|
• 128MB, SPI NAND
|
|

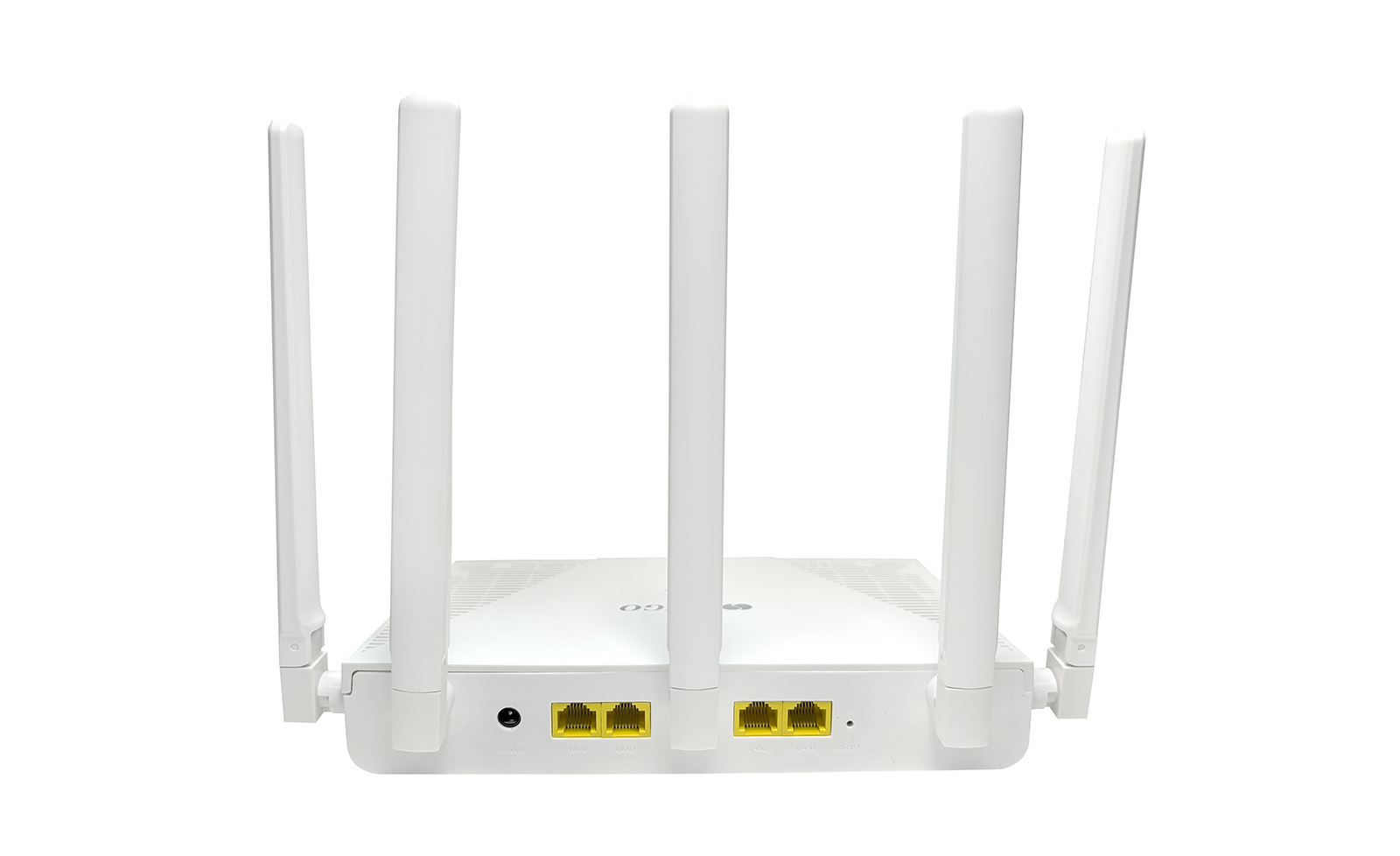

Ports
|
• 1 10/100/1000BASE-T WAN port
• 3 10/100/1000BASE-T LAN ports
|
|
LEDs
|
• POWER
• 2.4GHZ
• 5GHZ
• LAN 1-3
• STATUS
• WAN
|
|
Buttons
|
• WiFi / WPS button to connect mesh network devices, set up wireless connection, and enable/disable wireless network
• RESET button to restore factory default settings
• ON/OFF button to power on/power off
|
|

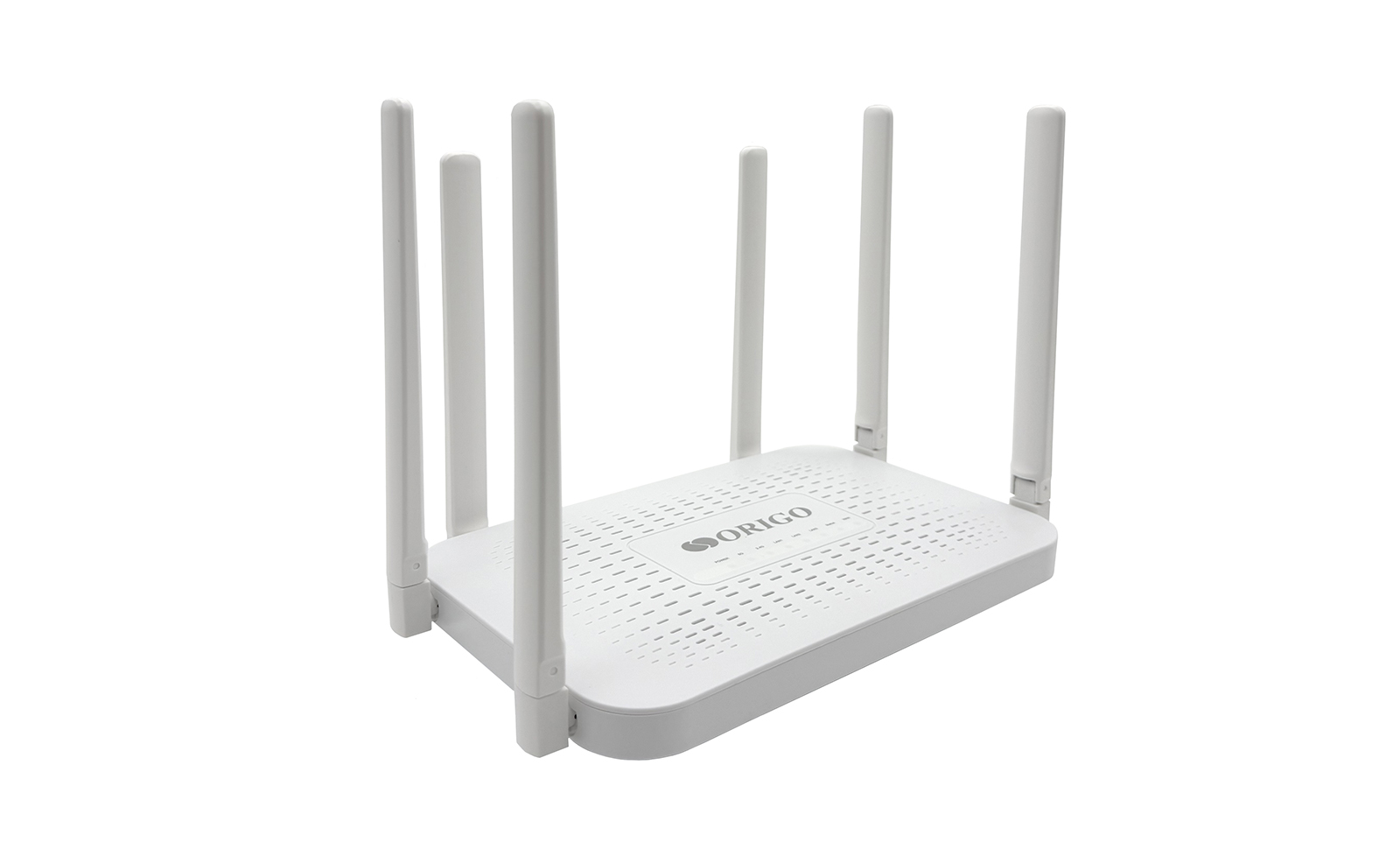

Antennas
|
• 6 external non-detachable omnidirectional 5dBi antennas1
|
|
MIMO
|
• 2.4GHz: 2x2:2, MU-MIMO
• 5GHz: 3x3:2, MU-MIMO
|
|
Power Connector
|
• Power input connector (DC)
|
|
Mounting
|
• Desktop
• Wall
|
|
Wi-Fi Parameters
|
|
|
Standards
|
• IEEE 802.11ax
• IEEE 802.11ac Wave 2
• IEEE 802.11a/b/g/n
• IEEE 802.11k/v
|
|
Frequency Range
|
• 2400 ~ 2483.5MHz
• 5150 ~ 5350MHz
• 5650 ~ 5850MHz
|
|
Wireless Connection Rate
|
• 2.4GHz
- 11ax: up to 574Mbps
- 11n: up to 300Mbps
- 11g: up to 54Mbps
- 11b: up to 11Mbps
• 5GHz
- 11ax: up to 2402Mbps
- 11ac: up to 867Mbps
- 11n: up to 300Mbps
- 11a: up to 54Mbps
|
|
Wireless Connection Security
|
• WPA/WPA2 (Personal/Enterprise)
• WPA3 (Personal)
• МАС filter
• WPS (PBC/PIN)
|
|
Advanced Functions
|
• Support of Mesh Wi-Fi
• WMM (Wi-Fi QoS)
• Information on connected Wi-Fi clients
• Advanced settings
• Guest Wi-Fi / support of MBSSID
• Periodic scan of channels, automatic switch to least loaded channel
• Support of 2.4GHz/5GHz TX Beamforming
• Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence)
• Support of STBC
• CoovaChilli authentication portal
• Support of OFDMA technology
• Support of TWT technology
• Support of Airtime Fairness
|
|
Transmitter Output Power
|
• Less than 20dBm (100mW)
|
|
Modulation Schemes
|
• 802.11a: BPSK, QPSK, 16QAM, 64QAM
• 802.11b: DSSS, DBPSK, DQPSK, CCK
• 802.11g: BPSK, QPSK, 16QAM, 64QAM
• 802.11n: BPSK, QPSK, 16QAM, 64QAM
• 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM
• 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
|
|
Software
|
|
|
Operating Modes
|
• Router
• Access point
• Wi-Fi client
• Wi-Fi repeater
• WISP repeater
|
|
WAN Connection Types
|
• PPPoE
• IPv6 PPPoE
• PPPoE Dual Stack
• Static IPv4 / Dynamic IPv4
• Static IPv6 / Dynamic IPv6
• PPPoE + Static IP (PPPoE Dual Access)
• PPPoE + Dynamic IP (PPPoE Dual Access)
• PPTP/L2TP + Static IP
• PPTP/L2TP + Dynamic IP
• L2TP Dual Stack
• IPv4 over IPv6 in DSLite mode
• 6in4
• 6to4
• 6rd
|
|
Network Functions
|
• DHCP server/relay
• Advanced configuration of built-in DHCP server
• Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
• Automatic obtainment of LAN IP address (for access point/repeater/client modes)
• DNS relay
• Dynamic DNS
• Static IPv4/IPv6 routing
• RIP
• IGMP/MLD Proxy
• Support of UPnP
• Support of VLAN
• WAN ping respond
• Support of SIP ALG
• Support of RTSP
• WAN failover
• LAN/WAN conversion
• Multi-WAN support
• Autonegotiation of speed, duplex mode, and flow control / Manual speed and duplex mode setup for each Ethernet port
• Built-in UDPXY application
|
|
|
• Equal load distribution while using several WAN connections (traffic balancing)
• Support of VRRP
• Port mirroring
• Wake-on-LAN support
|
|
Firewall
|
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• IPv4/IPv6 filter
• MAC filter
• URL filter
• Ad blocking function
• DMZ
• Virtual servers
• Built-in SkyDNS web content filtering service
|
|
VPN
|
• IPsec/PPTP/L2TP/PPPoE pass-through
• PPTP/L2TP servers
• PPTP/L2TP tunnels
• L2TP over IPsec client
• GRE/EoGRE/IPIP tunnels
• IPsec tunnels
- Transport/Tunnel mode
- IKEv1/IKEv2 support
- DES encryption
- NAT Traversal
- Support of DPD (Keep-alive for VPN tunnels)
|
|
Management and Monitoring
|
• Local and remote access to settings through SSH/TELNET/WEB (HTTP/HTTPS)
• Web-based interface for configuration and management
• Notification on connection problems and auto redirect to settings
• Firmware update via web-based interface
• Automatic notification on new firmware version
• Saving/restoring configuration to/from file
• Support of logging to remote host
• Automatic synchronization of system time with NTP server and manual time/date setup
• Ping utility
• Traceroute utility
• TR-069 client
• SNMP agent
• Schedules for rules and settings of firewall, automatic reboot, and enabling/disabling wireless network and Wi-Fi filter
• Automatic upload of configuration file from server of internet service provider (Auto Provision)
• Configuration of action for hardware buttons
|
|
Physical Parameters
|
|
|
Device Dimensions
(L x W x H) |
• 228 x 150 x 29 mm
|
|
Device Weight
|
• 380 g
|
|
Package Dimensions
|
• 28 x 25 x 6 cm
|
|
Gross Weight
|
• 0.7 kg
|
|
Operating Conditions
|
|
|
Power
|
• Output: 12V DC, 1A
• Power adapter cable length: 1.5 m
|
|
Temperature
|
• Operating: from 0 to 40 °C
• Storage: from -10 to 70 °C
|
|
Humidity
|
• Operating: from 10% to 90%
• Storage: from 5% to 90%
|
|

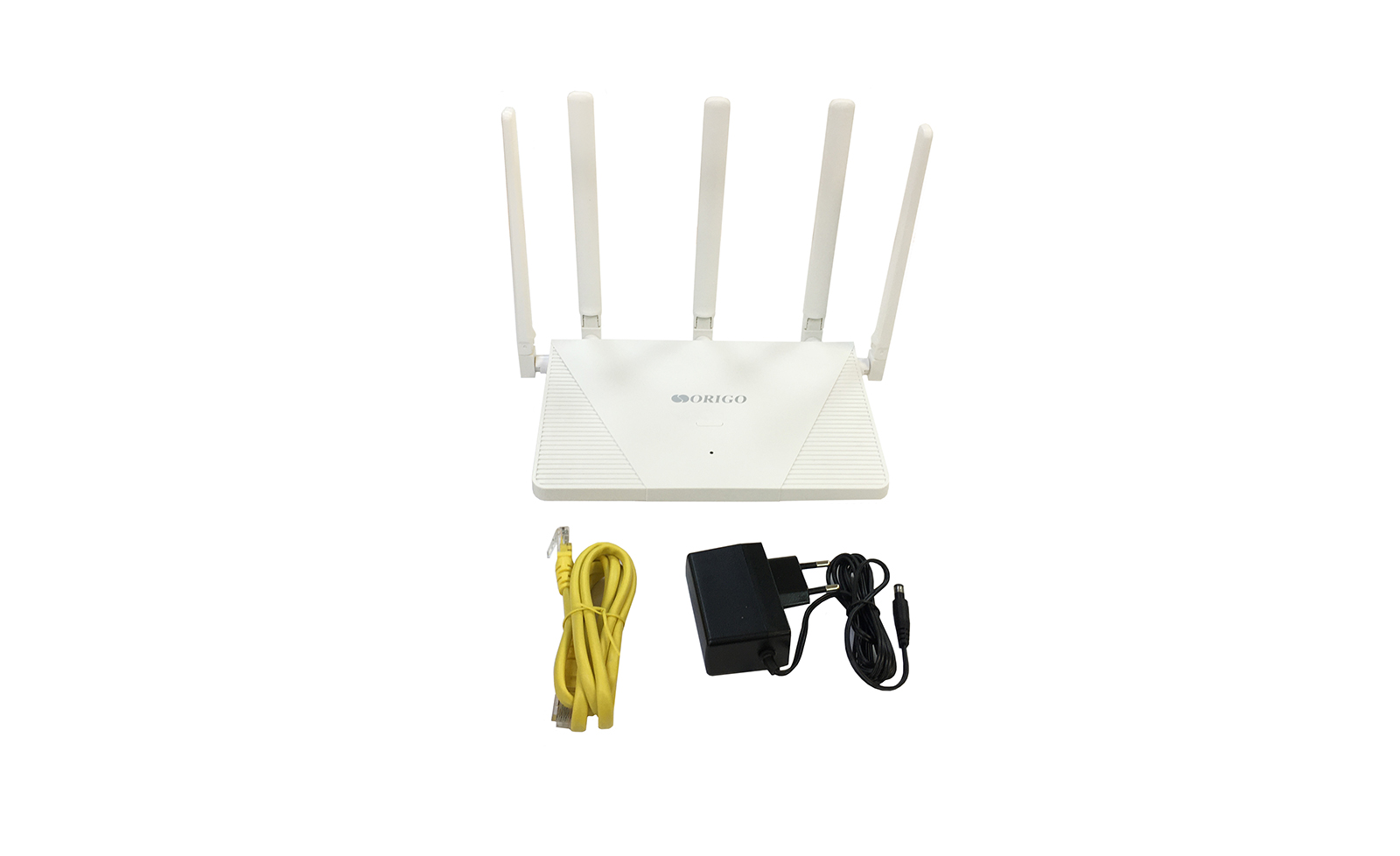

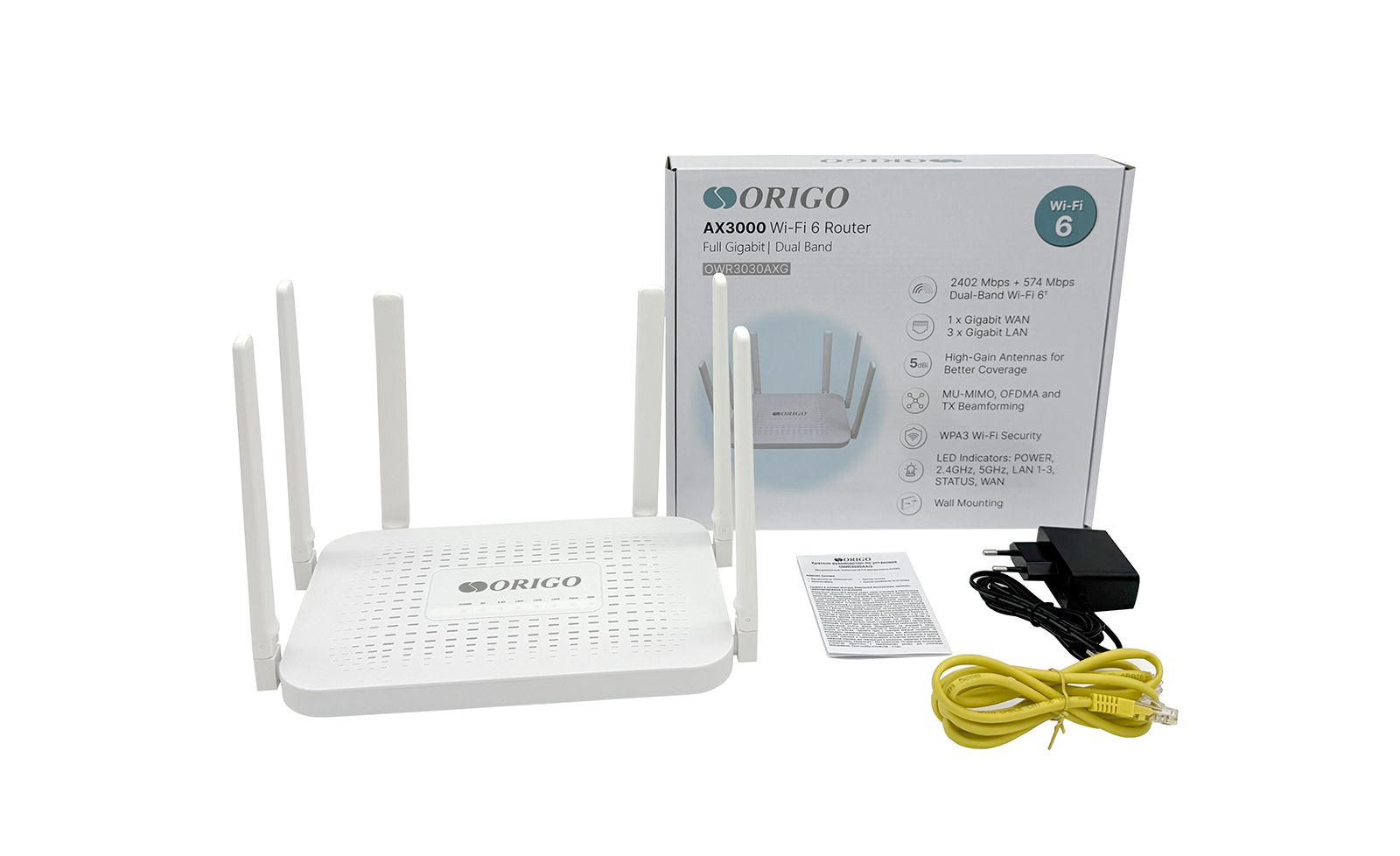

Package Contents
|
|
|
Package Contents
|
• Router OWR3030AXG
• Power adapter (1.5 m cable length)
• Ethernet cable (1.4 m)
• Quick Installation Guide
|
1The 6th antenna will be used in the next releases.
