OAP300FC
N300 Wireless PoE Access Point
- Centralized management via the OWC100 controller
- Wi-Fi speed is up to 300Mbps in the 2.4GHz band
- 100Mbps WAN port, 100Mbps LAN port
- 2 internal omnidirectional 5dBi antennas
- Electrostatic Discharge Protection is up to 8kV
- 802.3af PoE or 12V DC (power adapter not included in the delivery package)
- Ceiling/wall mounting
Description

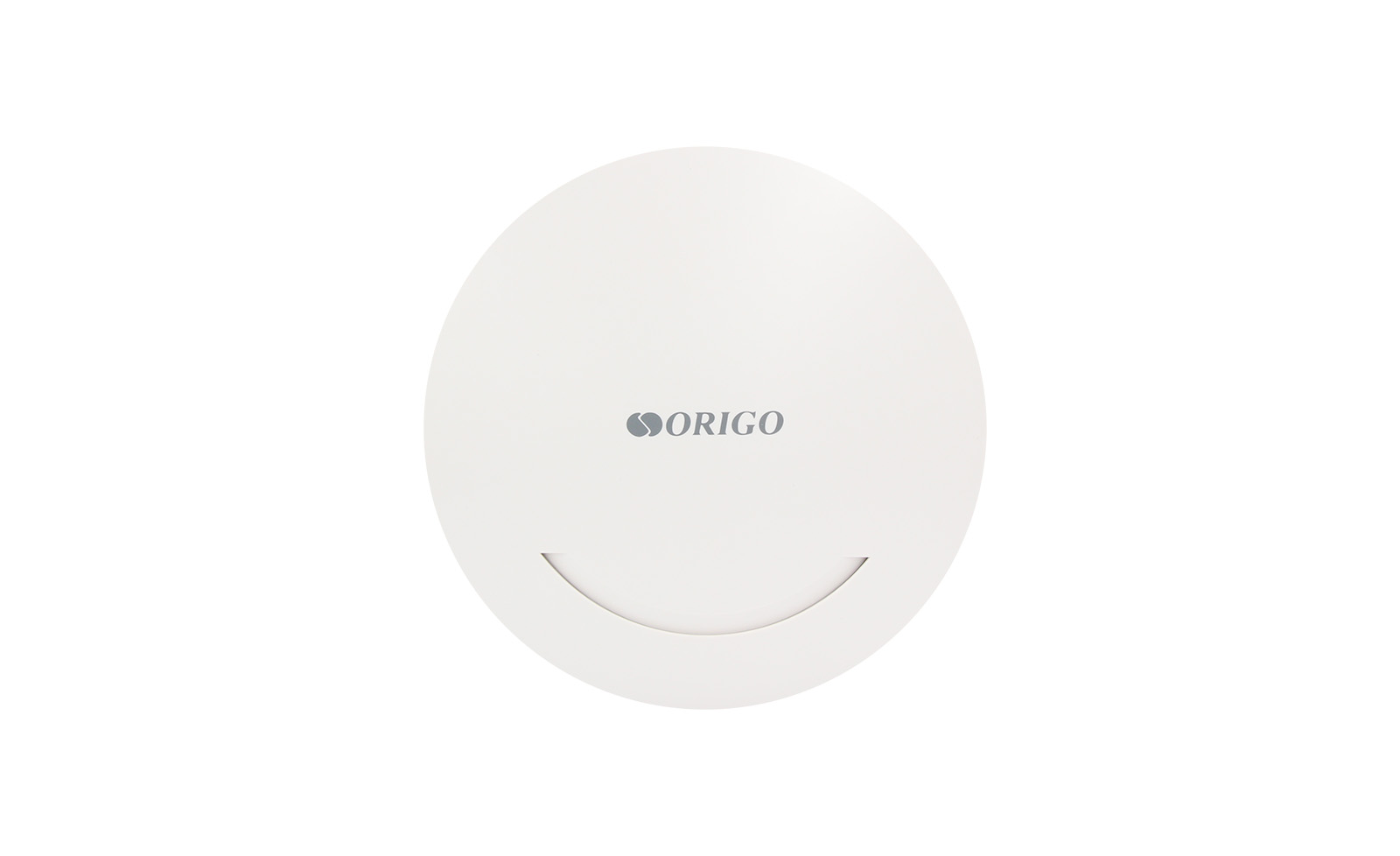

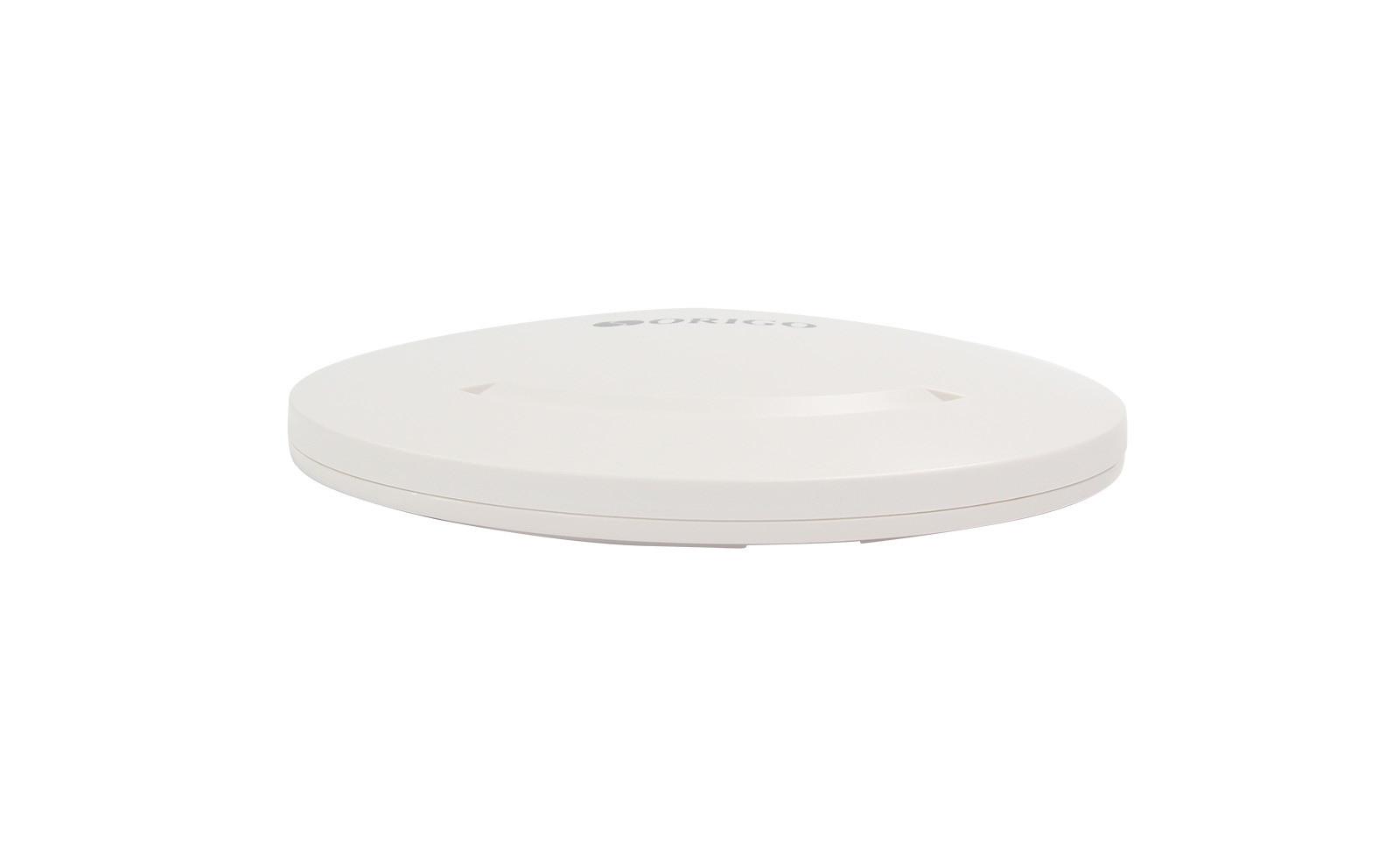

The OAP300FC is an indoor wireless N300 access point with PoE support.
The ORIGO OAP300FC access point provides stable Wi-Fi coverage with speed of up to 300Mbps and is recommended to build wireless networks in offices, educational institutions, medical centers, and hotels.
The OAP300FC supports centralized management via the OWC100 hardware controller, allowing an administrator to quickly configure and monitor up to 128 Wi-Fi access points simultaneously.
The access point is designed for ceiling or wall mounting and will perfectly fit into any interior. A mounting kit is included in the delivery package. Power can be supplied using a 12V DC1 adapter or via PoE technology from a switch or injector that supports the 802.3af standard.
1A power adapter is not included in the delivery package.
Specification
|
Hardware
|
|
|
Processor
|
• MT7628 (575MHz)
|
|

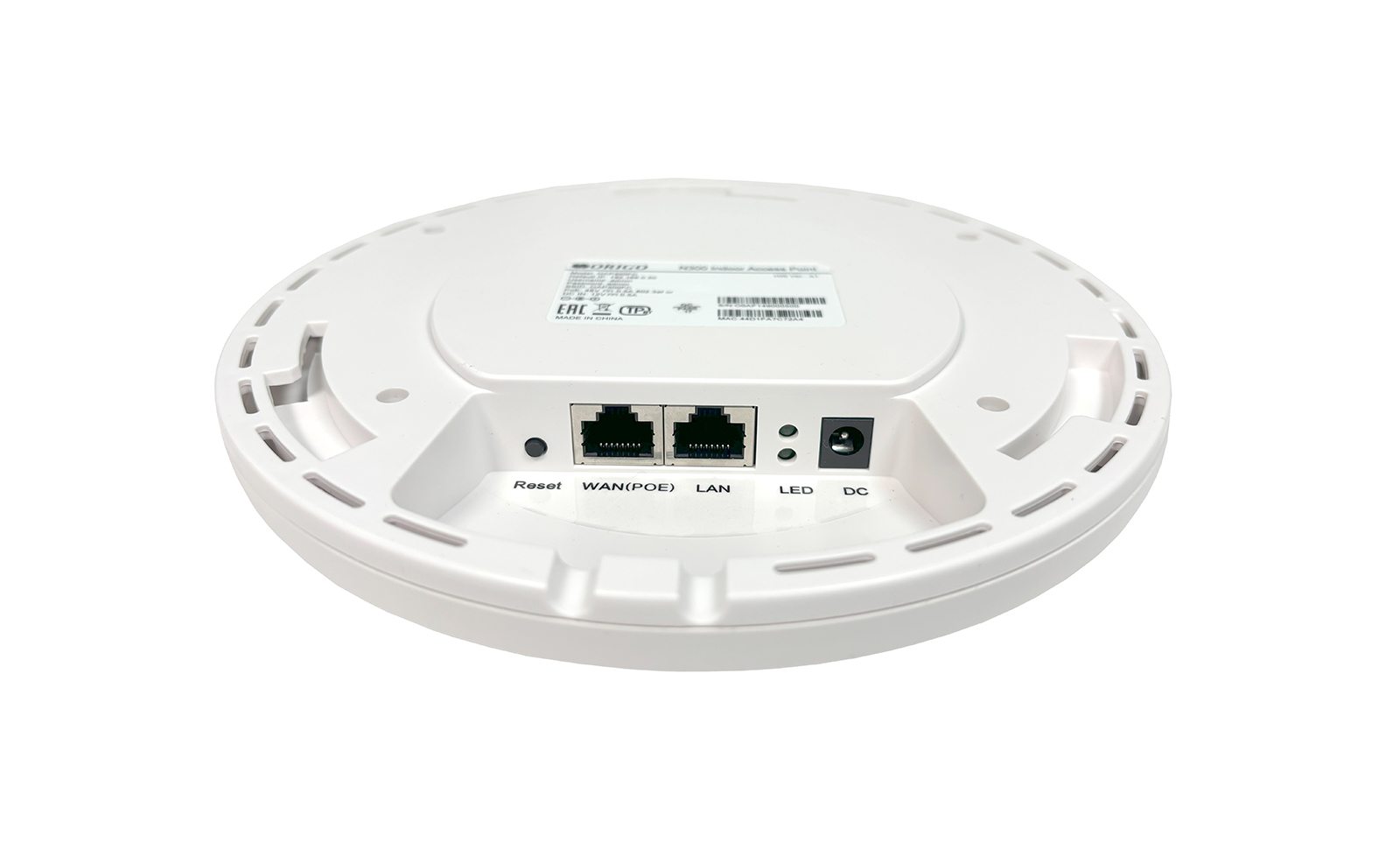

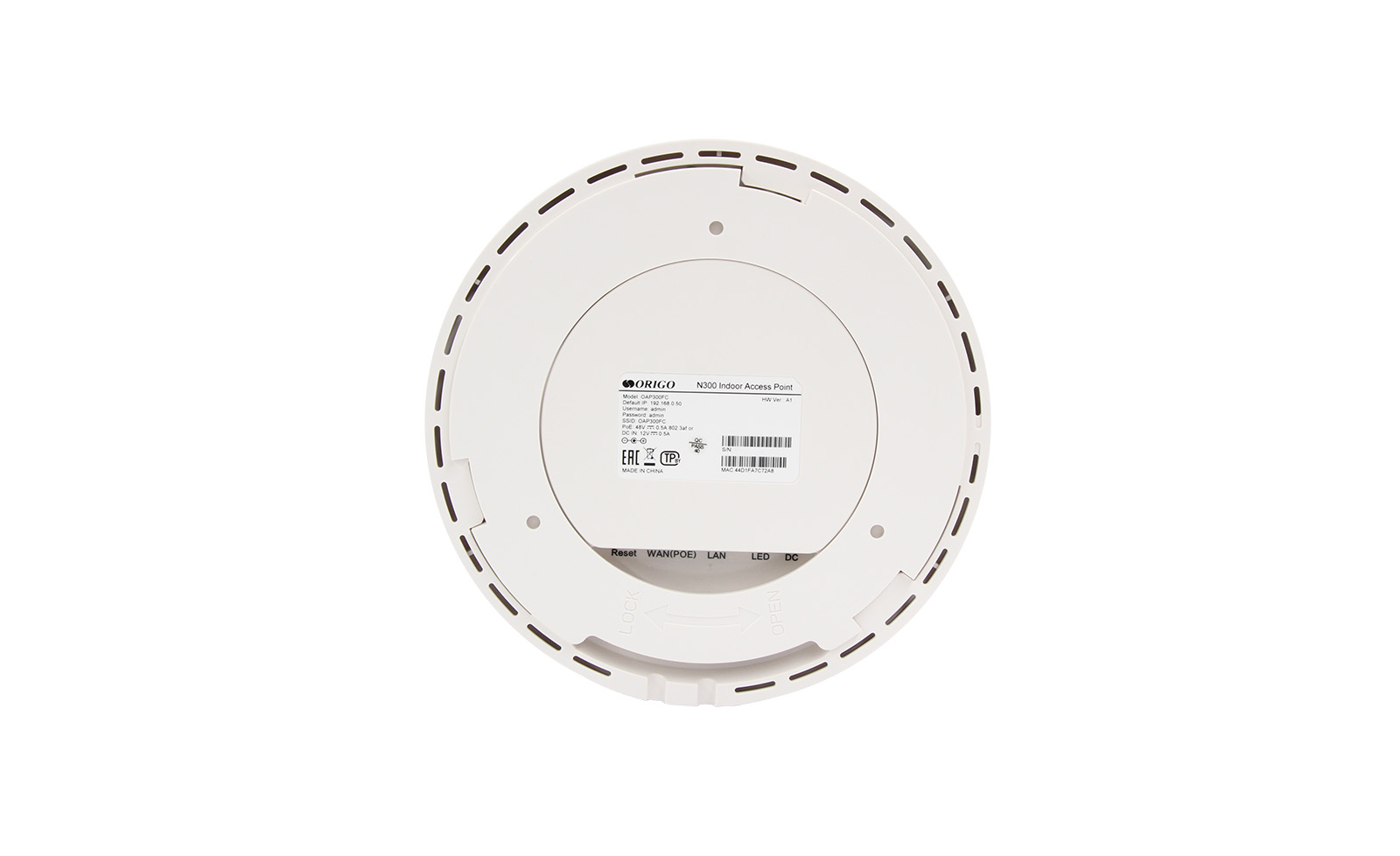

Ports
|
• 1 10/100Base-TX WAN port with PoE support
• 1 10/100Base-TX LAN port
|
|
Antennas
|
• 2 internal omnidirectional 5dBi antennas
|
|
MIMO
|
• 2x2
|
|
LEDs
|
• WAN
• LAN
• Wi-Fi
|
|
Buttons
|
• Reset
|
|
Power connector
|
• Power input connector (DC)
|
|
Mounting
|
• Wall
• Ceiling
|
|
Wireless Module Parameters
|
|
|
Standards
|
• IEEE 802.11n/g/b
|
|
Frequency range
|
• 2.4~2.4835GHz
|
|
Wireless connection rate
|
• 2.4GHz
- 11n: up to 300Mbps
- 11g: up to 54Mbps
- 11b: up to 11Mbps
|
|
Transmitter output power
|
• Less than 19dBm (79mW)
|
|
Receiver sensitivity
|
• 2.4GHz
- 11b (11Mbps): -85dBm
- 11g (54Mbps): -72dBm
- 11n (HT20_MCS0): -88dBm
- 11n (HT20_MCS7): -70dBm
- 11n (HT40_MCS0): -86dBm
- 11n (HT40_MCS7): -68dBm
|
|
Functionality
|
|
|
Operation modes
|
• Router
• Access point
• Wi-Fi repeater
|
|
Wi-Fi functions
|
• Automatic channel selection
• Schedule for Wi-Fi
|
|
Wireless connection security
|
• Multi-SSID
• MAC address filtering
• SSID broadcast disable
• Clients isolation
• VLAN
• WPA (Personal)
• WPA2 (Personal)
|
|
Management
|
• Web-based interface
• Telnet
• Centralized management via controller
|
|
Physical Parameters
|
|
|
Device dimensions
(L x W x H)
|
• 188 × 188 х 33 mm
|
|
Device weight
|
• 0.28 kg
|
|
Package dimensions
|
• 24.3 x 23.5 x 7.6 cm
|
|
Gross weight
|
• 0.56 kg
|
|
Operating Conditions
|
|
|
Power
|
• 802.3af PoE
• Power adapter (not included in the delivery package): 12V DC, 0.5A
|
|
Electrostatic Discharge Protection (ESD)
|
• Up to 4kV (contact discharge)
• Up to 8kV (air discharge)
|
|
Temperature
|
• Operating: from 0 to 45 °C
• Storage: from -40 to 70 °C
|
|
Humidity
|
• From 5% to 95% (non-condensing)
|
|

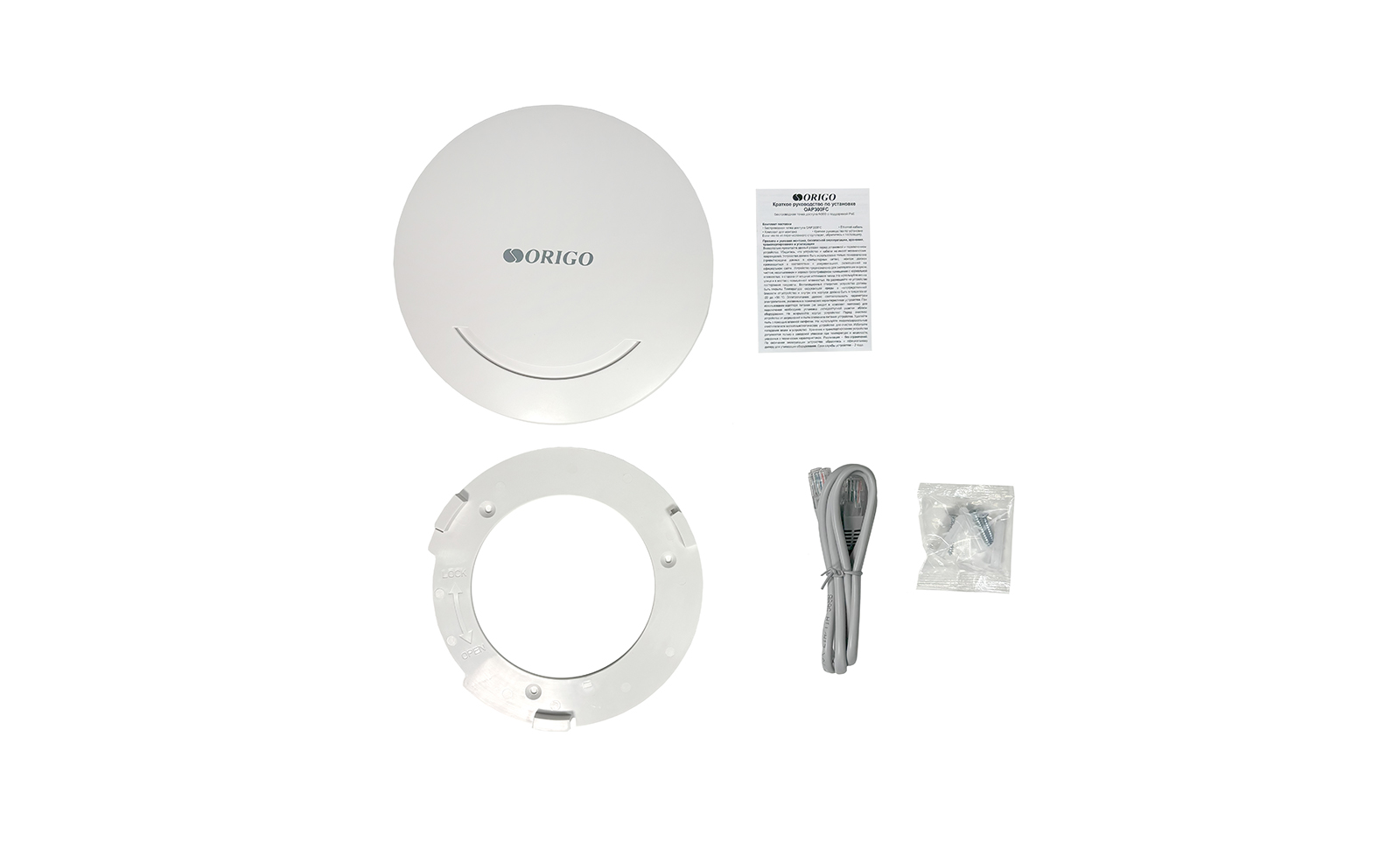

Package Contents
|
|
|
Package Contents
|
• Access point OAP300FC
• Ethernet cable
• Mounting kit
• Quick Installation Guide
|
|
Compatible Equipment
|
|
|
Wi-Fi Access Point Controller
|
• OWC100
|
