OAP3000GI
AX3000 Wi-Fi 6 Dual-Band PoE Access Point
- AX3000 Wi-Fi 6: up to 2402Mbps in 5GHz and up to 574Mbps in 2.4GHz
- 1 gigabit WAN port, 1 gigabit LAN port
- 4 internal omnidirectional antennas with 4.6dBi gain for 2.4GHz and 4dBi gain for 5GHz
- Surge Protection is up to 2kV; Electrostatic Discharge Protection is up to 8kV
- 802.3af PoE or 12V DC power adapter (not included in the delivery package)
- Ceiling/wall mounting
Description

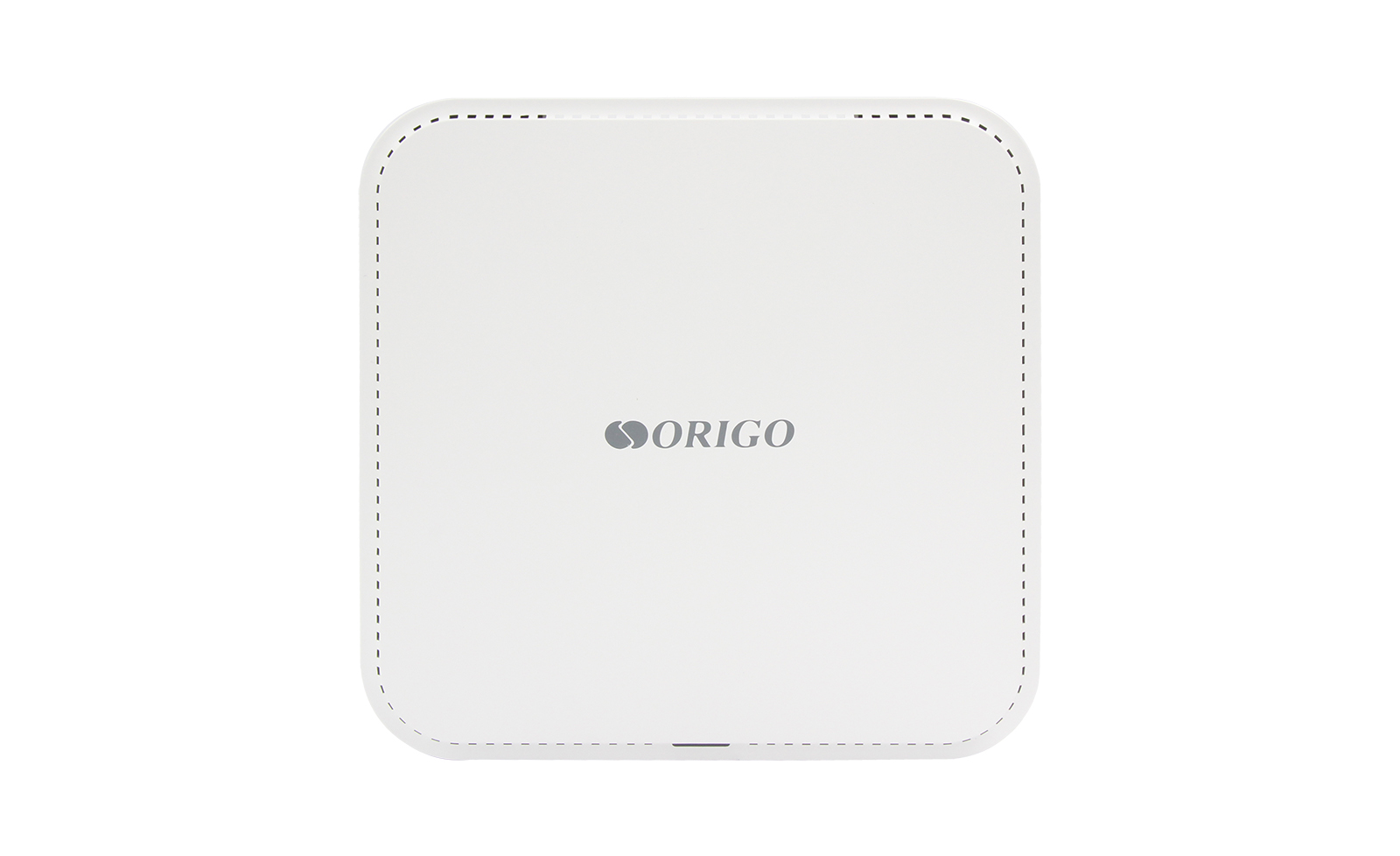

The OAP3000GI is a dual-band AX3000 Wi-Fi 6 gigabit access point with PoE support.
The ORIGO OAP3000GI access point is designed to build modern Wi-Fi 6 networks with high client density in government agencies, commercial organizations, educational institutions, exhibition centers, and hotel and station complexes.
The OAP3000GI supports simultaneous operation in two frequency bands and provides a maximum wireless connection speed of up to 2402Mbps in the 5GHz band and up to 574Mbps in the 2.4GHz band. OFDMA and MU-MIMO technologies ensure high speed and low latency in networks with multiple simultaneous connections. To protect data transmitted over Wi-Fi, the access point supports WPA3 encryption.
The access point is designed for ceiling or wall mounting. A mounting kit is included in the delivery package. Power can be supplied using a 12V DC1 adapter or via PoE technology from a switch or injector that supports the 802.3af standard.
1A power adapter is not included in the delivery package.
Specification
|
Hardware
|
|
|
Processor
|
• MT7981BA (1.3GHz, dual core)
|
|

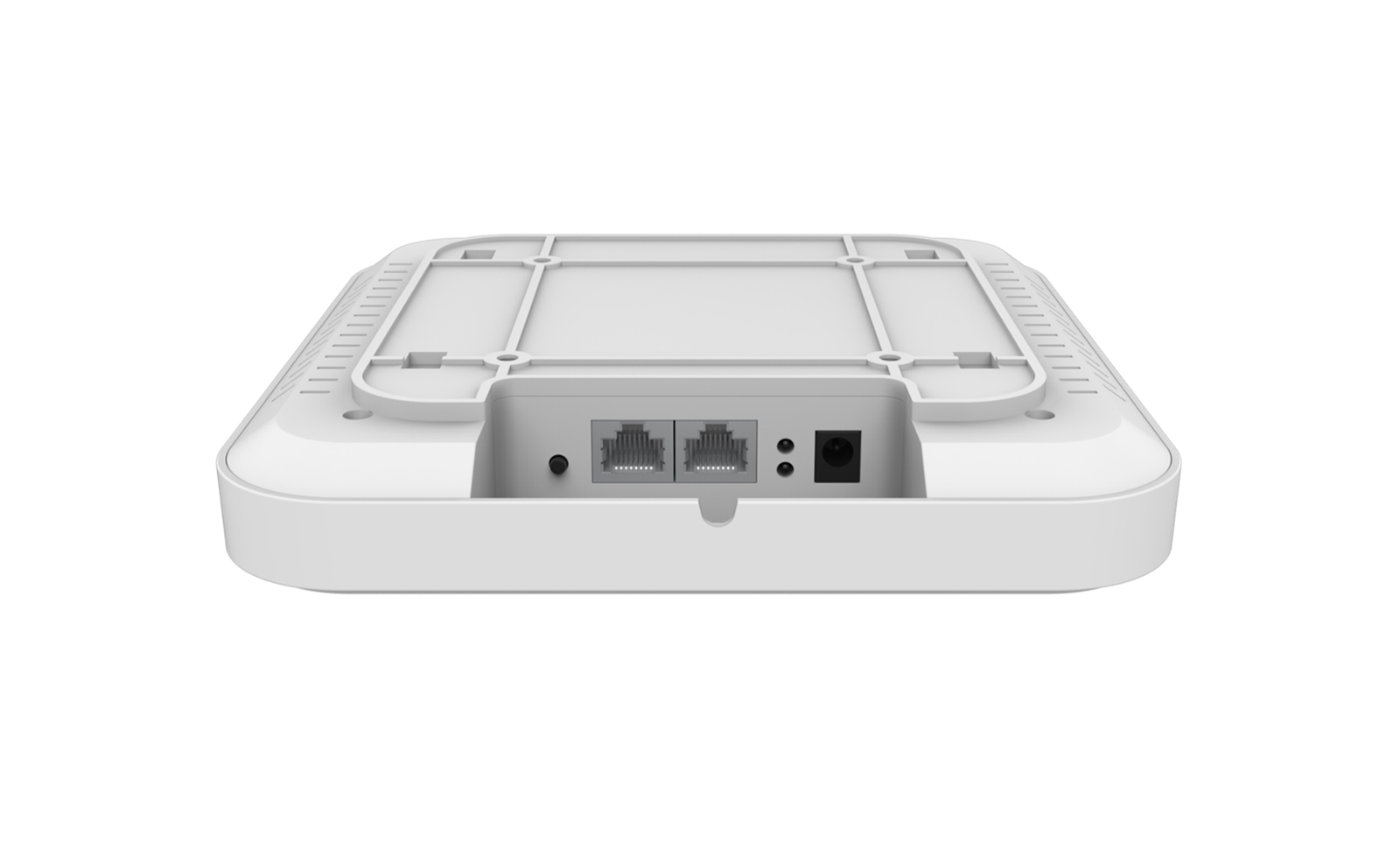

Ports
|
• 1 10/100/1000BASE-T WAN port with PoE support
• 1 10/100/1000BASE-T LAN port
|
|
Antennas
|
• 2 internal omnidirectional 4.6dBi antennas for 2.4GHz
• 2 internal omnidirectional 4dBi antennas for 5GHz
|
|
MIMO
|
• 2x2, MU-MIMO
|
|
LEDs
|
• Status
• WAN
• LAN
|
|
Buttons
|
• Reset
|
|
Power connector
|
• Power input connector (DC)
|
|

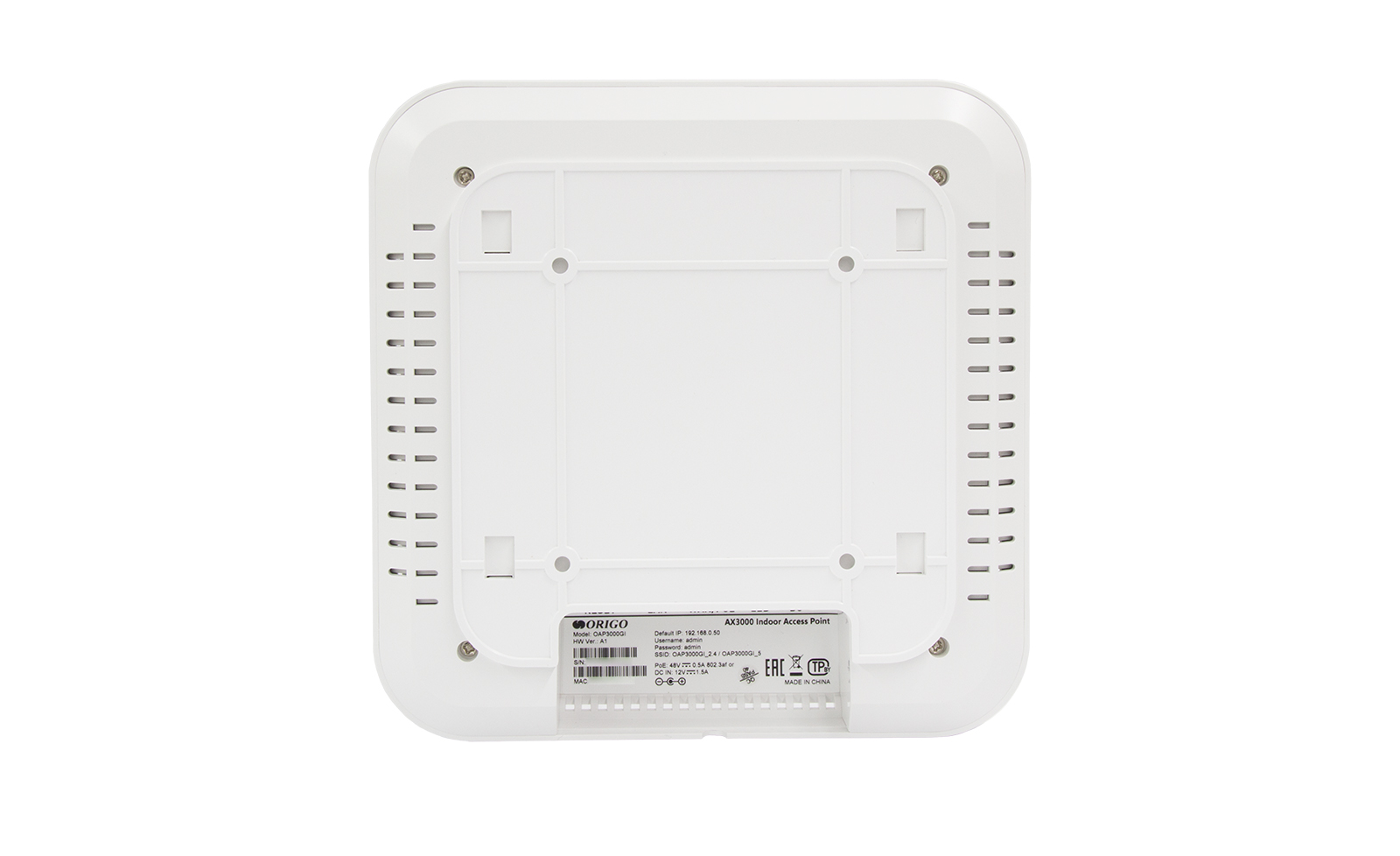

Mounting
|
• Ceiling
• Wall
|
|
Wireless Module Parameters
|
|
|
Standards
|
• IEEE 802.11ax
• IEEE 802.11ac Wave 2
• IEEE 802.11a/b/g/n
|
|
Frequency range
|
• 2.4~2.4835GHz
• 5.15~5.35GHz
• 5.65~5.85GHz
|
|
Wireless connection rate
|
• 2.4GHz
- 11ax: up to 574Mbps
- 11n: up to 300Mbps
- 11g: up to 54Mbps
- 11b: up to 11Mbps
• 5GHz
- 11ax: up to 2402Mbps
- 11ac: up to 867Mbps
- 11n: up to 300Mbps
- 11a: up to 54Mbps
|
|
Transmitter output power
|
• Less than 20dBm (100mW)
|
|
Receiver sensitivity
|
• 2.4GHz
- 11b (11Mbps): -87dBm
- 11g (54Mbps): -75dBm
- 11n (HT20_MCS0): -92dBm
- 11n (HT20_MCS7): -73dBm
- 11n (HT40_MCS0): -89dBm
- 11n (HT40_MCS7): -70dBm
- 11ax (HT20_MCS0): -92dBm
- 11ax (HT20_MCS11): -64dBm
- 11ax (HT40_MCS0): -89dBm
- 11ax (HT40_MCS11): -61dBm
• 5GHz
- 11a (54Mbps): -74dBm
- 11n (HT20_MCS0): -90dBm
- 11n (HT20_MCS7): -73dBm
- 11n (HT40_MCS0): -87dBm
- 11n (HT40_MCS7): -70dBm
- 11ac (HT20_MCS0): -91dBm
- 11ac (HT20_MCS7): -67dBm
- 11ac (HT40_MCS0): -88dBm
- 11ac (HT40_MCS7): -63dBm
- 11ac (HT80_MCS0): -84dBm
- 11ac (HT80_MCS9): -60dBm
- 11ax (HT20_MCS0): -91dBm
- 11ax (HT20_MCS11): -62dBm
- 11ax (HT40_MCS0): -89dBm
- 11ax (HT40_MCS11): -59dBm
- 11ax (HT80_MCS0): -86dBm
- 11ax (HT80_MCS11): -56dBm
- 11ax (HT160_MCS0): -83dBm
- 11ax (HT160_MCS11): -53dBm
|
|
Functionality
|
|
|
Operation modes
|
• Router
• Access point
|
|
Wi-Fi functions
|
• MU-MIMO
• OFDMA
• Schedule for Wi-Fi
|
|
Wireless connection security
|
• Multi-SSID
• MAC address filtering
• SSID broadcast disable
• Clients isolation
• VLAN
• WPA
• WPA2
• WPA3
|
|
Management
|
• Web-based interface
• Telnet
|
|
Physical Parameters
|
|
|
Device dimensions
(L x W x H)
|
• 186 x 186 x 37 mm
|
|
Device weight
|
• 0.55 kg
|
|
Package dimensions
|
• 24.3 x 23.5 x 7.6 cm
|
| Gross weight |
• 0.77 kg
|
|
Operating Conditions
|
|
|
Power
|
• 802.3af PoE
• Power adapter (not included in the delivery package): 12V DC, 1.5A
|
|
Max Power Consumption
|
• 15W
|
|
Surge Protection
|
• Up to 2kV in common mode
• Up to 1kV in differential mode
|
|
Electrostatic Discharge Protection (ESD)
|
• Up to 4kV (contact discharge)
• Up to 8kV (air discharge)
|
|
Temperature
|
• Operating: from -40 to 45 °C
• Storage: from -40 to 70 °C
|
|
Humidity
|
• From 5% to 95% (non-condensing)
|
|
Package Contents
|
|
|

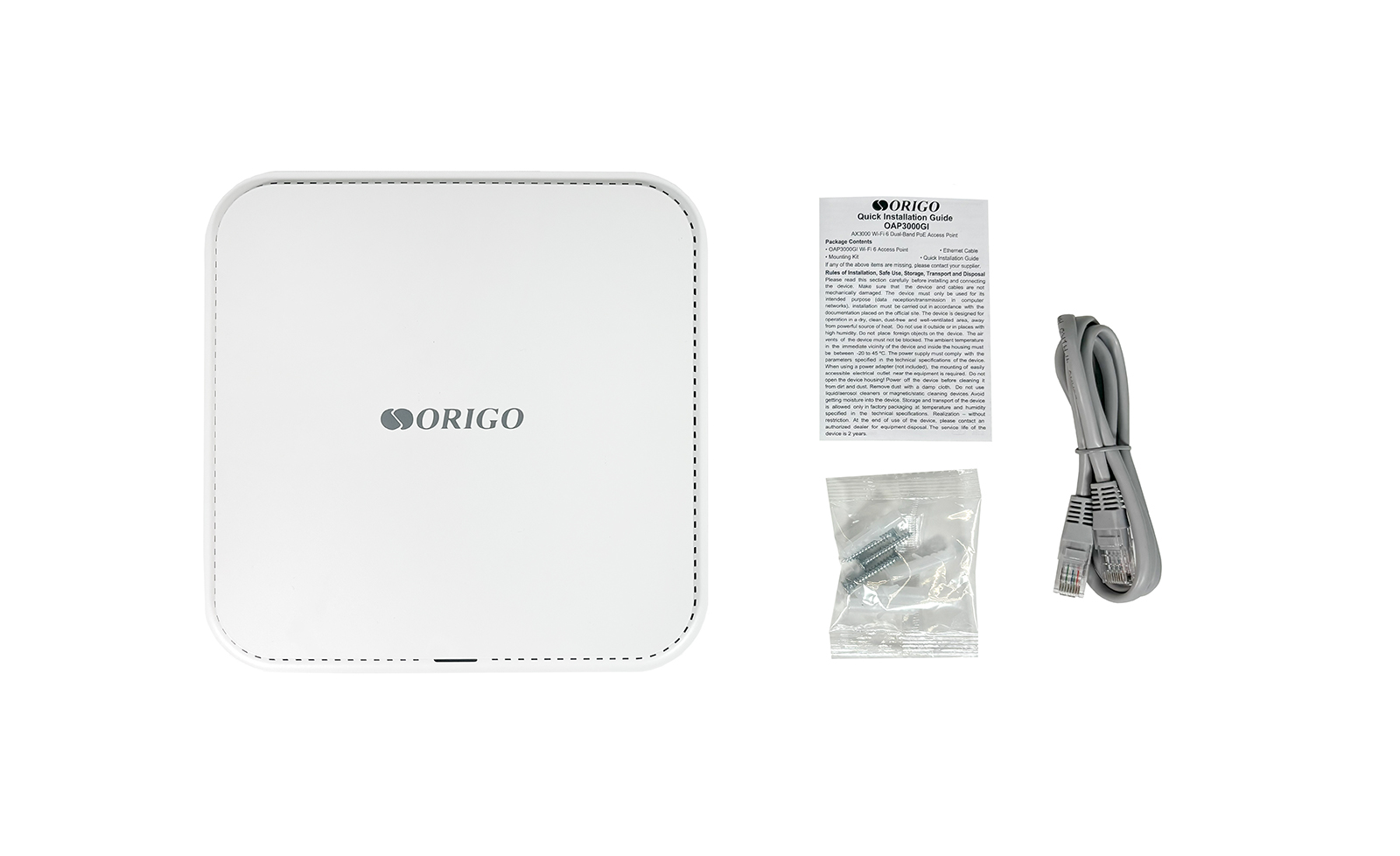

Package Contents
|
• Access point OAP3000GI
• Ethernet cable
• Mounting kit
• Quick Installation Guide
|
