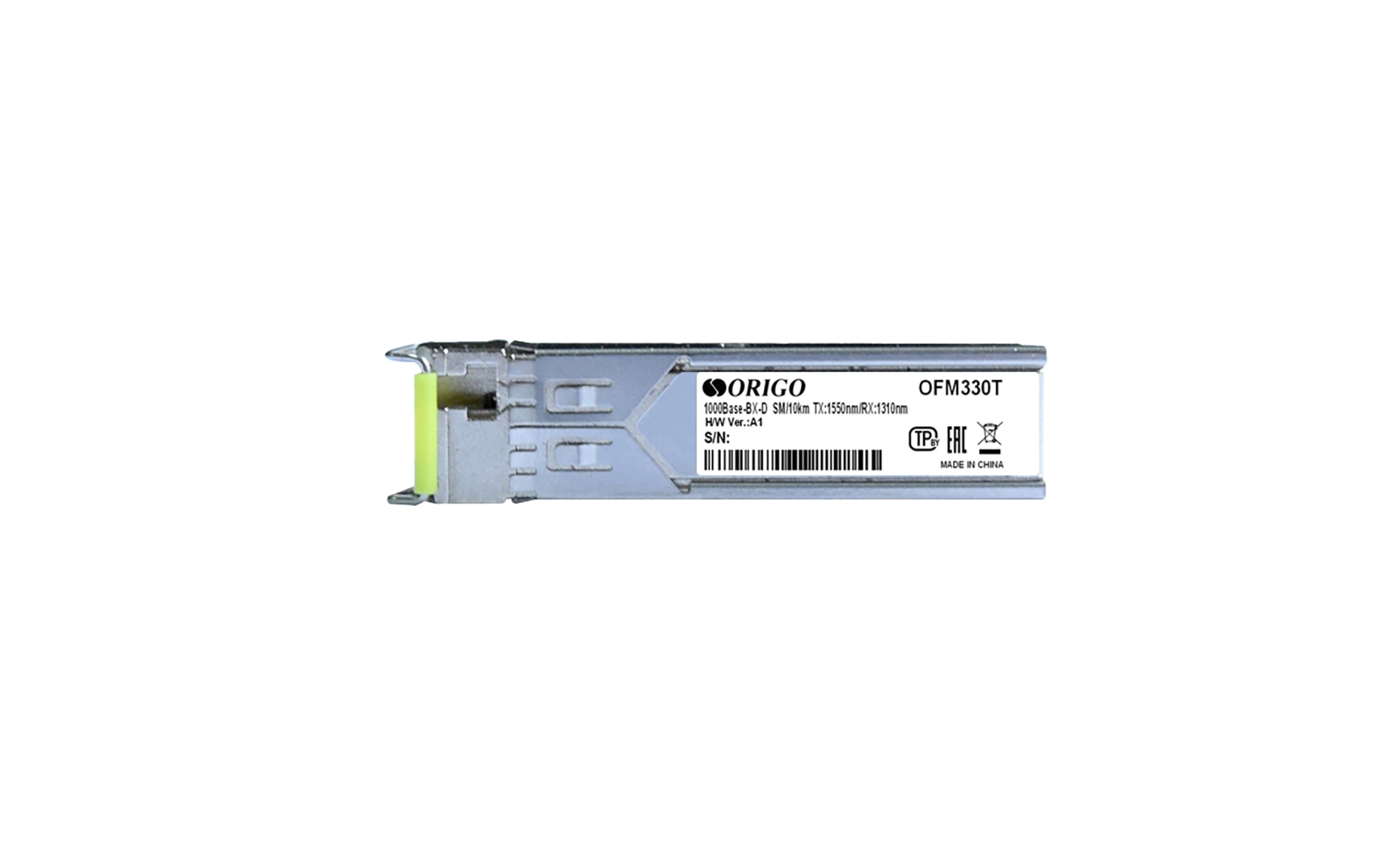

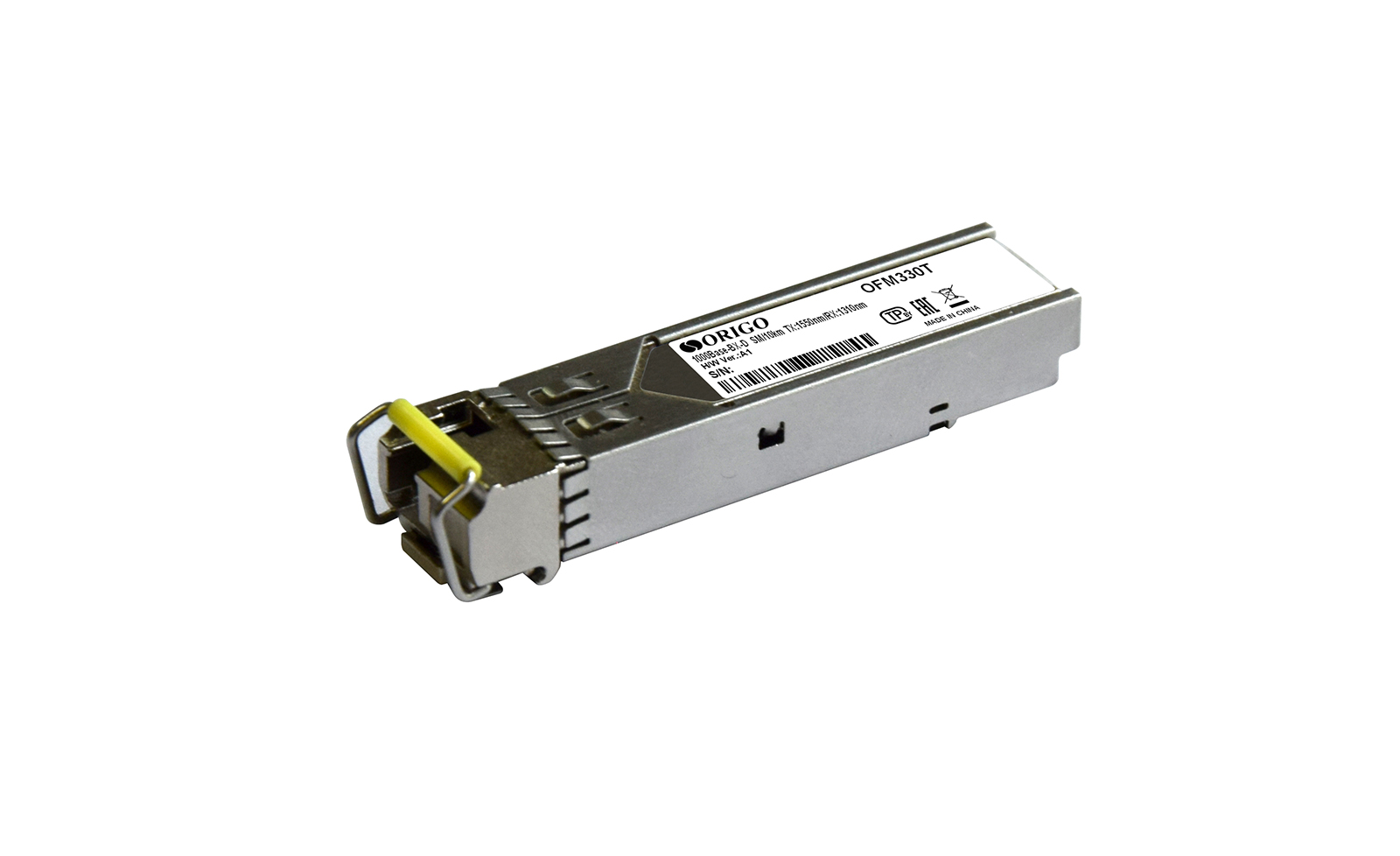

OFM330T
WDM SFP Transceiver 1000Base-BX-D,
Tx:1550 nm, Rx:1310 nm, Single-mode, up to 3/10 km
- Works in pair with OFM330R
- Small Form-Factor Pluggable (SFP)
- 1x1000Base-BX-D port
- Fiber type: 9/125 um single-mode
- Maximum fiber cable length up to 3 km or up to 10 km
- Operating wavelength – Tx: 1550 nm, Rx: 1310 nm
- Hot-pluggable
Description
OFM330T is a bidirectional WDM SFP transceiver with 1x1000Base-BX-D port for single-mode optical cable (up to 3/10 km).
The OFM330T is designed to work with 9/125 um single-mode fiber. The transceiver provides data transmission speeds of up to 1.25 Gbps over a distance of up to 3 km (OFM330T/3KM) and up to 10 km (OFM330T/10KM).
The OFM330T / OFM330R transceivers combine transmitting and receiving signals onto one fiber strand using two wavelengths. These transceivers are used in pair. The operating wavelength of OFM330T is Tx:1550 nm, Rx:1310 nm.
The OFM330T complies with SFP MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• SFP
|
|
Interfaces
|
• 1x1000Base-BX-D
|
|
Connector
|
• Simplex LC (OFM330T/3KM/A1)
• Simplex SC (OFM330T/3KM/B1)
• Simplex LC (OFM330T/10KM)
|
|
Uni-/Bi-directional
|
• Bi-directional
|
|
Data Rate
|
• 1.25 Gbps
|
|
Maximum Fiber Cable Length
|
• 3 km (OFM330T/3KM)
• 10 km (OFM330T/10KM)
|
|
Fiber Type
|
• 9/125 um Single-mode Fiber
|
|
Wavelength
|
• Tx: 1550 nm, Rx: 1310 nm
|
|
Transmit Power Range
|
• OFM330T/3KM
-7 to -13 dBm
• OFM330T/10KM
-3 to -9 dBm
|
|
Receive Power Range
|
• OFM330T/3KM
0 to -20 dBm
• OFM330T/10KM
-3 to -22 dBm
|
|
Sensitivity
|
• -20 dBm (OFM330T/3KM)
• -22 dBm (OFM330T/10KM)
|
|
Standard
|
• IEEE 802.3z 1000Base-BX-D
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 63.8 x 13.4 x 8.5 mm (OFM330T/3KM/B1 with SC connector)
• 55.4 x 13.4 x 8.5 mm (OFM330T/10KM and OFM330T/3KM/A1 with LC connector)
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 220 mA (OFM330T/3KM)
• 250 mA (OFM330T/10KM)
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 0% to 85%
• Storage: 0% to 85%
|
|
Package Contents
|
|
|
Package Contents
|
• OFM330T Transceiver
|
|
Compatible Equipment
|
|
|
WDM SFP Transceivers
|
• OFM330R/3KM/A1 (for OFM330T/3KM/A1)
• OFM330R/3KM/B1 (for OFM330T/3KM/B1)
• OFM330R/10KM (for OFM330T/10KM)
|
