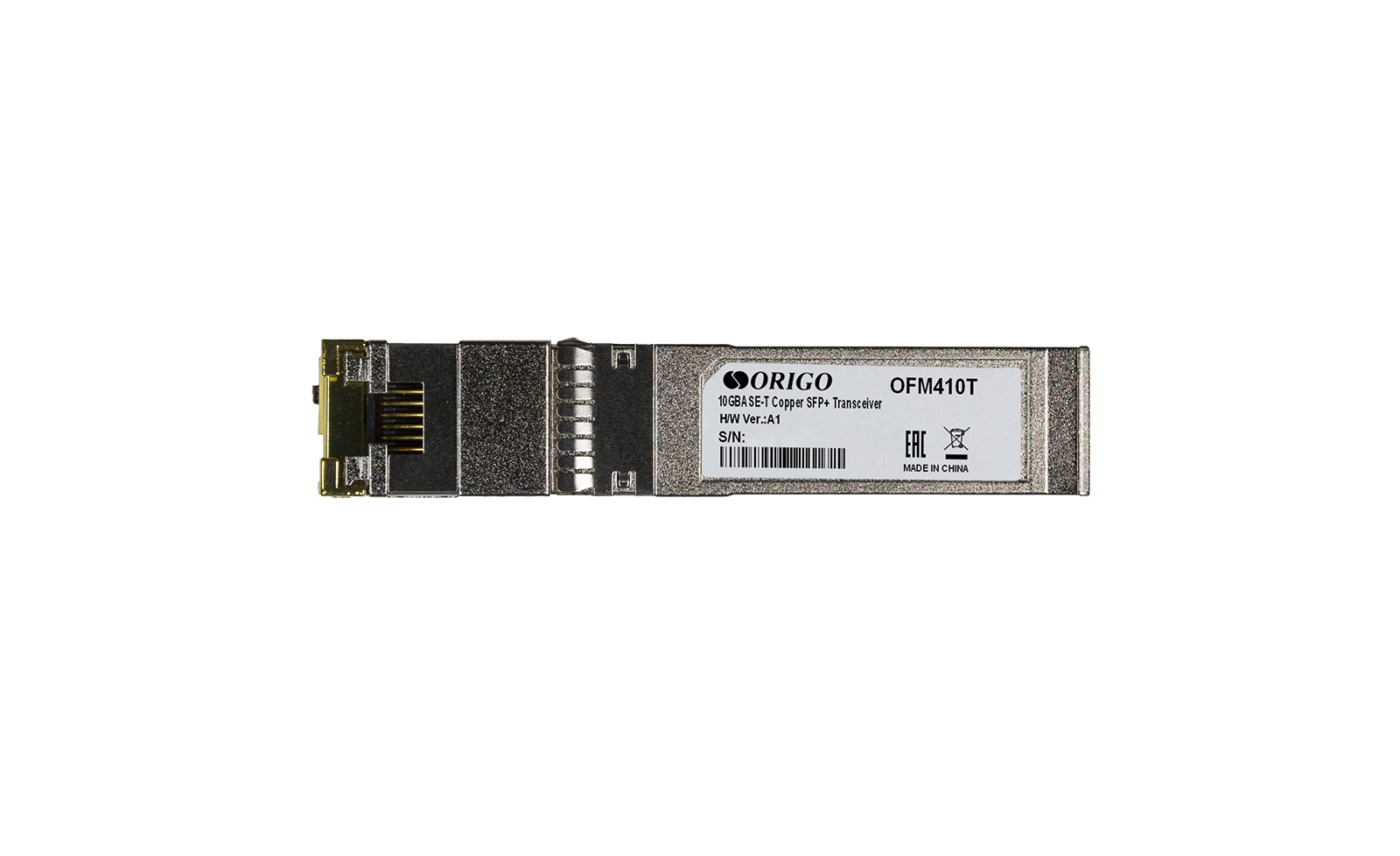

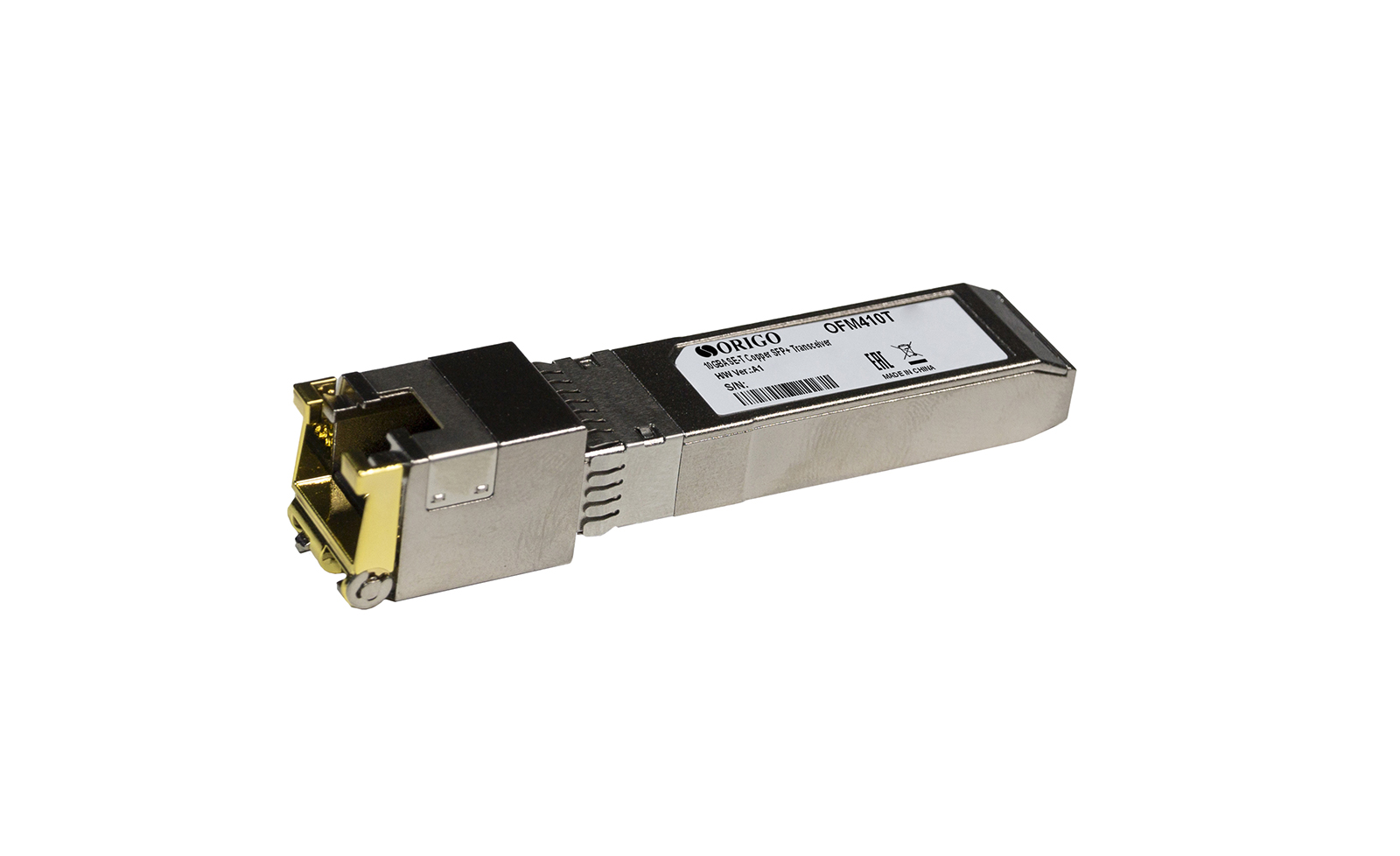

OFM410T
SFP+ Transceiver 10GBase-T, up to 30 m
- Enhanced Small Form-factor Pluggable (SFP+)
- 1x10GBase-T port
- RJ-45 connector
- Cable type: Category 6a twisted-pair cable
- Maximum fiber cable length up to 30 m
- Hot-pluggable
Description
OFM410T is an SFP+ transceiver with 1x10GBase-T port for twisted-pair network cable (up to 30 m).
The OFM410T is equipped with RJ-45 connector and is designed to work on the common Category 6a twisted-pair network cable. The transceiver provides data transmission at speeds up to 10 Gbps at a distance of up to 30 m.
The OFM410T complies with SFP+ MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• SFP+
|
|
Interfaces
|
• 1x10GBase-T port
|
|
Connector
|
• RJ-45
|
|
Data Rate
|
• 10 Gbps
|
|
Maximum Fiber Cable Length
|
• 30 m
|
|
Cable Type
|
• Category 6a twisted-pair cable
• Category 5e twisted-pair cable
|
|
Standard
|
• IEEE 802.3an 10GBase-T
• IEEE 802.3ab 1000Base-T
|
|
Supported Features
|
• Hot swap
• MSA compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 47.5 x 13.7 x 8.5 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 500 mA (typical)
• 800 mA (maximum)
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 0% to 85%
• Storage: 0% to 85%
|
|
Package Contents
|
|
|
Package Contents
|
• OFM410T Transceiver
|
