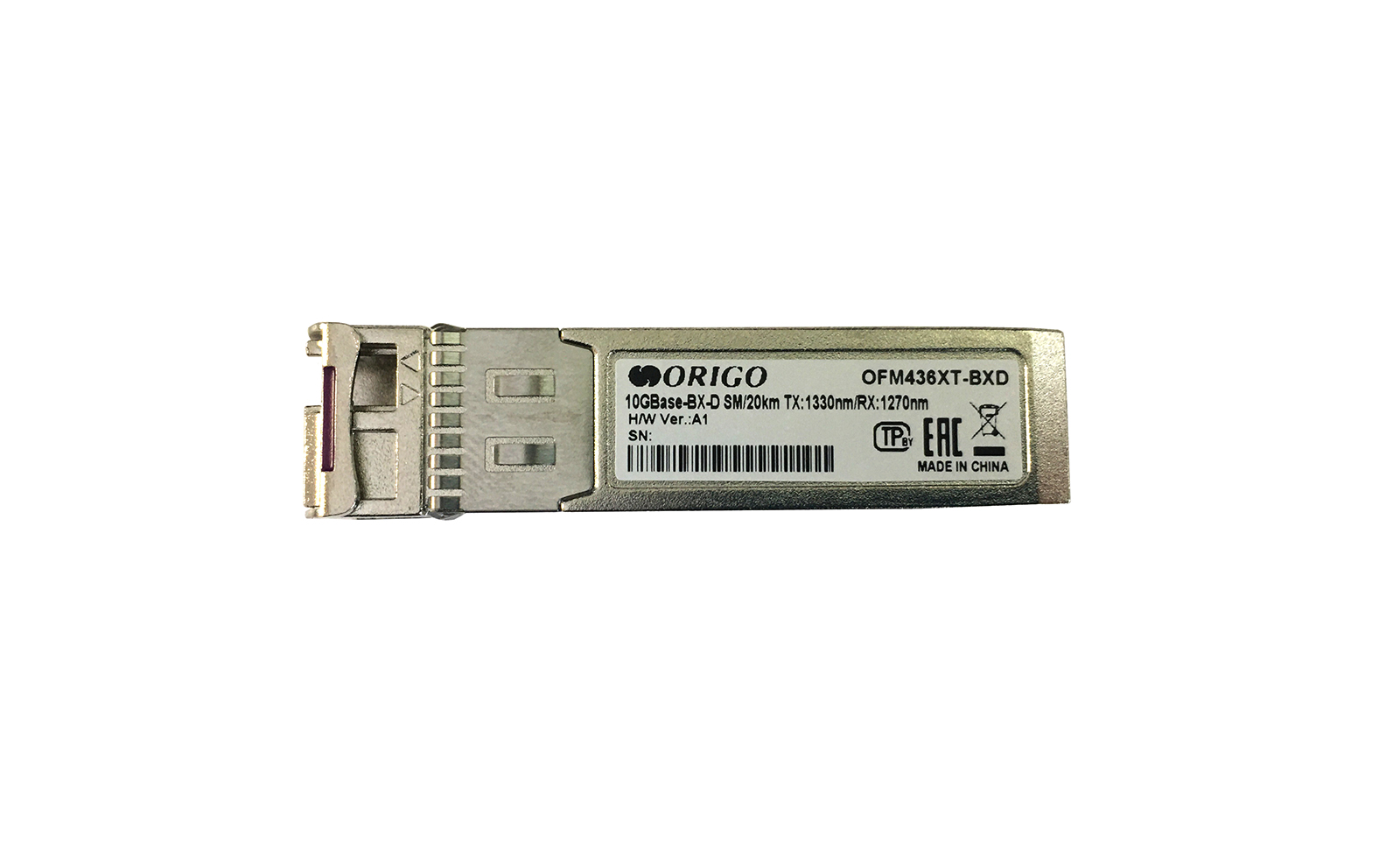

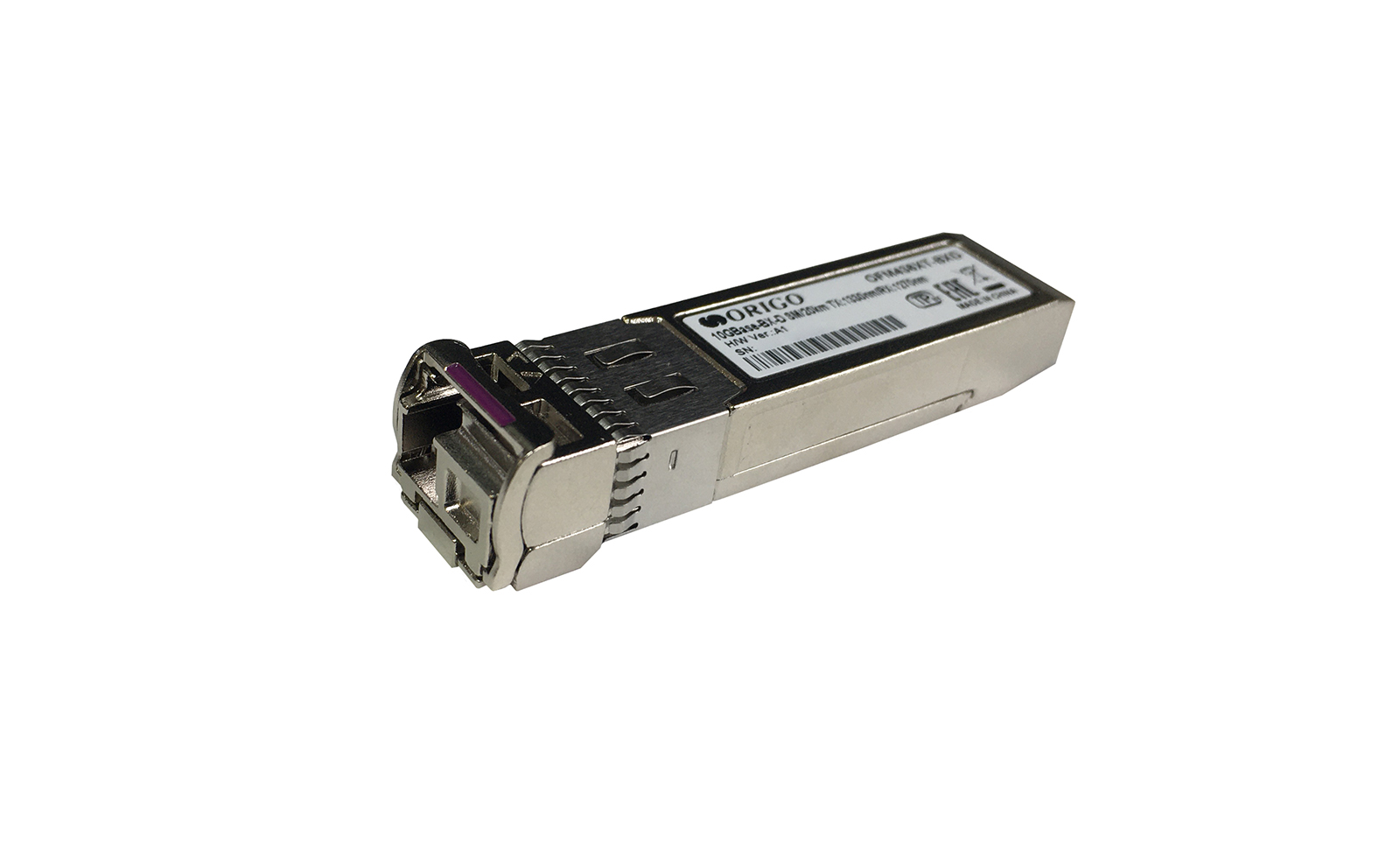

OFM436XT-BXD
WDM SFP+ Transceiver 10GBase-BX-D,
Tx:1330 nm, Rx:1270 nm, Single-mode, up to 20 km
- Works in pair with OFM436XT-BXU
- Enhanced Small Form-factor Pluggable (SFP+)
- 1x10GBase-BX-D port
- Simplex LC connector
- Fiber type: 9/125 um single-mode
- Maximum fiber cable length up to 20 km
- Operating wavelength – Tx: 1330 nm, Rx: 1270 nm
- Hot-pluggable
Description
OFM436XT-BXD is a bidirectional WDM SFP+ transceiver with 1x10GBase-BX-D port for single-mode optical cable (up to 20 km).
The OFM436XT-BXD is equipped with a standard simplex LC connector and is designed to work with 9/125 um single-mode fiber. The transceiver provides data transmission speeds of up to 10 Gbps at a distance of up to 20 km.
The OFM436XT-BXD / OFM436XT-BXU transceivers combine transmitting and receiving signals onto one fiber strand using two wavelengths. These transceivers are used in pair. The operating wavelength of OFM436XT-BXD is Tx:1330 nm, Rx:1270 nm.
The OFM436XT-BXD complies with SFP+ MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• SFP+
|
|
Interfaces
|
• 1x10GBase-BX-D
|
|
Connector
|
• Simplex LC
|
|
Uni-/Bi-directional
|
• Bi-directional
|
|
Data Rate
|
• 10 Gbps
|
|
Maximum Fiber Cable Length
|
• 20 km
|
|
Fiber Type
|
• 9/125 um Single-mode Fiber
|
|
Wavelength
|
• Tx: 1330 nm, Rx: 1270 nm
|
|
Transmit Power Range
|
• 2 to -3 dBm
|
|
Receive Power Range
|
• 1 to -14.4 dBm
|
|
Sensitivity
|
• -14.4 dBm
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 47.5 x 13.7 x 8.5 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 5% to 95%
• Storage: 5% to 95%
|
|
Package Contents
|
|
|
Package Contents
|
• OFM436XT-BXD Transceiver
|
|
Compatible Equipment
|
|
|
WDM SFP+ Transceivers
|
• OFM436XT-BXU/20KM
|
