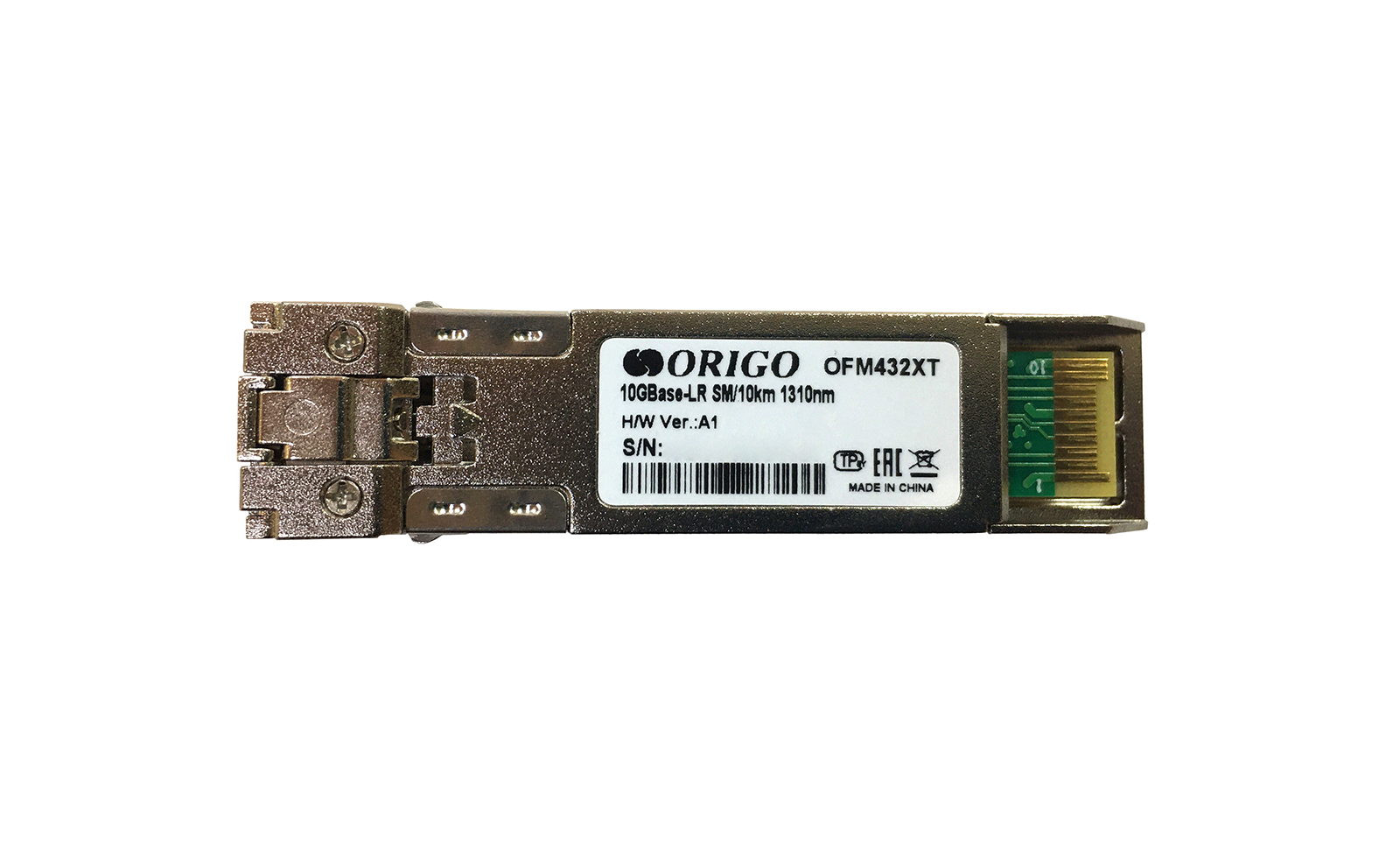

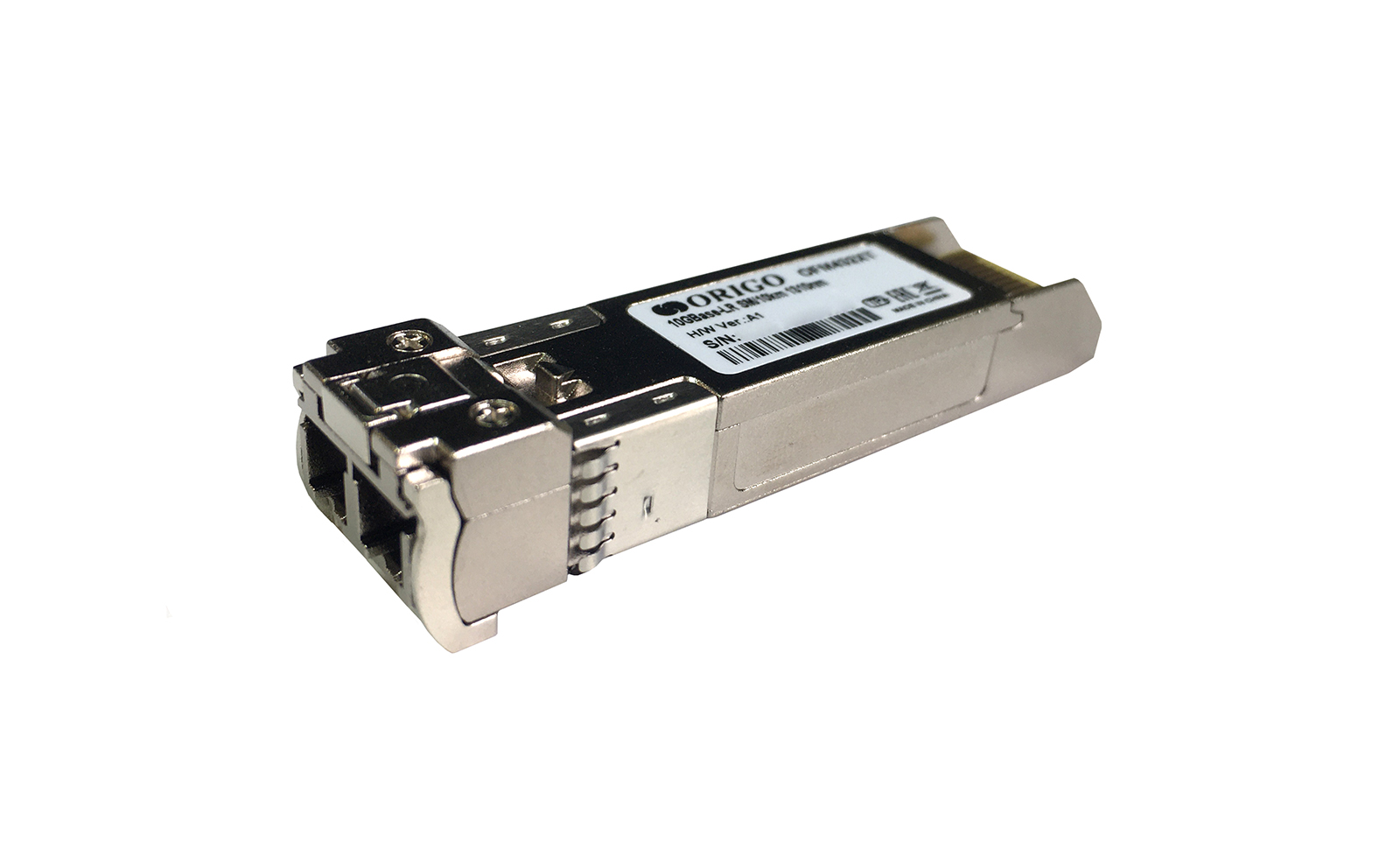

OFM432XT
SFP+ Transceiver 10GBase-LR,
1310 nm, Single-mode, up to 10 km
- Enhanced Small Form-factor Pluggable (SFP+)
- 1x10GBase-LR port

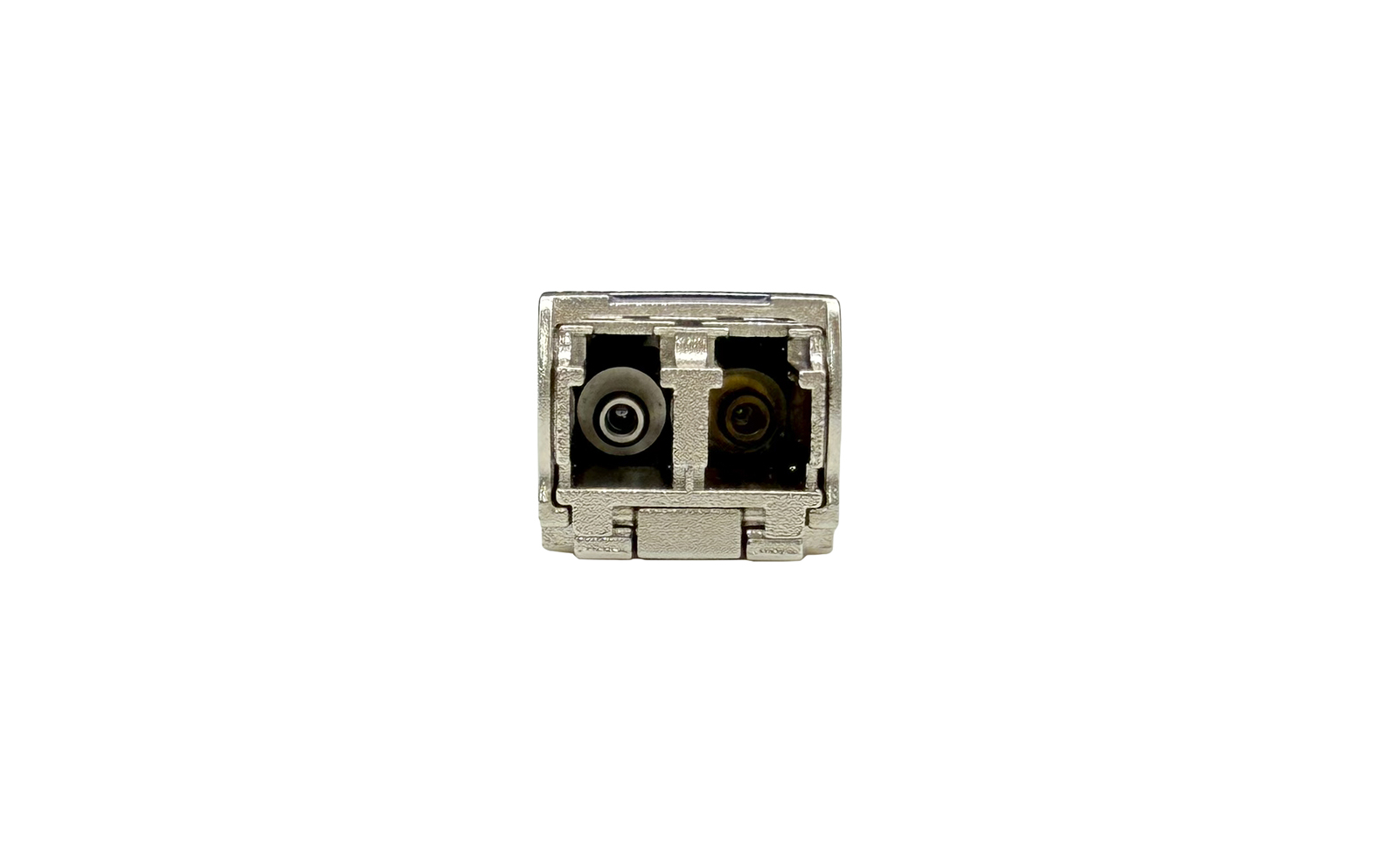

- Duplex LC connector
- Fiber type: 9/125 um single-mode
- Maximum fiber cable length up to 10 km
- Operating wavelength 1310 nm
- Hot-pluggable
Description
OFM432XT is an unidirectional SFP+ transceiver with 10GBase-LR port for single-mode optical cable (up to 10 km).
The OFM432XT is equipped with a standard duplex LC connector and is designed to work with 9/125 um single-mode fiber. The transceiver provides data transmission at speeds up to 10 Gbps at a distance of up to 10 km. Operating wavelength is 1310 nm.
The OFM432XT complies with SFP+ MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• SFP+
|
|
Interfaces
|
• 1x10GBase-LR port
|
|
Connector
|
• Duplex LC
|
|
Uni-/Bi-directional
|
• Uni-directional
|
|
Data Rate
|
• 10 Gbps
|
|
Maximum Fiber Cable Length
|
• 10 km
|
|
Fiber Type
|
• 9/125 um Single-mode Fiber
|
|
Wavelength
|
• 1310 nm
|
|
Transmit Power Range
|
• 0 to -6 dBm
|
|
Receive Power Range
|
• 0.5 to -14.4 dBm
|
|
Sensitivity
|
• -14.4 dBm
|
|
Standard
|
• IEEE 802.3ae 10GBase-LR
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 47.5 x 13.7 x 8.5 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 300 mA
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 0% to 85%
• Storage: 0% to 85%
|
|
Package Contents
|
|
|
Package Contents
|
• OFM432XT Transceiver
|
