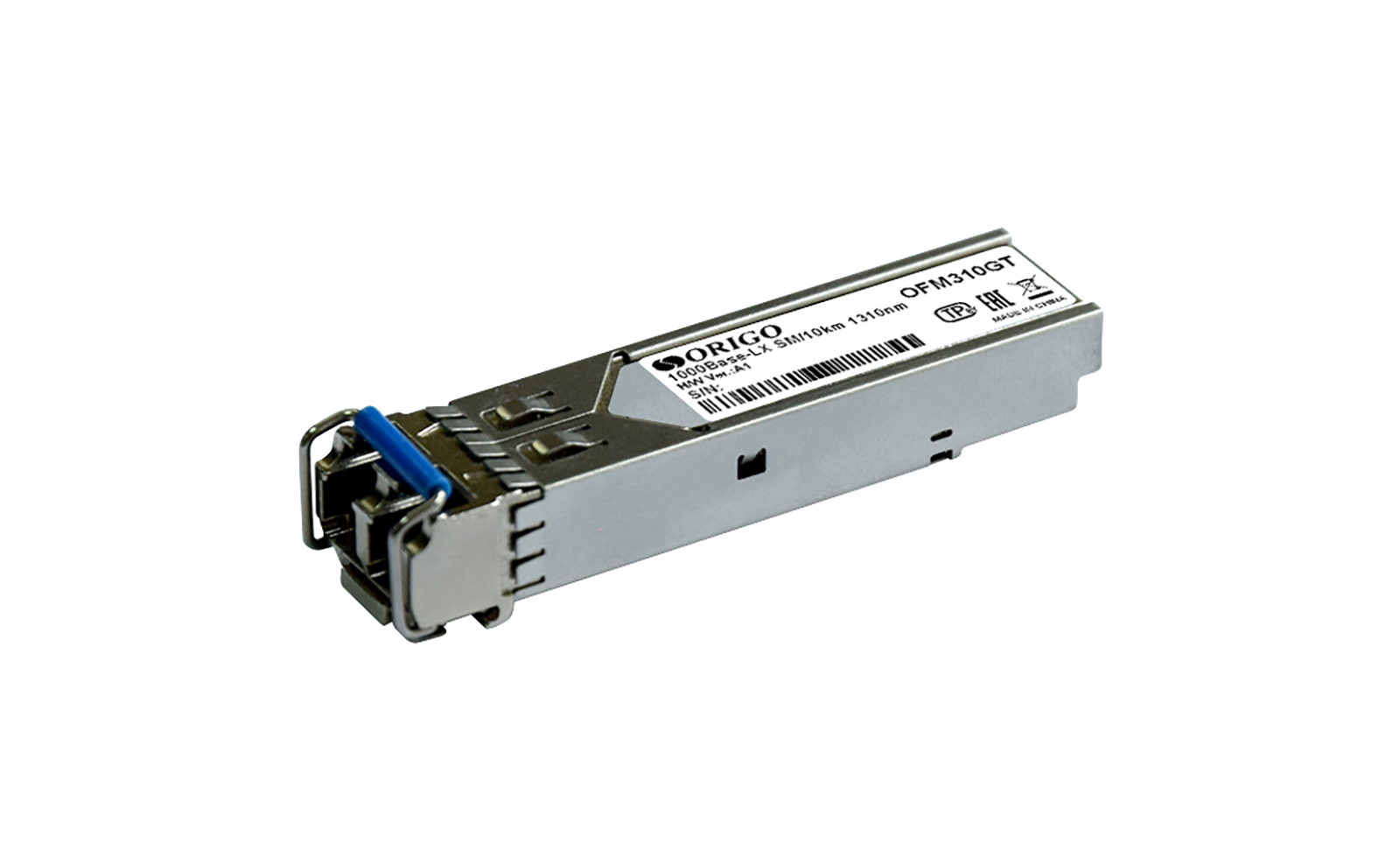

OFM310GT
SFP Transceiver 1000Base-LX, 1310 nm, Single-mode, up to 10 km
- Small Form-Factor Pluggable (SFP)
- 1x1000Base-LX port
- Duplex LC connector
- Fiber type: 9/125 um single-mode
- Maximum fiber cable length up to 10 km
- Operating wavelength 1310 nm
- Hot-pluggable
Description
OFMS310GT is an unidirectional SFP transceiver with 1x1000Base-LX port for single-mode optical cable (up to 10 km).
The OFMS310GT is equipped with a standard duplex LC connector and is designed to work with 9/125 um single-mode fiber. The transceiver provides data transmission at speeds up to 1.25 Gbps at a distance of up to 10 km. Operating wavelength is 1310 nm.
The OFMS310GT complies with SFP MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• SFP
|
|
Interfaces
|
• 1x1000Base-LX port
|
|
Connector
|
• Duplex LC
|
|
Uni-/Bi-directional
|
• Uni-directional
|
|
Data Rate
|
• 1.25 Gbps
|
|
Maximum Fiber Cable Length
|
• 10 km
|
|
Fiber Type
|
• 9/125 um Single-mode Fiber
|
|
Wavelength
|
• 1310 nm
|
|
Transmit Power Range
|
• -3 to -9 dBm
|
|
Receive Power Range
|
• 0 to -22 dBm
|
|
Sensitivity
|
• -22 dBm
|
|
Standard
|
• IEEE 802.3z 1000Base-LX
• IEEE 802.3ah
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 45 x 13.4 x 8.5 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 220 mA
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 0% to 85% non-condensing
• Storage: 0% to 85% non-condensing
|
|
Package Contents
|
|
|
Package Contents
|
• OFM310GT Transceiver
|
