OFM-CB100S
Direct Attach Passive Cable 10G SFP+, 1 m
- For connecting switches to 10G SFP+ ports
- 10 Gbps data rate
- Up to 1 m connection
- Compliant with SFF-8432 standard
- Backward compatible with SFP connectors
Description

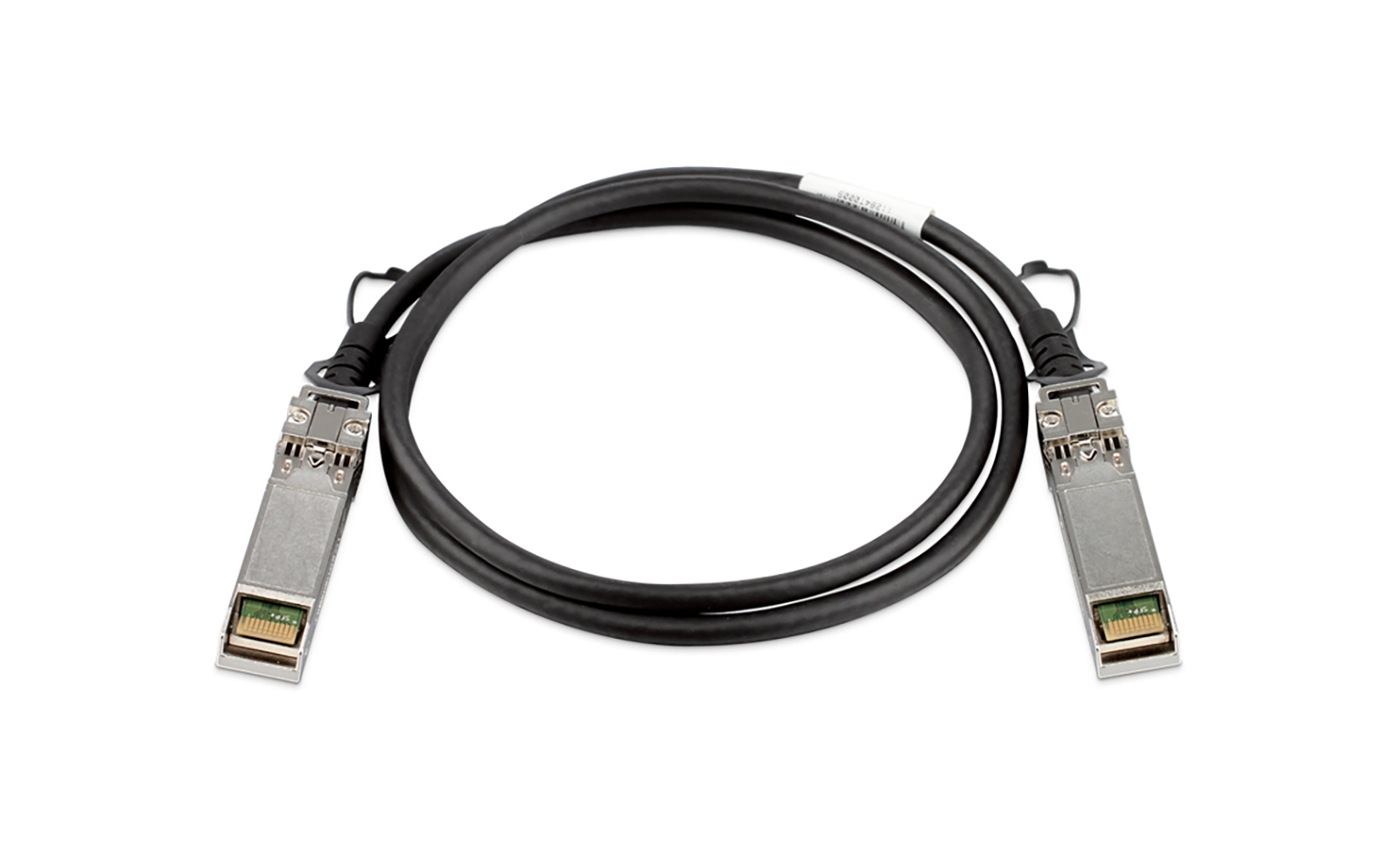

OFM-CB100S is a 1 m direct attach passive cable with 2x10G SFP+ connectors.
The ORIGO OFM-CB100S cable is designed to connect switches with 10G SFP+ ports within the same or adjacent racks and is an affordable alternative to expensive 10G optical modules and fiber optic cable.
The OFM-CB100S is a 30 AWG twinaxial cable with 2 hardwired SFP+ connectors. The maximum data rate is 10 Gbps.
The cable is manufactured in accordance with MSA SFP+ standard according to the SFF-8432 specification, and has low crosstalk and low power consumption.
Specification
|
General features
|
|
|
Cable Type
|
• DAC (passive)
|
|
Connector type
|
• 2xSFP+
|
|
Data rate
|
• 10 Gbps (SFP+)
• 1 Gbps (SFP)
|
|
Cable length
|
• 1 m
|
|
Wire AWG
|
• 30 AWG
|
|
Operating Conditions
|
|
|
Cable Characteristic Impedance
|
• 100 Ohm
|
|
Maximum Nominal Voltage
|
• 30 V DC
|
|
Current
|
• 0.5 A
|
|
Operating Temperature
|
• 0 to 70 °C
|
|
Certificates
|
|
|
Standards
|
• SFP MSA
• SFF-8432
• EIA-364
• EIA-364-1000.01
• UL 94
|
|
Package Contents
|
|
|
Package Contents
|
• OFM-CB100S Сable
|
