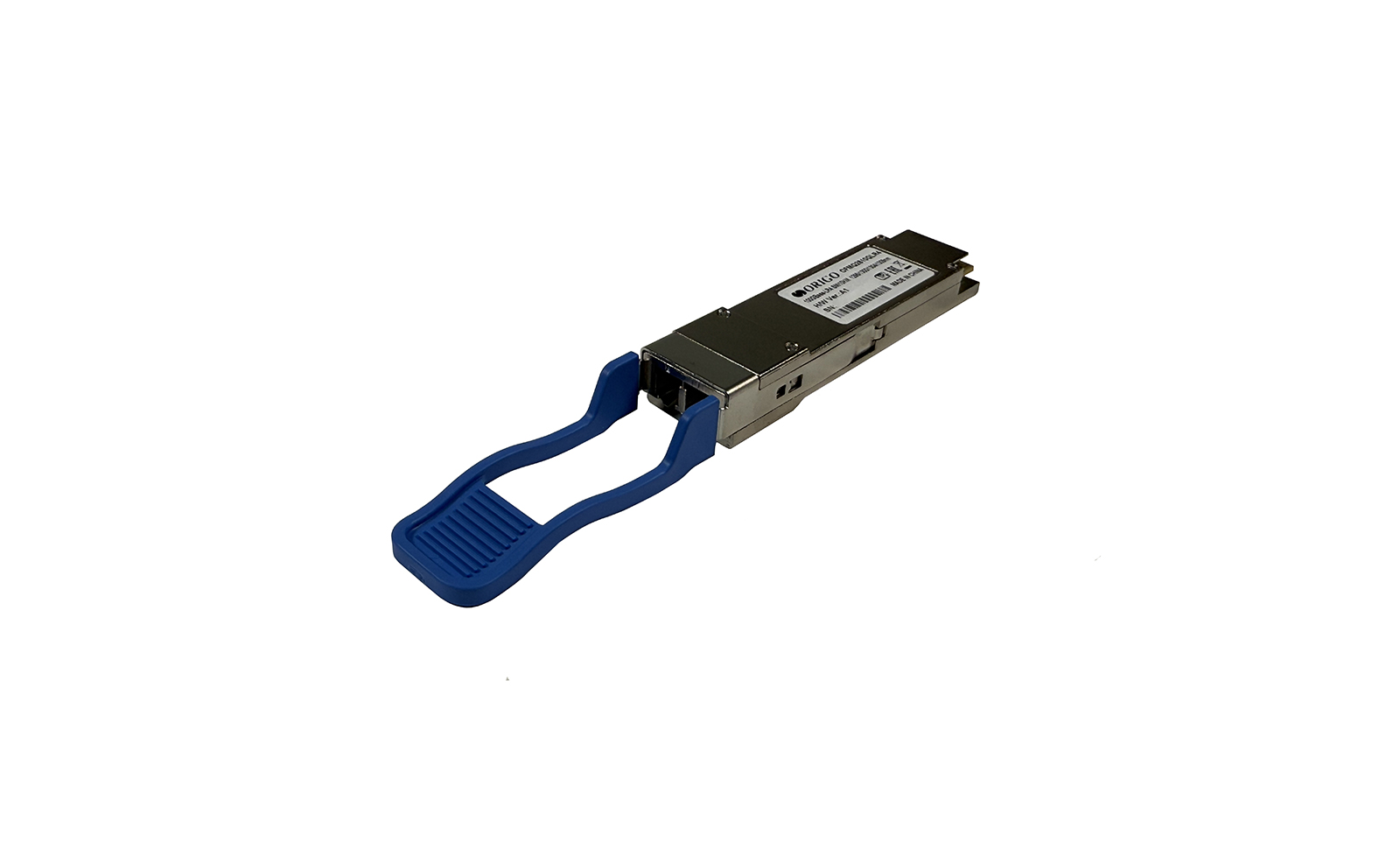

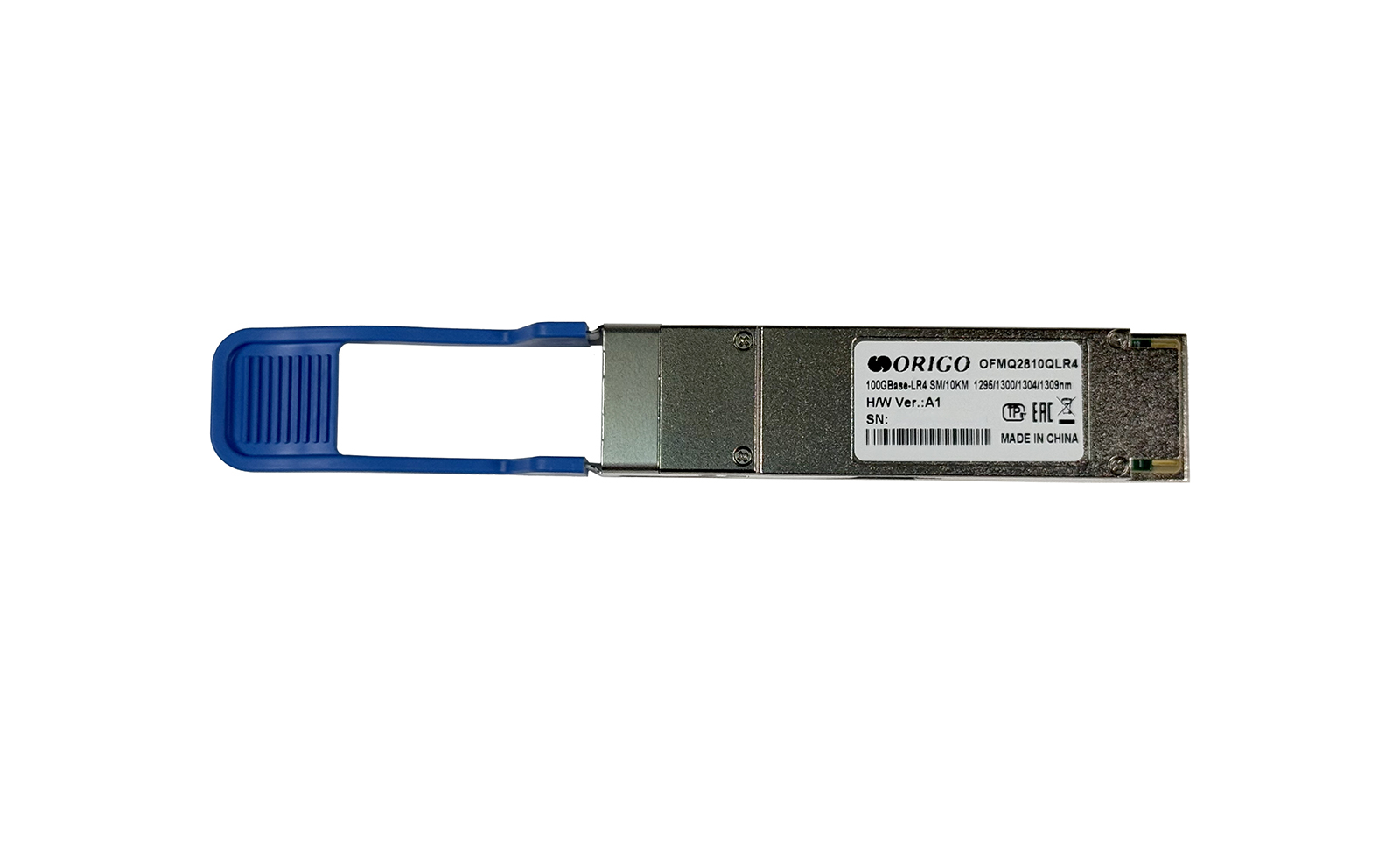

OFMQ2810QLR4
QSFP28 Transceiver 100GBase-LR4,
1295.56/1300.05/1304.58/1309.14 nm,
Single-mode, up to 10 km
- Quad Small Form-factor Pluggable 28 (QSFP28)
- 1x100GBase-LR4 port

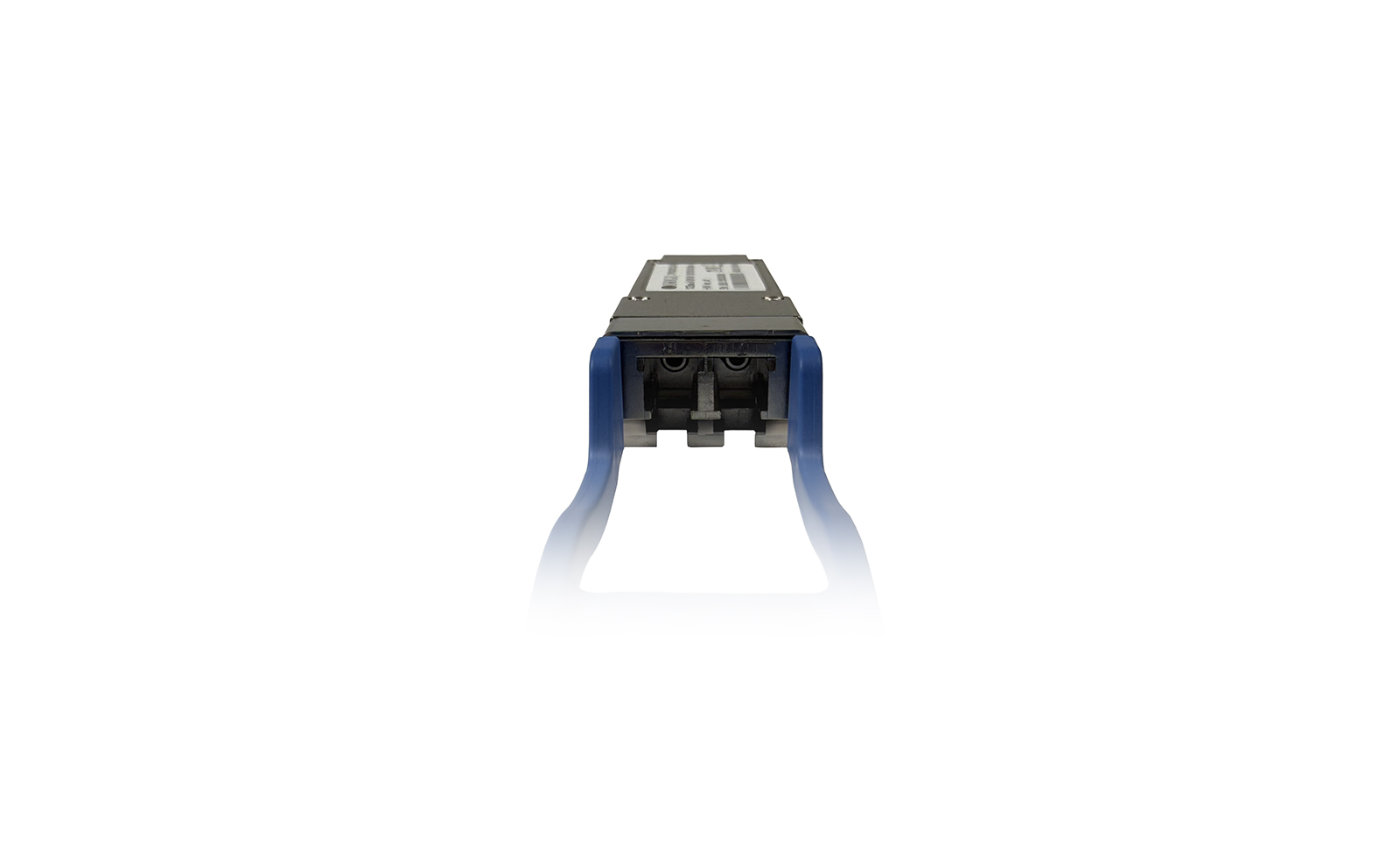

- Duplex LC connector
- Fiber type: single-mode
- Maximum fiber cable length up to 10 km
- Operating wavelength 1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm
- Hot-pluggable
Description
OFMQ2810QLR4 is a unidirectional QSFP28 transceiver with 1x100GBase-LR4 port for single-mode fiber optic cable (up to 10 km).
The OFMQ2810QLR4 is equipped with a standard duplex LC connector and is designed to work with single-mode fiber. The transceiver provides data transmission at speeds up to 100 Gbps at a distance of up to 10 km. Operating wavelength are 1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm.
The OFMQ2810QLR4 complies with QSFP28 MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• QSFP28
|
|
Interfaces
|
• 1x100GBase-LR4 port
|
|
Connector
|
• Duplex LC
|
|
Uni-/Bi-directional
|
• Uni-directional
|
|
Data Rate
|
• 100 Gbps
|
|
Maximum Fiber Cable Length
|
• 10 km
|
|
Fiber Type
|
• Single-mode Fiber
|
|
Wavelength
|
• 1295.56 nm
• 1300.05 nm
• 1304.58 nm
• 1309.14 nm
|
|
Transmit Power Range
|
• 4.5 to -4.3 dBm
|
|
Receive Power Range
|
• 4.5 to -10.6 dBm
|
|
Sensitivity
|
• -8.6 dBm
|
|
Standard
|
• IEEE 802.3ba 100GBase-LR4
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 70 х 18.3 х 8.4 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 1.2 A
|
|
Maximum Power Consumption
|
• < 4 W
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 5% to 85%
• Storage: 5% to 85%
|
|
Package Contents
|
|
|
Package Contents
|
• OFMQ2810QLR4 Transceiver
|
