OFM-CB300QXS
Direct Attach Passive Cable 40G QSFP+, 3 m
- For connecting switches to 40G QSFP+ ports
- 40 Gbps data rate
- Up to 3 m connection
- Compliant with SFF-8436 standard
Description

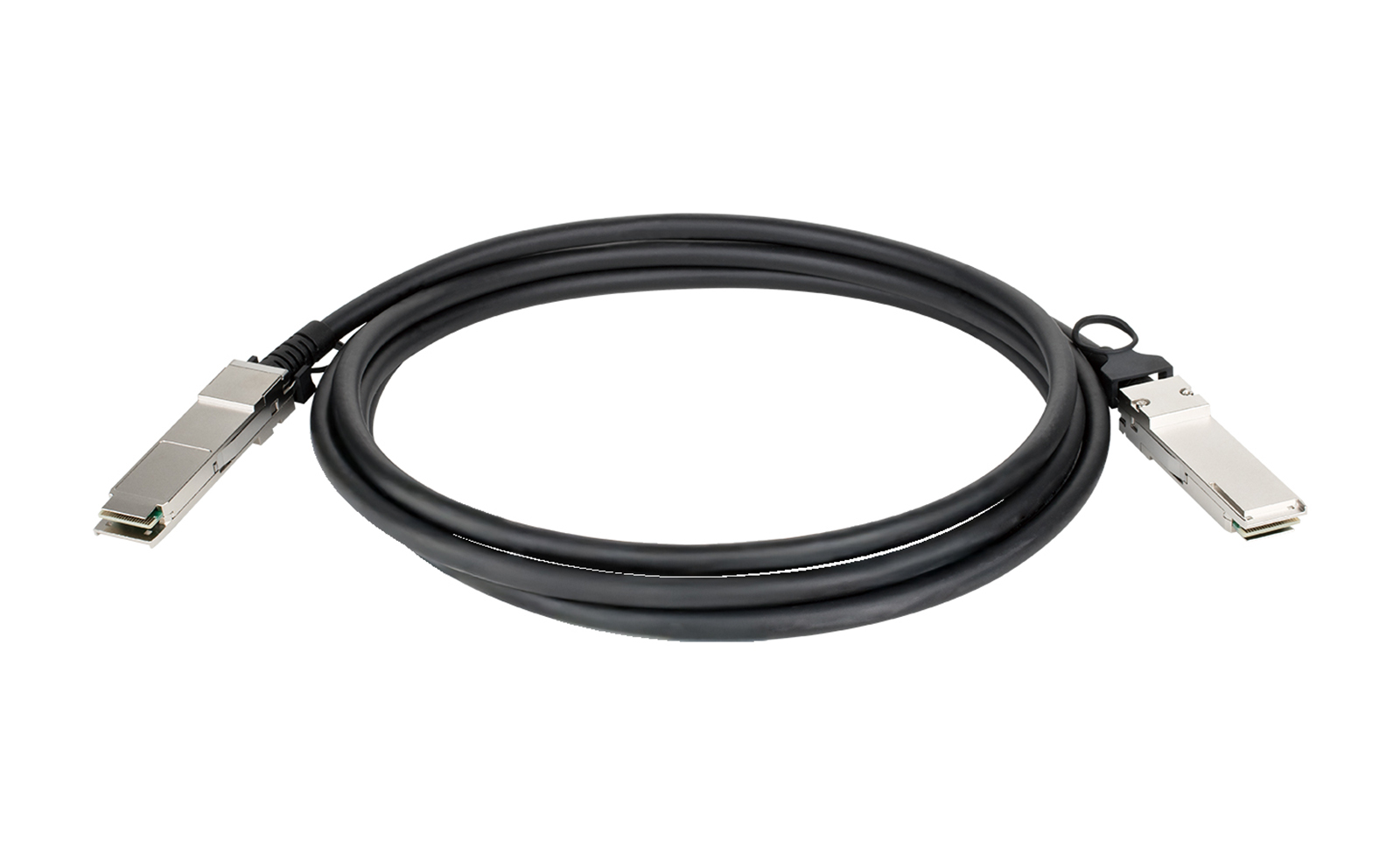

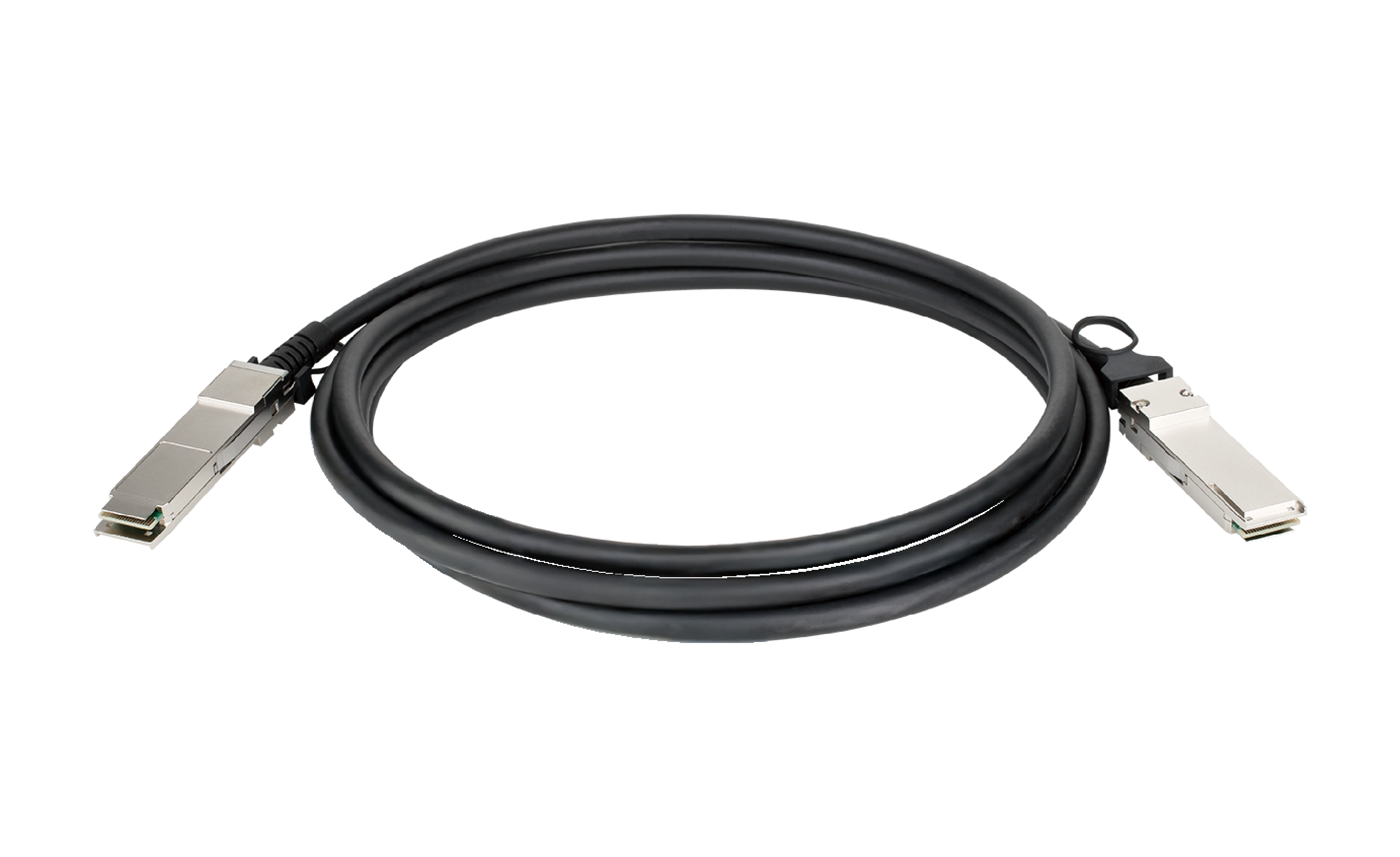

OFM-CB300QXS is a 3 m direct attach passive cable with 2x40G QSFP+ connectors.
The ORIGO OFM-CB300QXS cable is designed to connect switches with 40G QSFP+ ports within the same or adjacent racks and is an affordable alternative to expensive 40G optical modules and fiber optic cable.
The OFM-CB300QXS is a 30 AWG twinaxial cable with 2 hardwired QSFP+ connectors. The maximum data rate is 40 Gbps.
The cable is manufactured in accordance with MSA QSFP+ standard according to the SFF-8436 specification, and has low crosstalk and low power consumption.
Specification
|
General features
|
|
|
Cable Type
|
• DAC (passive)
|
|
Connector type
|
• 2xQSFP+
|
|
Data rate
|
• 40 Gbps
|
|
Cable length
|
• 3 m
|
|
Wire AWG
|
• 30 AWG
|
|
Operating Conditions
|
|
|
Cable Characteristic Impedance
|
• 100 Ohm
|
|
Maximum Nominal Voltage
|
• 30 V DC
|
|
Current
|
• 0.5 A
|
|
Operating Temperature
|
• Operating: -20 to 75 °C
• Storage: -20 to 55 °C
|
|
Certificates
|
|
|
Standards
|
• QSFP+ MSA
• SFF-8436
• EIA-364
|
|
Package Contents
|
|
|
Package Contents
|
• OFM-CB300QXS Сable
|
