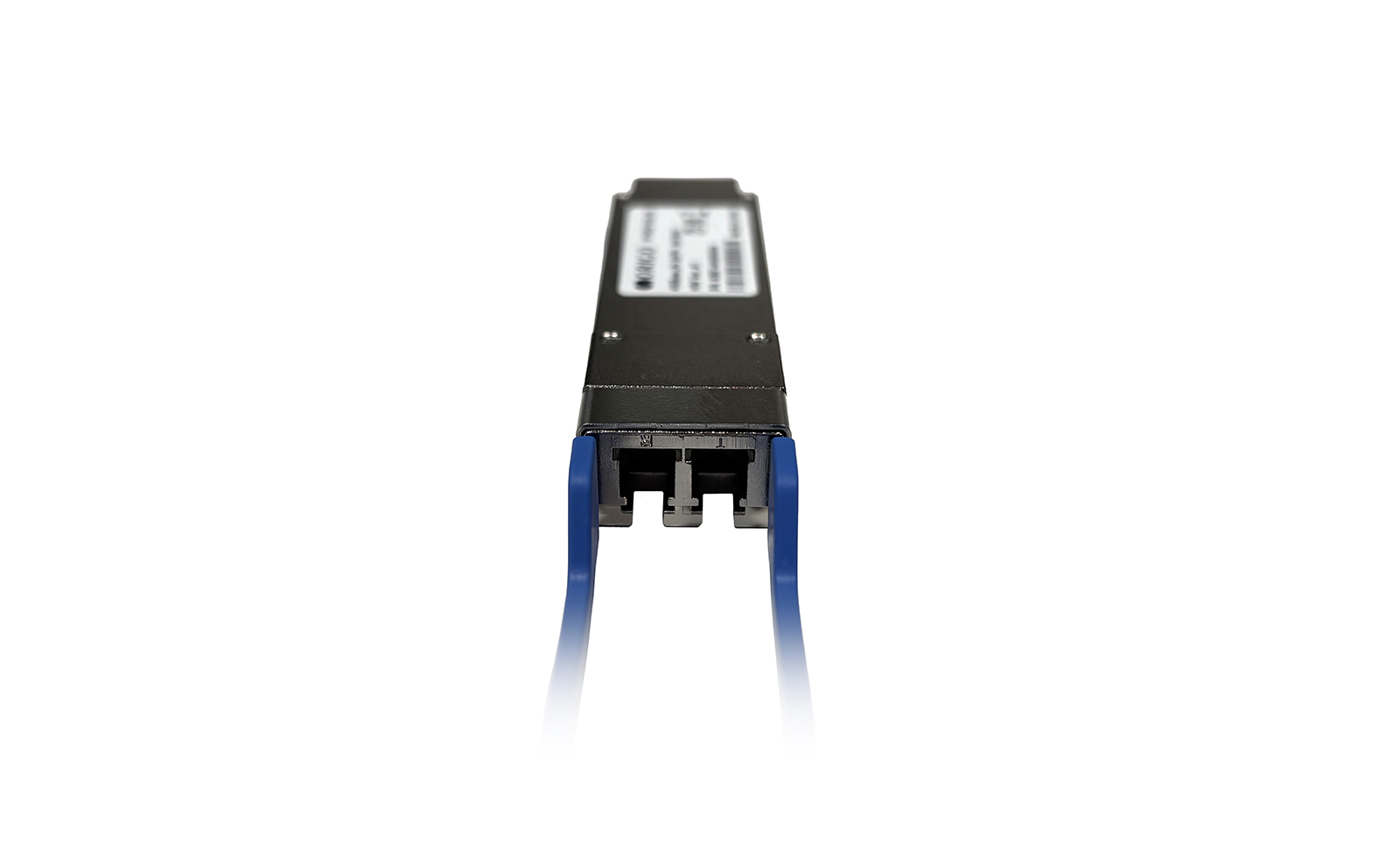

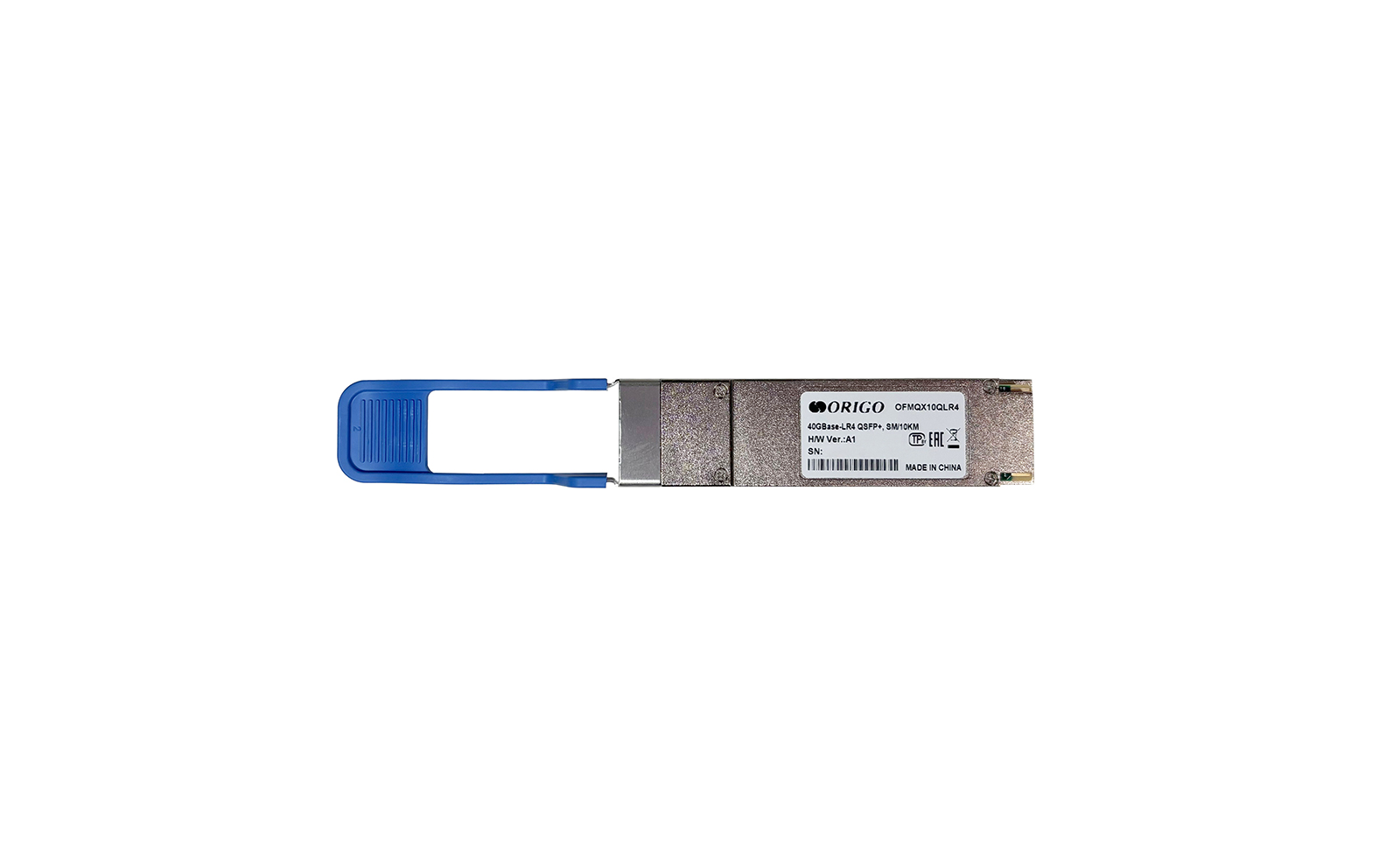

OFMQX10QLR4
QSFP+ Transceiver 40GBase-LR4,
1271/1291/1311/1331 nm,
Single-mode, up to 10 km
- Quad Small Form-factor Pluggable Plus (QSFP+)
- 1x40GBase-LR4 port
- Duplex LC connector
- Fiber type: 9/125 um single-mode
- Maximum fiber cable length up to 10 km
- Operating wavelength 1271 nm, 1291 nm, 1311 nm, 1331 nm
- Hot-pluggable
Description
OFMQX10QLR4 is a unidirectional QSFP+ transceiver with 1x40GBase-LR4 port for single-mode fiber optic cable (up to 10 km).
The OFMQX10QLR4 is equipped with a standard duplex LC connector and is designed to work with 9/125 um single-mode fiber. The transceiver provides data transmission at speeds up to 40 Gbps at a distance of up to 10 km. Operating wavelength are 1271 nm, 1291 nm, 1311 nm, 1331 nm.
The OFMQX10QLR4 complies with QSFP+MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• QSFP+
|
|
Interfaces
|
• 1x40GBase-LR4 port
|
|
Connector
|
• Duplex LC
|
|
Uni-/Bi-directional
|
• Uni-directional
|
|
Data Rate
|
• 40 Gbps
|
|
Maximum Fiber Cable Length
|
• 10 km
|
|
Fiber Type
|
• 9/125 um Single-mode Fiber
|
|
Wavelength
|
• 1271 nm, 1291 nm, 1311 nm, 1331 nm
|
|
Transmit Power Range
|
• 2.3 to -7 dBm
|
|
Receive Power Range
|
• 2.4 to -9.5 dBm
|
|
Sensitivity
|
• -11.5 dBm
|
|
Standard
|
• IEEE 802.3ba, 40GBase-LR4
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 71.8 х 18.3 х 8.5 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 1010 mA
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 5% to 85%
• Storage: 5% to 85%
|
|
Package Contents
|
|
|
Package Contents
|
• OFMQX10QLR4 Transceiver
|
