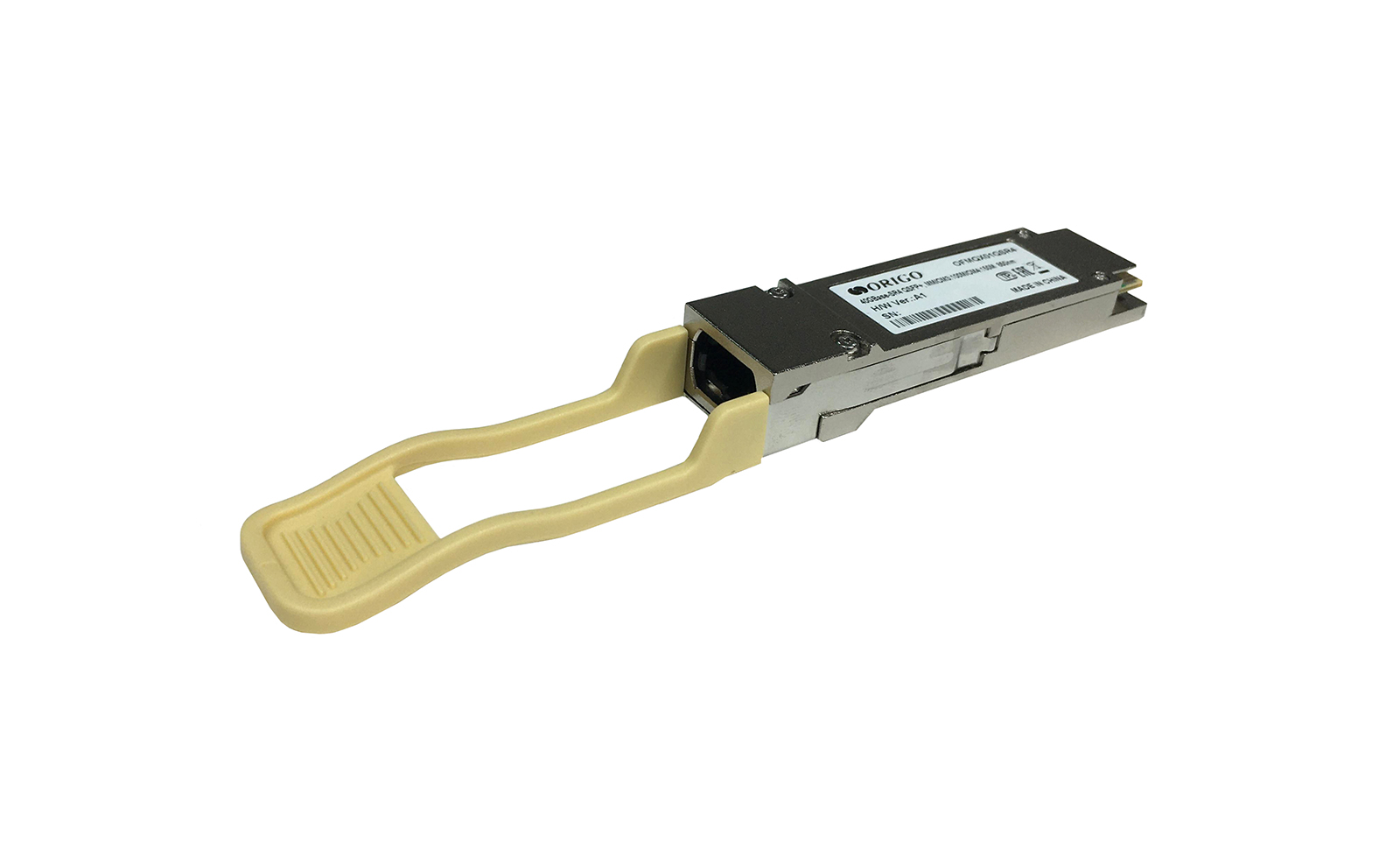

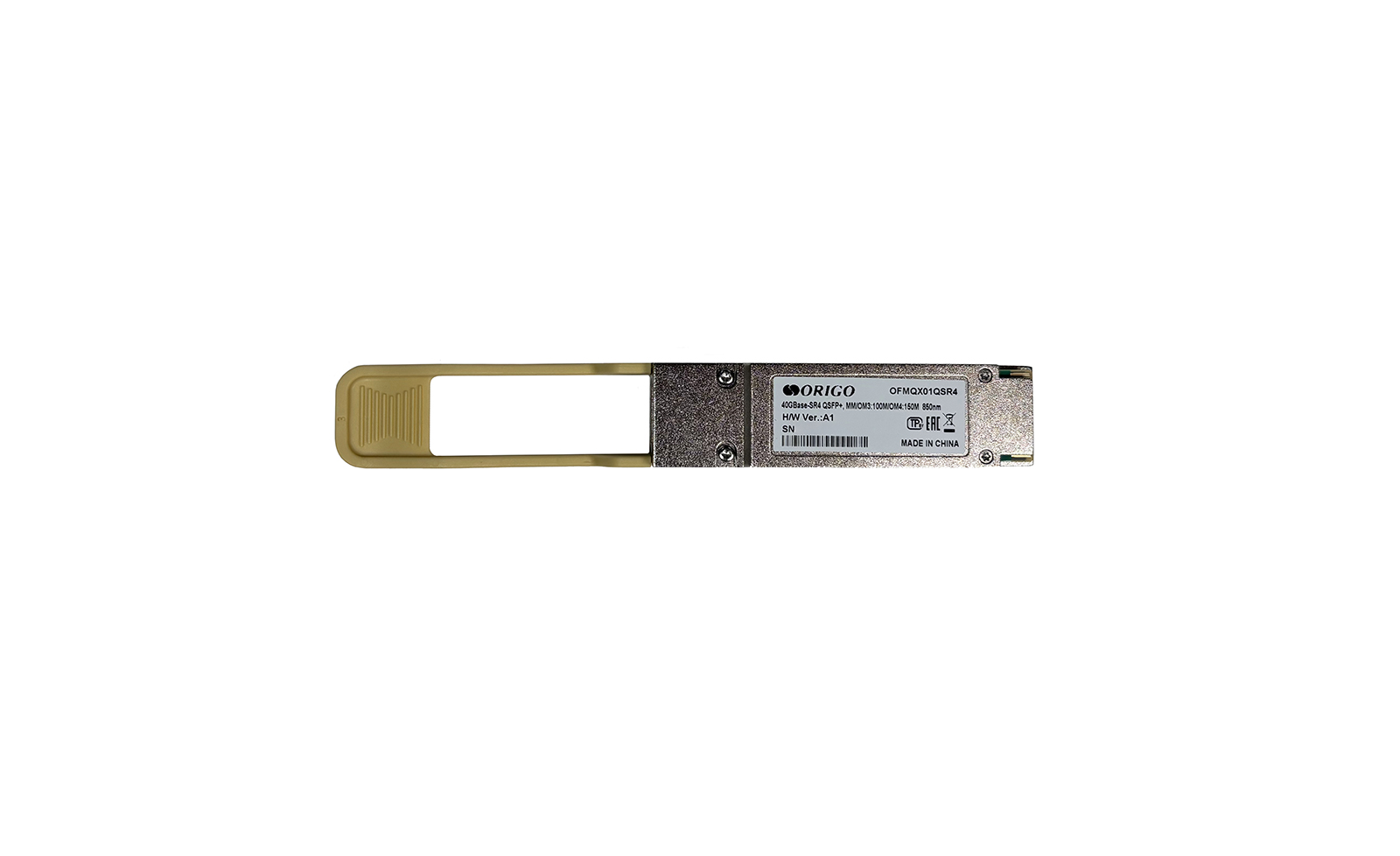

OFMQX01QSR4
QSFP+ Transceiver 40GBase-SR4, 850 nm, Multi-mode,
OM3: up to 100 m / OM4: up to 150 m
- Quad Small Form-factor Pluggable Plus (QSFP+)
- 1x40GBase-SR4 port
- MPO (male) connector
- Fiber type: Multi-mode
- Maximum fiber cable length up to 100 m for OM3 / up to 150 m for OM4
- Operating wavelength 850 nm
- Hot-pluggable
Description
OFMQX01QSR4 is a unidirectional QSFP+ transceiver with 1x40GBase-SR4 port for multi-mode fiber optic cable (up to 150 m).
The OFMQX01QSR4 is equipped with MPO (male) connector and is designed to work with multi-mode fiber optics. The transceiver provides data transmission at speeds up to 40 Gbps at a distance of up to 100 m (OM3) and 150 m (OM4). Operating wavelength is 850 nm.
The OFMQX01QSR4 complies with QSFP+MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• QSFP+
|
|
Interfaces
|
• 1x40GBase-SR4 port
|
|
Connector
|
• MPO (male)
|
|
Uni-/Bi-directional
|
• Uni-directional
|
|
Data Rate
|
• 40 Gbps
|
|
Fiber Type
|
• 50/125 um Multi-mode Fiber (ОМ3)
• 50/125 um Multi-mode Fiber (ОМ4)
|
|
Maximum Fiber Cable Length
|
• OM3 MMF: 100 m
• OM4 MMF: 150 m
|
|
Wavelength
|
• 850 nm
|
|
Transmit Power Range
|
• 2.4 to -7.6 dBm
|
|
Receive Power Range
|
• 2.4 to -9.5 dBm
|
|
Sensitivity
|
• -9.5 dBm
|
|
Standard
|
• IEEE802.3ba, 40GBase-SR4
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 71.8 х 18.3 х 8.5 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 600 mA
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 5% to 95%
• Storage: 5% to 95%
|
|
Package Contents
|
|
|
Package Contents
|
• OFMQX01QSR4 Transceiver
|
