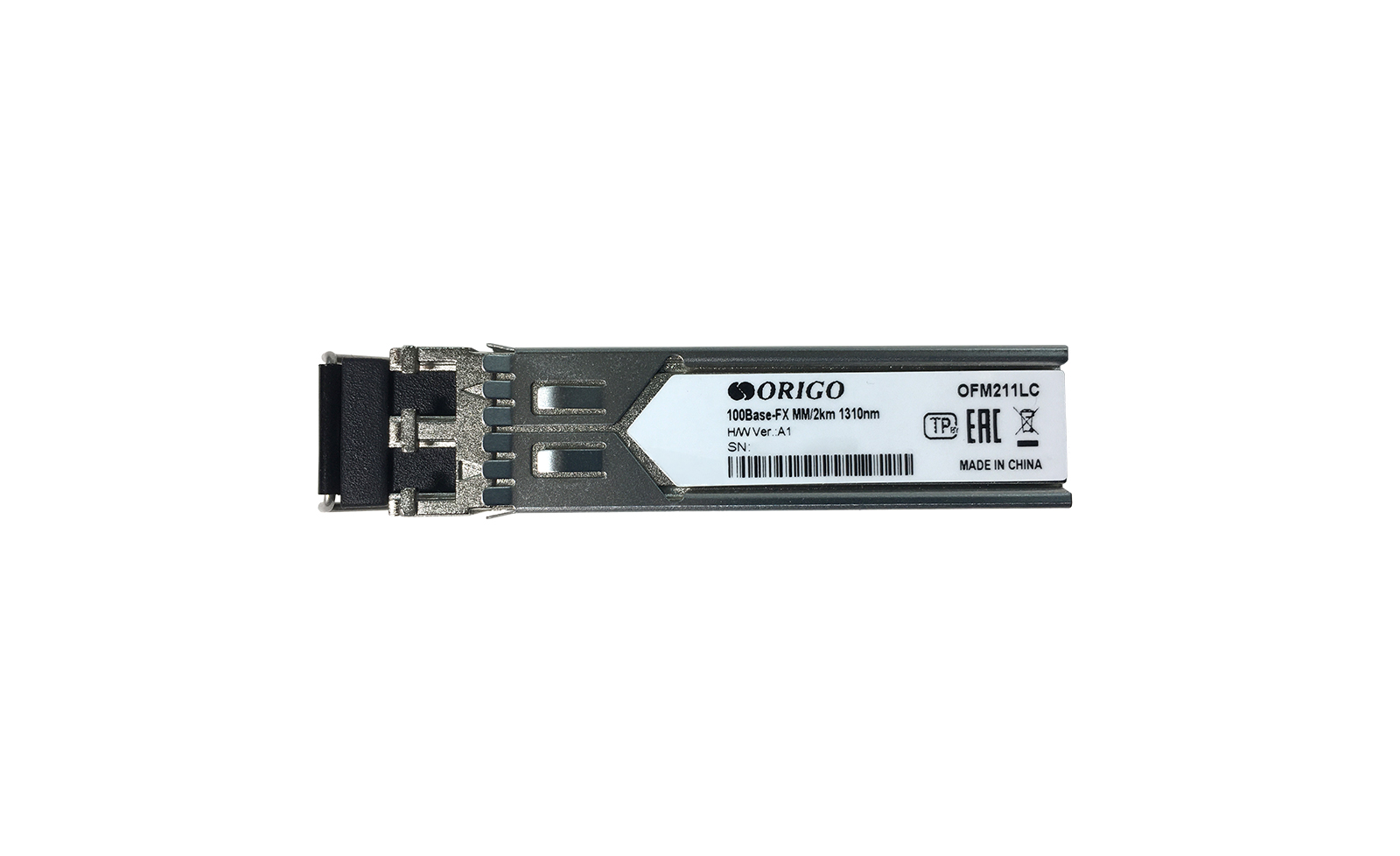

OFM211LC
SFP Transceiver 100Base-FX, 1310 nm,
Multi-mode, up to 2 km
- Small Form-Factor Pluggable (SFP)
- 1x100Base-FX port
- Duplex LC connector
- Fiber type: multi-mode 50/125 um (up to 2 km) or 62.5/125 um (up to 1 km)
- Operating wavelength 1310 nm
- Hot-pluggable
Description
OFM211LC is a unidirectional SFP transceiver with 1x100Base-FX port for multi-mode fiber optic cable (up to 2 km).
The OFM211LC is equipped with a standard duplex LC connector and is designed to work with multi-mode fiber 50/125 um (up to 2 km) or 62.5/125 um (up to 1 km). The transceiver provides data transmission at speeds up to 100 Mbps at a distance of up to 2 km. Operating wavelength is 1310 nm.
The OFM211LC complies with SFP MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• SFP
|
|
Interfaces
|
• 1x100Base-FX port
|
|
Connector
|
• Duplex LC
|
|
Uni-/Bi-directional
|
• Uni-directional
|
|
Data Rate
|
• 100 Mbps
|
|
Maximum Fiber Cable Length
|
• 2 km
|
|
Fiber Type
|
• 50/125 um Multi-mode Fiber (up to 2 km)
• 62.5/125 um Multi-mode Fiber (up to 1 km)
|
|
Wavelength
|
• 1310 nm
|
|
Transmit Power Range
|
• -8 to -20 dBm
|
|
Receive Power Range
|
• -3 to -32 dBm
|
|
Sensitivity
|
• -32 dBm
|
|
Standard
|
• IEEE 802.3u 100Base-FX
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 45 x 13.4 x 8.5 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 300 mA
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 0% to 85%
• Storage: 0% to 85%
|
|
Package Contents
|
|
|
Package Contents
|
• OFM211LC Transceiver
|
