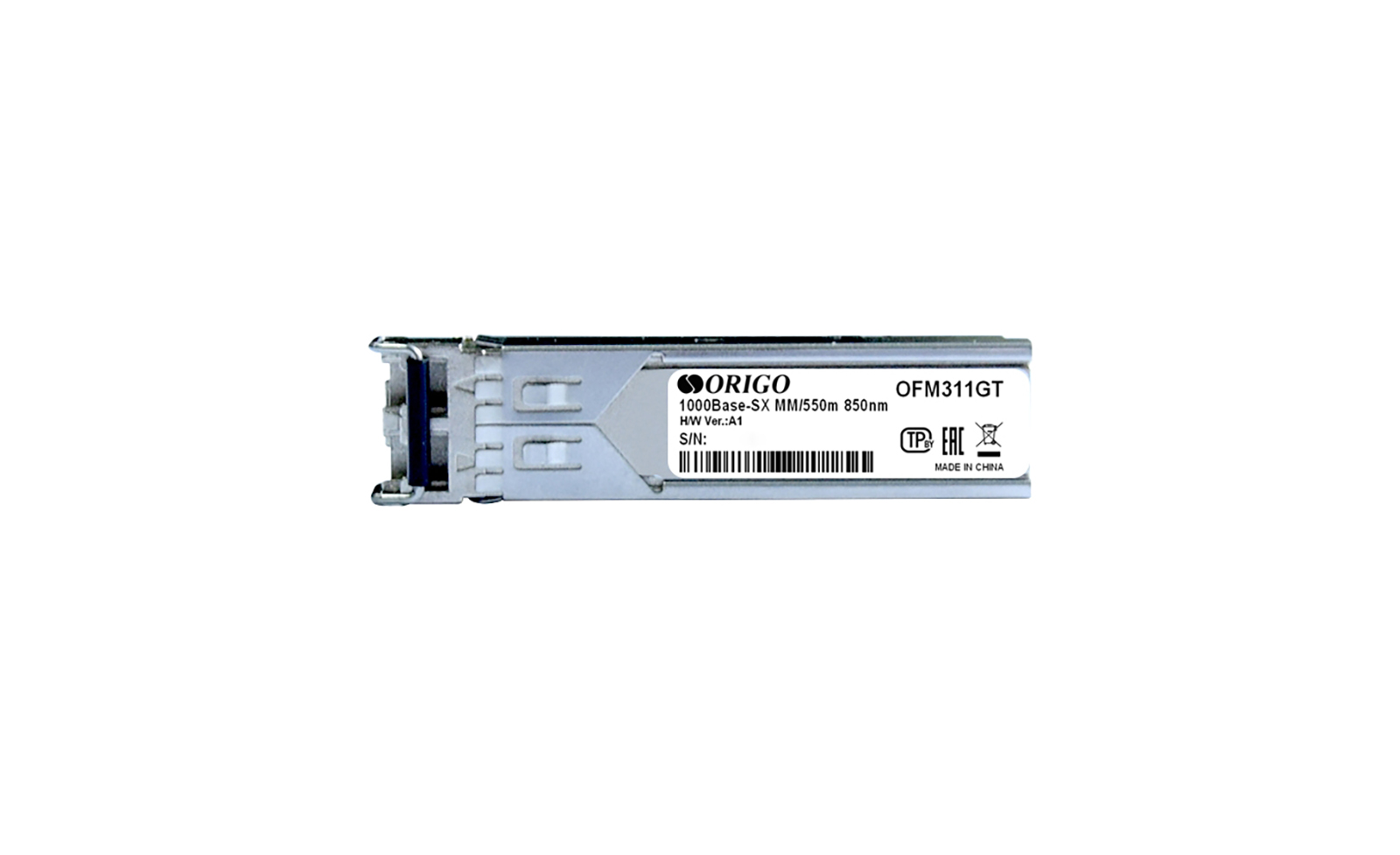

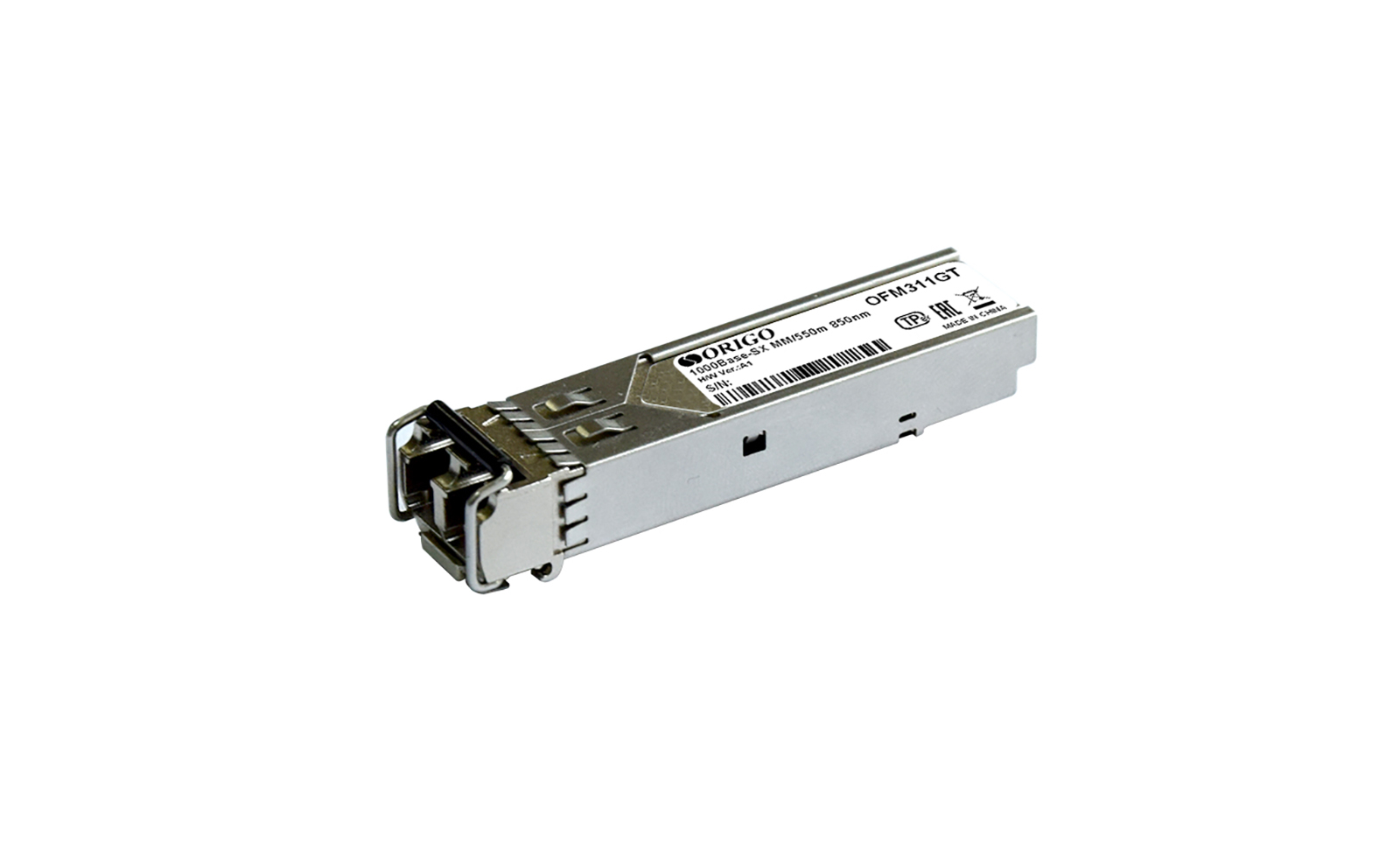

OFM311GT
SFP Transceiver 1000Base-SX, 850 nm, Multi-mode, up to 550 m
- Small Form-Factor Pluggable (SFP)
- 1x1000Base-SX port
- Duplex LC connector
- Fiber type: multi-mode 50/125 um
- Operating wavelength 850 nm
- Hot-pluggable
Description
OFM311GT is a unidirectional SFP transceiver with 1x1000Base-SX port for multi-mode fiber optic cable (up to 550 m).
The OFM311GT is equipped with a standard duplex LC connector and is designed to work with 50/125 um multi-mode fiber. The transceiver provides data transmission at speeds up to 1.25 Gbps at a distance of up to 550 m. Operating wavelength is 850 nm.
The OFM311GT complies with SFP MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• SFP
|
|
Interfaces
|
• 1x1000Base-SX port
|
|
Connector
|
• Duplex LC
|
|
Uni-/Bi-directional
|
• Uni-directional
|
|
Data Rate
|
• 1.25 Gbps
|
|
Maximum Fiber Cable Length
|
• 550 m
|
|
Fiber Type
|
• 50/125 um Multi-mode Fiber
|
|
Wavelength
|
• 850 nm
|
|
Transmit Power Range
|
• 0 to -9.5 dBm
|
|
Receive Power Range
|
• 0 to -17 dBm
|
|
Sensitivity
|
• -17 dBm
|
|
Standard
|
• IEEE 802.3z 1000Base-SX
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 45 x 13.4 x 8.5 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 240 mA
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 0% to 85%
• Storage: 0% to 85%
|
|
Package Contents
|
|
|
Package Contents
|
• OFM311GT Transceiver
|
