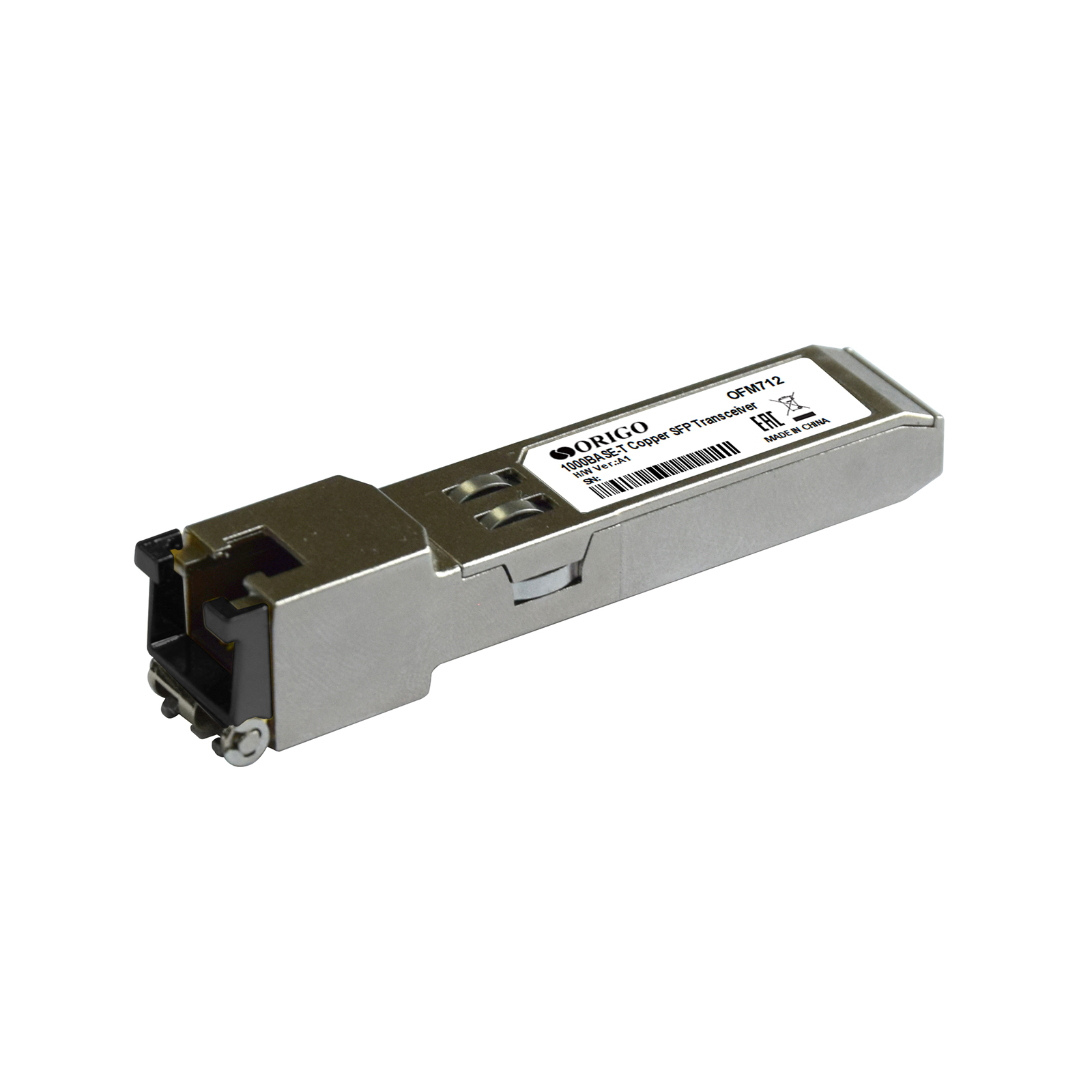

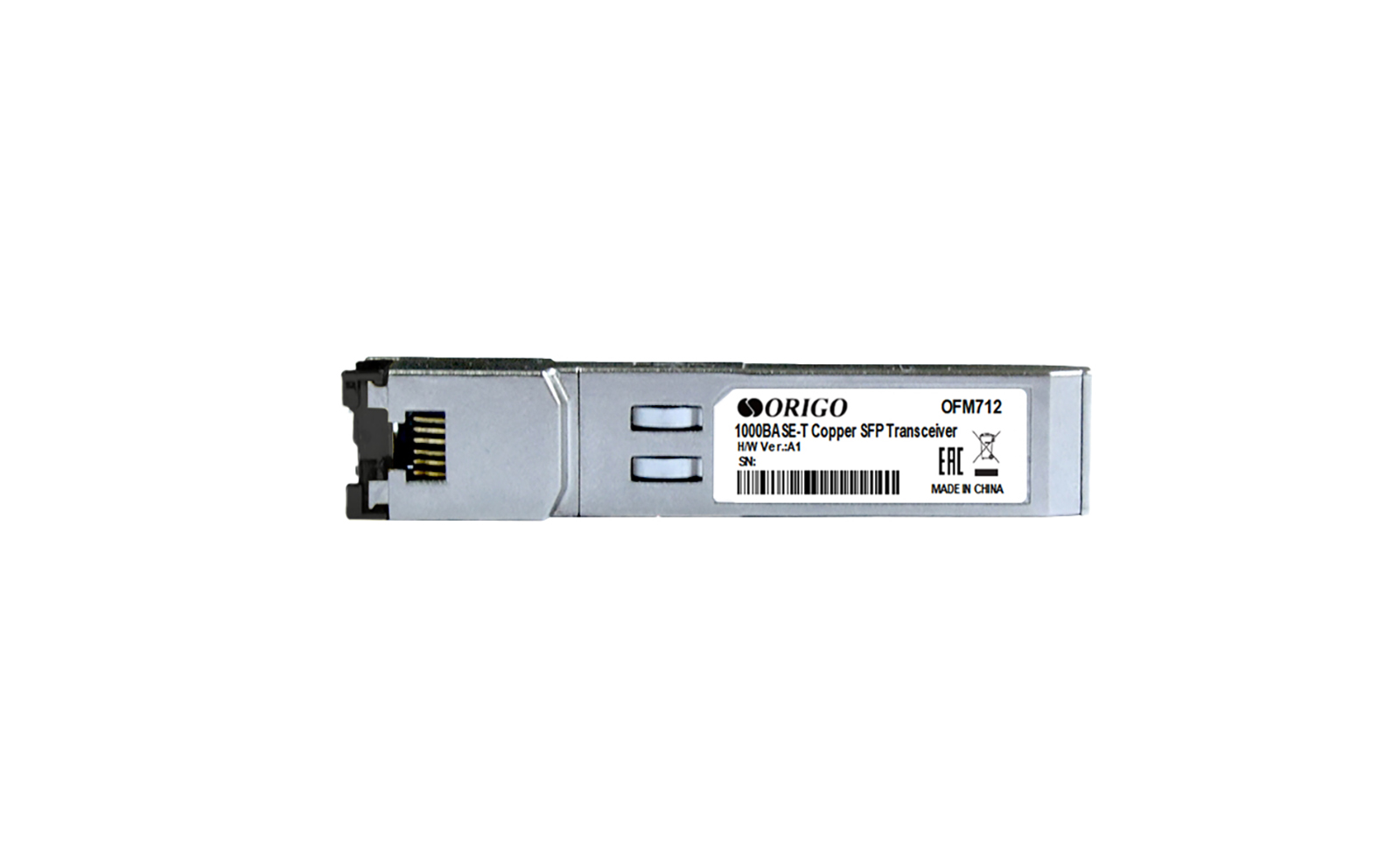

OFM712
SFP Transceiver 1000Base-T, up to 100 m
- Small Form-Factor Pluggable (SFP)
- 1x1000Base-T port

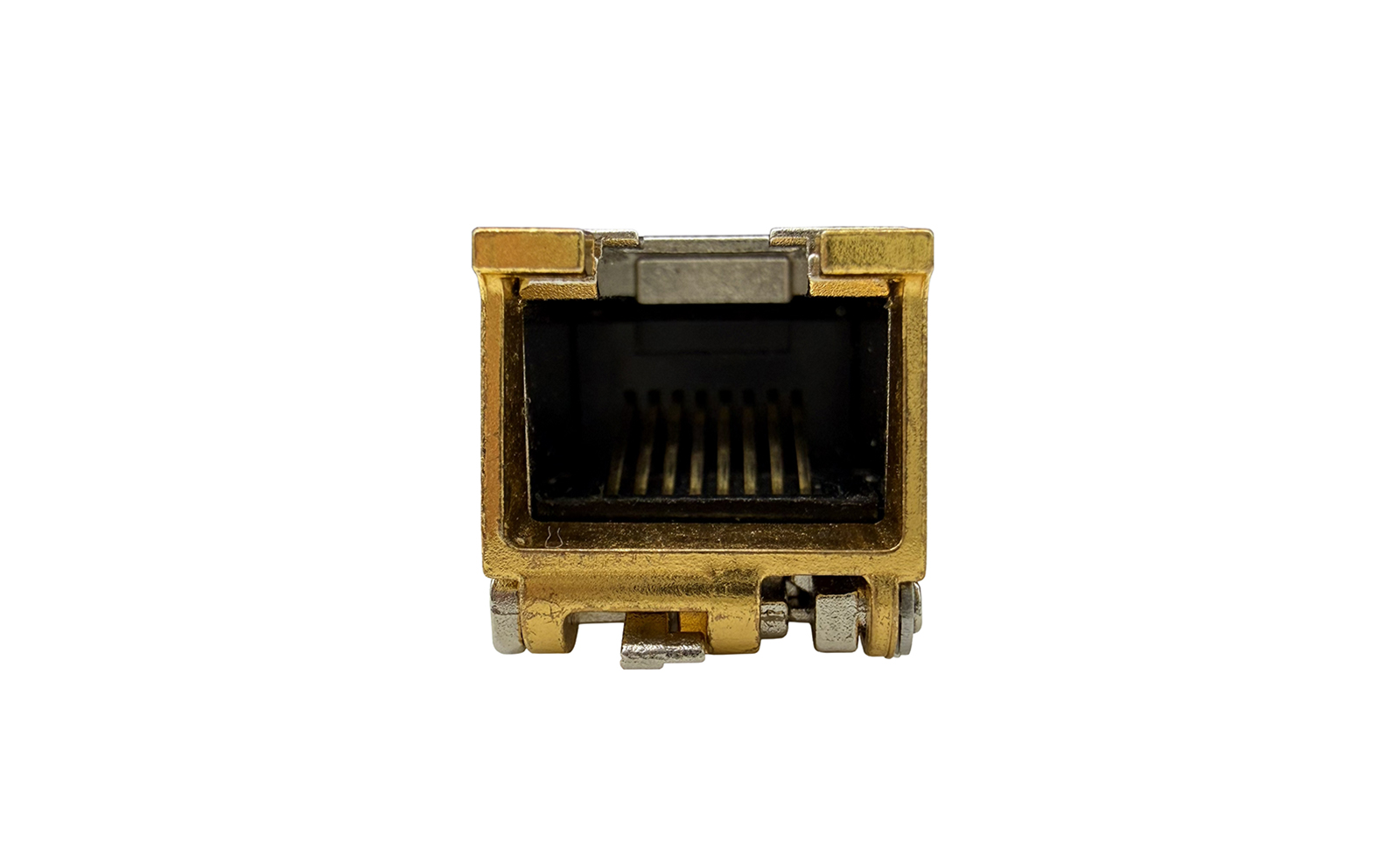

- RJ-45 connector
- Cable type: Category 5 twisted-pair cable
- Maximum fiber cable length up to 100 m
- Hot-pluggable
Description
OFM712 is an SFP transceiver with 1x1000Base-T port for twisted-pair network cable (up to 100 m).
The OFM712 is equipped with RJ-45 connector and is designed to work on the common Category 5 twisted-pair network cable. The transceiver provides data transmission at speeds up to 1.25 Gbps at a distance of up to 100 m.
The OFM712 complies with SFP MSA specifications and is hot-pluggable.
Specification
|
Hardware
|
|
|
Transceiver Type
|
• SFP
|
|
Interfaces
|
• 1x1000Base-T port
|
|
Connector
|
• RJ-45
|
|
Data Rate
|
• 1.25 Gbps
|
|
Maximum Fiber Cable Length
|
• 100 m
|
|
Cable Type
|
• Category 5 twisted-pair cable
|
|
Standard
|
• IEEE 802.3-2002
• IEEE 802.3ab 1000Base-T
|
|
Supported Features
|
• Auto-MDI/MDIX adjustment
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 45 x 13.4 x 8.5 mm
|
|
Operating Conditions
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 375 mA
|
|
Temperature
|
• Operating: 0 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Storage: 5% to 95%
|
|
Package Contents
|
|
|
Package Contents
|
• OFM712 Transceiver
|
