OPE302GEO
Outdoor 802.3af/at/bt PoE++ Extender
1x1000Base-T PoE In, 2x1000Base-T PoE Out, −40..+55 °C
- Extends PoE transmission distance up to 200 m
- IP67/IK10 enclosure; −40 to +55 °C
- 1×10/100/1000Base T 802.3af/at/bt PoE Input and 2×10/100/1000Base T 802.3af/at PoE Output
- Input power: 90/60/30/15W
- Output power: max 47.6W for two ports2
- Automatic PoE device detection
- ESD protection: up to 6 kV
- No configuration required
- Wall-mountable design
Description
The OPE302GEO is an outdoor 2-port Gigabit Power over Ethernet extender compliant with IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++)1 standards.
The ORIGO OPE302GEO PoE extender boosts the data and power transmission distance from a PoE switch or PoE injector to connected devices up to 200 m. Two output ports allow two PoE devices to be connected simultaneously at a remote site without intermediate power points or additional switches.
The OPE302GEO is designed for outdoor use. The rugged metal enclosure with IP67 rating provides protection against dust and moisture, the IK10 vandal-resistant design increases resistance to mechanical impact, and the operating temperature range from -40 to +55 °C allows the device to be used in harsh environments. ESD protection up to 6 kV on the ports enhances equipment reliability, and the compact housing with wall-mount capability simplifies installation.
1The 802.3bt (PoE++) standard is supported only on the input port. The output ports operate according to the 802.3af and 802.3at standards.
2Actual output power depends on the PoE PSE switch or PoE injector, Ethernet cable length, cable specifications, and operating environmental conditions.
Specification
|
Hardware Specifications
|
|
|
Interface
|
• 1×10/100/1000Base T PoE Input (802.3af/at/bt)
• 2×10/100/1000Base T PoE Output (802.3af/at)
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3af (PoE)
• IEEE 802.3at (PoE+)
• IEEE 802.3bt (PoE++)
• Half/full duplex support
• Auto negotiation of speed and duplex mode
• Auto MDI/MDIX detection on all ports
• PoE device auto detection
|
|
Power Transmission Contacts
|
• PoE IN: 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-)
• PoE OUT: 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-)
|
|
PoE Data and Power Transmission Distance
|
• Up to 200 m ‒ with 1 extender
|
|
Input Voltage
|
• 44V to 57V DC
|
|
Output Voltage
|
• 42V to 55V DC
|
|
Max Input Power
|
• 90W
|
|
Max Output Power
(for 2 ports)
|
• Up to 47.6W ‒ 150 m
• Up to 43.2W ‒ 200 m
|
|
Case
|
• Metal
• Protection rating: IP67, IK10
|
|
Mounting
|
• Wall
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 230 х 90 х 40 mm
|
|
Weight
|
• 0.38 kg
|
|
Operating Conditions
|
|
|
Power
|
• From a PoE source (up to 90W)
|
|
Max Power Consumption
|
• 1.8W
|
|
Standby Power Consumption
|
• ≤ 1W
|
|
ESD Protection
|
• Up to 6 kV
|
|
Temperature
|
• Operating: -40 to 55 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: up to 90% (non-condensing)
• Storage: up to 95% (non-condensing)
|
|
Delivery
|
|
|

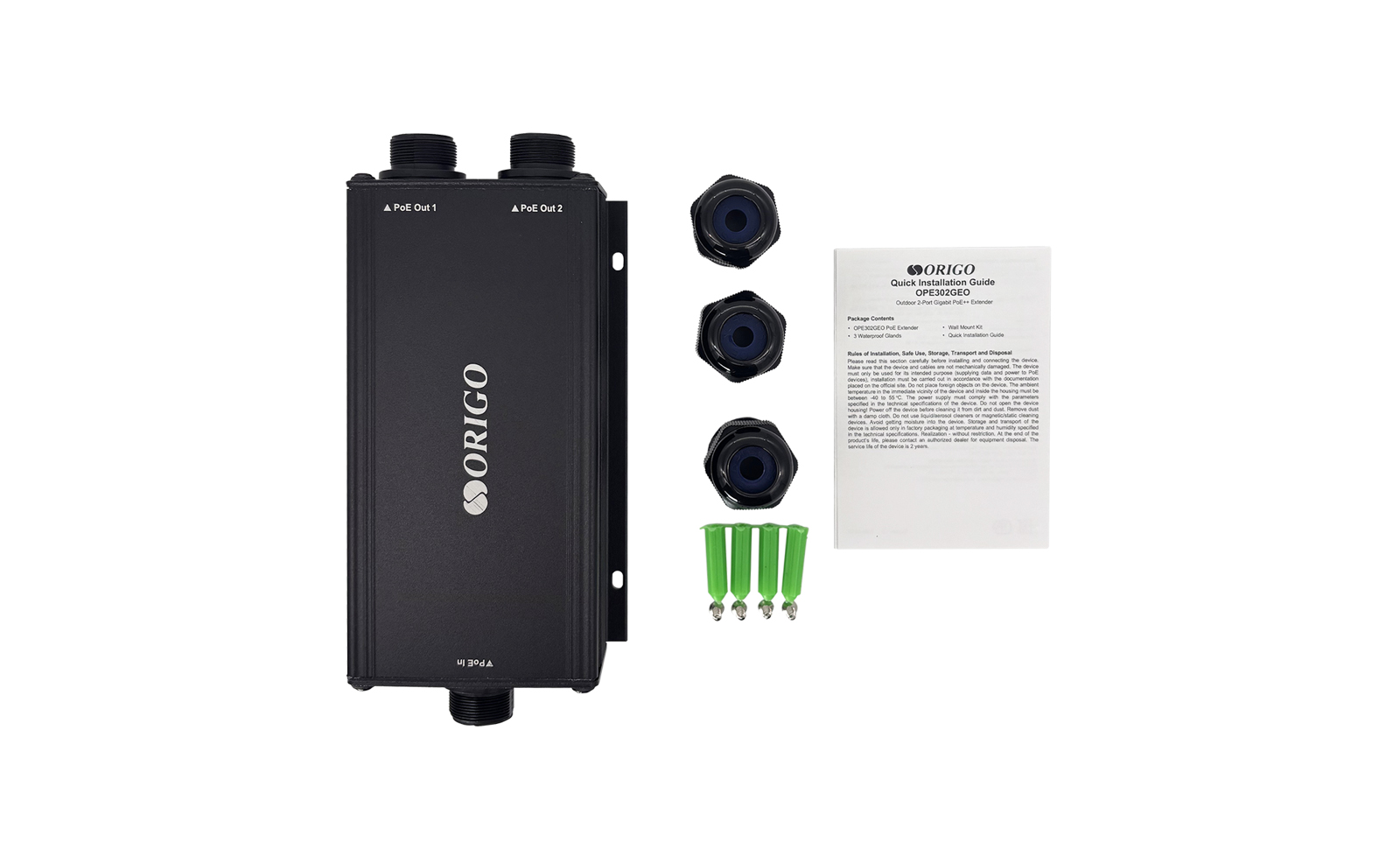

Package Contents
|
• OPE302GEO PoE extender
• Wall mounting kit
• Three waterproof glands
• Quick Installation Guide
|
