OPE301GEO
Outdoor 802.3af/at PoE+ Extender
1x1000Base-T PoE In, 1x1000Base-T PoE Out, −40..+55 °C
- Extends PoE transmission distance up to 200 m (with one extender) / up to 400 m (with three extenders)1
- IP67/IK10 enclosure; −40 to +55 °C
- 1×10/100/1000Base T PoE Input and 1×10/100/1000Base T PoE Output
- Compliant with IEEE 802.3af (PoE), 802.3at (PoE+) standards
- Input power: 30/15W
- Output power: max 22.2W2
- Automatic PoE device detection
- ESD protection: up to 6 kV
- No configuration required
- Wall-mountable design
Description

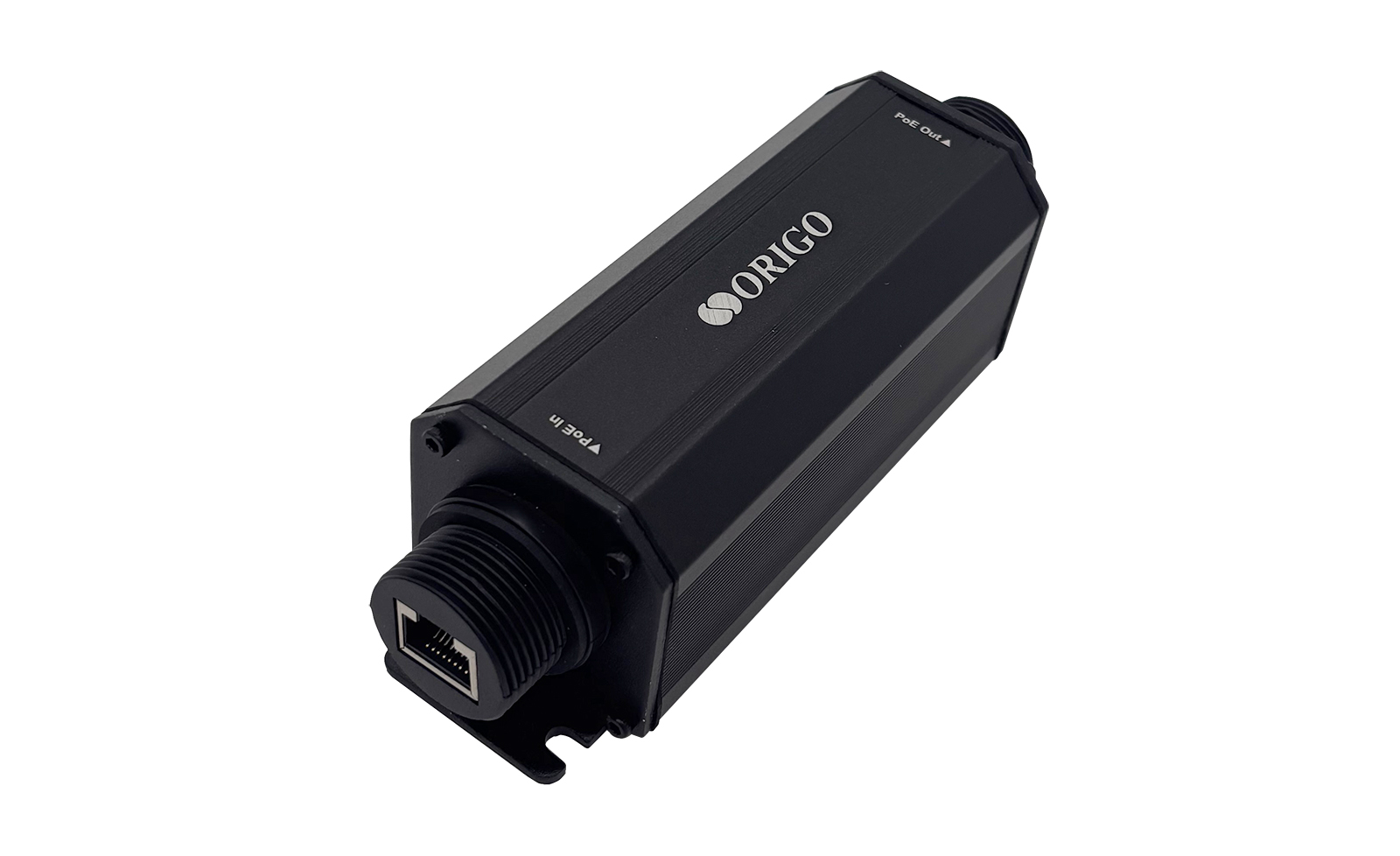

The OPE301GEO is an outdoor single-port Gigabit Power over Ethernet extender compliant with IEEE 802.3af (PoE) and 802.3at (PoE+) standards.
The ORIGO OPE301GEO PoE extender boosts the transmission distance for both data and power from a PoE switch to the connected Powered Device (PD). When cascaded, it supports ranges of up to 200 m with a single extender, 300 m with two extenders, and 400 m with three extenders1. This solution enables seamless connectivity for IP cameras, Wi-Fi access points, IP phones, and other PoE-compliant equipment in outdoor areas and remote locations where power outlets and external power sources are not available.
The OPE301GEO is designed for outdoor use. The rugged metal enclosure with IP67 rating provides protection against dust and moisture, the IK10 vandal-resistant design increases resistance to mechanical impact, and the operating temperature range from -40 to +55 °C allows the device to be used in harsh environments. ESD protection up to 6 kV on the ports enhances equipment reliability, and the compact housing with wall-mount capability simplifies installation.
1Actual PoE transmission distance of up to 400 m depends on the specific PoE-powered device (PD) in use and its power consumption.
2Actual output power depends on the PoE PSE switch or PoE injector, Ethernet cable length, cable specifications, and operating environmental conditions.
Specification
|
Hardware Specifications
|
|
|
Interface
|
• 1×10/100/1000Base T PoE Input
• 1×10/100/1000Base T PoE Output
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3af (PoE)
• IEEE 802.3at (PoE+)
• Half/full duplex support
• Auto negotiation of speed and duplex mode
• Auto MDI/MDIX detection on all ports
• PoE device auto detection
|
|
Power Transmission Contacts
|
• PoE IN: 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-)
• PoE OUT: 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-)
|
|
PoE Data and Power Transmission Distance
|
• Up to 200 m ‒ with 1 extender
• Up to 300 m ‒ with 2 extenders cascaded
• Up to 400 m ‒ with 3 extenders cascaded*
*Actual PoE transmission distance of up to 400 m depends on the specific PoE-powered device (PD) in use and its power consumption.
|
|
Input Voltage
|
• 44V to 57V DC
|
|
Output Voltage
|
• 42V to 55V DC
|
|
Max Input Power
|
• 30W
|
|
Max Output Power
|
• Up to 22.2W ‒ 150 m, 1 extender
• Up to 20.3W ‒ 200 m, 1 extender
• Up to 14W ‒ 300 m, 2 extenders
• Up to 8.9W ‒ 400 m, 3 extenders
|
|
Case
|
• Metal
• Protection rating: IP67, IK10
|
|
Mounting
|
• Desktop
• Wall
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 185 х 45 х 45 mm
|
|
Weight
|
• 0.3 kg
|
|
Operating Conditions
|
|
|
Power
|
• From a PoE source (up to 30W)
|
|
Max Power Consumption
|
• 1.7W
|
|
Standby Power Consumption
|
• ≤ 1W
|
|
ESD Protection
|
• Up to 6 kV
|
|
Temperature
|
• Operating: -40 to 55 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: up to 90% (non-condensing)
• Storage: up to 95% (non-condensing)
|
|
Delivery
|
|
|
Package Contents
|
• OPE301GEO PoE extender
• Wall mounting kit
• Two waterproof glands
• Quick Installation Guide
|
