OPE302GE
802.3af/at/bt PoE++ Extender
1x1000Base-T PoE In, 2x1000Base-T PoE Out
- Extends PoE transmission distance up to 200 m
- 1×10/100/1000Base T PoE Input and 2×10/100/1000Base T PoE Output
- Compliant with IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) standards
- Input power: 90/60/30/15W
- Output power: max 63W for two ports1
- Automatic PoE device detection
- Two DIP switches with PoE OFF/ON control for connecting non PoE devices
- Operating temperature: -40 to 65 °C
- ESD protection: up to 6 kV
- Wall-mountable design
Description

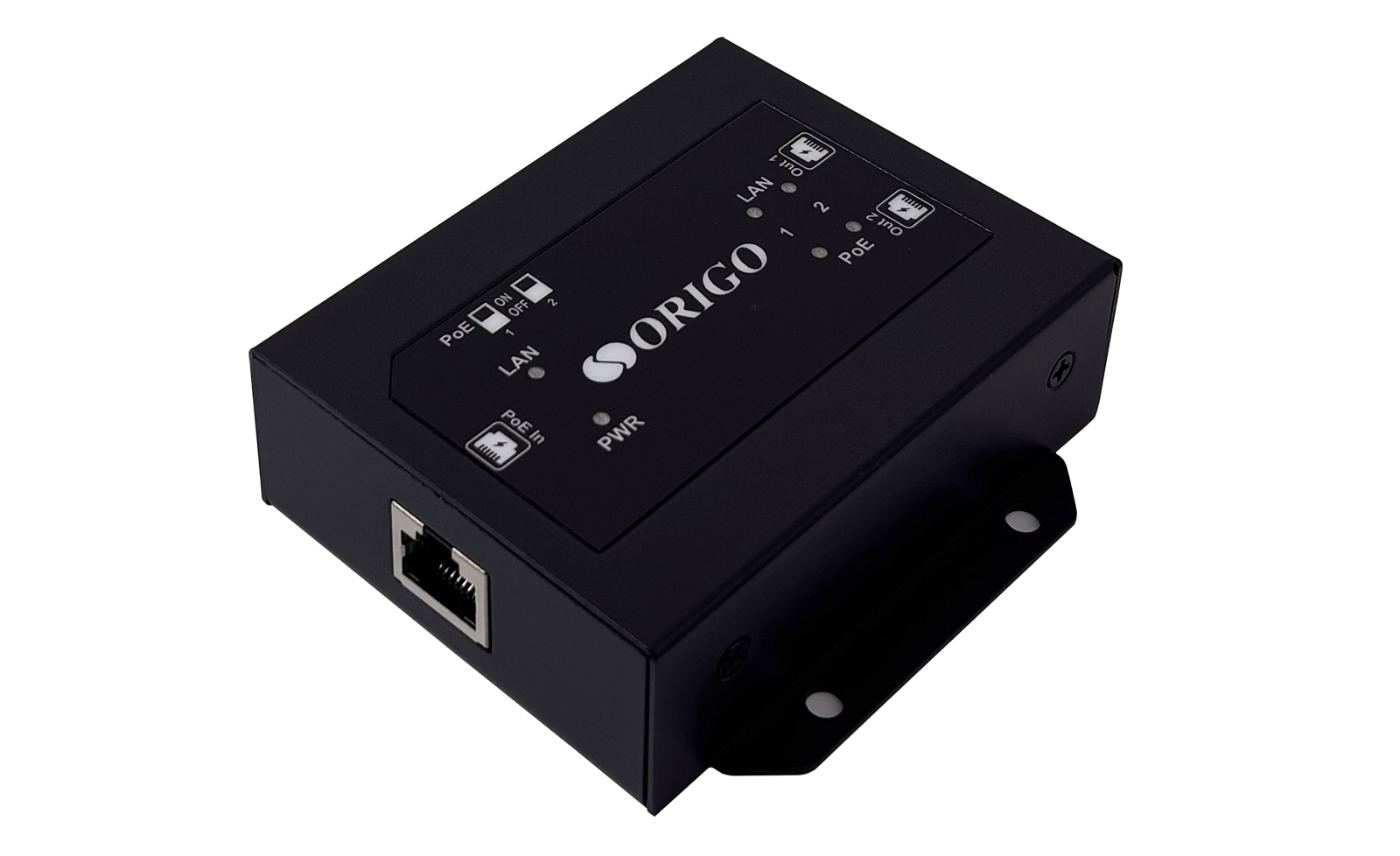

The OPE302GE is a 2-port Gigabit Power over Ethernet extender compliant with IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) standards.
The ORIGO OPE302GE PoE extender boosts the data and power transmission distance from a PoE switch or PoE injector to connected devices up to 200 m. Two output ports allow two PoE devices to be connected simultaneously at a remote site without intermediate power points or additional switches.
Support for all contemporary PoE standards (802.3af/at/bt) and an output power capacity of up to 63W² ensure seamless interoperability with virtually any PoE-compliant device ‒ from standard office IP phones to high power PTZ cameras with built in heaters. PoE devices are detected automatically. Two independent PoE OFF/ON DIP switches allow an extender to be used for connecting non-PoE devices by simply disabling power on the required port.
The OPE302GE is designed to operate across a wide temperature range of -40 to 65°C, making it suitable for installation in unheated indoor environments. All ports feature 6 kV electrostatic discharge (ESD) protection, ensuring robust immunity to induced voltage surges. Its rugged metal housing provides enhanced resistance to physical damage, while the integrated wall-mounting brackets allow for flexible and convenient placement in virtually any location.
1Actual output power depends on the PoE PSE switch or PoE injector, Ethernet cable length, cable specifications, and operating environmental conditions.
Specification
|
Hardware Specifications
|
|
|
Interface
|
• 1×10/100/1000Base‑T PoE Input
• 2×10/100/1000Base‑T PoE Output
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3af (PoE)
• IEEE 802.3at (PoE+)
• IEEE 802.3bt (PoE++)
• Half/full duplex support
• Auto negotiation of speed and duplex mode
• Auto MDI/MDIX detection on all ports
• PoE device auto‑detection
|
|
DIP Switch
|
• 2 x PoE OFF/ON 1–2
|
|
LEDs
|
• PWR
- Solid green: Power on state
- Off: Power off
• LAN
- Solid green: Connection/link-up
- Blinking green: Data pass
- Off: No connection
• LAN 1-2
- Solid green: Connection is established
- Blinking green: Data pass
- Off: No connection
• PoE 1-2
- Solid green: PoE device is powered
- Off: PoE device is not powered or is not connected
|
|
Power Transmission Contacts
|
• PoE IN: 1-8
• PoE OUT: 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)
|
|
PoE Data and Power Transmission Distance
|
• Up to 200 m ‒ with 1 extender
|
|
Input Voltage
|
• 44V to 57V DC
|
|
Output Voltage
|
• 42V to 55V DC
|
|
Max Input Power
|
• 90W
|
|
Max Output Power
(for 2 ports) |
• Up to 63.0W ‒ 150 m
• Up to 58.2W ‒ 200 m
|
|
Case
|
• Metal
|
|
Mounting
|
• Desktop
• Wall
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 90 х 87 х 28.6 mm
|
|
Weight
|
• 0.21 kg
|
|
Package Size
|
• 11 x 9.7 x 3.7 cm
|
|
Gross Weight
|
• 0.22 kg
|
|
Operating Conditions
|
|
|
Power
|
• From a PoE source (up to 90W)
|
|
Max Power Consumption
|
• 1.8W
|
|
Standby Power Consumption
|
• ≤ 1W
|
|
ESD Protection
|
• Up to 6 kV
|
|
Temperature
|
• Operating: -40 to 65 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: up to 90% (non-condensing)
• Storage: up to 95% (non-condensing)
|
|
Delivery
|
|
|
Package Contents
|
• OPE302GE PoE extender
• Wall mounting kit
• Quick Installation Guide
|
