OPE301GS
Gigabit PoE+ Splitter
802.3af/at, Output: 5/9/12V DC, 24W
- One Gigabit Ethernet PoE input port for data and power transmission
- One Gigabit Ethernet output port for data transmission
- Compliant with 802.3af PoE and 802.3at PoE+
- Wide range of input voltages 36 – 57V DC
- Converting high input voltage to lower output voltage
- Adjustable output voltage: 5V, 9V or 12V DC
- Maximum power output up to 24W
- Short circuit protection
- Overvoltage protection and thermal cut off
- Plug-and-Play installation
Description
OPE301GS is a Gigabit PoE Splitter that is compliant with the 802.3af PoE and 802.3at PoE+ standards.
ORIGO's OPE301GS provides access to Gigabit Ethernet networks and power delivery over a single Ethernet cable to non-PoE devices. It is recommended for connecting wireless access points, IP cameras, IP phones, and other devices with a power consumption of up to 24 watts.
Using the PoE splitter with a voltage output switch for 5V, 9V, and 12V DC allows to install non-PoE devices in locations where electrical outlets are not available.
The OPE301GS can be connected to a PoE switch or a PoE injector with a minimum power output of 24 watts (such as the OPE301GI) using an Ethernet cable. The non-PoE device connects to the splitter via two cables included in the package: a power cord with male to male connectors (outer / inner diameter of 5.5 / 2.1 mm) and an Ethernet cable for data transmission.
Specification
|
Hardware
|
|
|

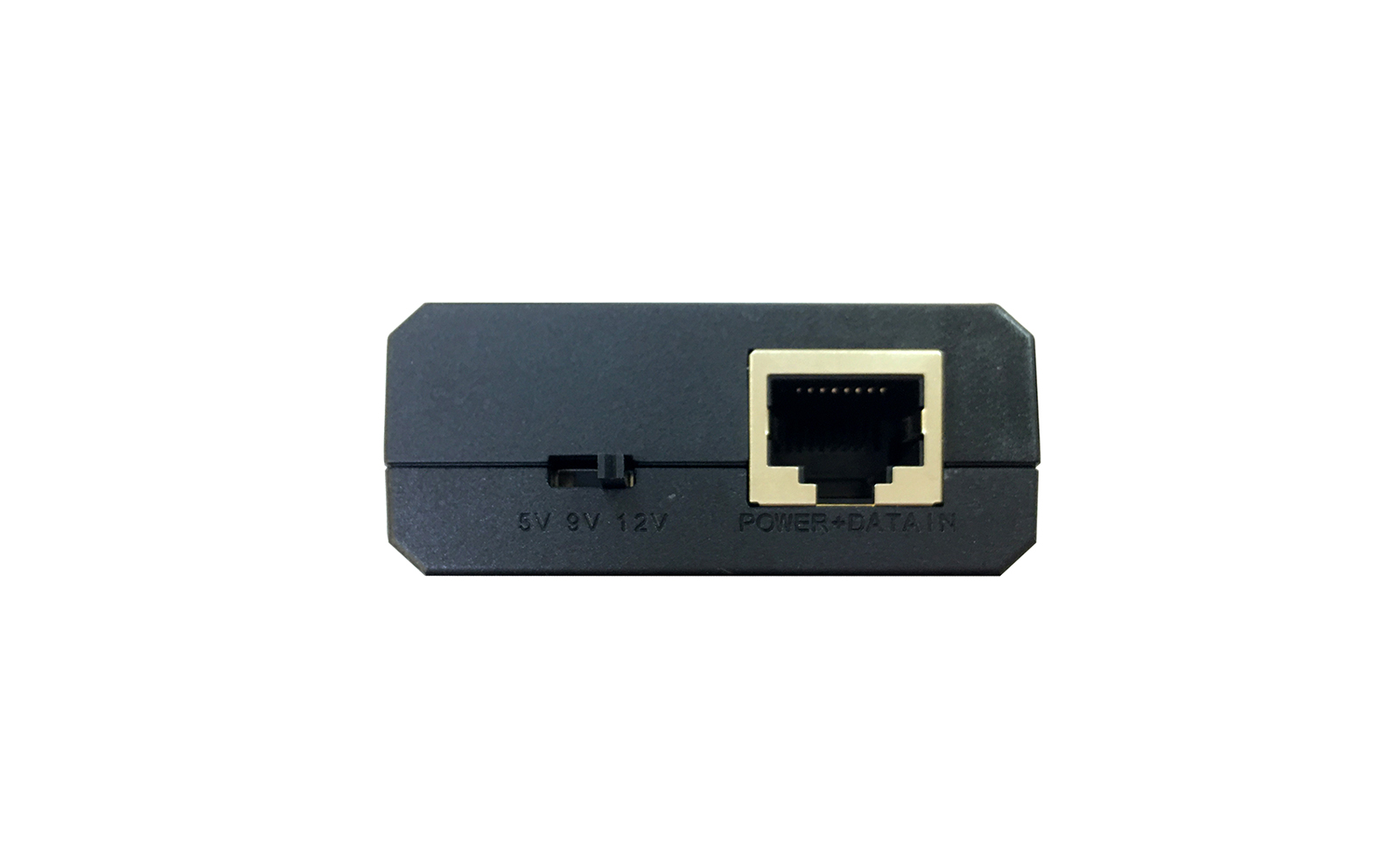

POWER+DATA IN
|
• 10/100/1000Base-T port
• Supports half / full-duplex operation
• Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3af
|
|

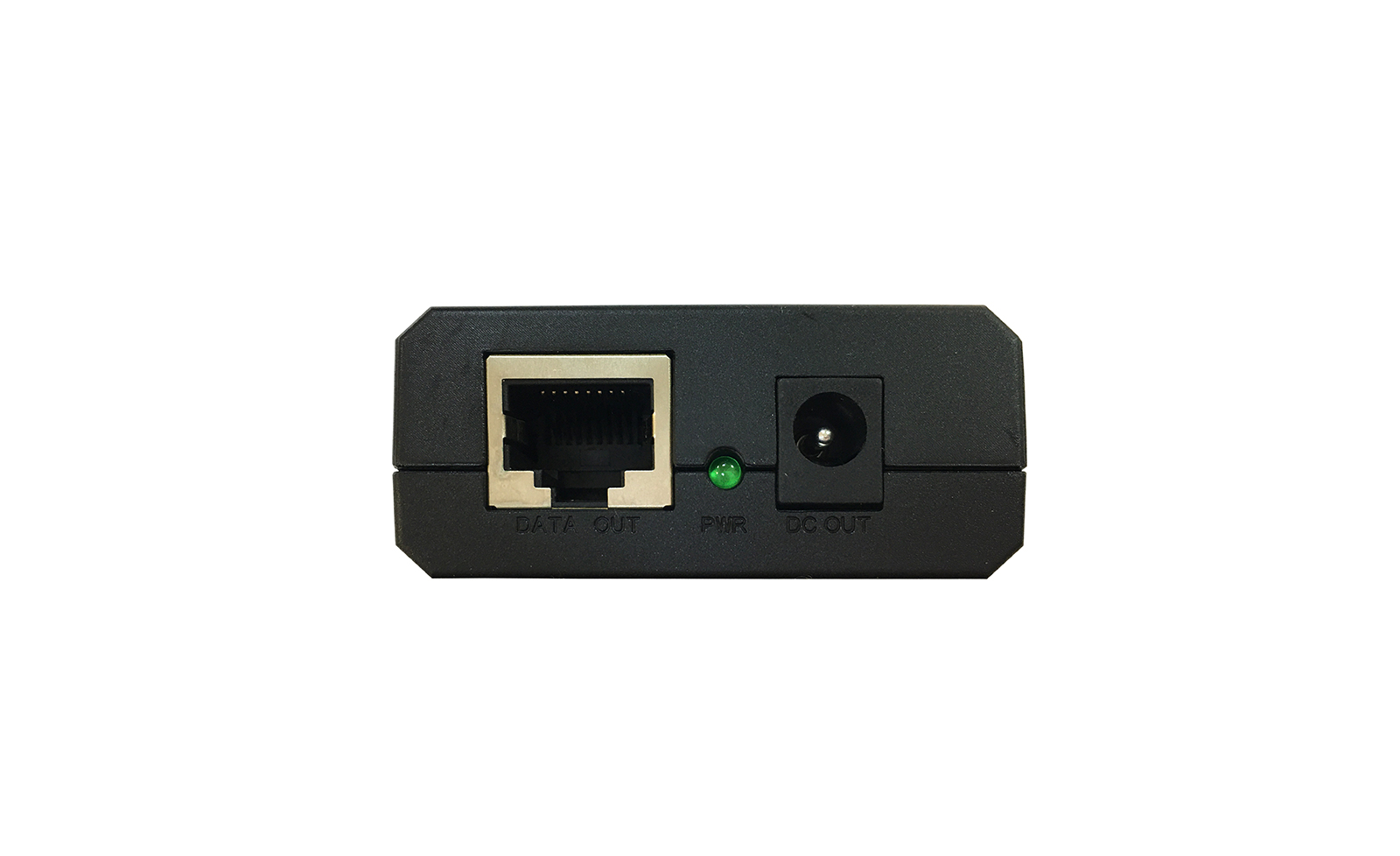

DATA OUT
|
• 10/100/1000Base-T port
• Supports half / full-duplex operation
• Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
|
|
Power Connector
|
• DС OUT: 5,5x2,1 mm (F)
|
|
DIP Switch
|
• 5V
• 9V
• 12V
|
|
LEDs
|
• Power (PoE)
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 80 х 54 х 24 mm
|
|
Weight
|
• 80 g
|
|
Operating conditions
|
|
|
Input
|
• 36 - 57V DC / 0,6A max.
|
|
Output
|
• 5/9/12V DC / 2А
|
|
Maximum Power Output
|
• 24W
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 70 °C
|
|
Humidity
|
• Operating: up to 90% non-condensing
• Storage: up to 95% non-condensing
|
|

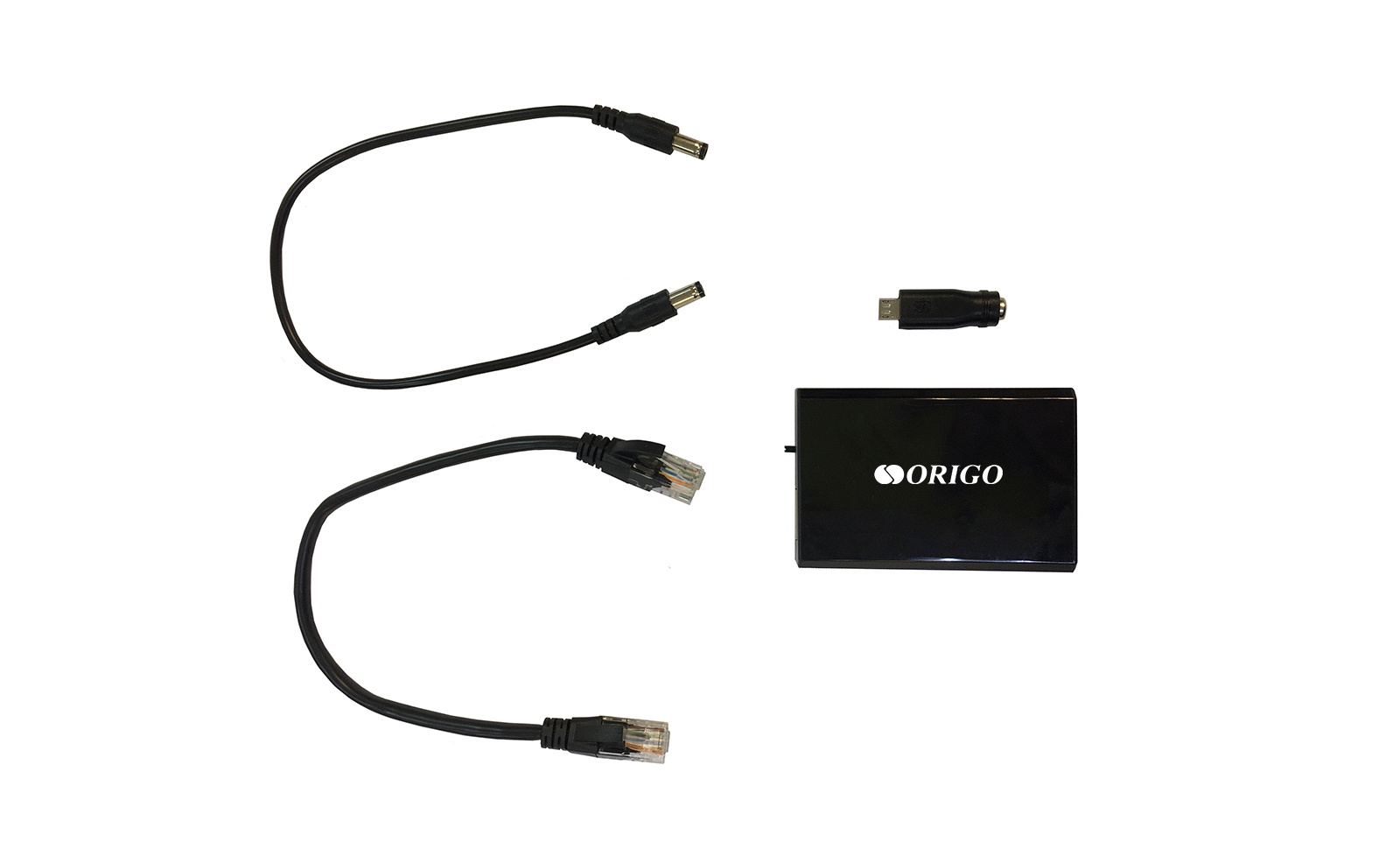

Package Contents
|
|
|
Package Contents
|
• OPE301GS PoE Splitter
• Power Cord (5.5x2.1 mm male to male)
• DC 5.5x2.1 mm (F) to Micro-USB (M) Adapter
• Ethernet Cable
• Quick Installation Guide
|
