OKVM450
16-Port KVM Switch with VGA and USB Ports
- Manage up to 16 PCs with USB and VGA ports via one KVM console
- Select PC via the buttons on the case or the IR remote controller
- 1920x1440 maximum resolution
- USB 2.0 port for sharing USB disks
- Supports different operating systems – Windows, Mac and Linux
- Hot-plugging
- Autoscan mode
- 4 KVM cables included
- 19” rack mountable, mounting brackets included
Description

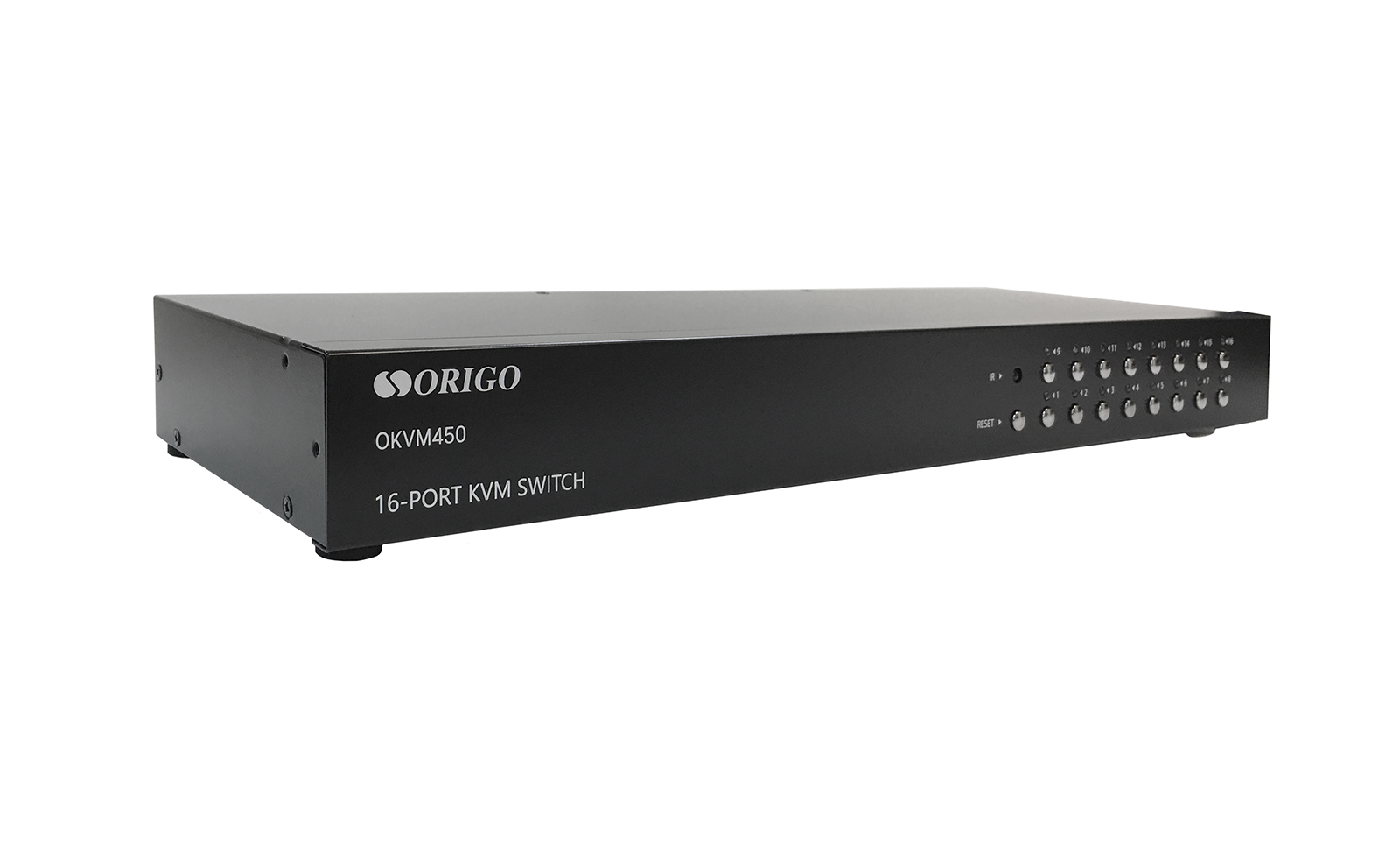

OKVM450 is a 16-port KVM switch with VGA and USB ports (19” rack mountable).

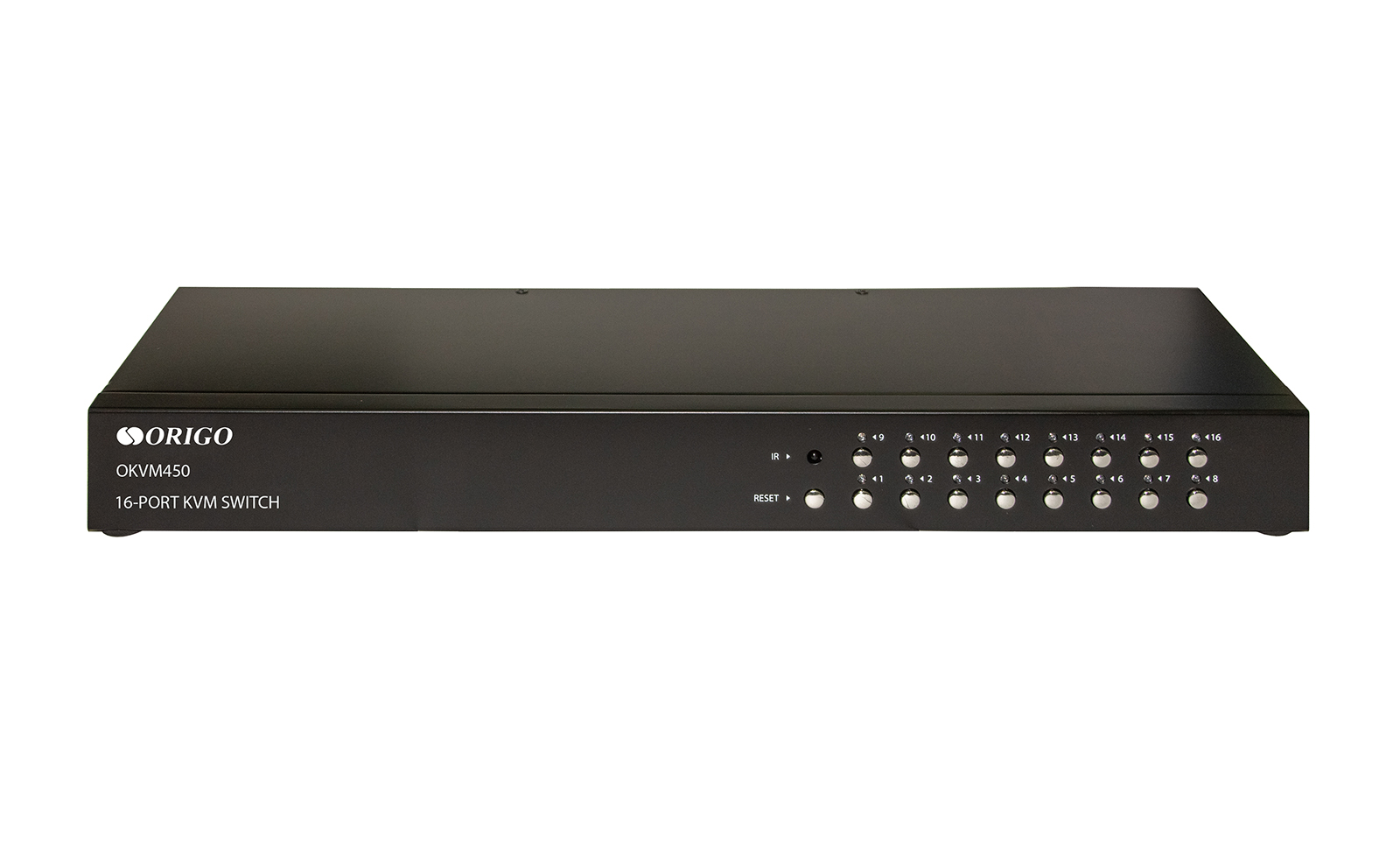

The ORIGO OKVM450 KVM switch allows you to manage up to 16 PCs with one monitor, keyboard and mouse. You can switch between PCs using the buttons located on the front panel or the IR remote controller.
The OKVM450 KVM switch doesn't require specialized software installation and can work with computers with different operating systems installed. This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The package contents include four 1.8 m KVM cables. Autoscan mode provides automatic switching to the next PC after the scan interval expires.
The KVM switch is also equipped with additional USB port for sharing external hard drives and USB storages.
The OKVM450 KVM switch can function without external power adapter by powering from USB port of your PC. The included 5V DC/2A power adapter may be required when connecting external hard drives and other USB devices with increased power consumption.
Specification
|
Hardware
|
|
|

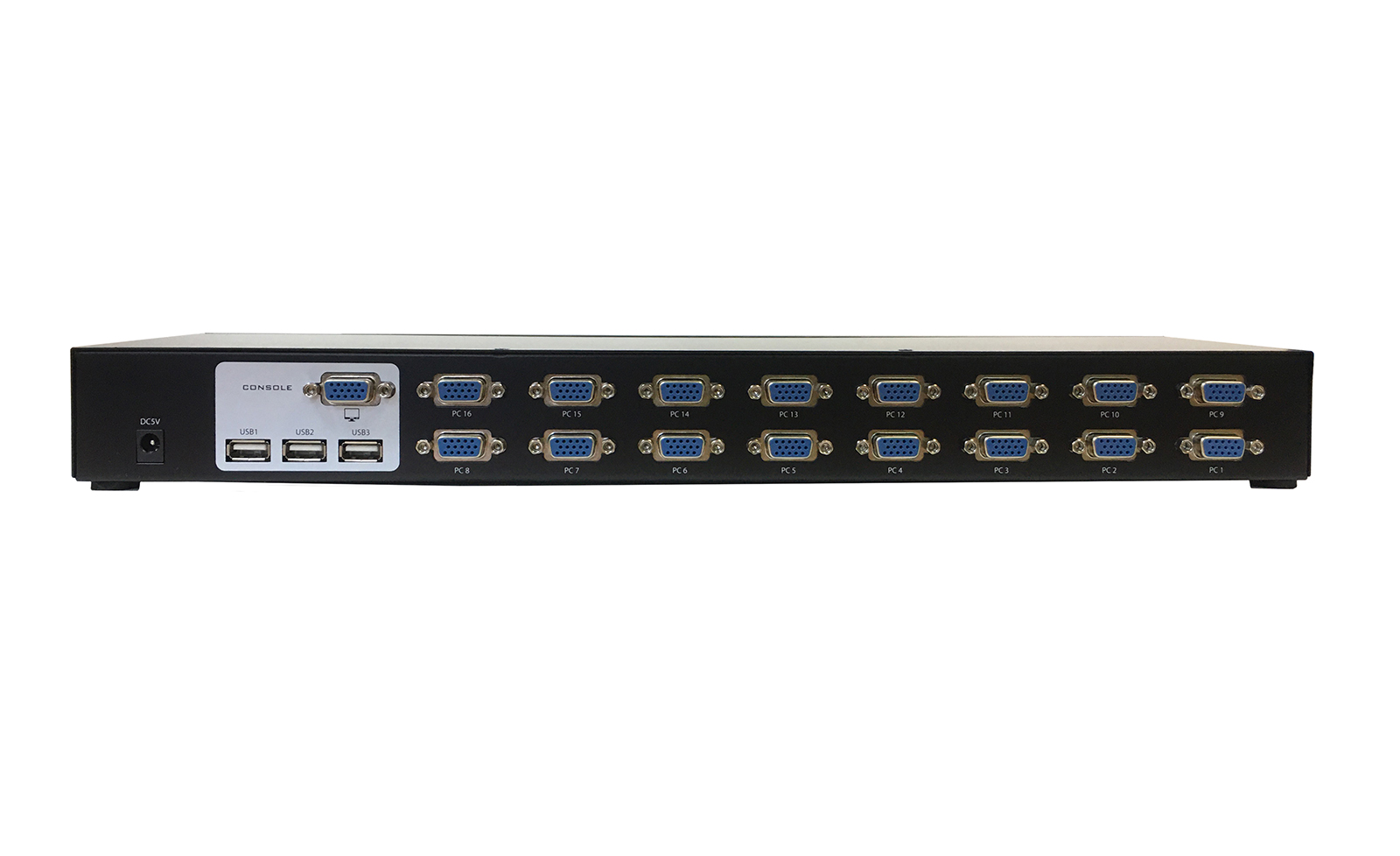

Ports for Connecting KVM Cables
|
• 16 VGA ports
|
|
KVM Cable Connectors for Connecting PC
|
• VGA (HDB-15)
• USB Type-A
|
|
Ports for Connecting Management Console
|
• Monitor (local): VGA
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A
|
|
Ports for Connecting External Devices
|
• USB Type-A
|
|
LEDs
|
• 16 port LEDs for connected PCs
|
|
Buttons
|
• 16 port switching buttons
• Reset button
|
|
Power
|
• Connector for connecting the DC power adapter
|
|
Casing
|
• Metal
|
|
Mounting
|
• Desktop
• 19” rack
|
|
General Specifications
|
|
|
Connected PCs
|
• 16
|
|
Autoscan
|
• Yes
|
|
Switching between PCs
|
• Switching buttons on the case
• IR remote controller
|
|
Sound Notification of Switching
|
• Yes
|
|
Resolution
|
• 1920x1440
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 429 x 136 x 45 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• From USB on PC
• 5V DC/2A power adapter (included) when using external devices
|
|
Temperature
|
• Operating: -50 to 80 °C
• Storage: -20 to 60 °C
|
|
Humidity
|
• 0% to 80% (non-condensing)
|
|

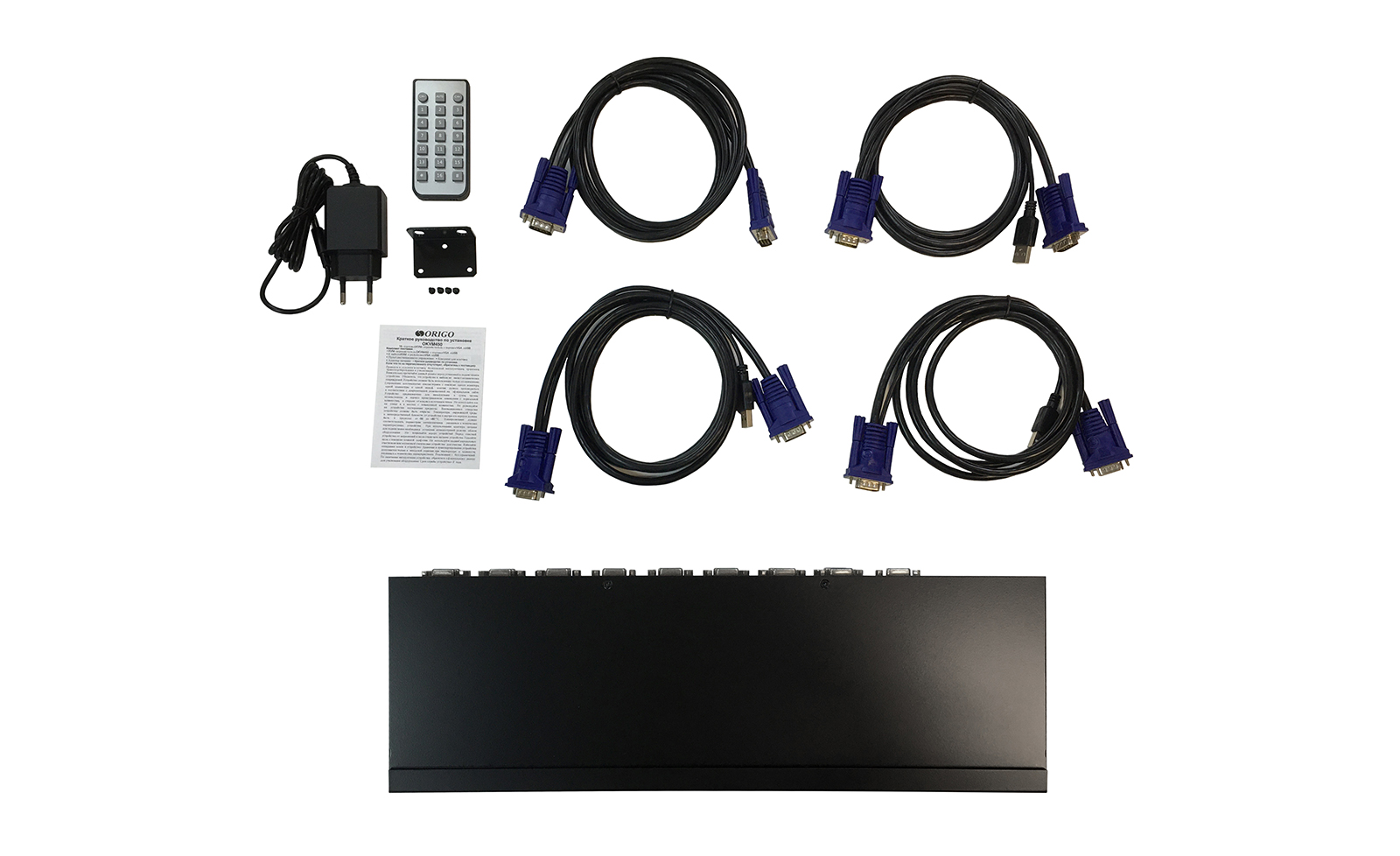

Package Contents
|
|
|
Package Contents
|
• OKVM450 KVM Switch
• 4 x KVM Cables with VGA and USB Connectors, 1.8 m
• 19-inch Rack Mount Kit
• IR remote controller
• Power Adapter
• Quick Installation Guide
|
|
Optional Accessories
|
|
|
KVM Cables
|
• OKVMCU
• OKVMCU3
• OKVMCU5
|
