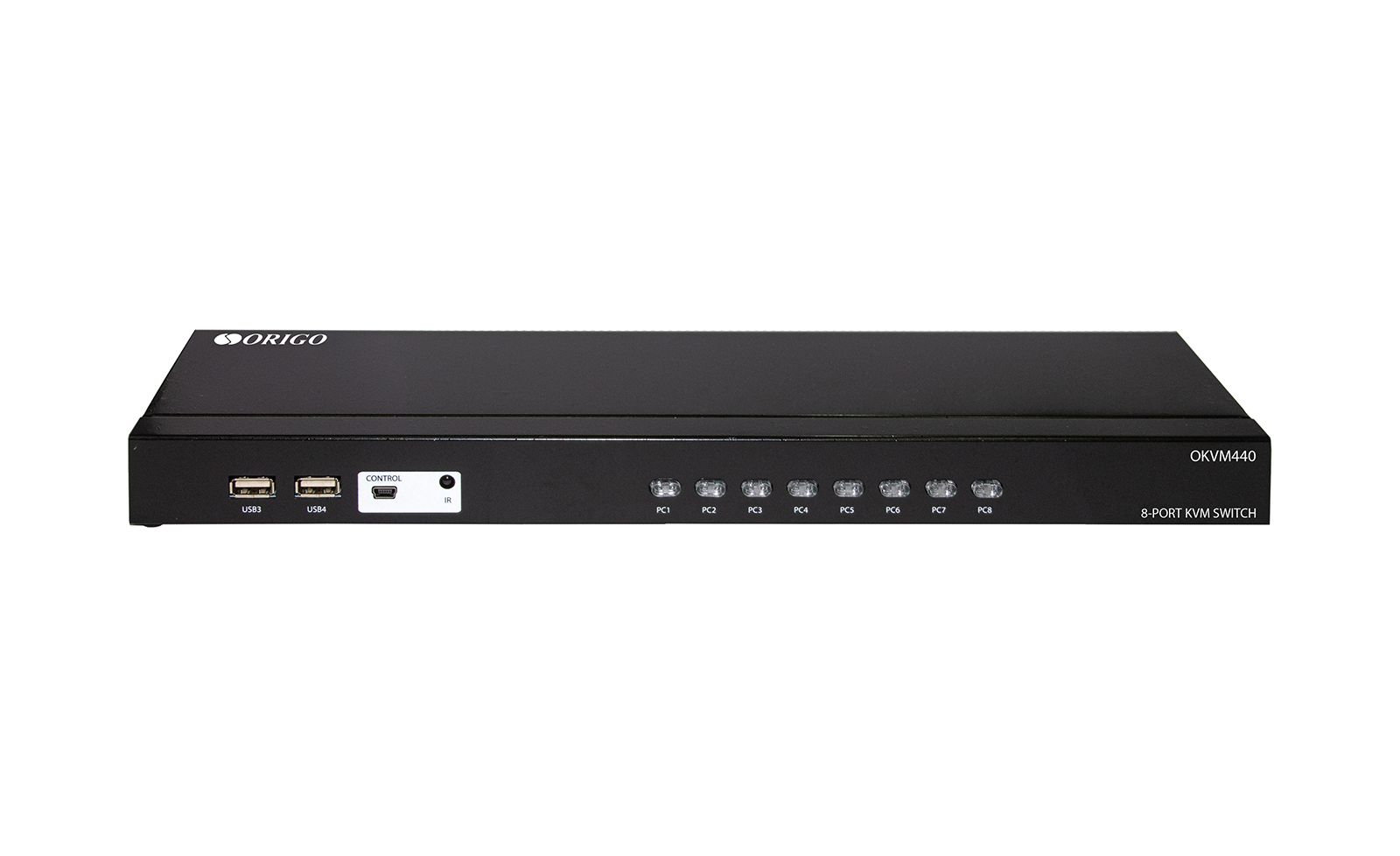

OKVM440
8-Port KVM Switch with VGA and USB Ports
- Manage up to 8 PCs with USB and VGA ports via one KVM console
- Select PC via the buttons on the case, the IR remote controller and the desktop controller
- 1920x1440 maximum resolution
- 2 USB 2.0 ports for sharing USB disks
- Supports different operating systems – Windows, Mac and Linux
- Hot-plugging
- Autoscan mode
- 4 KVM cables included
- Powering from USB bus
- 19” rack mountable, mounting brackets included
Description
OKVM440 is a 8-port KVM switch with VGA and USB ports (19” rack mountable).
The ORIGO OKVM440 KVM switch allows you to manage up to 8 PCs with one monitor, keyboard and mouse. You can switch between PCs using the buttons located on the front panel, the IR remote controller and the desktop controller.
The OKVM440 KVM switch doesn't require specialized software installation and can work with computers with different operating systems installed. This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The package contents include four 1.8 m KVM cables. Autoscan mode provides automatic switching to the next PC after the scan interval expires.
The KVM switch is also equipped with two additional USB ports for sharing external hard drives and USB storages.
The OKVM440 KVM switch can function without external power adapter by powering from USB port of your PC. The 19-inch rack mount kit is included.
Specification
|
Hardware
|
|
|
Ports for Connecting KVM Cables
|
• 8 VGA ports
|
|
KVM Cable Connectors for Connecting PC
|
• VGA (HDB-15)
• USB Type-A
|
|
Ports for Connecting Management Console
|
• Monitor (local): VGA
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A
|
|
Ports for Connecting External Devices
|
• 2 USB Type-A ports
|
|
Ports for Connecting Desktop Controller
|
• Mini-USB
|
|
LEDs
|
• 8 port LEDs for connected PCs
|
|
Buttons
|
• 8 port switching buttons
|
|
Casing
|
• Metal
|
|
Mounting
|
• Desktop
• 19” rack
|
|
General Specifications
|
|
|
Connected PCs
|
• 8
|
|
Autoscan
|
• Yes
|
|
Switching between PCs
|
• Switching buttons on the case
• IR remote controller
• Desktop controller
|
|
Sound Notification of Switching
|
• Yes
|
|
Resolution
|
• 1920x1440
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 370 x 83 x 31 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• From USB on PC
|
|
Temperature
|
• Operating: -50 to 80 °C
• Storage: -20 to 60 °C
|
|
Humidity
|
• 0% to 80% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OKVM440 KVM Switch
• 4 x KVM Cables with VGA and USB Connectors, 1.8 m
• 19-inch Rack Mount Kit
• IR Remote Controller
• Desktop Controller
• Quick Installation Guide
|
|
Optional Accessories
|
|
|
KVM Cables
|
• OKVMCU
• OKVMCU3
• OKVMCU5
|
