OKVM410H
4-Port KVM Switch with HDMI and USB Ports
- Manage up to 4 PCs with USB and HDMI ports via one KVM console
- Select PC via the buttons on the case, hot keys, the desktop controller
- Supports 4K resolution up to 4096x2160 / 3840x2160 at 60 Hz
- 2 USB ports for sharing USB disks
- Supports different operating systems – Windows, Mac and Linux
- Hot-plugging
- Autoscan mode
- 2 KVM cables included
Description
OKVM410H is a desktop 4-port KVM switch with HDMI and USB ports.
The ORIGO OKVM410H KVM switch allows you to manage up to 4 PCs with one monitor, keyboard and mouse. The KVM switch is compatible with the HDMI 2.0 standard and supports 4K resolution (4096x2160/3840x2160 at 60 Hz). You can switch between PCs using the buttons located on the front panel, hot keys and the desktop controller.
The OKVM410H KVM switch doesn't require specialized software installation and can work with computers with different operating systems installed. This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The package contents include two 1.5 m KVM cables. Autoscan mode provides automatic switching to the next PC after the scan interval expires.
The KVM switch is also equipped with two additional USB ports for sharing external hard drives and USB storages.
The OKVM410H KVM switch can function without external power adapter by powering from USB port of your PC. The 5V DC/2A power adapter (not included) may be required when connecting external hard drives and other USB devices with increased power consumption.
Specification
|
Hardware
|
|
|

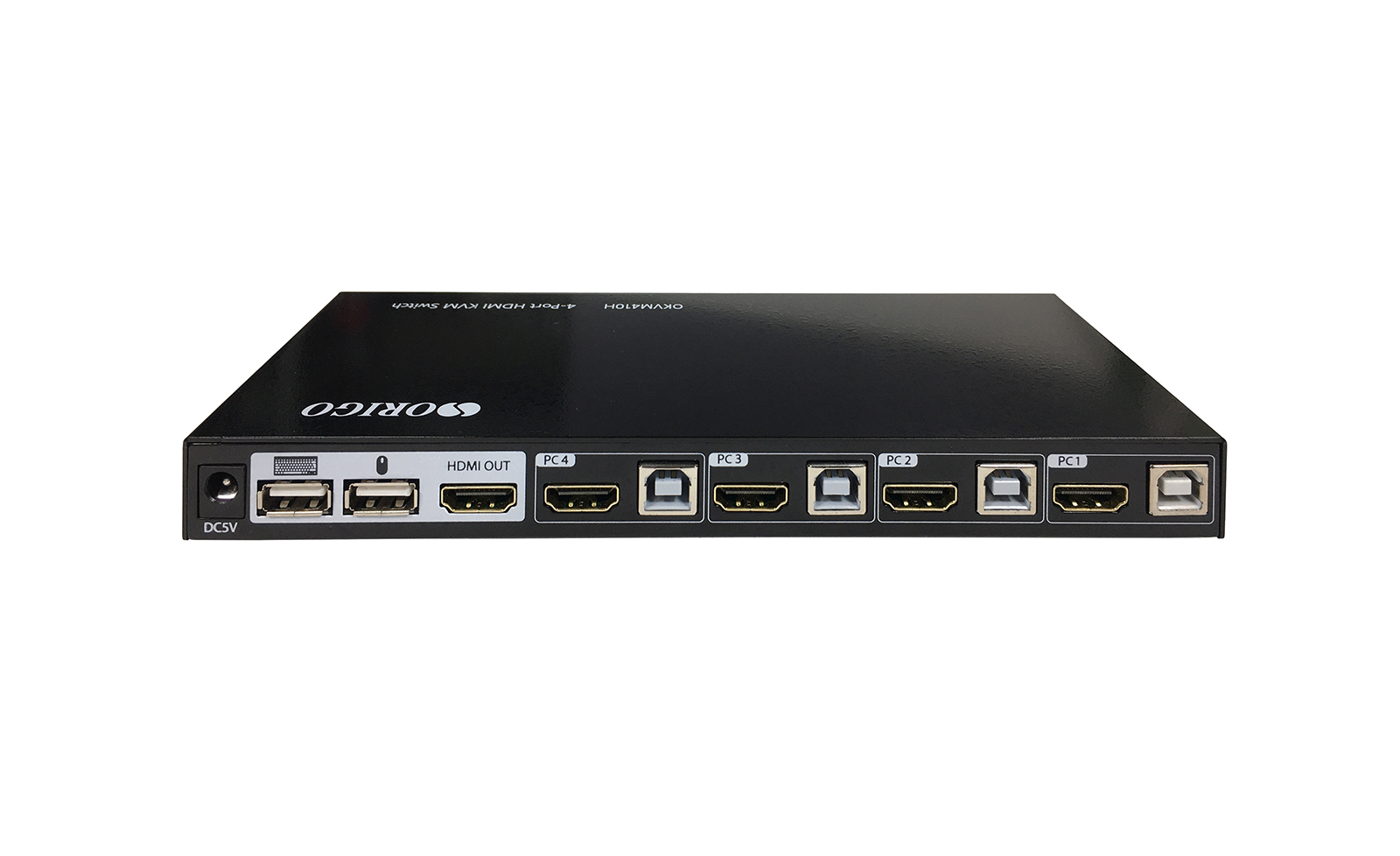

Ports for Connecting KVM Cables
|
• 4 HDMI ports
• 4 USB Type-B ports
|
|
KVM Cable Connectors for Connecting PC
|
• HDMI connector
• USB Type-A connector
|
|
Ports for Connecting Management Console
|
• Monitor (local): HDMI
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A
|
|

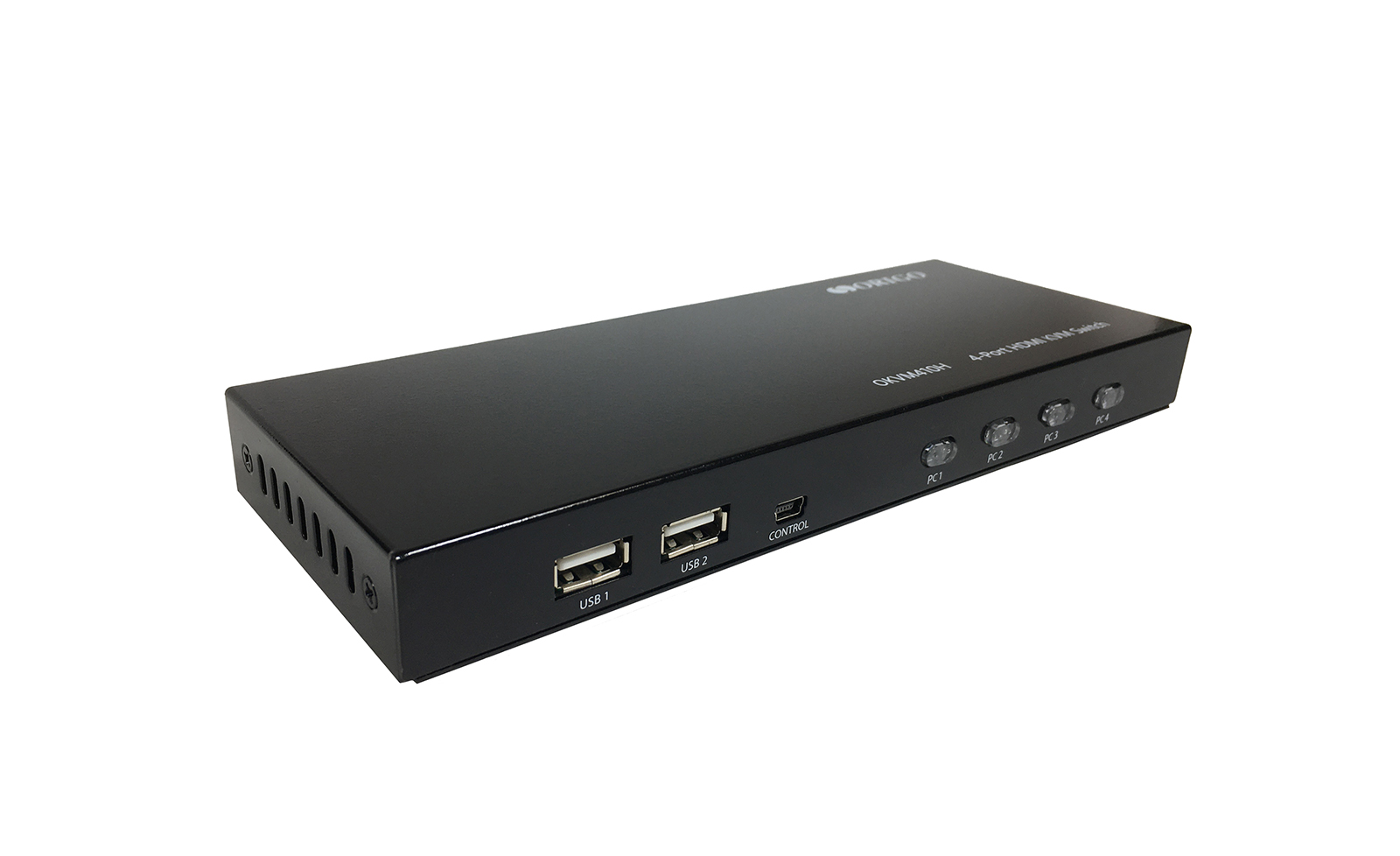

Ports for Connecting External Devices
|
• 2 USB Type-A ports
|
|
Ports for Connecting Desktop Controller
|
• Mini-USB Type-B port
|
|
LEDs
|
• 4 port LEDs for connected PCs
|
|
Buttons
|
• 4 port switching buttons
|
|
Power
|
• Connector for connecting the DC power adapter
|
|
Casing
|
• Metal
|
|
Mounting
|
• Desktop
|
|
General Specifications
|
|
|
Connected PCs
|
• 4
|
|
Autoscan
|
• Yes
|
|
Switching between PCs
|
• Switching buttons on the case
• Hot keys
• Desktop controller
|
|
Sound Notification of Switching
|
• Yes
|
|
HDMI Version
|
• HDMI 2.0
• HDCP 2.2 Pass-through
|
|
Resolution
|
• Up to 4096x2160 / 3840x2160 @ 60 Hz (4:2:0)
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 210 x 80 x 22 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• From USB on PC
• 5V DC/2A power adapter (not included) when using external devices
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -20 to 60 °C
|
|
Humidity
|
• 0% to 80% (non-condensing)
|
|
Package Contents
|
|
|

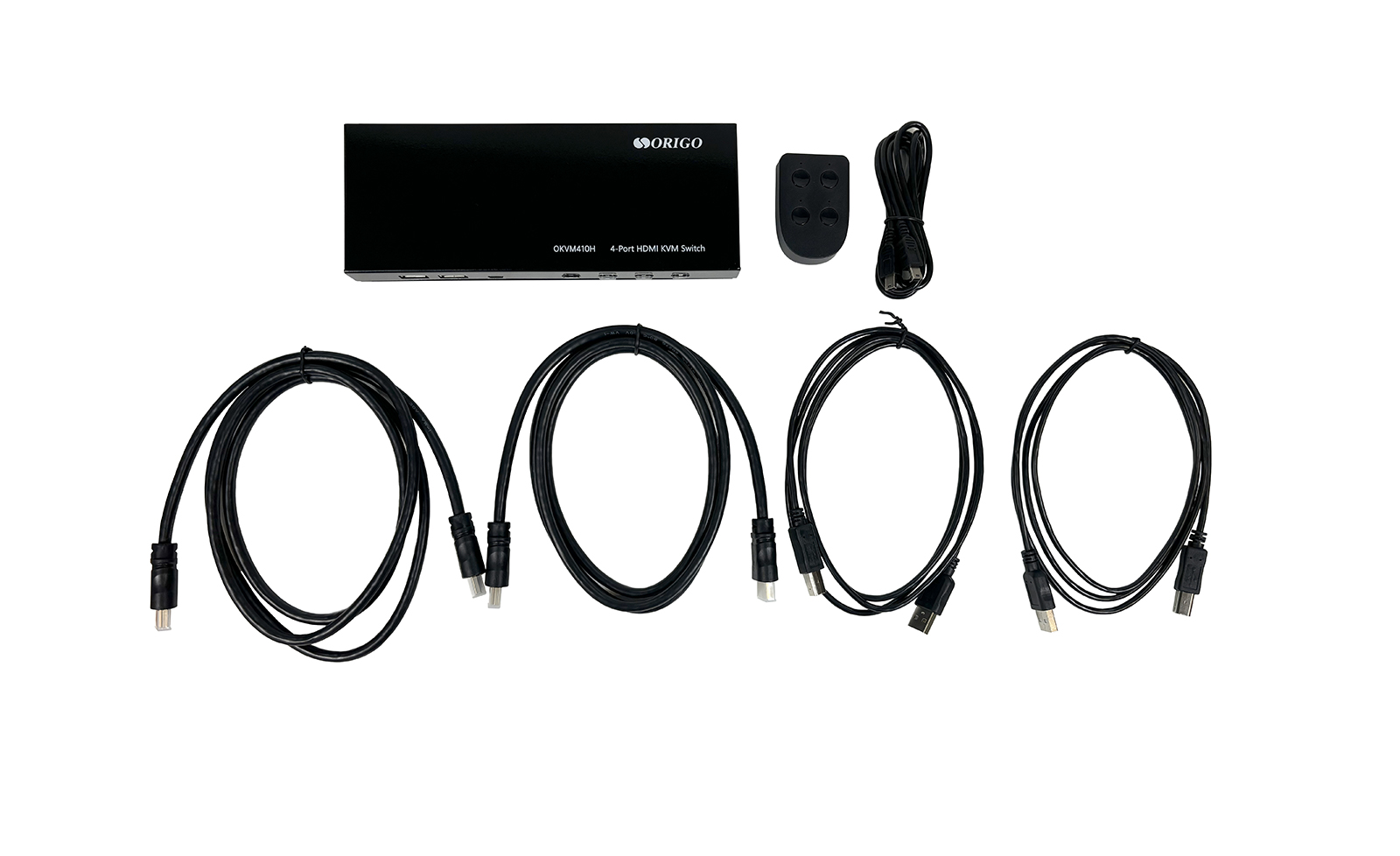

Package Contents
|
• OKVM410H KVM Switch
• 2 x KVM Cables with HDMI and USB Connectors, 1.5 m
• Desktop Controller
• Quick Installation Guide
|
