OKVM221
2-Port KVM Switch with VGA and USB Ports
- Manage up to 2 PCs with USB and VGA ports via one KVM console
- Select PC via the button on the case, hot keys, the desktop controller
- 2048 x 1536 maximum resolution
- Supports different operating systems – Windows, Mac and Linux
- Hot-plugging
- Autoscan mode
- Built-in KVM cables
- Powering from USB bus
Description

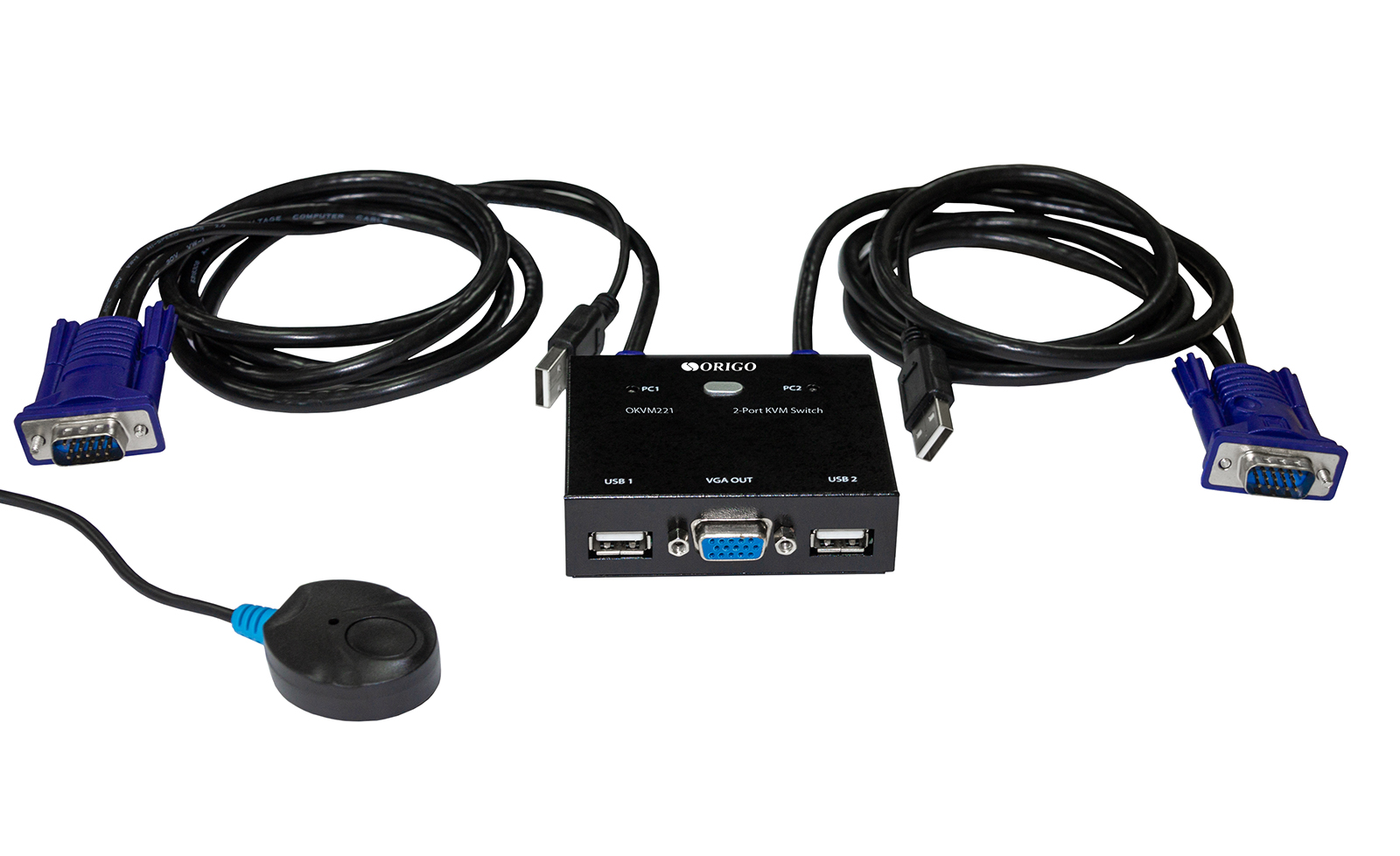

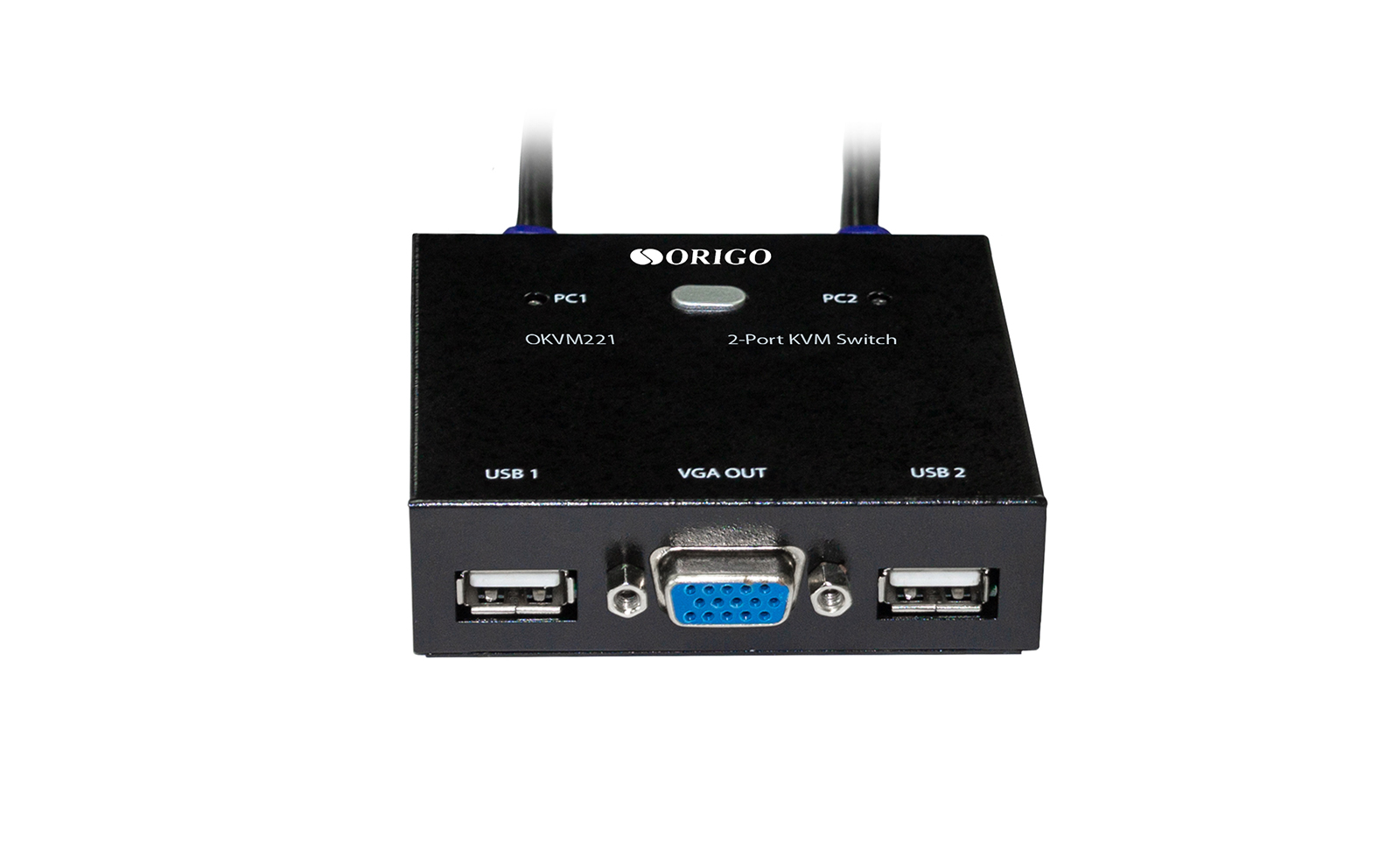

OKVM221 is a compact 2-port KVM switch with built-in KVM cables with VGA and USB connectors.
The ORIGO OKVM221 KVM switch allows you to manage up to 2 PCs with one monitor, keyboard and mouse. You can switch between PCs using the button located on the top panel, hot keys and the desktop controller.
The OKVM221 KVM switch doesn't require driver installation and can work with computers with different operating systems installed. This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. Autoscan mode provides automatic switching to the next PC after the scan interval expires.
A compact design with powering from USB bus allows you to place the KVM switch on your desktop.
Specification
|
Hardware
|
|
|
Built-in KVM Cable Connectors for Connecting PC
|
• VGA (HDB-15)
• USB Type-A
|
|
Ports for Connecting Management Console
|
• Monitor (local): VGA
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A
|
|
Port for Connecting Desktop Controller
|
• Jack 3.5-F mm port
|
|
LEDs
|
• 2 port LEDs for connected PCs
|
|
Buttons
|
• Port switching button
|
|
Casing
|
• Metal
|
|
Mounting
|
• Desktop
|
|
General Specifications
|
|
|
Connected PCs
|
• 2
|
|
Autoscan
|
• Yes
|
|
Switching between PCs
|
• Switching button on the case
• Hot keys
• Desktop controller with 1 m cable
|
|
Sound Notification of Switching
|
• Yes
|
|
Resolution
|
• 2048x1536
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 78 x 64 x 23 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• From USB on PC
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -20 to 60 °C
|
|
Humidity
|
• 0% to 80% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OKVM221 KVM Switch with Two Built-in 1.4 m KVM Cables with VGA and USB connectors
• Desktop Controller with 1 m Cable
• Quick Installation Guide
|
