OKVM4U
4-Port KVM Switch with VGA and USB Ports
- Manage up to 4 PCs with USB and VGA ports via one KVM console
- Select PC via the buttons on the case and hot keys
- 2048 x 1536 maximum resolution
- USB 2.0 port for sharing USB storage
- Supports different operating systems – Windows, Mac and Linux
- Hot-plugging
- Autoscan mode
- 2 KVM cables included
- Powering from USB bus
Description

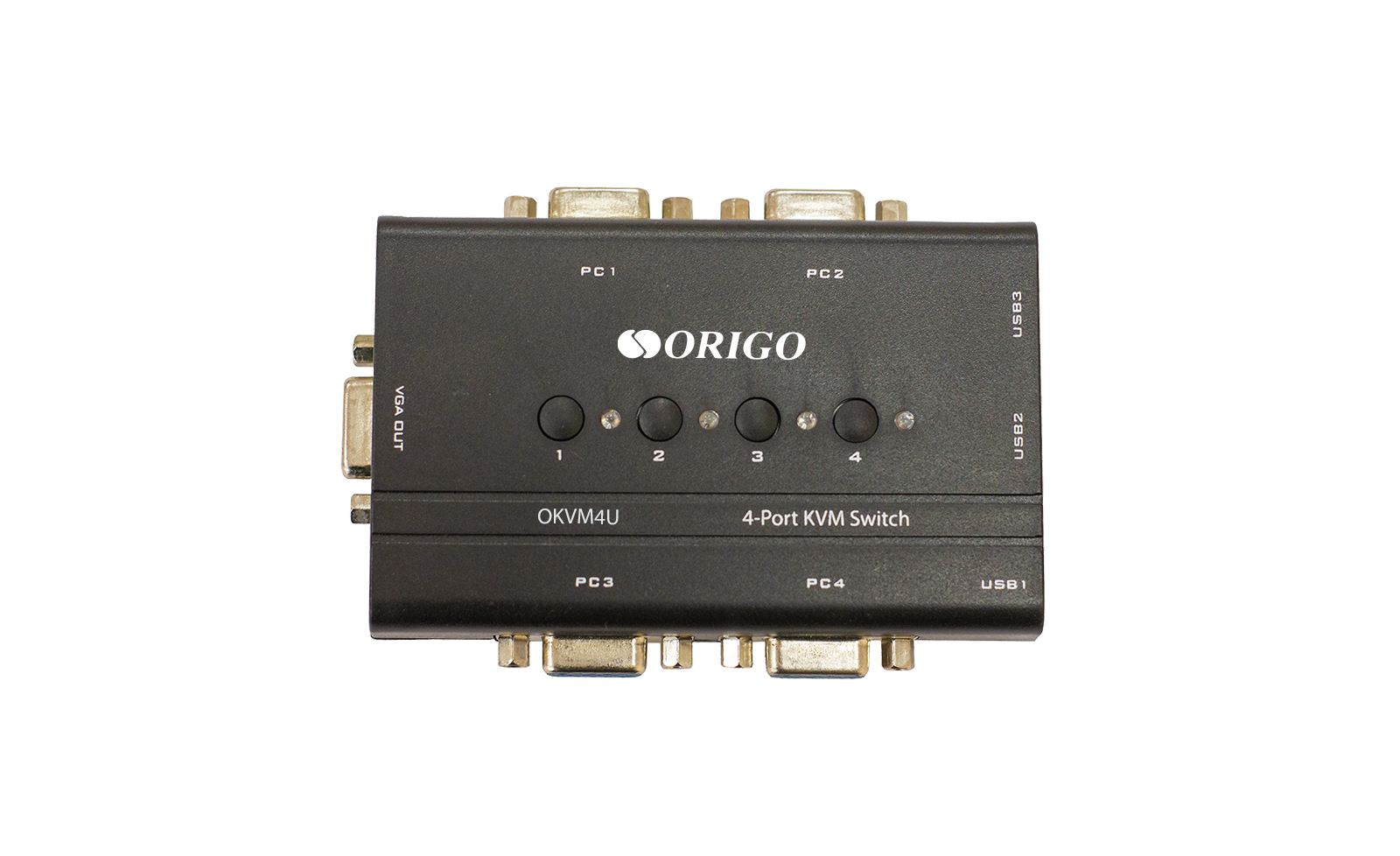

OKVM4U is a desktop 4-port KVM switch with VGA and USB ports.
The ORIGO OKVM4U KVM switch allows you to manage up to 4 PCs with one monitor, keyboard and mouse. You can switch between PCs using the buttons located on the front panel or hot keys.
The OKVM4U KVM switch doesn't require specialized software installation and can work with computers with different operating systems installed. This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The package contents include two 1.8 m KVM cables with VGA and USB connectors. Autoscan mode provides automatic switching to the next PC after the scan interval expires.
The KVM switch is also equipped with additional USB port for sharing USB storage.
A compact design with powering from USB bus allows you to place the KVM switch on your desktop.
Specification
|
Hardware
|
|
|
Ports for Connecting KVM Cables
|

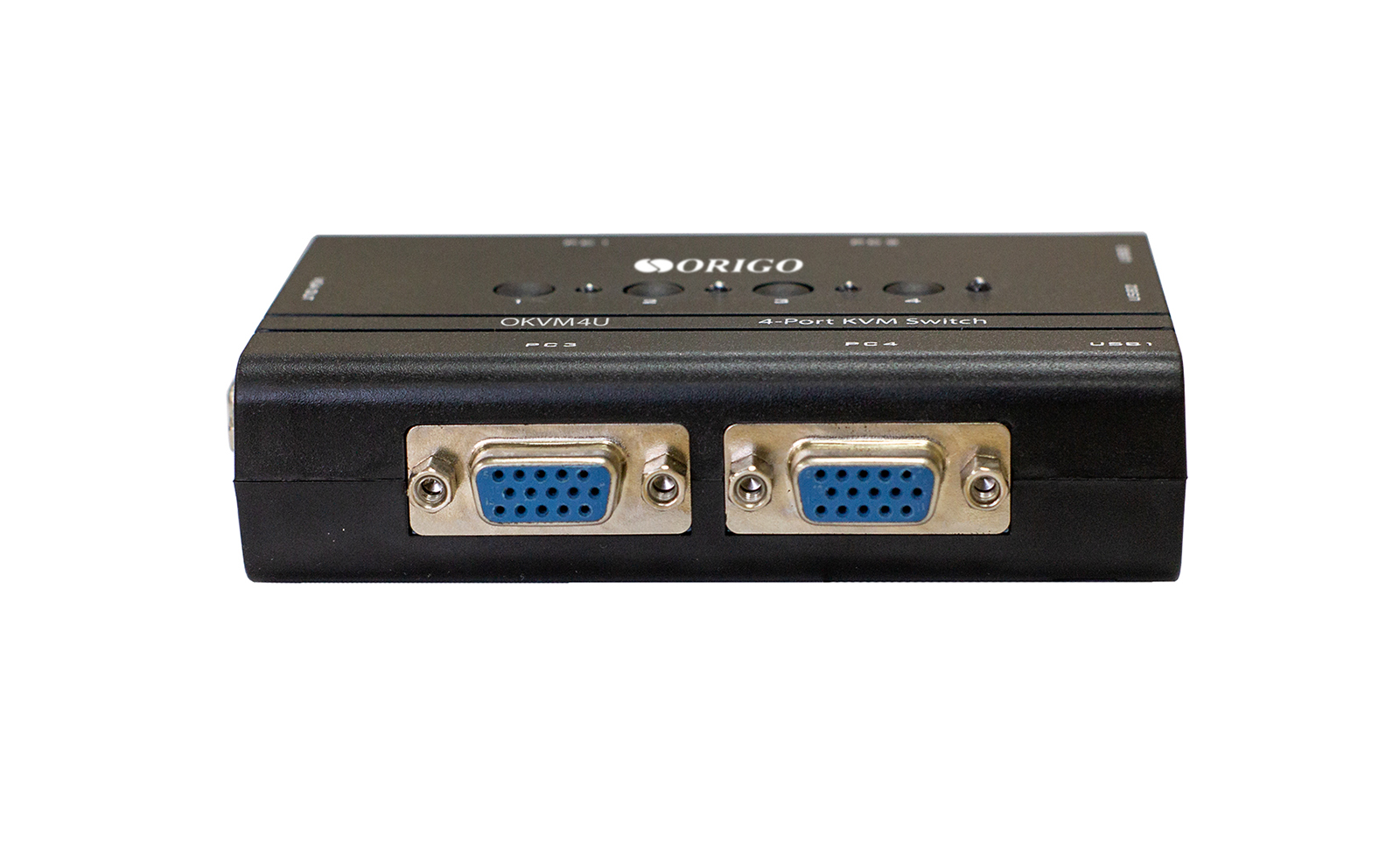

• 4 VGA ports
|
|
KVM Cable Connectors for Connecting PC
|
• VGA (HDB-15)
• USB Type-A
|
|
Ports for Connecting Management Console
|

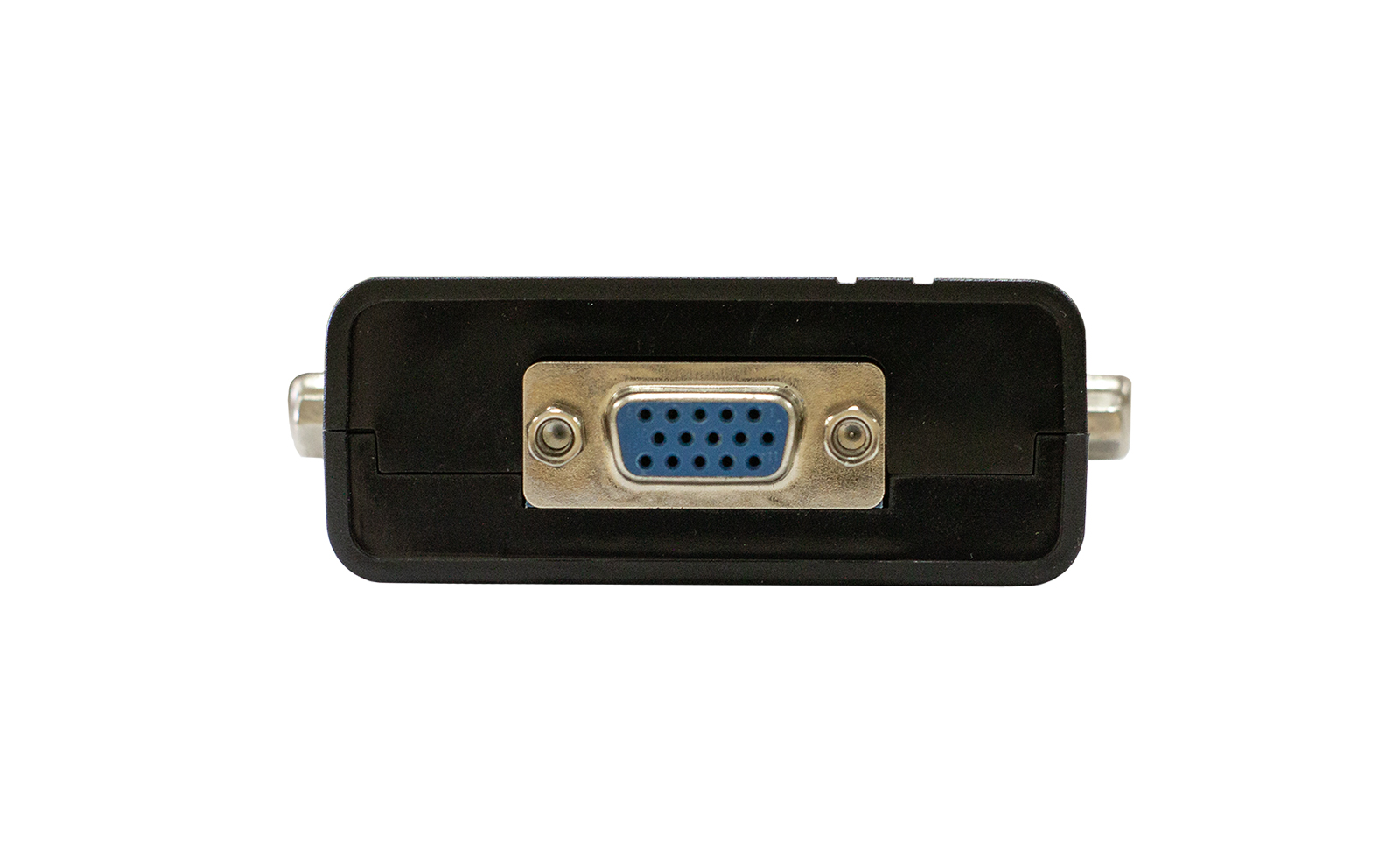

• Monitor (local): VGA
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A
|
|
Ports for Connecting External Devices
|

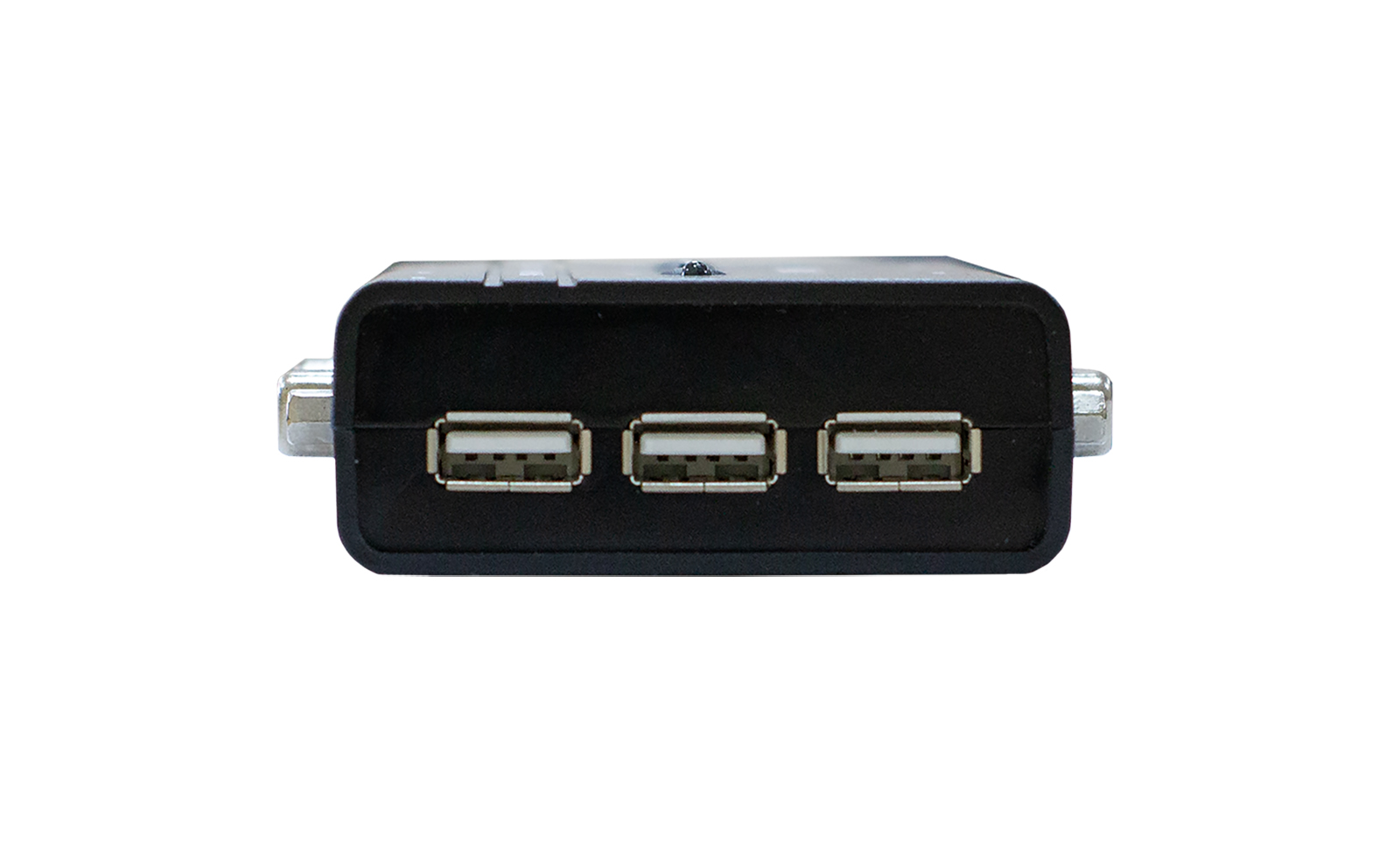

• USB Type-A port
|
|
LEDs
|
• 4 port LEDs for connected PCs
|
|
Buttons
|
• 4 port switching buttons
|
|
Casing
|
• Plastic
|
|
Mounting
|
• Desktop
|
|
General Specifications
|
|
|
Connected PCs
|
• 4
|
|
Autoscan
|
• Yes
|
|
Switching between PCs
|
• Switching buttons on the case
• Hot keys
|
|
Sound Notification of Switching
|
• Yes
|
|
Resolution
|
• 2048x1536
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 100 x 65 x 27 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• From USB on PC
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -20 to 60 °C
|
|
Humidity
|
• 0% to 80% (non-condensing)
|
|

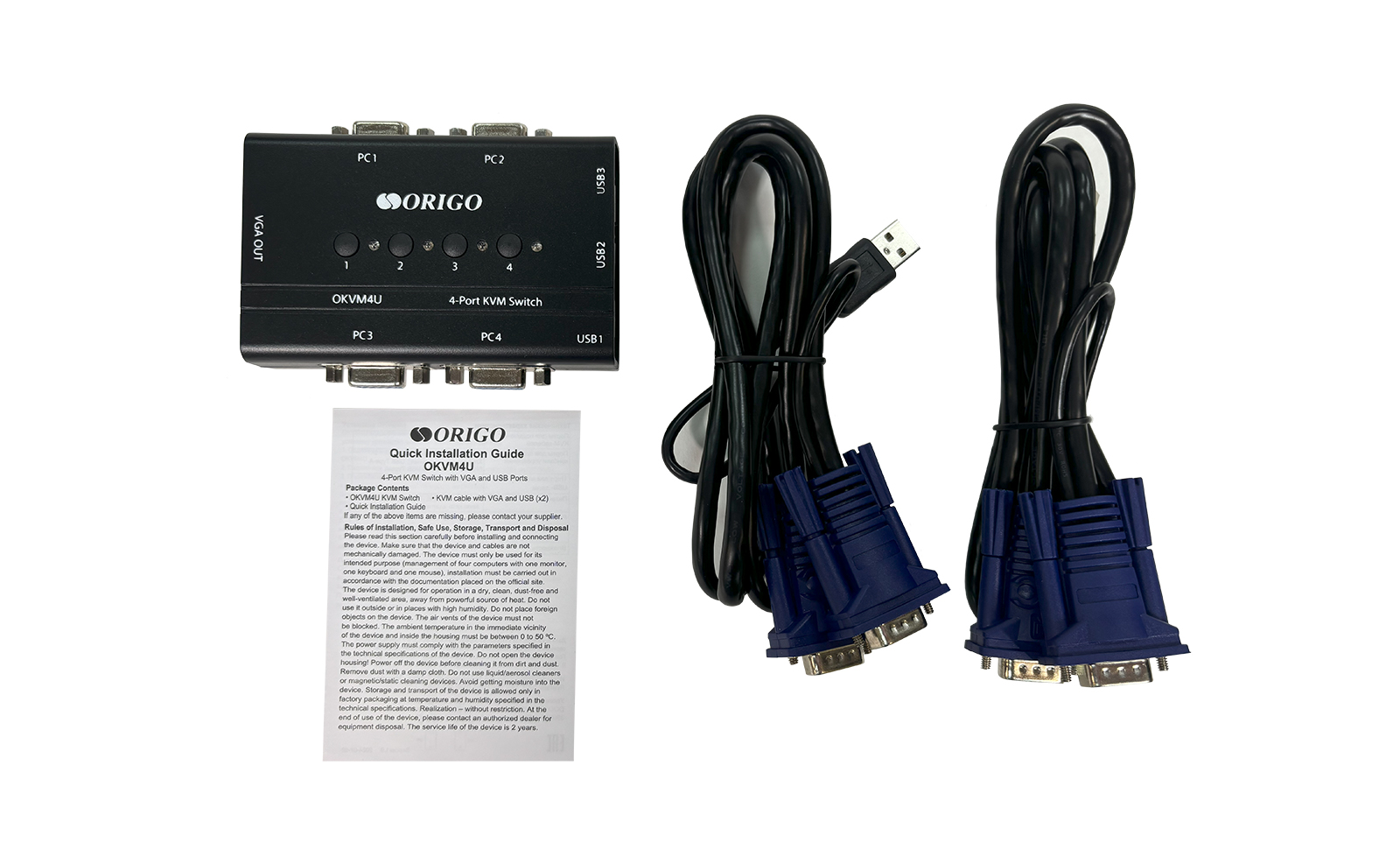

Package Contents
|
|
|
Package Contents
|
• OKVM4U KVM Switch
• 2 x KVM Cables with VGA and USB Connectors, 1.8 m
• Quick Installation Guide
|
|
Optional Accessories
|
|
|
KVM Cables
|
• OKVMCU
• OKVMCU3
• OKVMCU5
|
