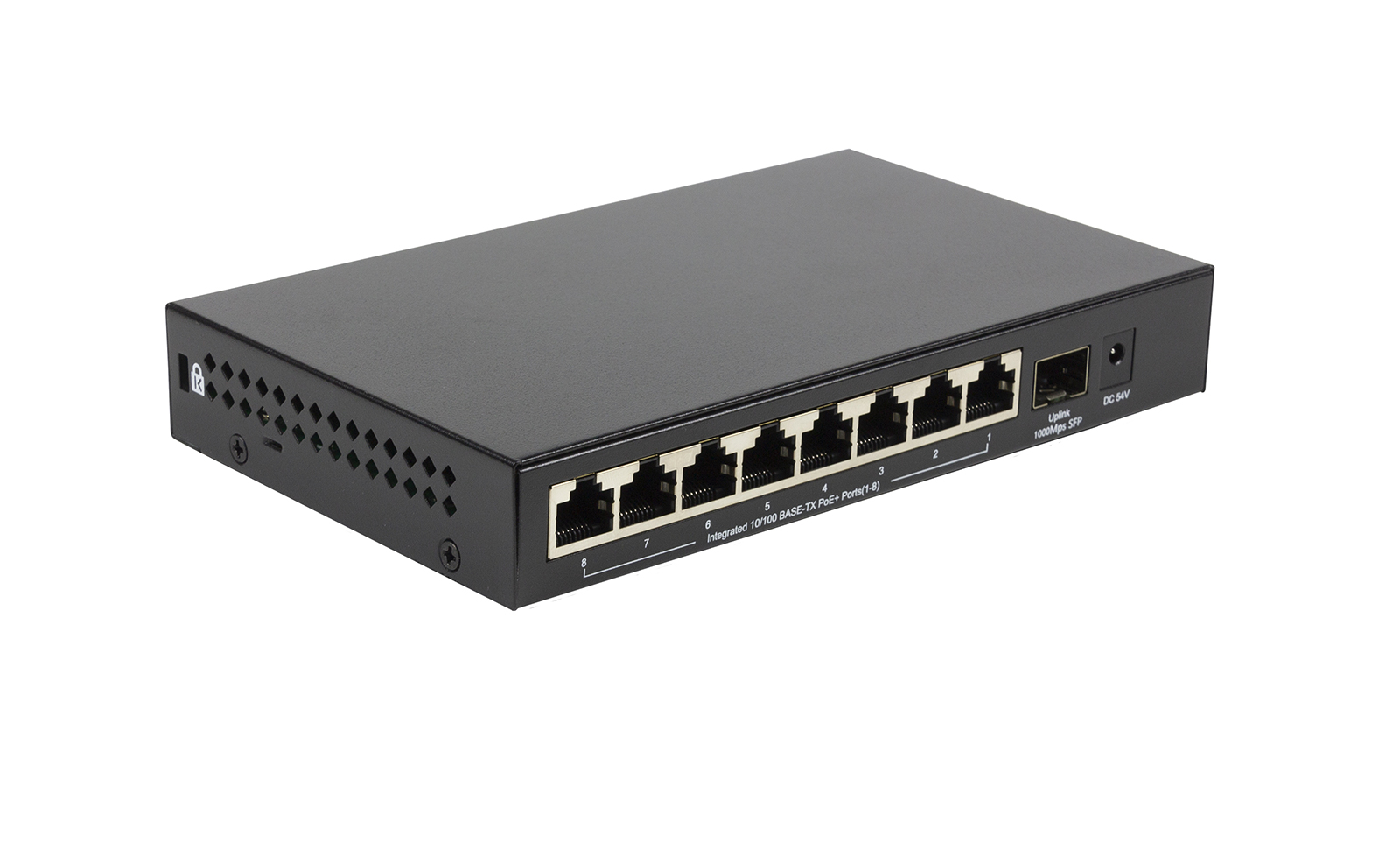

OS1209P/80W
Configurable PoE Switch
8x100Base-TX PoE+, 1x1000Base-X SFP,
80W PoE Budget, DIP Switch
- 8x10/100Base-TX 802.3af/at PoE ports
- 1x1000Base-X SFP uplink port
- Total PoE power budget: 80 W
- VLAN Isolation to isolate PoE ports traffic
- Mode configuration via DIP switch
- LEDs to monitor PoE power consumption
- Silent operation
- Wall mountable
Description
The OS1209P/80W is a configurable switch with 8x100Base-TX PoE+ ports, 1x1000Base-X SFP uplink port and a DIP Switch.
The ORIGO OS1209P/80W switch is a safe and easy decision recommended for organization of remote power supply to surveillance cameras, wireless access points, IP phones and other PoE devices.
The ports 1-8 support 802.3af/at PoE standards, providing up to 30 W per each port and PoE budget of 80 W. VLAN Isolation can be used to isolate PoE ports traffic and secure data transmission. Operating modes are hardware-configurable via DIP switch.
1000Base-X SFP port provides for safe high-rate connection to the uplink switch via fiber.

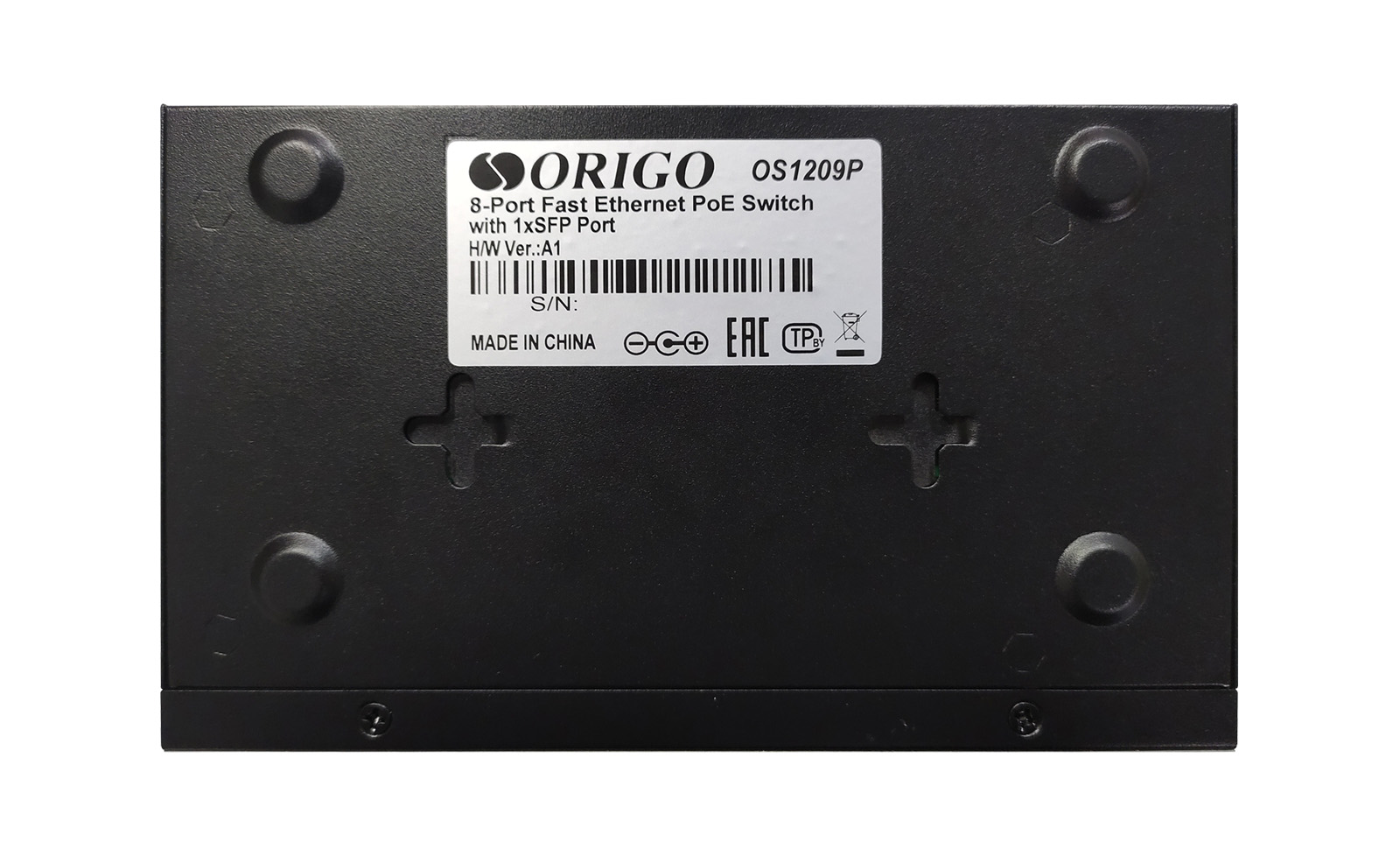

The OS1209P/80W switch is housed in a metal casing with the possibility of wall mounting. The fanless design provides for the silent operation of the device.
Specification
|
Hardware
|
|
|
Chipset
|
• IP179H
|
|
Interfaces
|

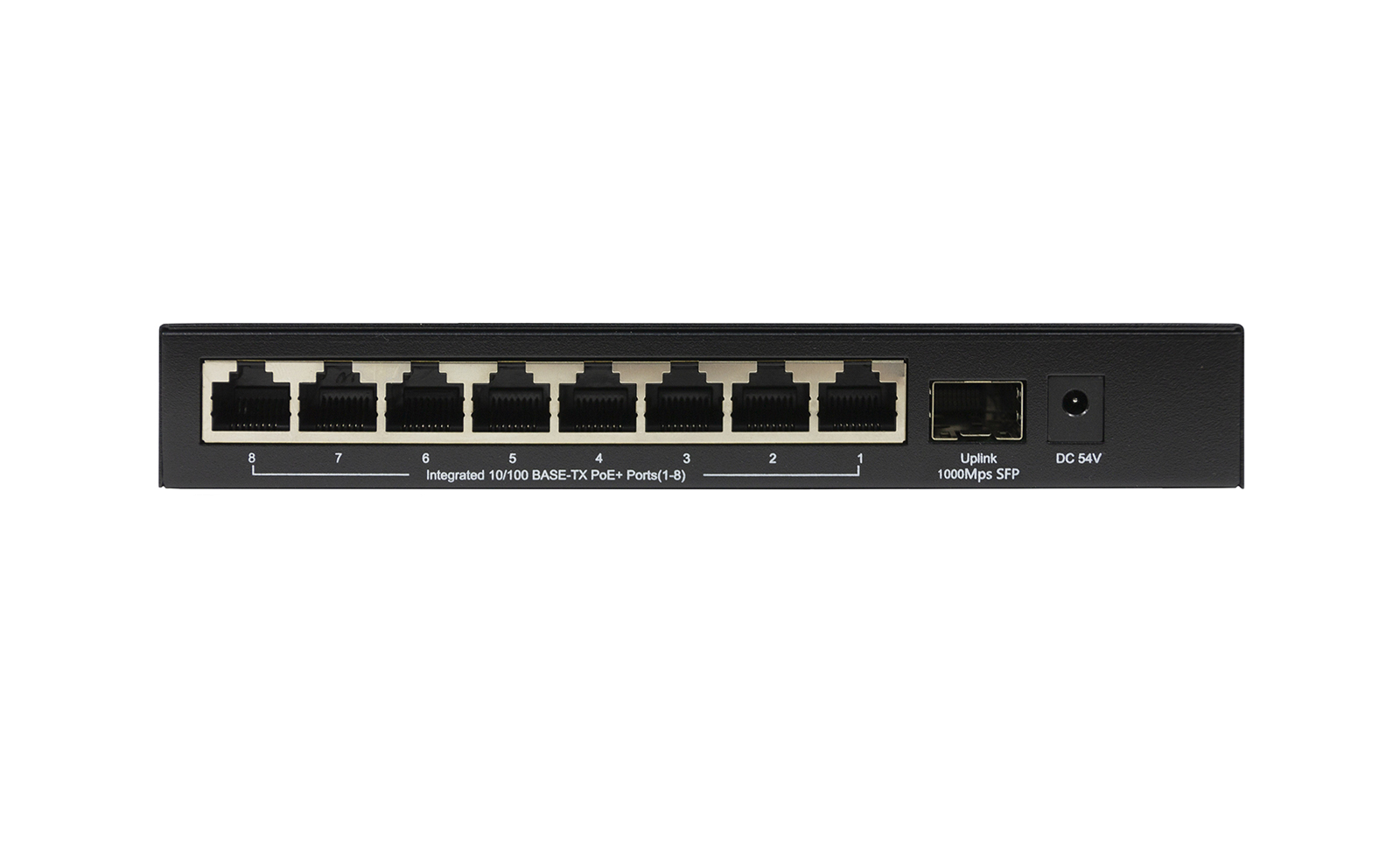

• 8x10/100Base-TX (RJ-45) PoE ports
• 1x1000Base-X SFP port
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3z 1000Base-X
• IEEE 802.3af PoE
• IEEE 802.3at PoE
• IEEE 802.3az Energy-Efficient Ethernet
• IEEE 802.3x (Flow Control)
• Auto MDI/MDIX
• Autonegotiation of speed and duplex mode
|
|
DIP Switches
|
• Standard Mode
• VLAN Isolation Mode
- Traffic Isolation for PoE ports
• DIP Switch to enter/escape VLAN Isolation Mode
|
|

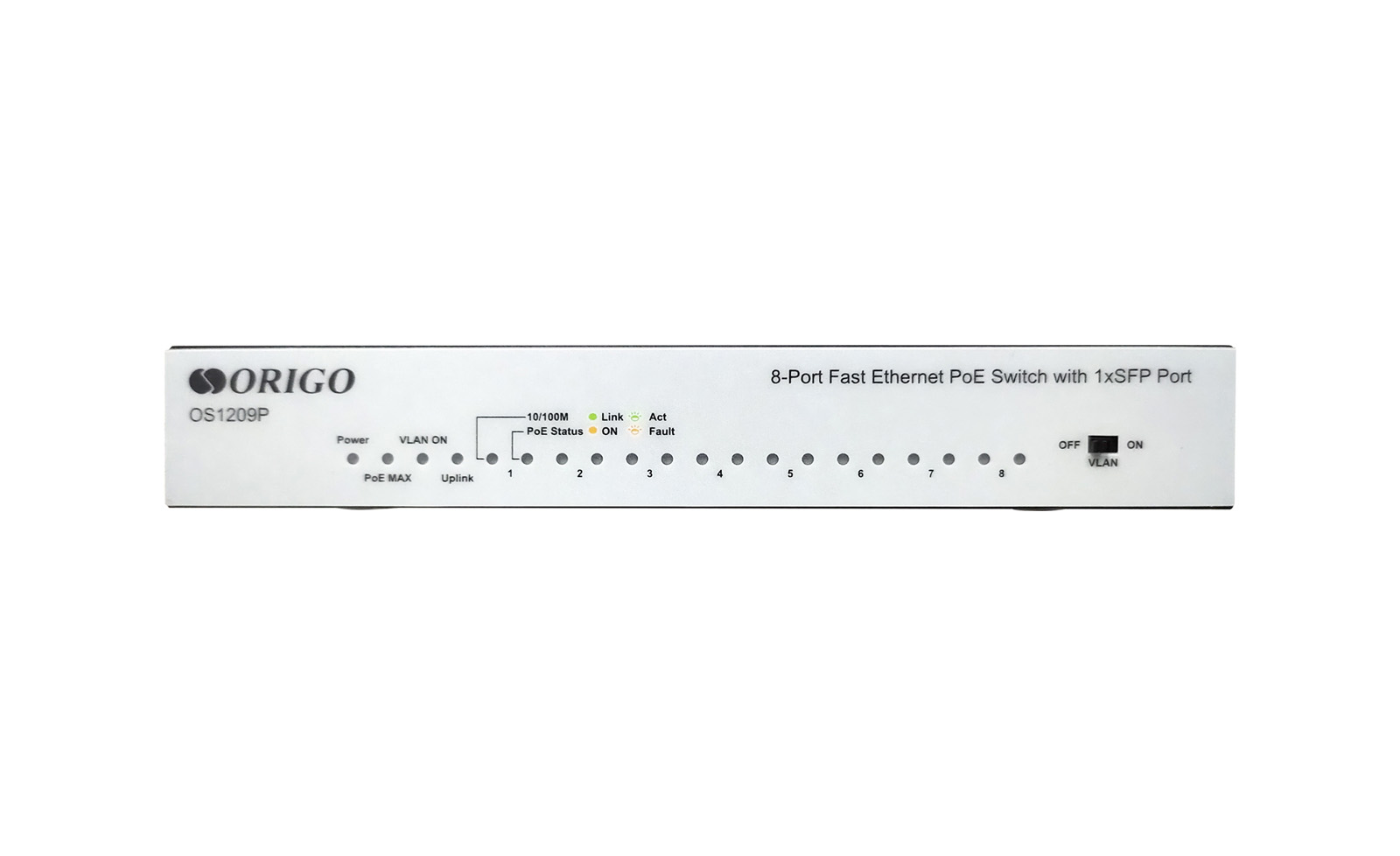

LEDs
|
• Power
- On – power on state
- Off – power off state
• Uplink
- Always green – 1000Mbps connection
- Flickers green – data pass
- Always yellow – 10/100Mbps connection
- Flickers yellow – data pass
- Off – no connection
• VLAN Enable
- Always green – VLAN Isolation on
- Off – Standard Mode
• Link (port 1 – 8)
- Always green – 10/100Mbps connection
- Flickers green – data pass
- Off – no connection
• PoE (port 1 – 8)
- Always yellow – PoE device is connected
- Flickers yellow – connection error
- Off – PoE device is not connected
• PoE MAX
- Always yellow – PoE power budget is exceeded
- Off – PoE power budget is not exceeded
|
|
Power
|
• Power adapter input (DC)
|
|
Ventilation
|
• Fanless
|
|
Case
|
• Metal
|
|
Mounting
|
• Desktop
• Wall
|
|
Capacity
|
|
|
Switching Capacity
|
• 3.6 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 2K entries
|
|
Packet Forwarding Rate
|
• 2.67 Mpps
|
|
Packet Buffer
|
• 512 Kb
|
|
Jumbo Frame
|
• 1 532 bytes
|
|
PoE
|
|
|
PoE Standard
|
• IEEE 802.3af
• IEEE 802.3at
|
|
PoE Ports
|
• 1-8
|
|
Max. Power Consumption per Port
|
• 30 W
|
|
PoE Power Budget
|
• 80 W |
PoE Mode |
• Type A |
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 175 x 105 x 27 mm
|
|
Weight
|
• 0.38 kg
|
|
Package Size
|
• 20.8 х 23 х 6.5 cm
|
|
Gross Weight
|
• 1 kg
|
|
Operating Conditions
|
|
|
Power
|
• Power Adapter:
- Input: 100-240 V AC, 50/60 Hz
- Output: 54 V DC
|
|
Max. Input Power
|
• 93 W (PoE on)
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
|
|

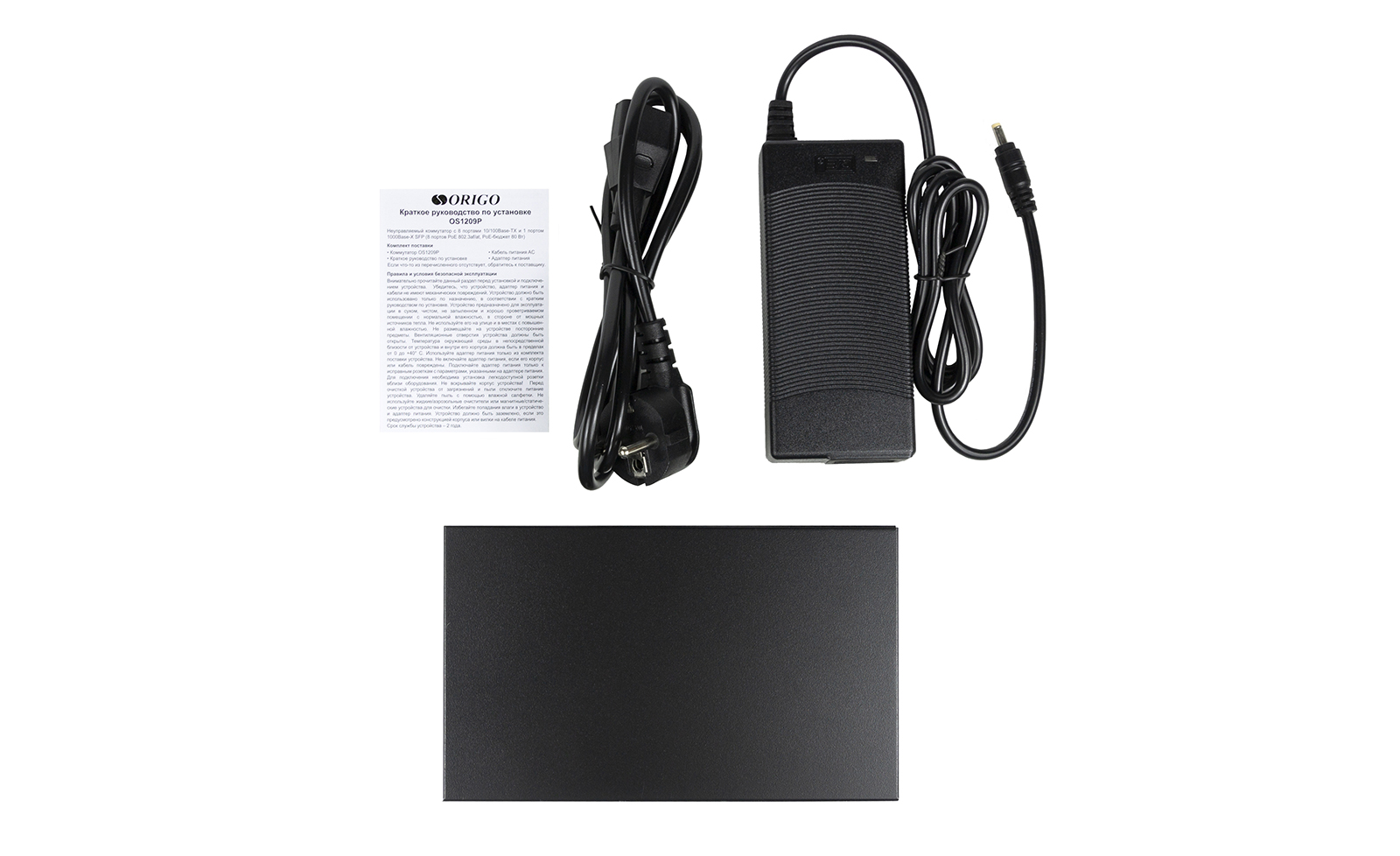

Package Contents
|
|
|
Package Contents
|
• OS1209P/80W Switch
• Power Adapter
• AC Power Cord
• Quick Installation Guide
|
