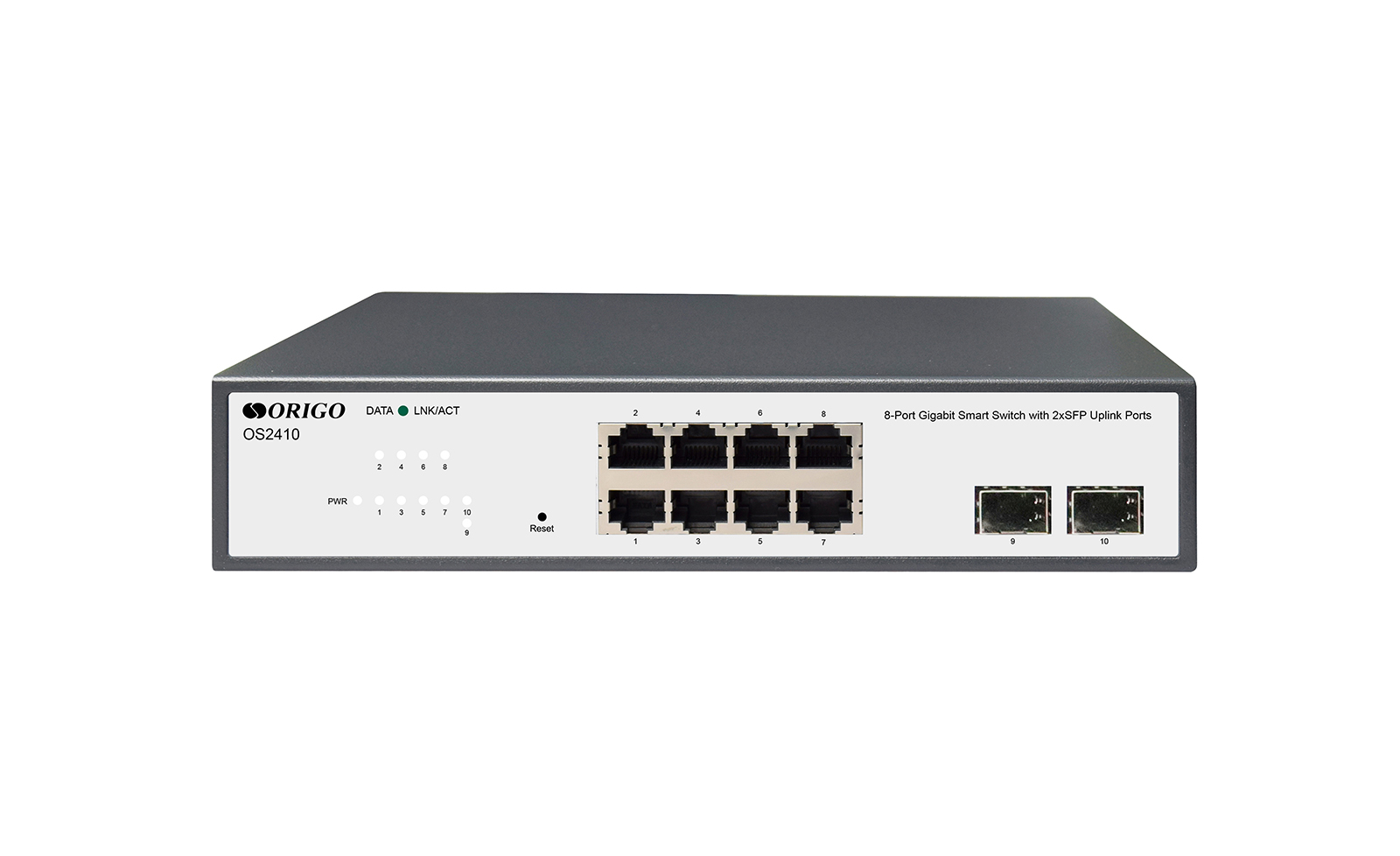

OS2410
Web Smart L2 Switch, 8x1000Base-T,
2x1000Base-X SFP
- 8x10/100/1000Base-T ports
- 2x1000Base-X SFP ports
- 802.1Q VLAN, QoS, IGMP Snooping
- Loopback Detection and cable diagnostics
- Web management
- Fanless
- Wall and 19” rack mountable
Description
OS2410 is a Web smart L2 switch with 8x1000Base-T ports and 2x1000Base-X SFP ports.
The ORIGO OS2410 switch is recommended for building of small and medium enterprises' networks that require a modern gigabit solution with Web management functions.
The OS2410 supports traffic separation using 802.1Q VLAN, Loopback Detection, Port mirroring, DHCP Snooping, and QoS for prioritization of latency-sensitive traffic. The storm control feature limits the amount of broadcast, multicast or unknown unicast traffic, blocks or drops packets that are subject to the limit and prevents network congestion. The cable diagnostic function allows you to determine the condition of the twisted pair and the type of cable malfunction.
Specification
|
Hardware
|
|
|
CPU and Memory
|
• CPU: RTL8382L
• Flash: 16 MB
|
|
Interfaces
|
• 8x10/100/1000Base-T (RJ-45) ports
• 2x1000Base-X SFP ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-X
• IEEE 802.1Q (VLAN)
• IEEE 802.1p (QoS)
• IEEE 802.3x (Flow Control)
• Auto-negotiation of speed and duplex mode
• Auto MDI/MDIX on all copper ports
|
|
LEDs
|
• Power
- On – power on state
- Off – power off state
• Link/Act (Ports 1 – 10)
- Always bright – terminal device is connected
- Flicker – data pass
- Off – no connection
|
|
Buttons
|
• Reset
|
|
Ventilation
|
• Fanless
|
|
Power
|

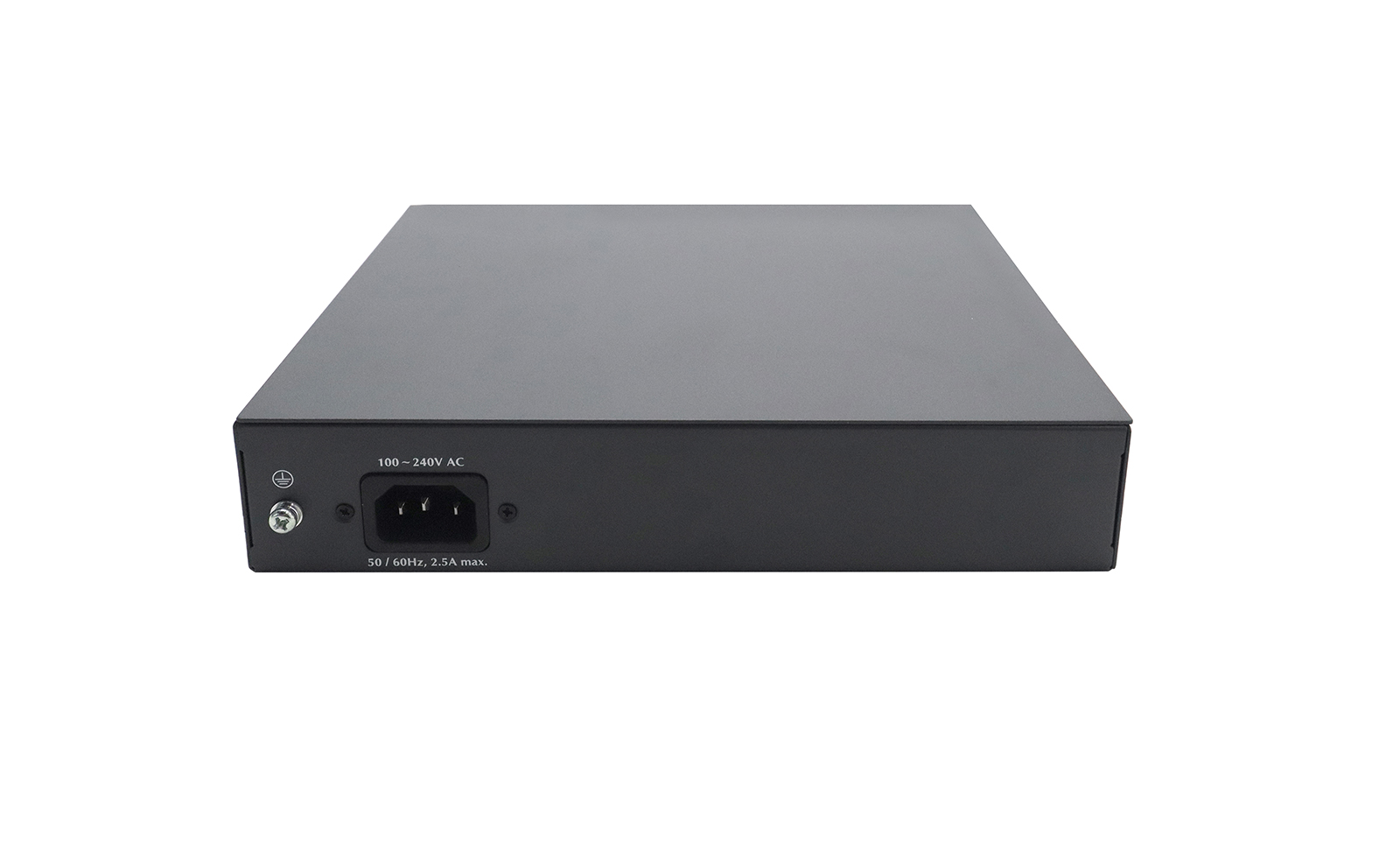

• Power connector (AC)
|
|
Mounting
|
• Desktop

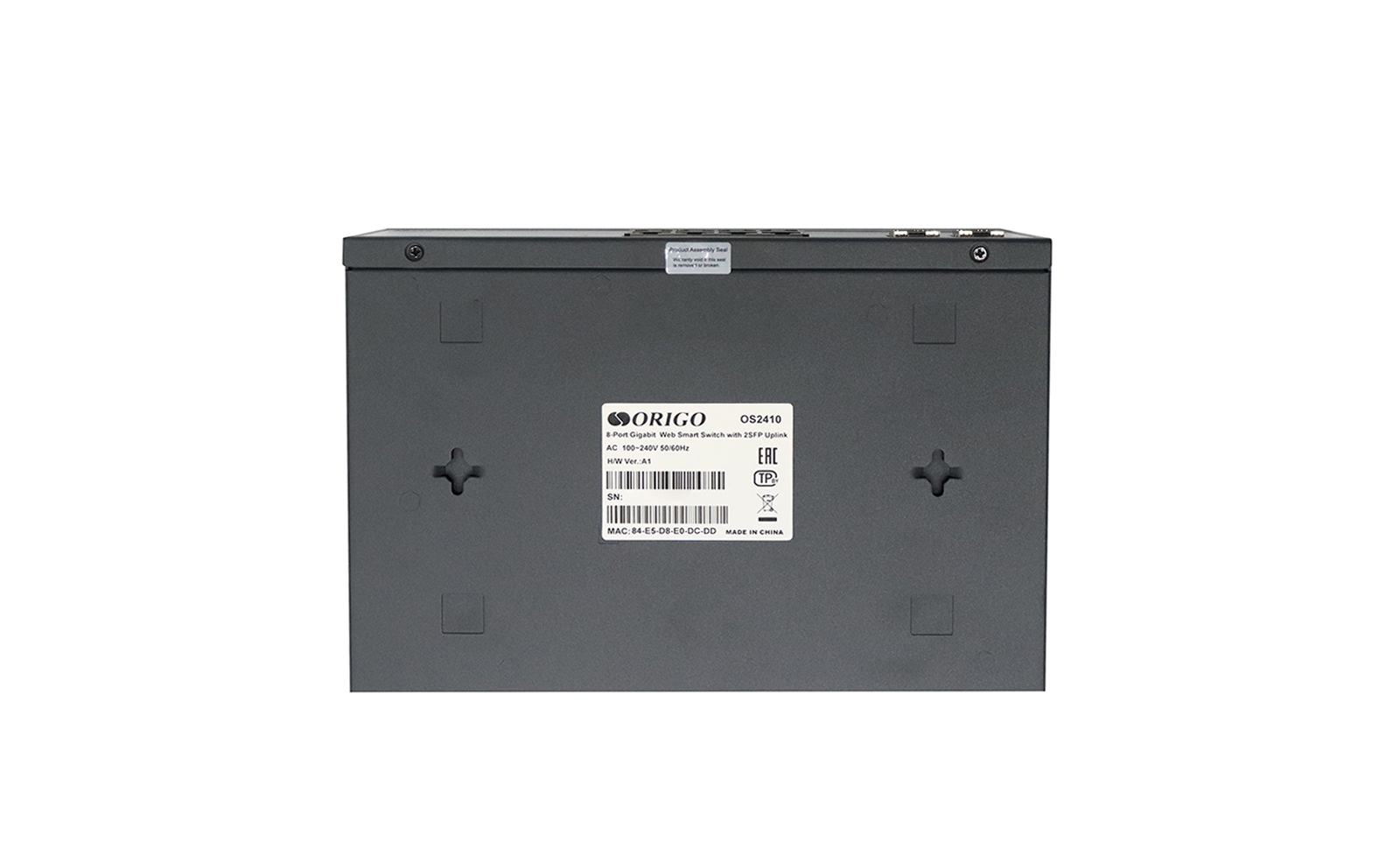

• Wall
• 19'' rack
|
|
Capacity
|
|
|
Switching Capacity
|
• 20 Gbps
|
|
Packet Forwarding Rate
|
• 14.88 Mpps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 8К entries
|
|
Packet Buffer
|
• 512 KB
|
|
Jumbo Frame
|
• 9 216 bytes
|
|
Software
|
|
|
L2 Features
|
• Flow Control
• Port mirroring
- One-to-One
- Many-to-One
- Ingress, egress, both
• Loopback Detection
• Cable diagnostics
|
|
L2 Multicast
|
• IGMP Snooping
- IGMP v1/v2
- Supports up to 10 groups
|
|
VLAN
|
• 802.1Q tagged VLAN
|
|
QoS
|
• 802.1p
• Supports up to 8 queues per port
• DSCP
• Queue handling
- Strict Priority (SP)
- Weighted Round Robin (WRR)
• Port-based bandwidth control
|
|
Security
|
• Static MAC addresses
• Storm Control
• Traffic Segmentation
• DHCP Snooping
|
|
Management
|
• Web-based UI
|
|
Physical Parameters
|
|
|
Dimensions
(L x W x H) |
• 220 x 150 x 44 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• 100-240 V AC, 50/60 Hz
|
|
MTBF (hours)
|
• 50 000
|
|
Surge Protection
|
• ± 2 kV (common mode)
• ± 1 kV (differential mode)
|
|
Electrostatic Discharge (ESD) Protection
|
• Contact discharge: ± 6 kV
• Air discharge: ± 8 kV
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OS2410 Switch
• Power Cord
• Rack Mount Kit
• Quick Installation Guide
|
