OS2216
Configurable Switch
16x1000Base-T, DIP Switch
- 16 x 10/100/1000Base-T (RJ-45) ports with auto speed negotiation
- Auto MDI/MDIX adjustment
- DIP switch for activating the operating modes
- VLAN mode for isolating traffic between ports
- Network Cloning mode for disabling IEEE 802.3x flow control
- Configuring the operating modes with the DIP switch
- Fanless ventilation system
- 19” rack mounting
Description

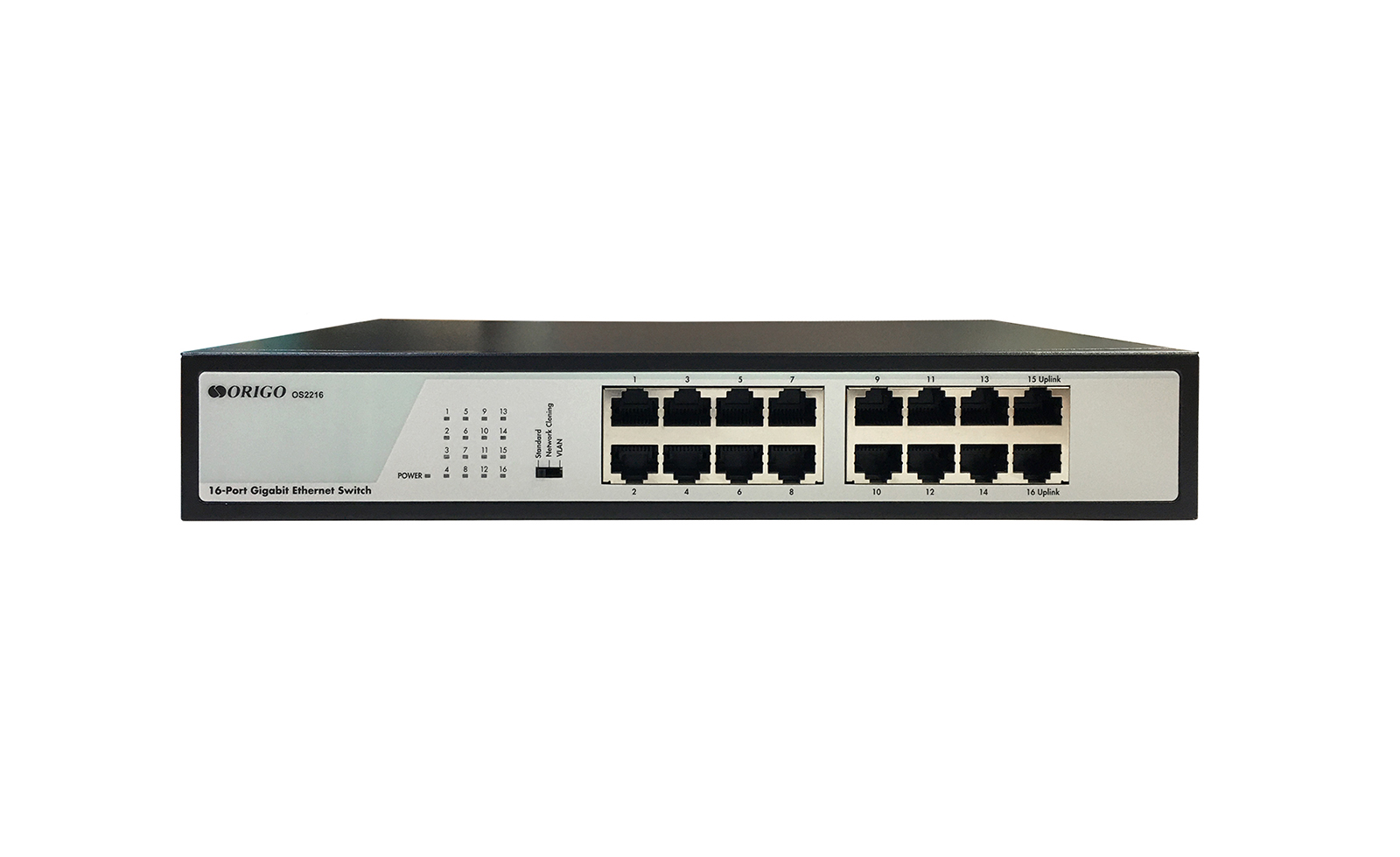

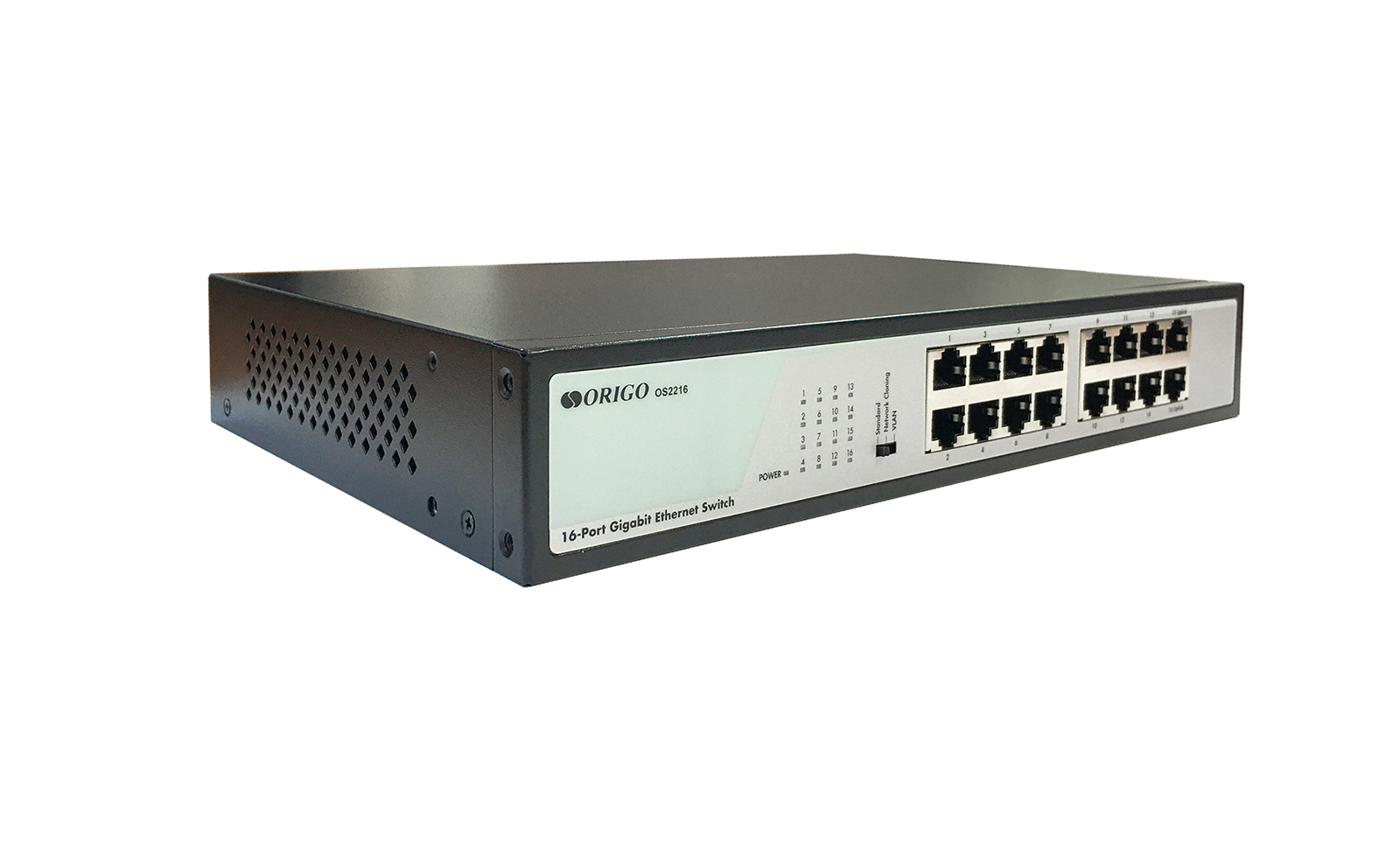

OS2216 is a configurable switch with 16 x 10/100/1000Base-T ports.
The ORIGO OS2216 switch is a modern gigabit solution for connecting workgroups on enterprises, in offices, classrooms and medical facilities.
The OS2216 switch supports enhanced functions for configurable switch such as traffic control and ensuring network secure operation. All the functions can be activated with the DIP switch on the casing.
VLAN Mode allows to provide traffic segmentation for connected devices and ensure security of transmitted data.
In Network Cloning Mode, traffic can be transmitted between all ports of the switch, while IEEE 802.3x Flow Control is disabled.
The modes are configured in hardware with the DIP switch.
All ports support auto MDI/MDIX adjustment and detect the type of connected cable automatically.
Auto negotiation function allows the switch to select maximum possible connection speed for connected device and activate duplex mode.
The switch requires no configuration and is ready for operation immediately after connecting power. The 19” rack mounting kit is included.
Specification
|
Hardware
|
|
|
Chipset
|
• EN8853D
|
|
Interfaces
|
• 16 x 10/100/1000Base-T (RJ-45) ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3x (Flow Control)
• Auto MDI/MDIX adjustment on all ports
|
|
DIP Switch Operating Modes
|
• Standard
- Transmitting traffic between all ports
- IEEE 802.3x Flow Control
• Network Cloning
- IEEE 802.3x Flow Control is disabled on all ports
• VLAN
- Traffic isolation for ports 1-14
- IEEE 802.3x Flow Control
|
|
LEDs
|
• Power
- Always bright green - Power on state
- Off – Power off state
• Link/Act (ports 1 – 16)
- Always bright green – Terminal device is connected
- Blinking green - Data pass
- Off – No connection
|
|
Power
|

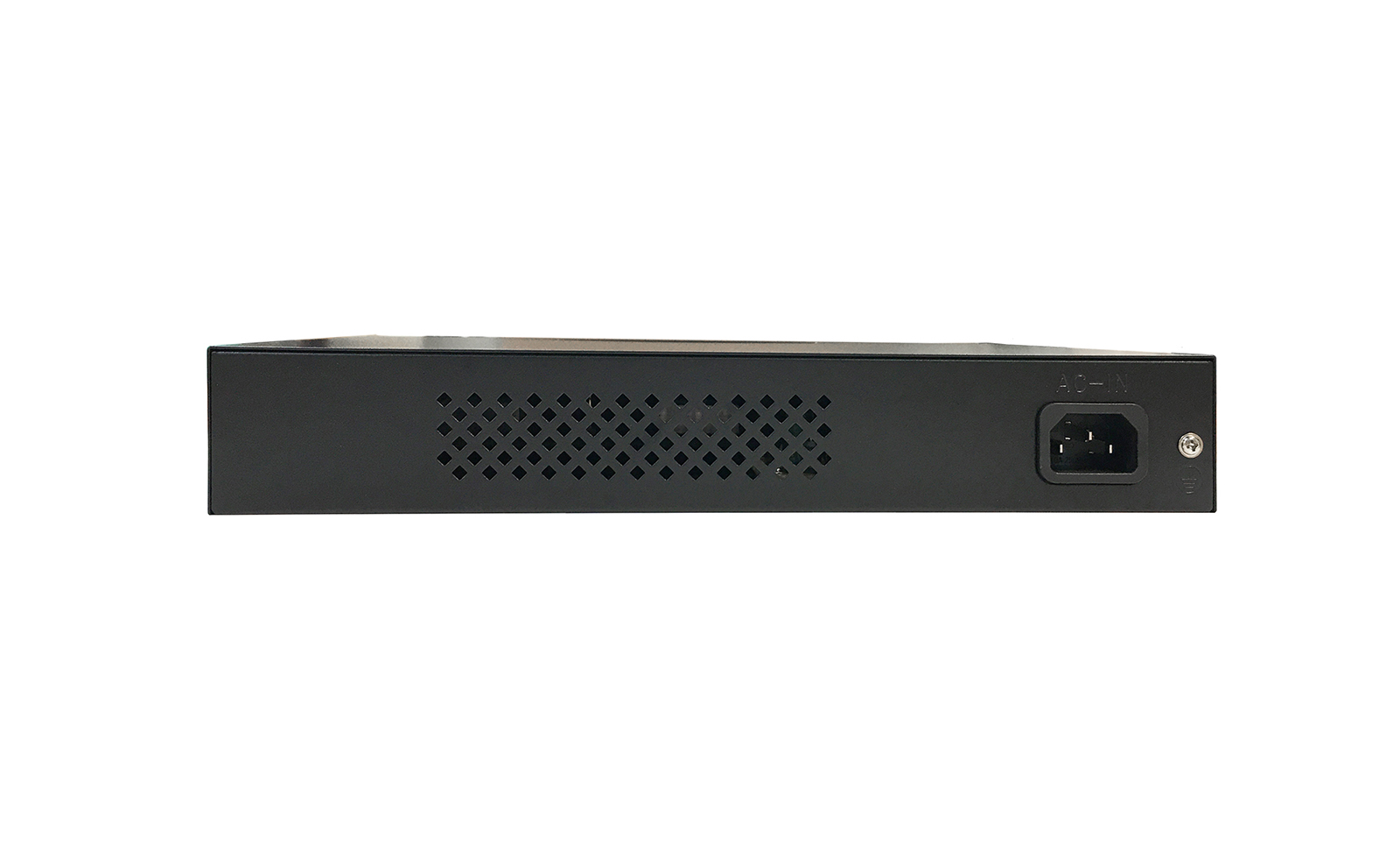

• Power connector (AC)
|
|
Ventilation System
|
• Fanless
|
|
Casing
|
• Metal
|
|
Mounting
|
• Desktop
• 19” rackmount
|
|
Performance
|
|
|
Switching Capacity
|
• 32 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table Size
|
• 8K entries
|
|
Packet Forwarding Rate
|
• 23.8 Mpps
|
|
Packet Buffer
|
• 512 KB
|
|
Jumbo Frame
|
• 15 bytes
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 270 x 181 x 44 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• 100-240 V AC, 50/60 Hz
|
|
Power Consumption
|
• 8.34 W
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OS2216 Switch
• Power Cord
• 19” Rack-Mount Kit
• Quick Installation Guide
|
